Generator gear list

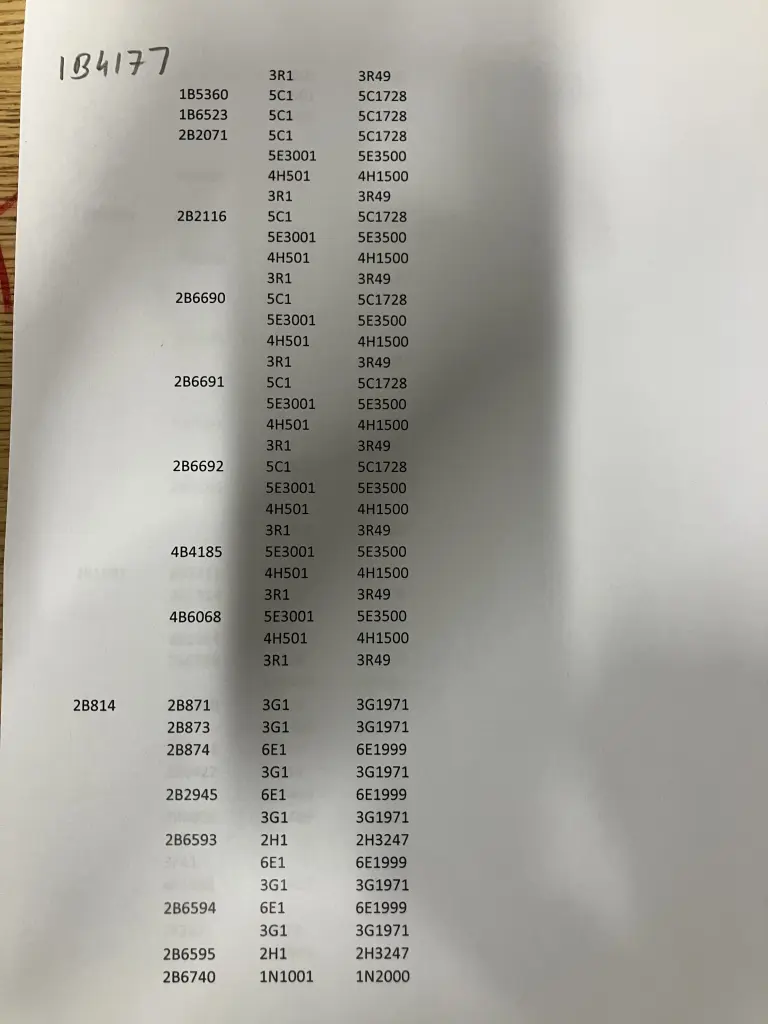

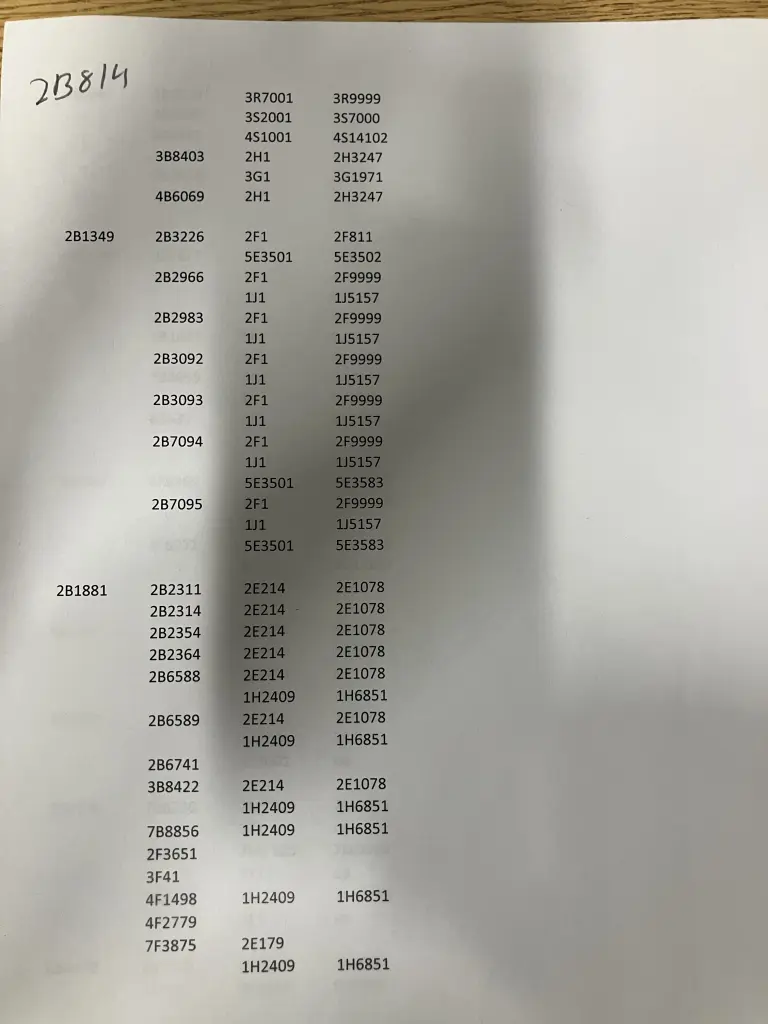

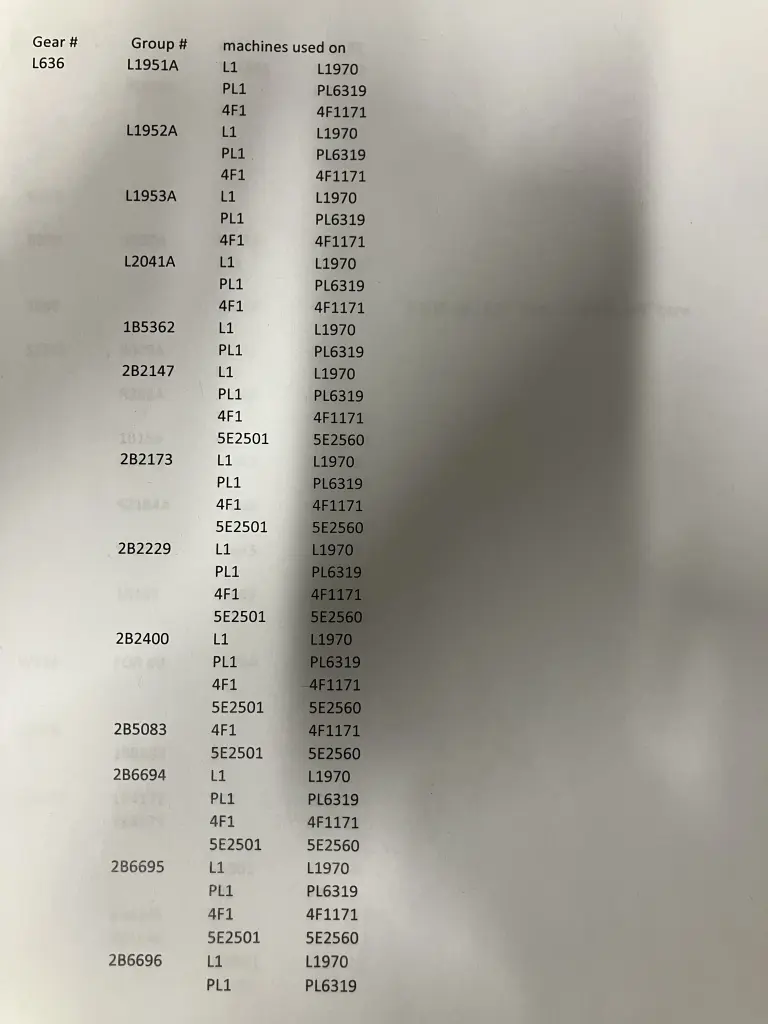

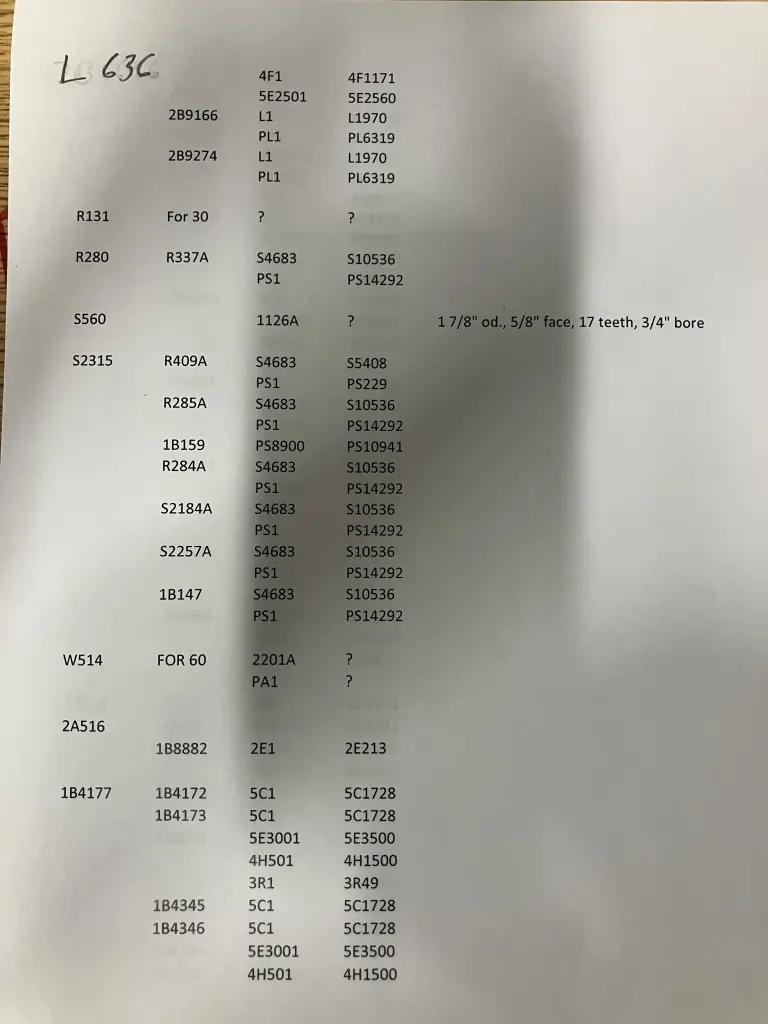

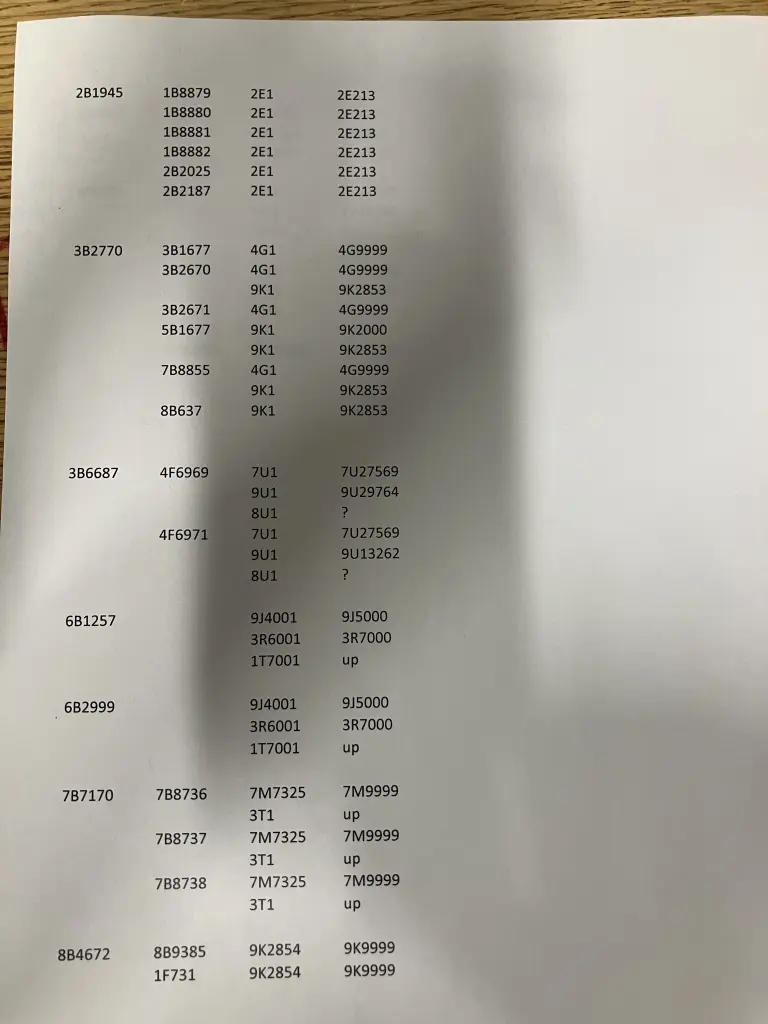

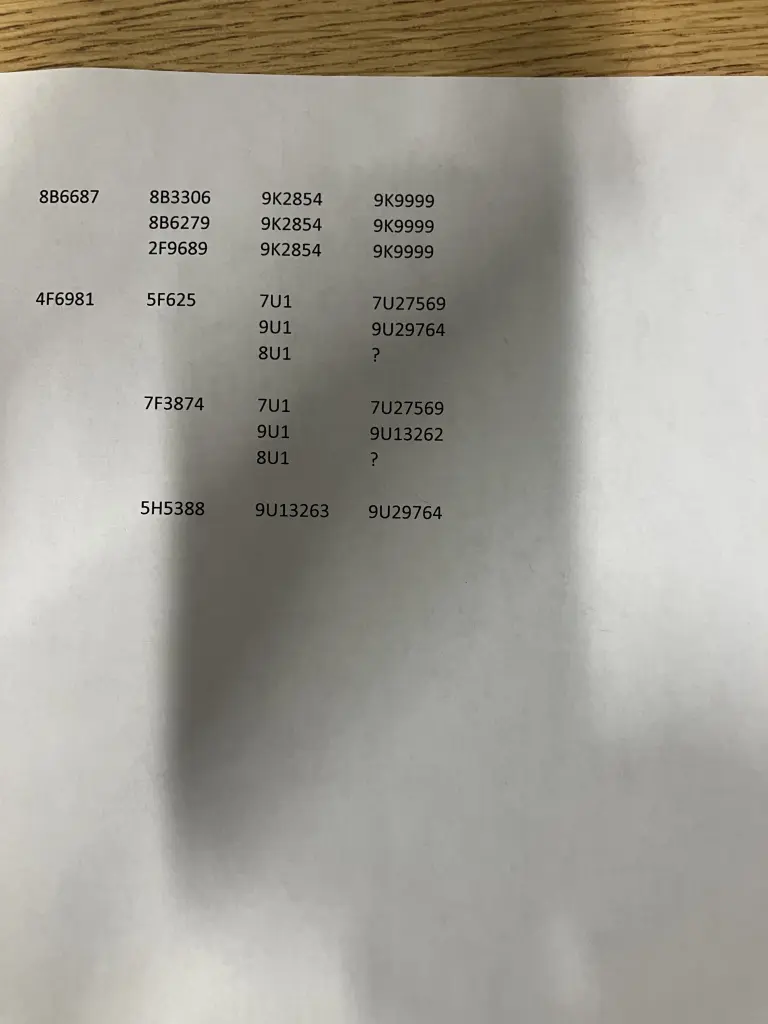

Early last week, I started to put a list together of some of the different generator gears. This list has not been proofed nor is it complete. I have a bunch of my parts books that I need to find yet and add the information from them. I also hope to add pictures of the gears I have to the list in the future. The first column is the gear number, Second column is the lighting, starting or generator group number, and the third column is the serial numbers that the group number was used on.

It would be nice if we could post PDFs or spreadsheets on this website.

Thanks

Ken

Great idea Ken! If Deebo is out there, he is the guy that can make it happen, as he is our "head librarian" sort of speak.

I can't imagine the amount of time and effort it took to compile that list. Thank you sir, JM.

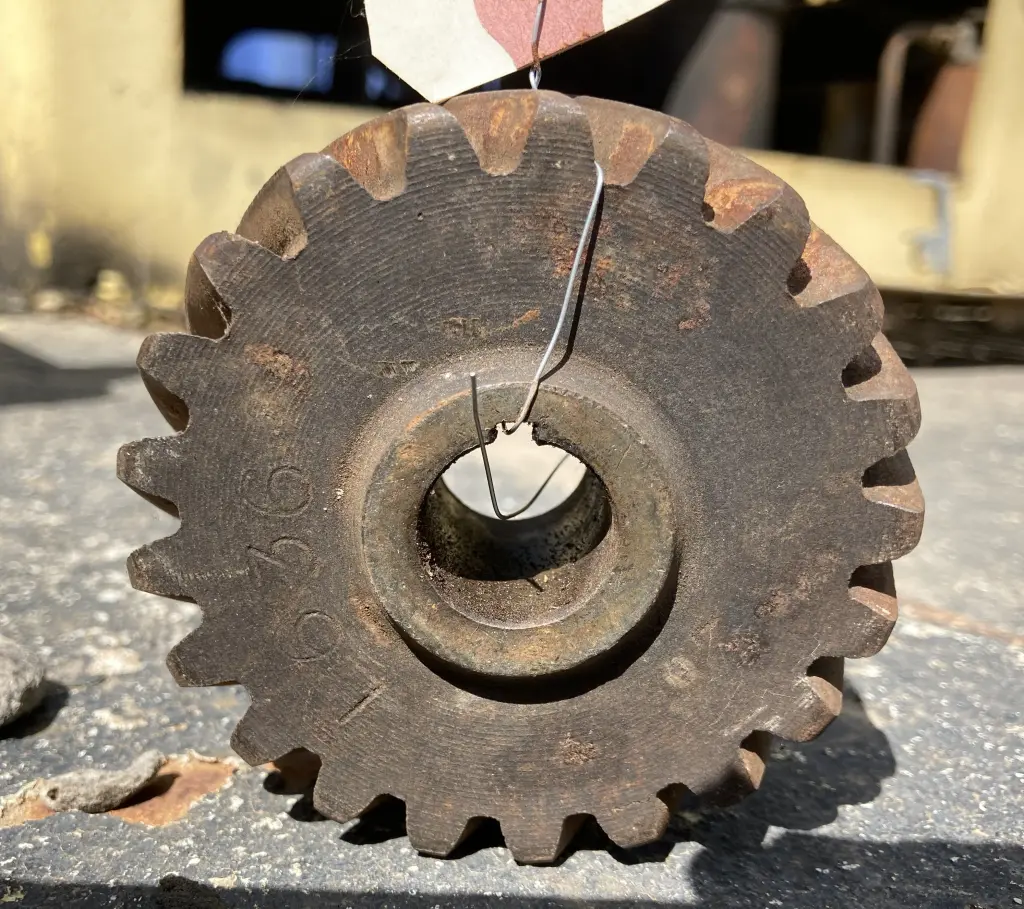

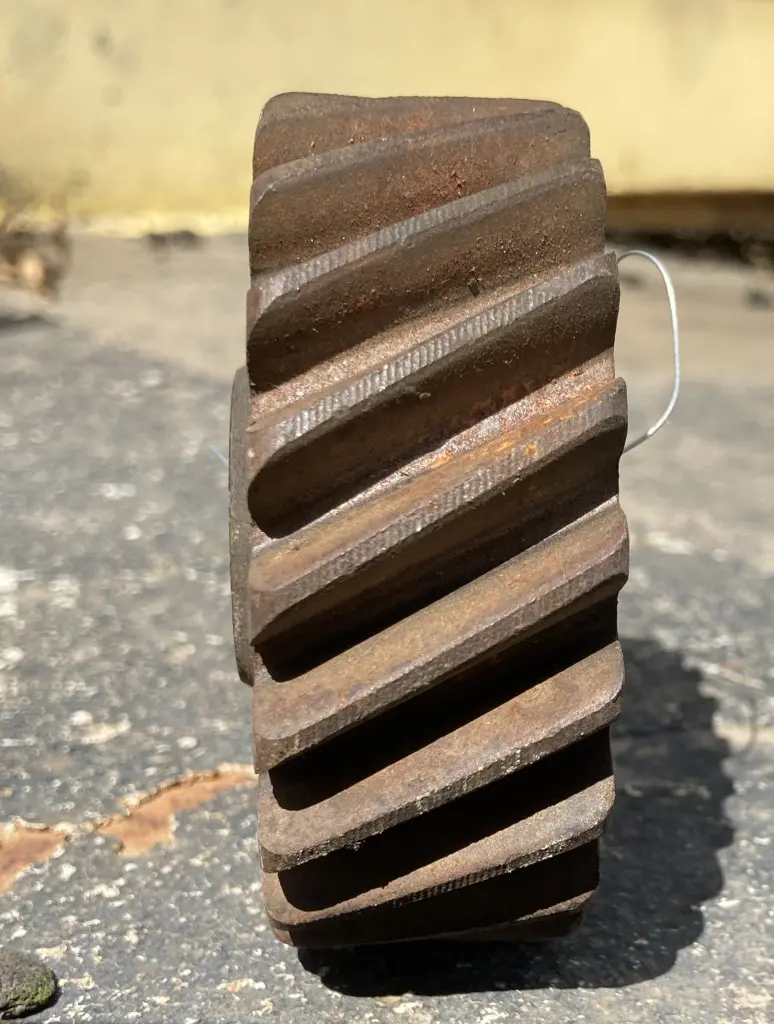

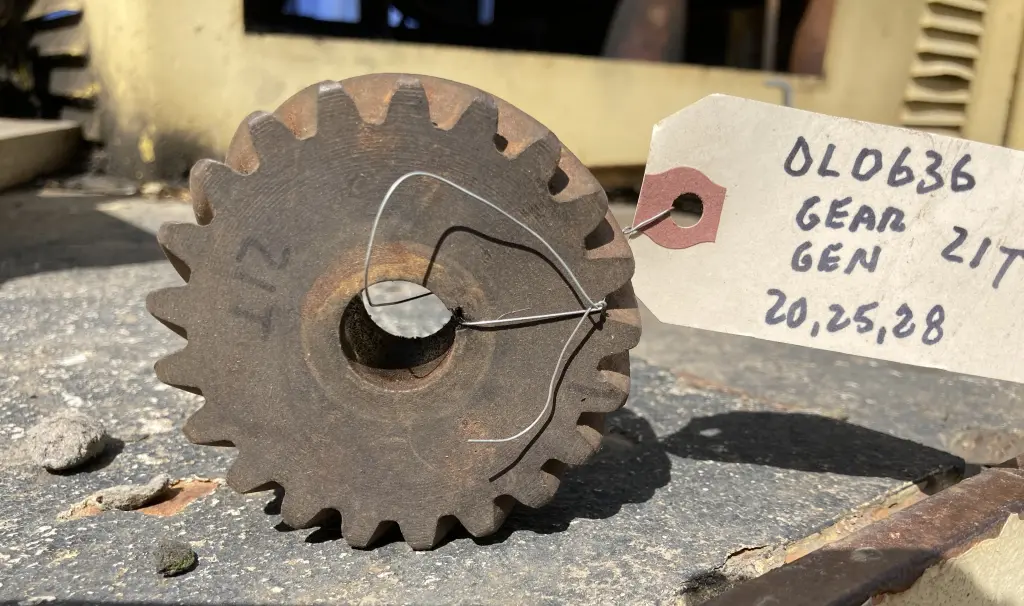

pictures of L636 gear

brian18a, thank you for posting that picture! Would you be interested in selling that gear? If not could you take some measurements for me? Diameter, width of gear, width of gear face to hub face.

Please!

you guys have been such a help I sure appreciate everything.

Also thank you to naylorbros for the list this is more help than you can imagine!

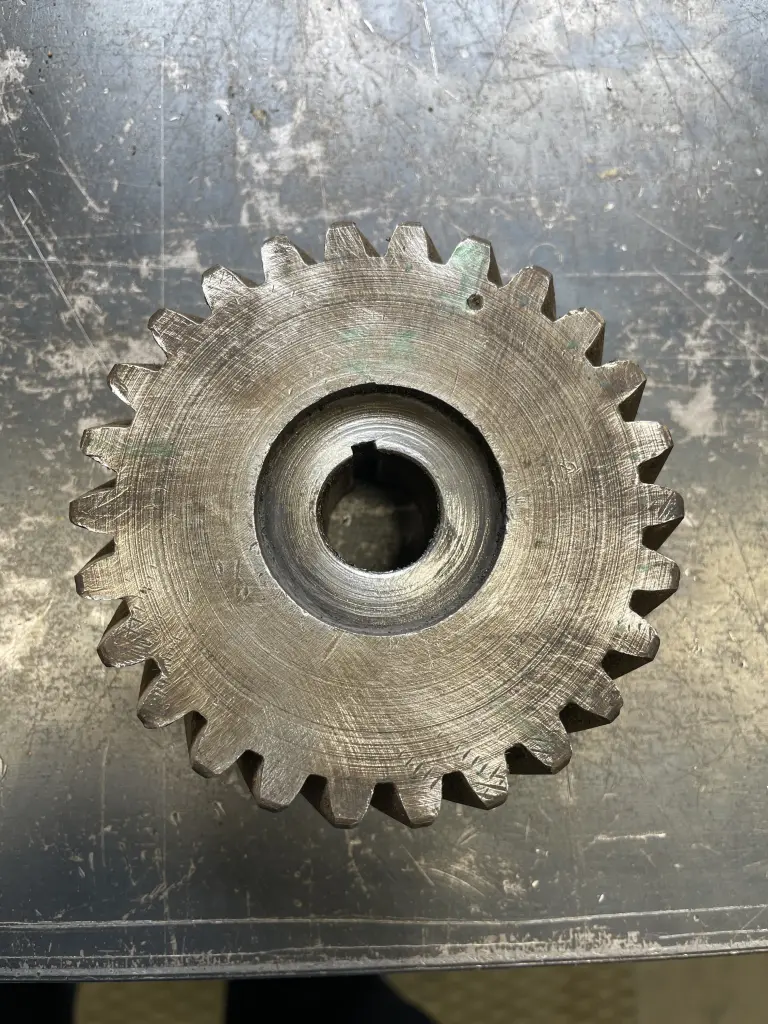

I have a 26 tooth 3B2770 gear I believe if anyone needs one.

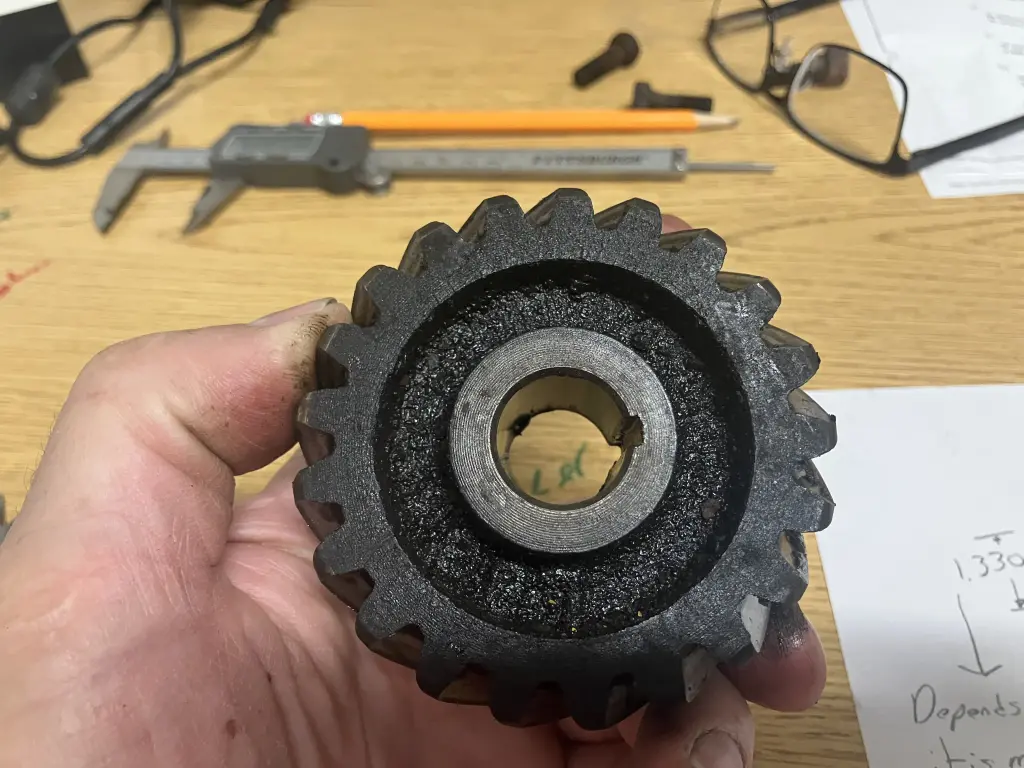

Brian 18A beat me to the pictures. I pulled the generator on the Twenty Eight tonight to get pictures. The one I have is a little different. I will post pictures of it tomorrow.

I see that! Hopefully I can buy one but if not would you mind sharing some measurements. Width, diameter, face of gear to hub.

Thanks again

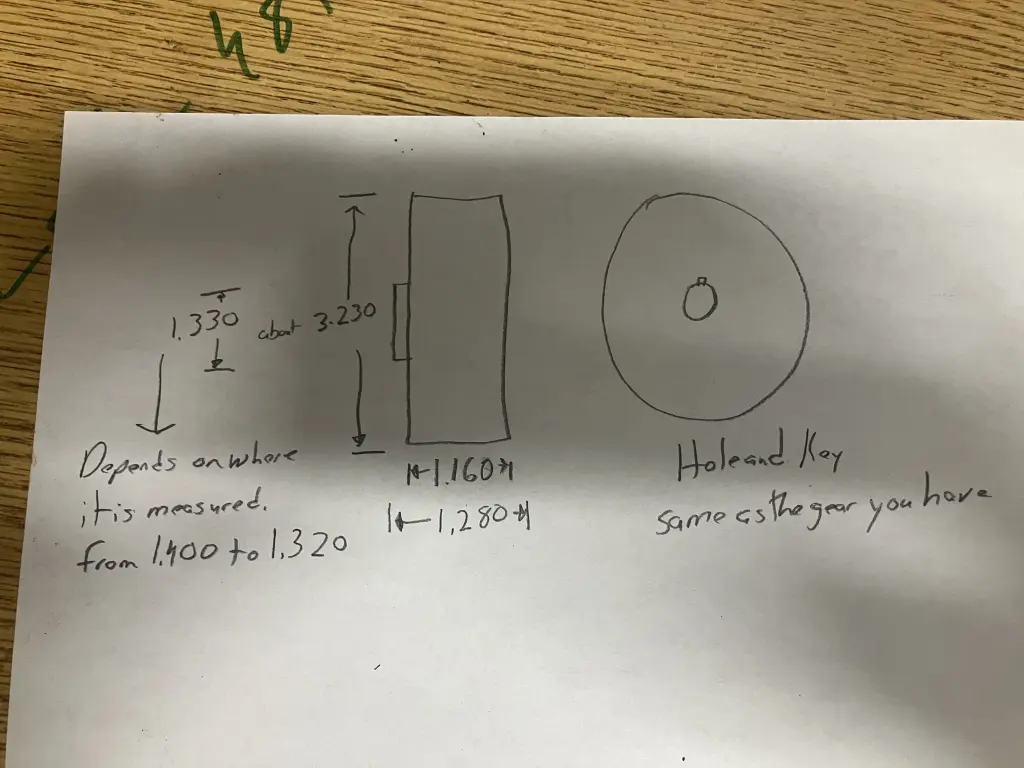

HI! I was not going to take the time to draw it out really nicely. If I were to make one, I would make it like the one in Brian18A's pictures, because I would not want to cut the sunken area on each side. The hole and key way should be the same as the gear you already have. I saw your ad for Twenty Eight parts. I am looking for one jug, with no cracks or repairs and standard size with out any major pitting so that it will clean up when I bore it.

Thanks

Ken

Sorry I don't have any top end parts for sale. I appreciate your measurements, is the 1.330 face of gear to face of hub? So the gear itself is roughly 1” wide?

thank you

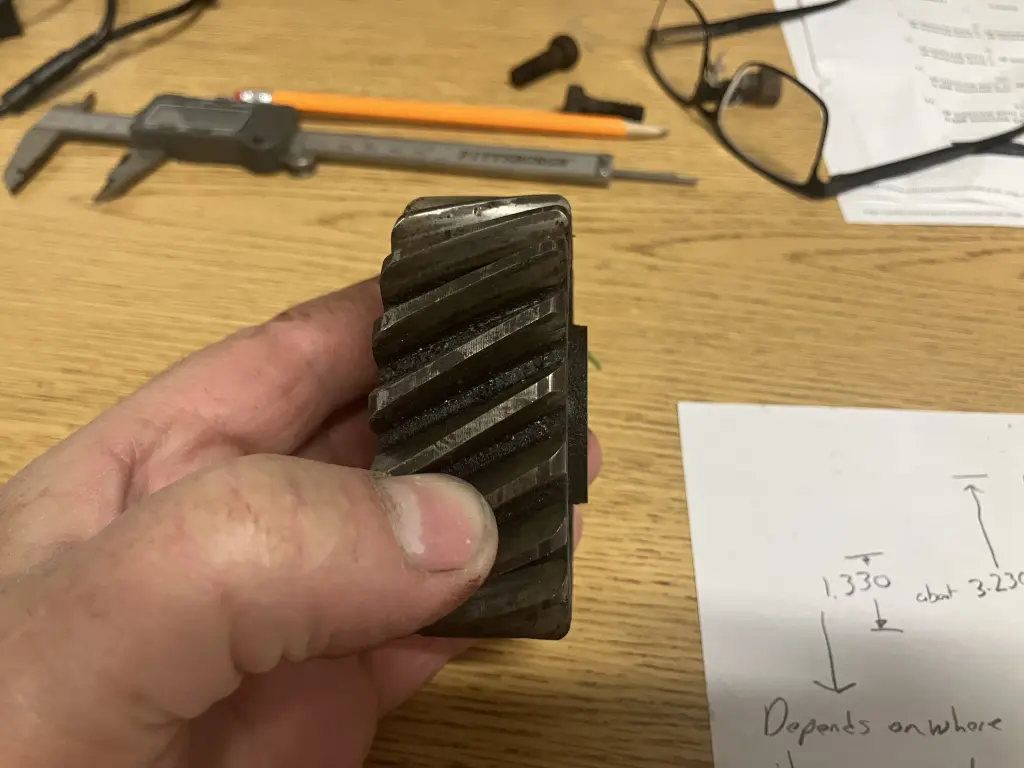

The gear itself is 1.160" wide with an overall width of 1.280 with the small hub that sticks out at the shaft hole. The OD is a touch bigger than I measured because there are not two teeth directly across from each other with the odd number of teeth. The 1.330" is the outside diameter of the small hub, which is at the outside end of the hub. It is a little larger toward the center of the gear. .750" hole with a 5/32" wide key way.
