Hyster D4 Cargo Winch - fits Cat HT4???

Showing 1 to 10 of 14 results

JohnInKY

Topic Author

Offline

Send a private message to JohnInKY

Posts: 8

Thank you received: 0

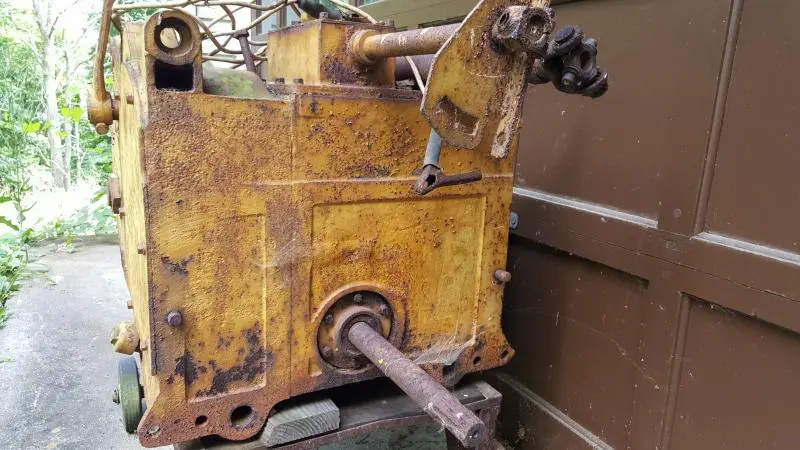

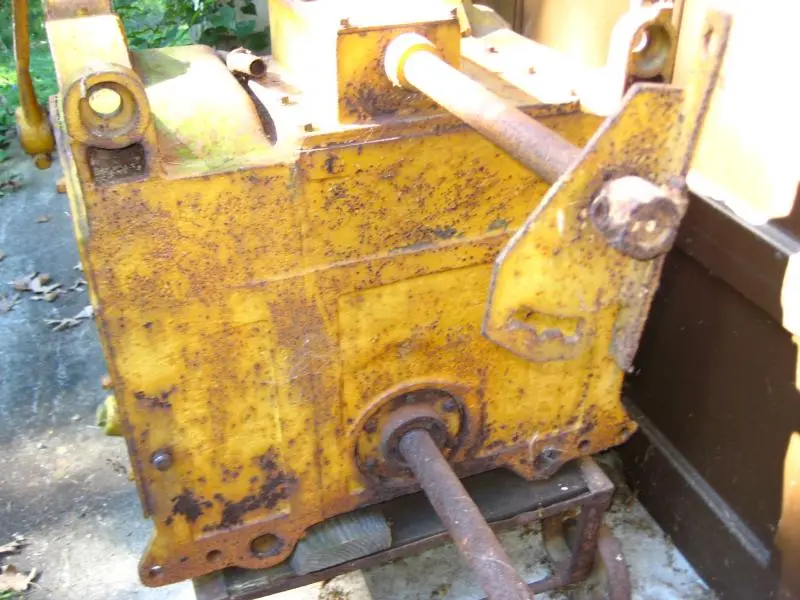

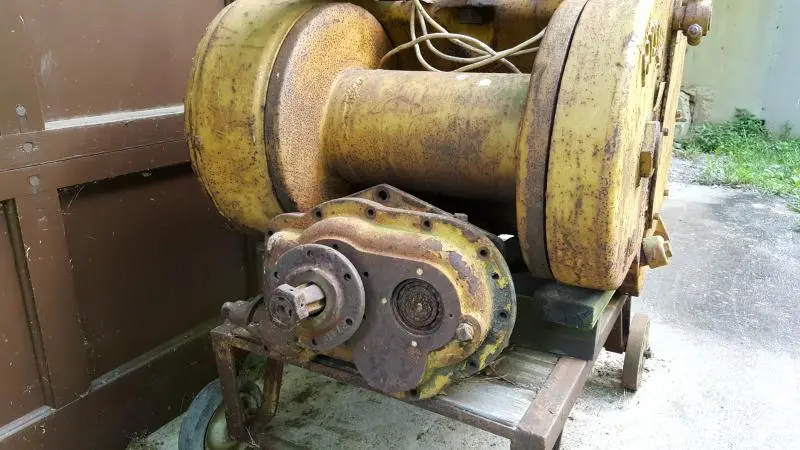

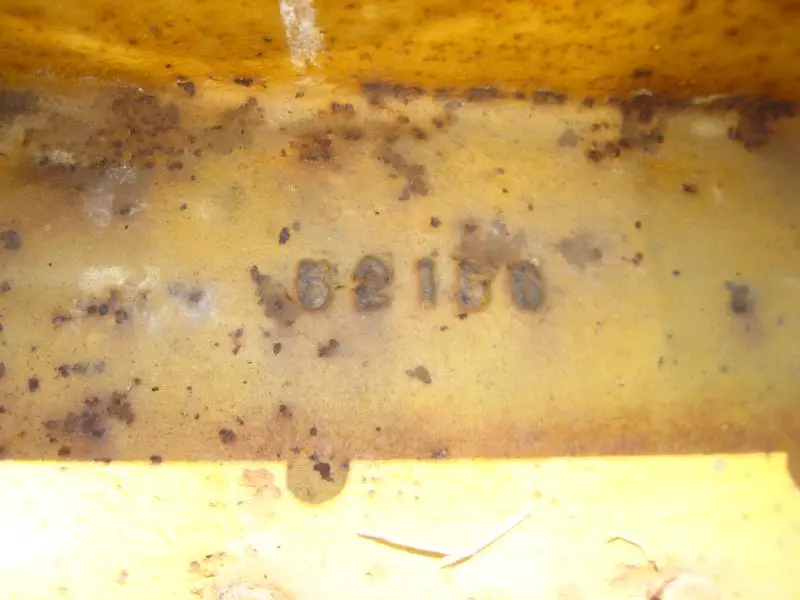

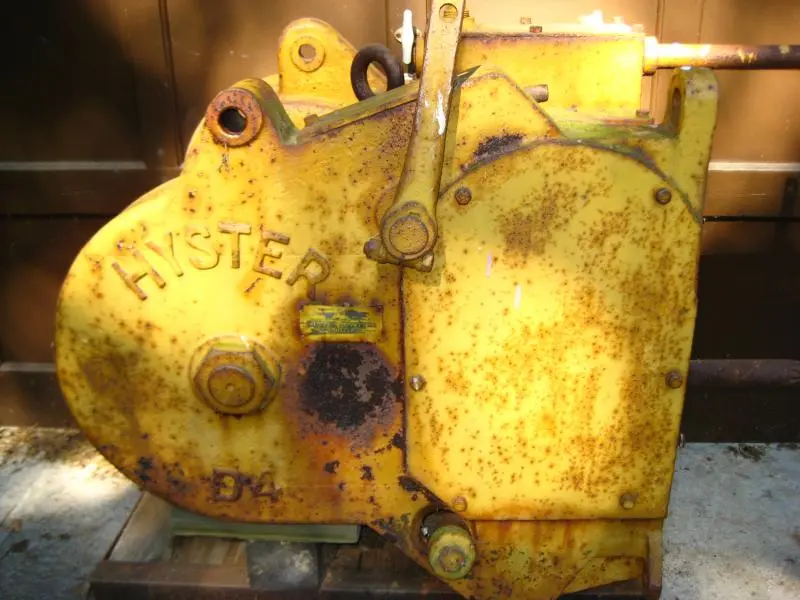

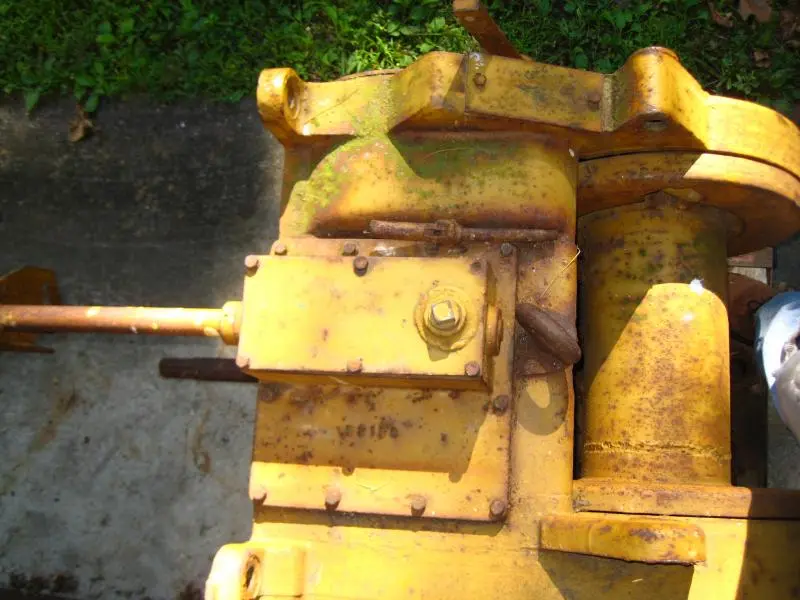

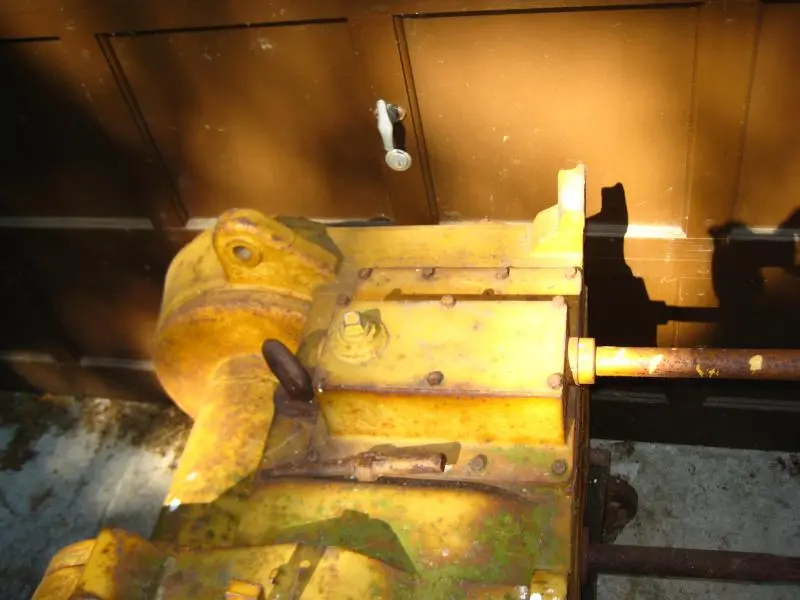

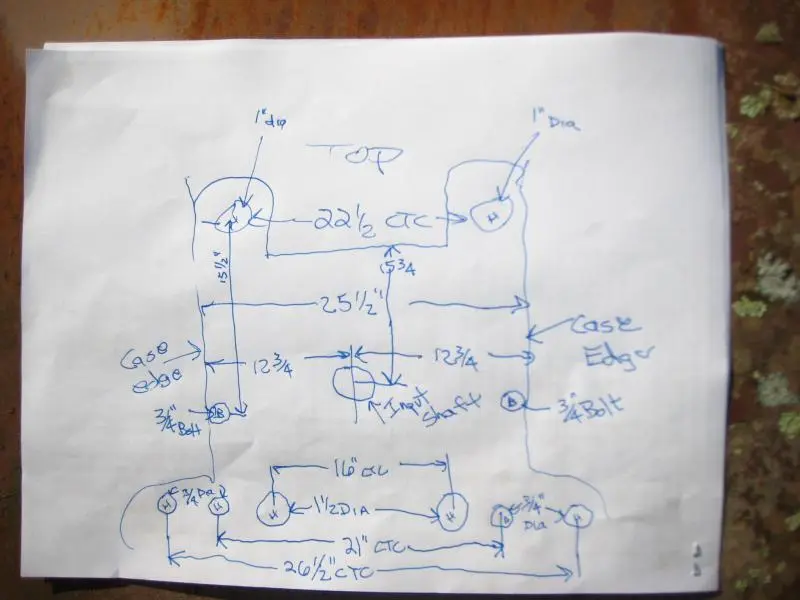

This is an older Hyster D4 rear cargo winch that my uncle never had a chance to mount on the back of his Caterpillar HT4 before he passed. Just sitting on a cart, rusting away. Input shaft can still be easily turned by hand, so likely still good inside. I have a few pictures, but couldn't figure out how to get them off my phone into this post. It is located in Northern Kentucky. If any interest, e-mail me: [email protected]......[attachment=43863]20170624_164225.jpg[/attachment][attachment=43864]20170624_164206.jpg[/attachment][attachment=43862]20170624_164234.jpg[/attachment][attachment=43865]D4 Winch Bolt Pattern2 (1).jpg[/attachment][attachment=43869]Front View D4 Winch Input and Control shafts.jpg[/attachment][attachment=43866]SideViewWinch.jpg[/attachment][attachment=43870]TopViewD4 Winch1.jpg[/attachment][attachment=43867]Close up of number on top.jpg[/attachment][attachment=43871]Round thing with winch1.jpg[/attachment][attachment=43868]TopViewD4 Winch2.jpg[/attachment]

Please log in or create an account to join the conversation.

Fri, Aug 4, 2017 3:39 AM

d9gdon

Offline

Send a private message to d9gdon

Posts: 870

Thank you received: 0

Sent a private message

Please log in or create an account to join the conversation.

Fri, Aug 4, 2017 4:30 AM

JackD6-5R

Offline

Member

Send a private message to JackD6-5R

Posts: 137

Thank you received: 0

Reply to d9gdon:

Sent a private message

I put an old D4 winch on an HT4 several years ago, it fit and works.

Please log in or create an account to join the conversation.

Fri, Aug 4, 2017 7:24 PM

d9gdon

Offline

Send a private message to d9gdon

Posts: 870

Thank you received: 0

Reply to JackD6-5R:

I put an old D4 winch on an HT4 several years ago, it fit and works.

I was looking at the instruction manual for this winch and it says not recommended for D4 6U and 7U tractors. What is the reason for that?

I know that the HT4 was just a D4 7U with a loader attached.

Anybody know why? It has more line pull than what the 6U and 7U weigh.

Please log in or create an account to join the conversation.

Sun, Aug 6, 2017 7:58 AM

STEPHEN

Offline

Send a private message to STEPHEN

Posts: 2,461

Thank you received: 1

Reply to d9gdon:

I was looking at the instruction manual for this winch and it says not recommended for D4 6U and 7U tractors. What is the reason for that?

I know that the HT4 was just a D4 7U with a loader attached.

Anybody know why? It has more line pull than what the 6U and 7U weigh.

The later tractors would have used a D4N. From memory, there are some mounting and control changes. Could be the early type is not suitable for a higher HP engine?

Please log in or create an account to join the conversation.

Sun, Aug 6, 2017 11:15 AM

d9gdon

Offline

Send a private message to d9gdon

Posts: 870

Thank you received: 0

Reply to STEPHEN:

The later tractors would have used a D4N. From memory, there are some mounting and control changes. Could be the early type is not suitable for a higher HP engine?

In the same book, there was an attachment option to fit it to a D6 so I don't think it could be the horsepower rating of the later D4's.

Please log in or create an account to join the conversation.

Sun, Aug 6, 2017 8:26 PM

STEPHEN

Offline

Send a private message to STEPHEN

Posts: 2,461

Thank you received: 1

Reply to d9gdon:

In the same book, there was an attachment option to fit it to a D6 so I don't think it could be the horsepower rating of the later D4's.

That attachment would be a great find, please share a pic from your book - thanks

Please log in or create an account to join the conversation.

Sun, Aug 6, 2017 8:59 PM

Old Magnet

Offline

Send a private message to Old Magnet

Posts: 16,696

Thank you received: 18

Reply to STEPHEN:

That attachment would be a great find, please share a pic from your book - thanks

I don't think horse power has anything to do with the limitations although the D4N is a bit stouter. I believe they are just referring to the control mounting hardware differences between the D4 and D4N as a reason to exclude the 6U/7U's. Interesting in that the 4N can be retrofitted to the models R4, RD4, D6, RD6, 35's and 40's. Probably due to a simple control system.

Please log in or create an account to join the conversation.

Mon, Aug 7, 2017 12:08 AM

d9gdon

Offline

Send a private message to d9gdon

Posts: 870

Thank you received: 0

Reply to JackD6-5R:

I put an old D4 winch on an HT4 several years ago, it fit and works.

Did you have to modify anything for it to fit?

Please log in or create an account to join the conversation.

Mon, Aug 7, 2017 6:02 AM

JackD6-5R

Offline

Member

Send a private message to JackD6-5R

Posts: 137

Thank you received: 0

Reply to d9gdon:

Did you have to modify anything for it to fit?

Yes I did have to make a few mods. Had to raise the seat ,think I used 2 pieces of 2X2 square tube under seat mounts to clear the fwd. & rev. control. Some changes to the brake control ,but I cant remember what.

Please log in or create an account to join the conversation.

Tue, Aug 8, 2017 2:06 AM

d9gdon

Offline

Send a private message to d9gdon

Posts: 870

Thank you received: 0

I sent a PM and an email.

Please log in or create an account to join the conversation.
