About a 1955 D-8 15-A

About a 1955 D-8 15-A

Showing 1 to 10 of 23 results
1
redsisbest
Topic Author
Offline
Send a private message to redsisbest
Posts: 20
Thank you received: 0

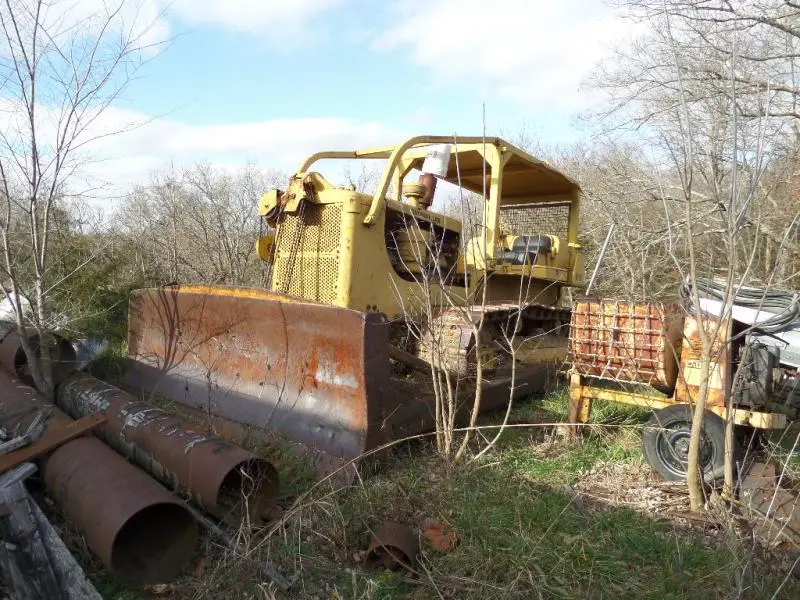

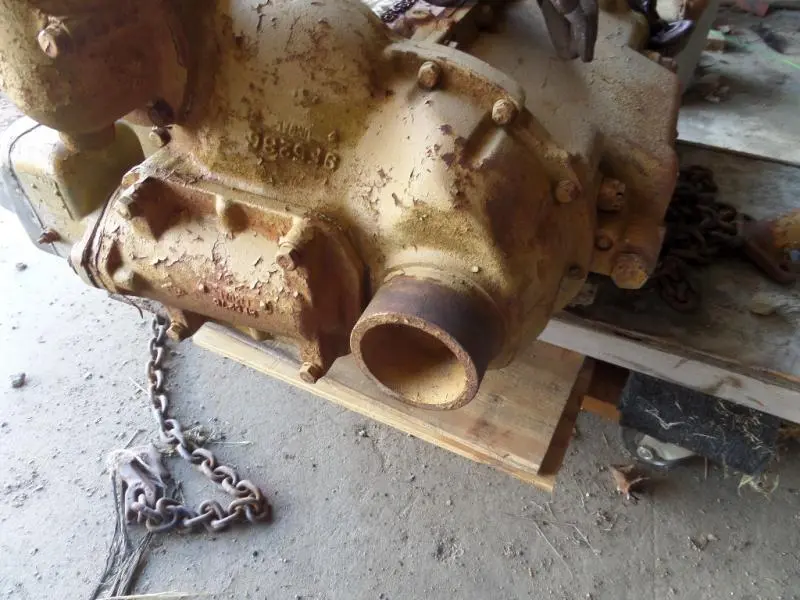

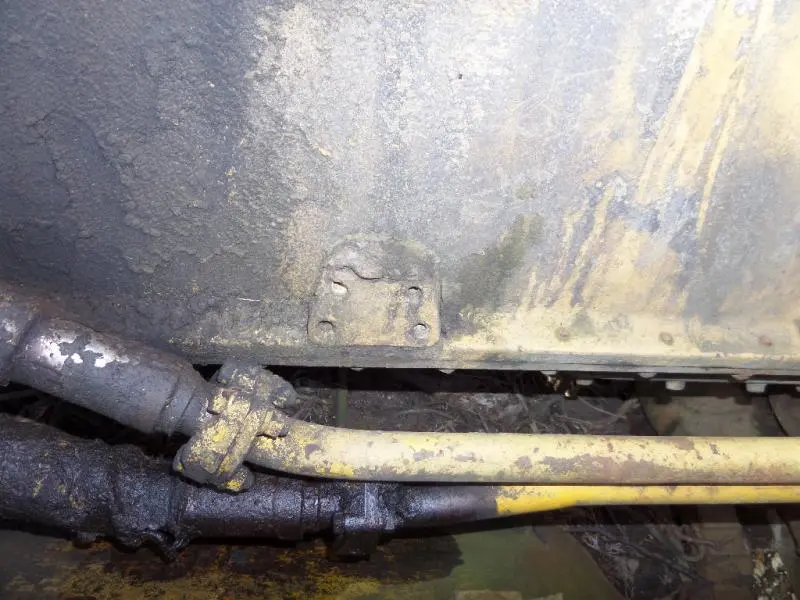

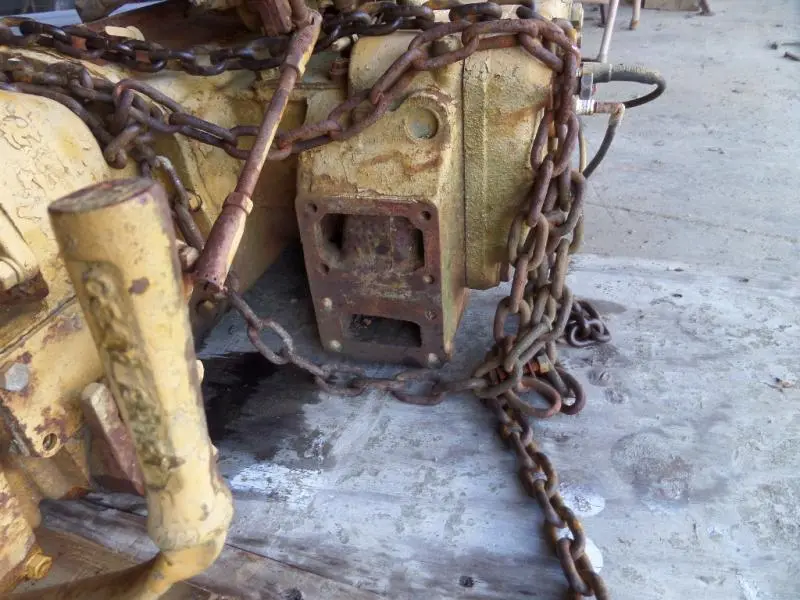

I'm looking for a pony motor or parts. I have one motor but it doesn't have the mounting bracket for the front end, or the manifold for the rear end.
If you need to call me I'm at 502-477-2333...or post an answer and I'll look for it ....They say the 14-A and 15-A and the D-7 all have the same pony motor.
A good friend had a good pony motor that came off this tractor but he sold it for scrap! I hate that! And I also need the crank......

Thanks,

Red
Attachment
Attachment
Attachment
Attachment
Please log in or create an account to join the conversation.
Tue, Dec 15, 2015 10:12 AM
Willowhic
Offline
Send a private message to Willowhic
Posts: 102
Thank you received: 0
I'm with you, Red. I hate it when an irreplaceable, useable piece of history gets sold for scrap-the couple of bucks netted can't compare to the cost of the loss...even if someone hates pony motors, the principle still applies.

Could you post some pics of your pony and where it mounts on the diesel engine? ...might help better identify what you need.

thanks
1988 JCB 1400B backhoe
1966 Cat D9 cable dozer
1966 Cat 980 wheel loader
1967 Galion 140 grader
1963 Cat D7E hydraulic dozer 47A886
196? Cat 112 grader 3U3308 (engine: 3U243)
Please log in or create an account to join the conversation.
Tue, Dec 15, 2015 11:01 AM
old-iron-habit
Offline
Member
Send a private message to old-iron-habit
Posts: 3,520
Thank you received: 0
Reply to Willowhic:
I'm with you, Red. I hate it when an irreplaceable, useable piece of history gets sold for scrap-the couple of bucks netted can't compare to the cost of the loss...even if someone hates pony motors, the principle still applies.

Could you post some pics of your pony and where it mounts on the diesel engine? ...might help better identify what you need.

thanks
I will have a complete pony for a 2U series D8 as soon as I remove it to install my new rebuilt pony. It has one cylinder that fowls the plug within 30 seconds, otherwise it is complete and runs. I know the 2U and the 3T D7 use the same pony but do not know if they fit the 14A and 15A, etc.
Please log in or create an account to join the conversation.
Tue, Dec 15, 2015 5:55 PM
gemdozer
Offline
Member
Send a private message to gemdozer
Posts: 1,458
Thank you received: 7
Reply to old-iron-habit:
I will have a complete pony for a 2U series D8 as soon as I remove it to install my new rebuilt pony. It has one cylinder that fowls the plug within 30 seconds, otherwise it is complete and runs. I know the 2U and the 3T D7 use the same pony but do not know if they fit the 14A and 15A, etc.
The 2u and 3t parts are completed different ,let me have the parts number from the pieces you are looking I have some poney parts for this model
Please log in or create an account to join the conversation.
Tue, Dec 15, 2015 6:44 PM
gemdozer
Offline
Member
Send a private message to gemdozer
Posts: 1,458
Thank you received: 7
Reply to gemdozer:
The 2u and 3t parts are completed different ,let me have the parts number from the pieces you are looking I have some poney parts for this model
I have 1 crankshaft 8f3755 rebuilt(cut) 20-20 on racking and should have the support 4h5240
Please log in or create an account to join the conversation.
Wed, Dec 16, 2015 1:44 AM
redsisbest
Topic Author
Offline
Send a private message to redsisbest
Posts: 20
Thank you received: 0
Reply to gemdozer:
I have 1 crankshaft 8f3755 rebuilt(cut) 20-20 on racking and should have the support 4h5240
The parts for the 15A Pony are the brackets:

4H5324

4H5240

4H5245

Red
Please log in or create an account to join the conversation.
Wed, Dec 30, 2015 2:10 AM
redsisbest
Topic Author
Offline
Send a private message to redsisbest
Posts: 20
Thank you received: 0
Reply to gemdozer:
I have 1 crankshaft 8f3755 rebuilt(cut) 20-20 on racking and should have the support 4h5240

Gemdozer, if you can find the front bracket 4h5240, let me know what you want for it...

Red
Please log in or create an account to join the conversation.
Mon, Jan 4, 2016 11:52 AM
7upuller
Offline
Deceased
Send a private message to 7upuller
Posts: 3,737
Thank you received: 0
Reply to redsisbest:

Gemdozer, if you can find the front bracket 4h5240, let me know what you want for it...

Red
Hey Redsisbest,

I need to pull my 14a pony that blew up in the next week or two. I have a spare. I can't remember if the spare has the right brackets on it or not. Stay tuned,:cell: I'll let you know if i can spare my brackets for you.
Please log in or create an account to join the conversation.
Mon, Jan 4, 2016 12:01 PM
chriscokid
Offline
Send a private message to chriscokid
Posts: 3,341
Thank you received: 0
Reply to 7upuller:
Hey Redsisbest,

I need to pull my 14a pony that blew up in the next week or two. I have a spare. I can't remember if the spare has the right brackets on it or not. Stay tuned,:cell: I'll let you know if i can spare my brackets for you.
check with off road equipment in Alcoa tn.
Please log in or create an account to join the conversation.
Tue, Jan 5, 2016 6:02 AM
gemdozer
Offline
Member
Send a private message to gemdozer
Posts: 1,458
Thank you received: 7
Reply to chriscokid:
check with off road equipment in Alcoa tn.
I recheck this morning and the bracket 4h5240 fit on 15a 1 to 3383 serie and am still have 1 bracket 6h5674 fit on 15a1852 to 3383 serie
Please log in or create an account to join the conversation.
Tue, Jan 5, 2016 11:54 PM
redsisbest
Topic Author
Offline
Send a private message to redsisbest
Posts: 20
Thank you received: 0
Reply to gemdozer:
I recheck this morning and the bracket 4h5240 fit on 15a 1 to 3383 serie and am still have 1 bracket 6h5674 fit on 15a1852 to 3383 serie

Gemdozer, can you send me a picture of the items and I'll look in the morning and see the serial number of my machine,,,,I thought I had it written down in my service book ,,, but I think It's in the 1571 series,,,

Thanks

Red
Please log in or create an account to join the conversation.
Sat, Jan 30, 2016 11:10 AM
