Width of narrow guage D2 angle dozer moleboard

Showing 1 to 5 of 5 results

novavalleycat

Topic Author

Offline

Send a private message to novavalleycat

Posts: 208

Thank you received: 0

Can anyone tell me what the width of a narrow guage moleboard would be.I have a wide guage moleboard off a 5U7099(1951) 93 inches and i must cut a piece out of this blade for a narrow guage tractor,this tractor has a a cat 44hyd. system 9w1605,this is not a tool bar dozer.

Please log in or create an account to join the conversation.

Sat, Jun 5, 2010 1:53 AM

Old Magnet

Offline

Send a private message to Old Magnet

Posts: 16,695

Thank you received: 17

Can't quite get there....
The main cutting edge for the narrow angle blade is part #5F5219 but I don't have its dimension.
Best I can do is the overall blade length is shown as 6 ft. 8 in. and the end bits are 10 & 5/8 in. ea.

Please log in or create an account to join the conversation.

Sat, Jun 5, 2010 10:35 AM

novavalleycat

Topic Author

Offline

Send a private message to novavalleycat

Posts: 208

Thank you received: 0

Reply to Old Magnet:

Can't quite get there....
The main cutting edge for the narrow angle blade is part #5F5219 but I don't have its dimension.
Best I can do is the overall blade length is shown as 6 ft. 8 in. and the end bits are 10 & 5/8 in. ea.

Thanks to Old Magnet for the dimensions. I appreciate it.

Would someone out there be able to share a picture of their part book illustration page with me for the narrow gauge dozer c frame and the side arms?

Thanks in advance,
Jim
in Nova Scotia

Please log in or create an account to join the conversation.

Sun, Jun 13, 2010 7:44 AM

KCB

Offline

Send a private message to KCB

Posts: 256

Thank you received: 0

Reply to novavalleycat:

Thanks to Old Magnet for the dimensions. I appreciate it.

Would someone out there be able to share a picture of their part book illustration page with me for the narrow gauge dozer c frame and the side arms?

Thanks in advance,
Jim
in Nova Scotia

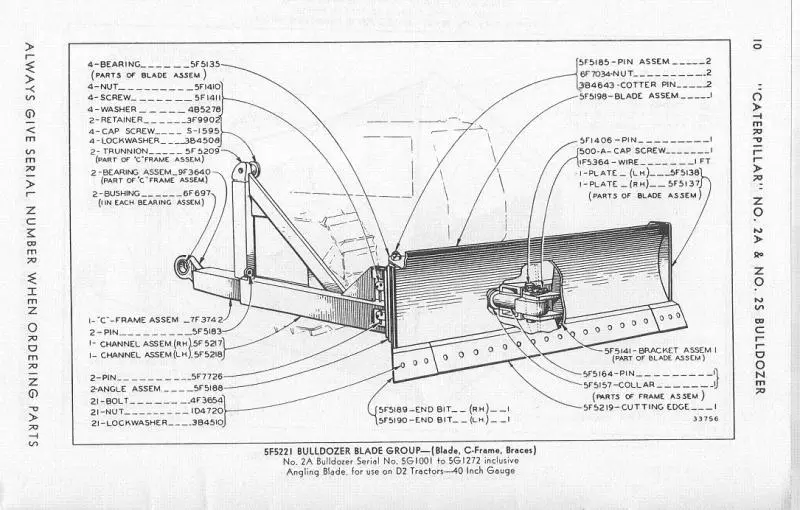

Parts book illustration attached.
Attachment

Please log in or create an account to join the conversation.

Sun, Jun 13, 2010 8:47 AM

Old Magnet

Offline

Send a private message to Old Magnet

Posts: 16,695

Thank you received: 17

Reply to KCB:

Parts book illustration attached.

Not much difference but there is an early and late style. Here is the later one.

Please log in or create an account to join the conversation.

Sun, Jun 13, 2010 9:48 AM

novavalleycat

Topic Author

Offline

Send a private message to novavalleycat

Posts: 208

Thank you received: 0

Reply to Old Magnet:

Not much difference but there is an early and late style. Here is the later one.

That's great, thanks so much for the illustrations. Much appreciated.

Jim
in Nova Scotia

Please log in or create an account to join the conversation.

Tue, Jun 15, 2010 8:24 AM
