Very OLD Caterpiller Grease PUMP Info?

I think those came with the early Ten and Fifteen.

I think those came with the early Ten and Fifteen.

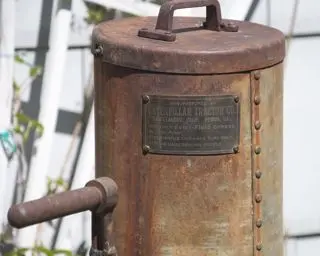

The early ones have "BEST" on the brass tag. The handle on top is the same as the door handle on the wooden cabs. I see the crank handle has been lengthened, like the one I have. Jon

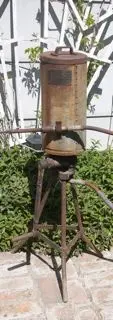

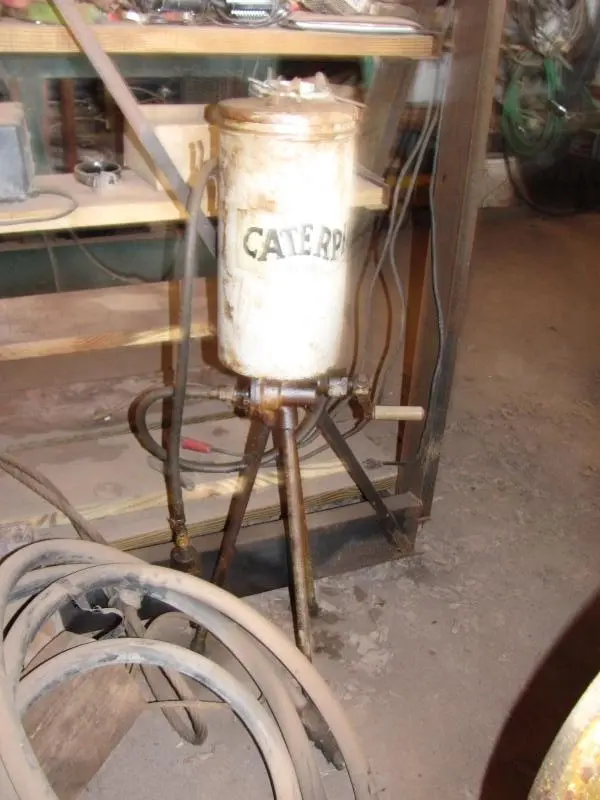

Just another picture

If you look close some of the parts are Cat tractor parts the packing nut has L no. and is a 20 waterpump packing nut the pump gears are 30 oilpump gears cranks is made like the tractor crank Ect.

Hey Willy, do Jackie like the fumes from the little 10 when she works hard!?.. looks like the ex pipe could do with a half turn!!. Hope you are both keeping well.. Regards your ol' aussie mate peter.

Were these pumps used for grease for rollers or gear oil for finals and transmissions. I bought one of these pumps and looked in my CAT 15 Operators manual and see them in pictures filling finals and greasing rollers. Surely they didn't use gear oil in the rollers....

John

I have a grease pump for my Ten. It is for the rollers, the pivot shaft bearing and the front idler. I am actually removing the 50 year old semi fluid...gunk that is inside. Mine was almost full. It is not gear oil. It should be Track Lube nowadays

After some discussion with several club members it seems there are three different versions
of these pumps including a Holt version.
