Valve Grind Gasket Set???

Valve Grind Gasket Set???

Showing 1 to 7 of 7 results
mcclaar
Topic Author
Offline
Send a private message to mcclaar
Posts: 123
Thank you received: 0
I see in my D24U parts book a "Valve Grind Gasket Set" part # 2H5082 Does anyone know what is all included with this kit?

I assume all gaskets needed to re-install the head. Head gasket, t-stat housing gaskets, rubber o-rings, etc.
D2 4U-2045
Please log in or create an account to join the conversation.
Mon, Jan 3, 2011 8:52 AM
rotorbob
Offline
Member
Send a private message to rotorbob
Posts: 90
Thank you received: 0
i did a d2 5u a few weeks ago, and it has everything you need and more. about $190.00
Please log in or create an account to join the conversation.
Mon, Jan 3, 2011 10:47 AM
mcclaar
Topic Author
Offline
Send a private message to mcclaar
Posts: 123
Thank you received: 0
Reply to rotorbob:
i did a d2 5u a few weeks ago, and it has everything you need and more. about $190.00
Great, looks like I'll need one.

Thanks for the reply.
D2 4U-2045
Please log in or create an account to join the conversation.
Mon, Jan 3, 2011 8:28 PM
catsteve
Offline
Send a private message to catsteve
Posts: 99
Thank you received: 0
Reply to mcclaar:
Great, looks like I'll need one.

Thanks for the reply.

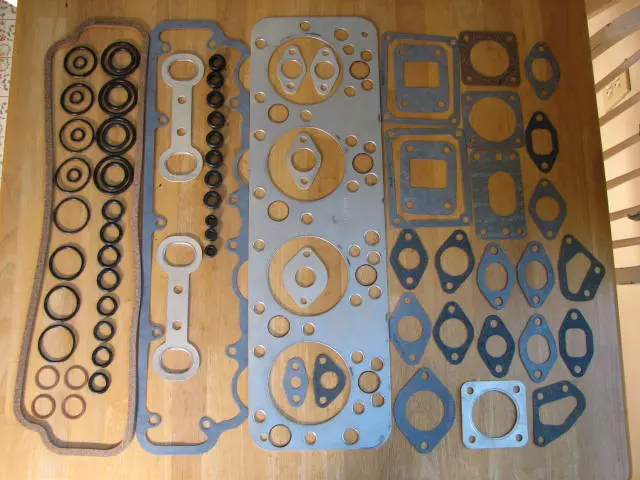

My gasket set arrived today. I am posting this pic for others future reference.
regards
Attachment
Please log in or create an account to join the conversation.
Wed, Jan 19, 2011 6:01 PM
John from Fresno
Offline
Send a private message to John from Fresno
Posts: 286
Thank you received: 1
Reply to catsteve:
My gasket set arrived today. I am posting this pic for others future reference.
regards
Attachment
Catsteve,

What part number did you use to get that gasket set? And what did it cost?

Thanks,

John
Please log in or create an account to join the conversation.
Wed, Jan 19, 2011 6:49 PM
catsteve
Offline
Send a private message to catsteve
Posts: 99
Thank you received: 0
Reply to John from Fresno:
Catsteve,

What part number did you use to get that gasket set? And what did it cost?

Thanks,

John
Set PN is 2H5082 described above.
around AUD $270.
Should be heaps cheaper in the USA.
Please log in or create an account to join the conversation.
Wed, Jan 19, 2011 8:05 PM
mcclaar
Topic Author
Offline
Send a private message to mcclaar
Posts: 123
Thank you received: 0
Reply to catsteve:
Set PN is 2H5082 described above.
around AUD $270.
Should be heaps cheaper in the USA.
John,

Got mine from Florin Tractor for $150
D2 4U-2045
Please log in or create an account to join the conversation.
Thu, Jan 20, 2011 1:29 AM
bcwayne
Offline
Member
Send a private message to bcwayne
Posts: 292
Thank you received: 1
Reply to mcclaar:
John,

Got mine from Florin Tractor for $150

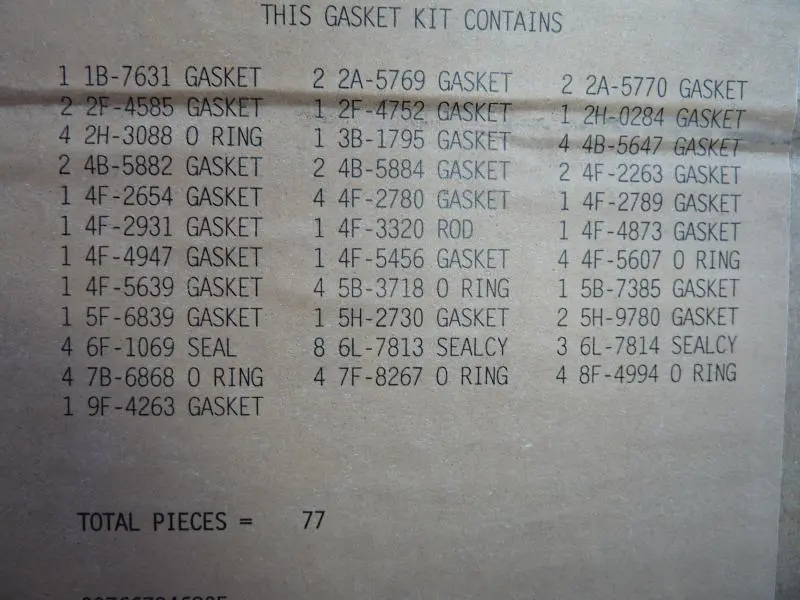

Here's a picture of the contents of a kit I bought from Cat last year... everything you need is here, and a few you don't need... there were some I didn't recognize.. could be for marine or gen set applications.
Attachment
Please log in or create an account to join the conversation.
Thu, Jan 20, 2011 6:55 AM
