I did replace the left brake band on a CAT 22 thru the brake adjustment hole. I only did it once to see if it could be done. I have since replaced all others by removing all the parts including the final drive. Bill

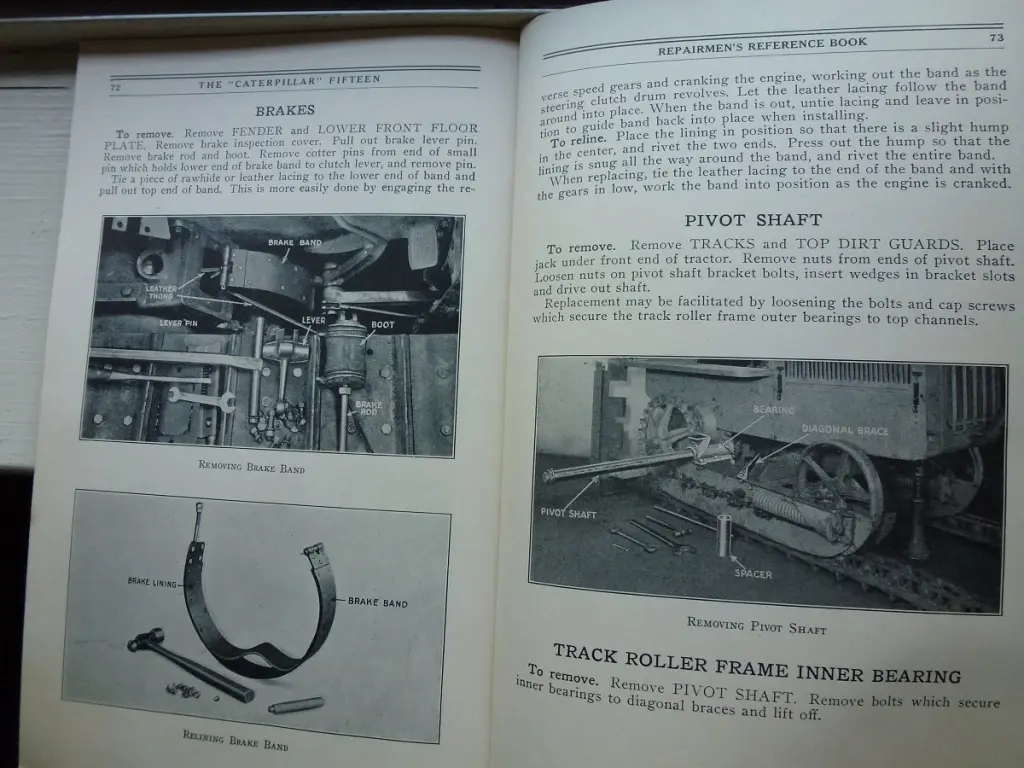

This is how I did it. The problem I had was removing the brake lever pin. I had to burn the brake lever pin out. I saved a lot of time and work. Done in one day with no help. This was on a tractor I needed to repair fast. When these instructions were written they didn't realize that pin has a semi press blind fit. Bill [attachment=60988]P1040479.JPG[/attachment]
