Splined tool for?

Showing 1 to 2 of 2 results

juiceman

Topic Author

Offline

Member

Chapter Leader

Chapter Fifteen

Send a private message to juiceman

Posts: 3,285

Thank you received: 71

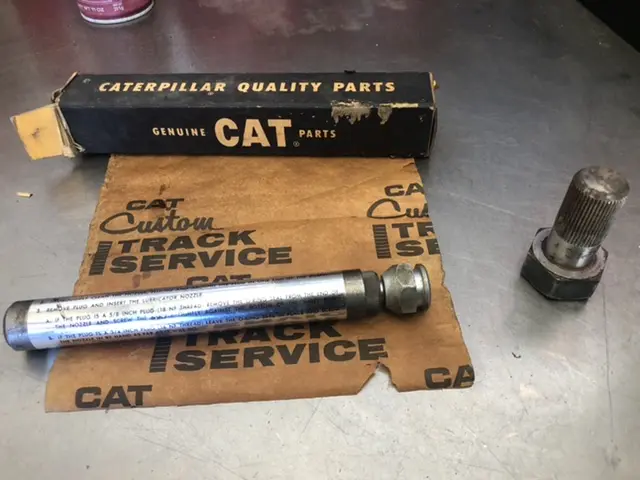

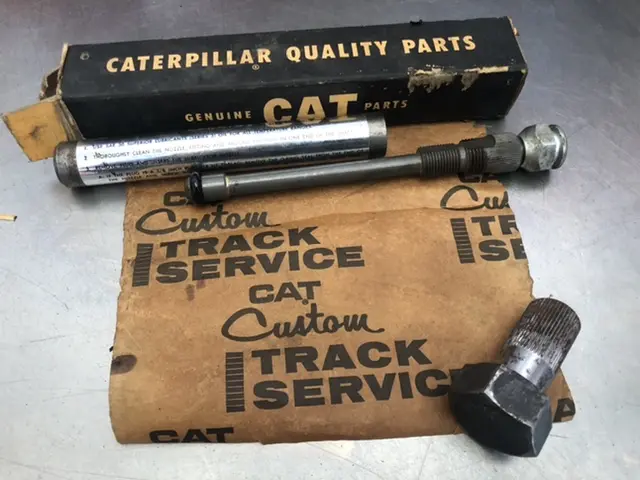

Rummaging thru some of the stuff I received a few years ago via my D4 purchase.

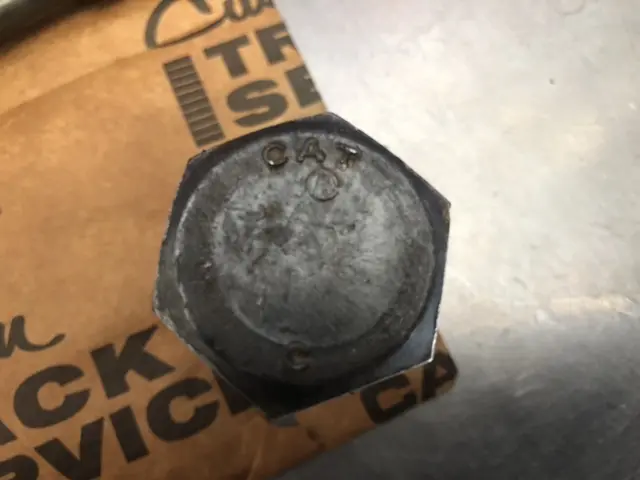

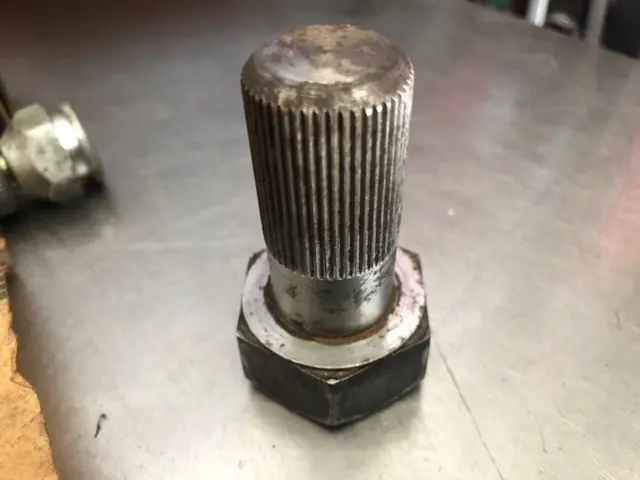

Splined tool? 7/8” on the splined end, 1 1/4” on the hex head.
What application? Previous gentleman had D4 and D6s.
Also in the stash, were some of the fill tools for LT rollers.
Thanks, JM
Attachment

Please log in or create an account to join the conversation.

Wed, Oct 14, 2020 3:49 AM

hfdzl

Offline

Send a private message to hfdzl

Posts: 607

Thank you received: 0

# 1 looks like splined removal tool for precombustion cup. The other may be for idler pins?

Please log in or create an account to join the conversation.

Wed, Oct 14, 2020 4:36 AM

edb

Offline

Member

Send a private message to edb

Posts: 4,027

Thank you received: 0

Hi Team,

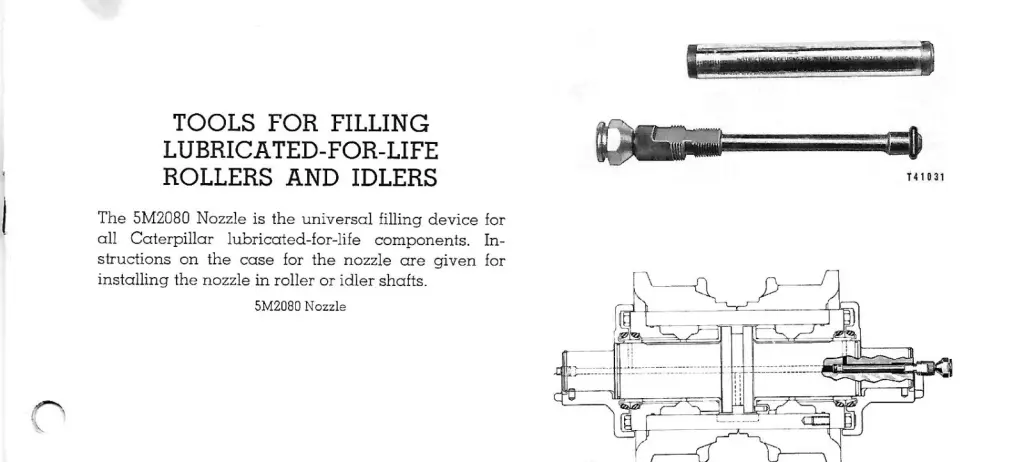

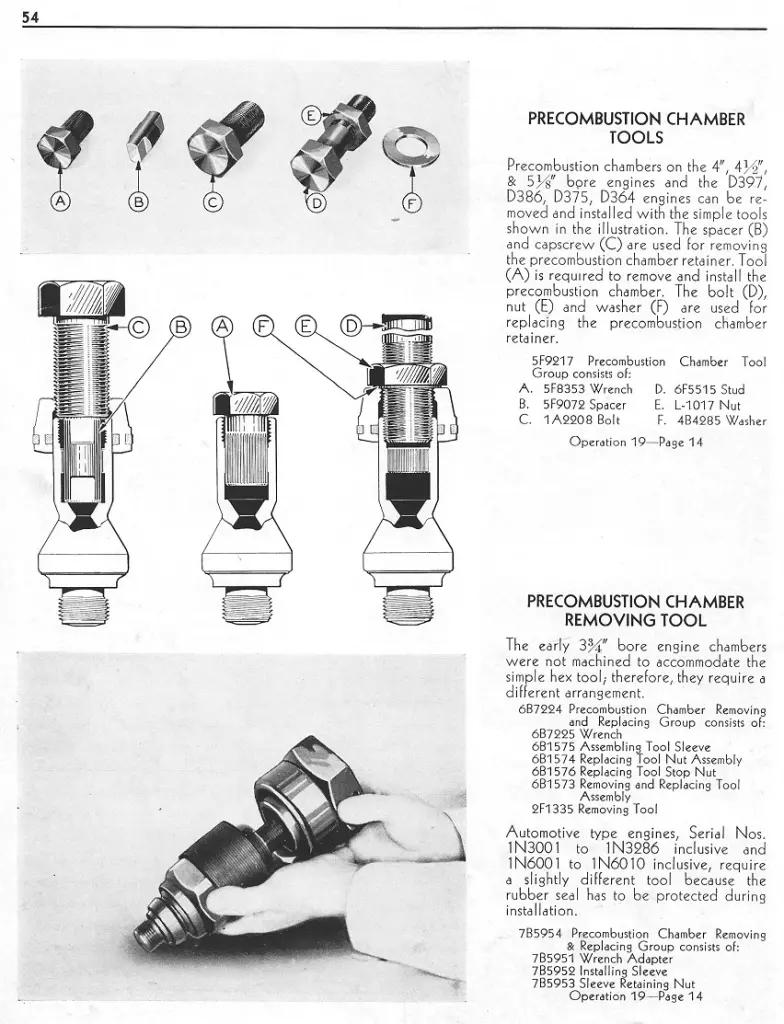

splined tool "A" in scan below is as said above, and the other tool is for filling Life Time Oil filled Rollers and Idlers as per scan below.
Cheers,
Eddie B.
Attachment

Please log in or create an account to join the conversation.

Wed, Oct 14, 2020 5:17 AM
