So you busted the cast aluminum pony oil drain tube....

Showing 1 to 10 of 14 results

AaronH

Topic Author

Offline

Send a private message to AaronH

Posts: 34

Thank you received: 0

Folks,

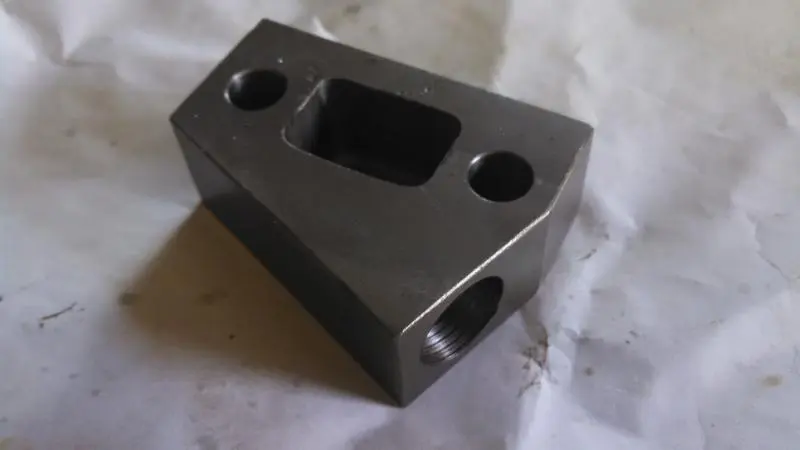

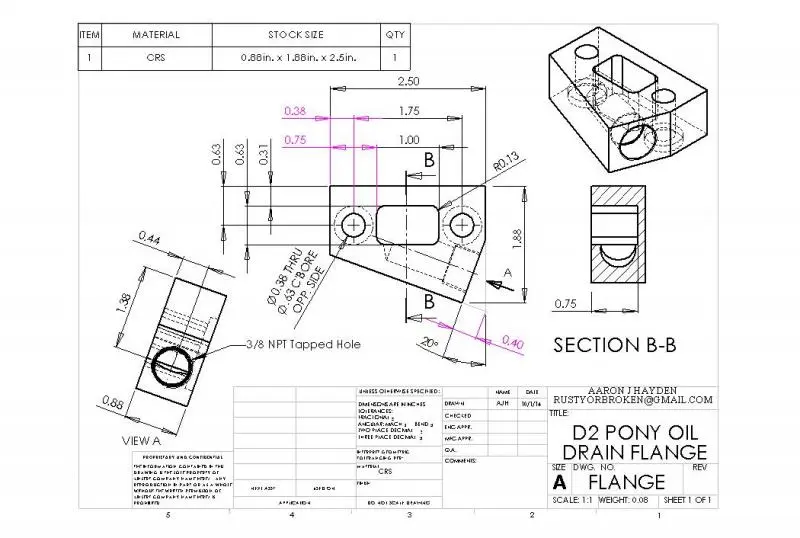

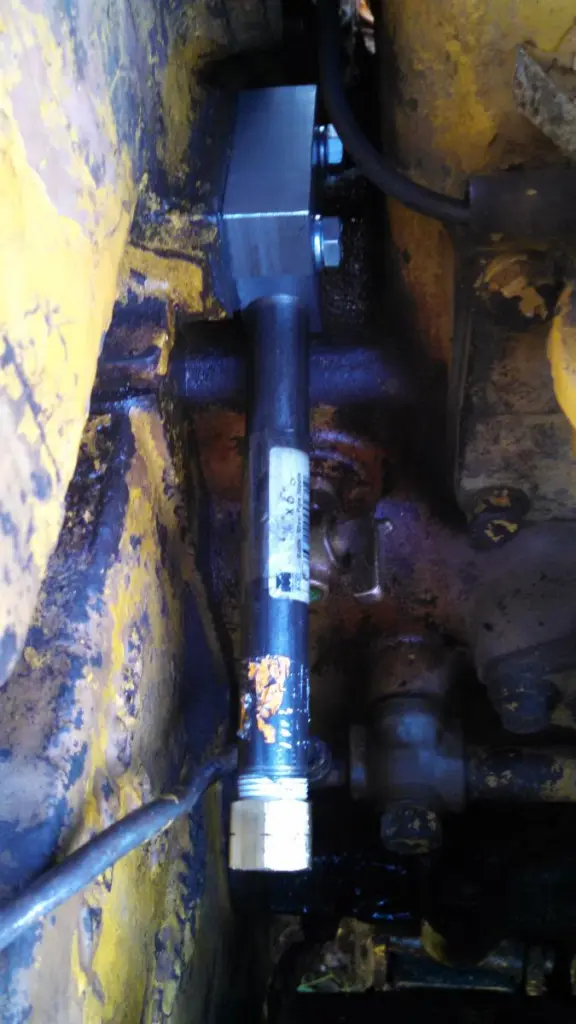

Let's say you're not very bright and you are swinging a hammer much too close to the cast aluminum pony oil drain tube. :nono: And let's say you hit it and break it off. :doh: This can happen, I know because I've seen it first hand. 😮hwell: I have the fix for you. I machined a new block out of steel that takes the place of the original aluminum one and uses 3/8" pipe fittings. In my case, er... um... I mean this guy I know, used a 6" nipple and brass hex cap. You could find a small valve and a hose barb if you wanted to make it easy to drain the oil into a bucket. The nice thing is that if the pipe gets broken you can put a new one on it easily. The steel block is 1/8" thinner than the original one too which makes getting the bolts started a heck of a lot easier. I have attached pictures of the finished part, the part after installed, and the drawing. I used, wait I mean this guy I know used 5/16" x 1-1/4" long bolts with lock washers. 1-3/8" long would be better but aren't normally stocked and 1-1/2" long are too long. After I made mine I added a 5/8" counter bore to the drawing for the lock washer so you can get another thread or so with the 1-1/4" long bolts. The one I made doesn't have the counter bore, but you can add it to yours if you're feeling frisky.

[attachment=25560]IMG_20141011_152930_819.jpg[/attachment][attachment=25561]IMG_20141011_173544_220.jpg[/attachment][attachment=25562]d2 pony oil drain flange.jpg[/attachment][attachment=25563]D2 PONY OIL DRAIN FLANGE.PDF[/attachment]

Aaron over and out.........

Operating a sanctuary for all things rusty or broken. Current residents include: Allis Chalmers WD45, Oliver Row 77, two Cat D2's, Clark C500-80 forklift, and a wounded Kubota.

Please log in or create an account to join the conversation.

Sun, Oct 12, 2014 7:03 AM

monserandsons

Offline

Send a private message to monserandsons

Posts: 302

Thank you received: 0

looks good. what were you swinging at? was he swinging at?

Please log in or create an account to join the conversation.

Sun, Oct 12, 2014 7:47 AM

AaronH

Topic Author

Offline

Send a private message to AaronH

Posts: 34

Thank you received: 0

Reply to monserandsons:

looks good. what were you swinging at? was he swinging at?

I was putting the sheet metal side plate back on that runs along the side of the diesel and has the hole for the drain tube to poke through. The bolt holes weren't lining up. I, er... this knuckle head, was trying to tap it forward. I got it moved forward but not before I did myself this nice favor.

Operating a sanctuary for all things rusty or broken. Current residents include: Allis Chalmers WD45, Oliver Row 77, two Cat D2's, Clark C500-80 forklift, and a wounded Kubota.

Please log in or create an account to join the conversation.

Sun, Oct 12, 2014 7:57 AM

4tcompost

Offline

Send a private message to 4tcompost

Posts: 153

Thank you received: 0

Reply to AaronH:

I was putting the sheet metal side plate back on that runs along the side of the diesel and has the hole for the drain tube to poke through. The bolt holes weren't lining up. I, er... this knuckle head, was trying to tap it forward. I got it moved forward but not before I did myself this nice favor.

Your running a sanctuary line cracks me up , thanks ROY

Please log in or create an account to join the conversation.

Sun, Oct 12, 2014 8:49 AM

AaronH

Topic Author

Offline

Send a private message to AaronH

Posts: 34

Thank you received: 0

Reply to 4tcompost:

Your running a sanctuary line cracks me up , thanks ROY

It's kind of a running joke. If it's not rusty or broken I'm not interested.

Operating a sanctuary for all things rusty or broken. Current residents include: Allis Chalmers WD45, Oliver Row 77, two Cat D2's, Clark C500-80 forklift, and a wounded Kubota.

Please log in or create an account to join the conversation.

Sun, Oct 12, 2014 9:09 AM

seiscat

Offline

Send a private message to seiscat

Posts: 1,319

Thank you received: 0

Reply to 4tcompost:

Your running a sanctuary line cracks me up , thanks ROY

Hello AaronH, I have also....I mean I have friends that have also had similar results during repairs. 👍
Happy Dozing,
Craig

Please log in or create an account to join the conversation.

Sun, Oct 12, 2014 9:17 AM

spike

Offline

Send a private message to spike

Posts: 92

Thank you received: 0

Reply to seiscat:

Hello AaronH, I have also....I mean I have friends that have also had similar results during repairs. 👍
Happy Dozing,
Craig

Looks like it belomgs on the lunar rover . Nice work!

Please log in or create an account to join the conversation.

Sun, Oct 12, 2014 9:27 AM

AaronH

Topic Author

Offline

Send a private message to AaronH

Posts: 34

Thank you received: 0

Reply to spike:

Looks like it belomgs on the lunar rover . Nice work!

I could have probably welded the original or got a good used one. Who knows, I still might just to have a spare. I like to fix things sometimes to make them better. As much as I hate to say it, I think Cat made a mistake. I don't think aluminum belongs anywhere near the oil system of a dozer. Hey, who knows maybe Cat will send out an update based on my design. Ha!

I should point out that I don't think the angled surface that is perpendicular to the pipe tap surface is necessary. I just did it because I thought it looked cool. I think there is enough clearance to the diesel for the block to be straight across at the 1-7/8" point.

Operating a sanctuary for all things rusty or broken. Current residents include: Allis Chalmers WD45, Oliver Row 77, two Cat D2's, Clark C500-80 forklift, and a wounded Kubota.

Please log in or create an account to join the conversation.

Sun, Oct 12, 2014 9:34 AM

neil

Offline

Moderator

Admin

Send a private message to neil

Posts: 6,958

Thank you received: 16

Reply to AaronH:

I could have probably welded the original or got a good used one. Who knows, I still might just to have a spare. I like to fix things sometimes to make them better. As much as I hate to say it, I think Cat made a mistake. I don't think aluminum belongs anywhere near the oil system of a dozer. Hey, who knows maybe Cat will send out an update based on my design. Ha!

I should point out that I don't think the angled surface that is perpendicular to the pipe tap surface is necessary. I just did it because I thought it looked cool. I think there is enough clearance to the diesel for the block to be straight across at the 1-7/8" point.

What's your drawing software Aaron?

Please log in or create an account to join the conversation.

Sun, Oct 12, 2014 10:23 AM

AaronH

Topic Author

Offline

Send a private message to AaronH

Posts: 34

Thank you received: 0

Reply to neil:

What's your drawing software Aaron?

I've got an old copy of Solidworks at home that I use.

Operating a sanctuary for all things rusty or broken. Current residents include: Allis Chalmers WD45, Oliver Row 77, two Cat D2's, Clark C500-80 forklift, and a wounded Kubota.

Please log in or create an account to join the conversation.

Sun, Oct 12, 2014 10:37 AM

drujinin

Offline

Send a private message to drujinin

Posts: 3,852

Thank you received: 1

Reply to AaronH:

I've got an old copy of Solidworks at home that I use.

Nice job on the drawing, which Thanks for sharing by the way!
A santuary for junk?
I'm trying to cut back on acquiring stuff that way!
Though I am still known for hauling Treasure home!

Please log in or create an account to join the conversation.

Sun, Oct 12, 2014 6:41 PM
