Rome Disking - advice needed

Rome Disking - advice needed

Showing 1 to 10 of 23 results
1
cab
Topic Author
Offline
Send a private message to cab
Posts: 388
Thank you received: 0
I am pulling a Rome Disk in the brush (regrowth but spotty) with my 47A.

When I started the land was bone dry and the disk, which is a model TRH-16, was doing a beautiful job at max angle for cutting.

Since then we have been blessed with several weeks of rain totaling 4". It is plenty wet. You can't pull the disk any distance without it clogging up.

The spaces bad about clogging are front right gang middle slot, and rear left middle slot. The middle slots have no bearing standards, just spacer hubs between the disk blades. Am not sure why the two other middle slots haven't clogged up.

I ordered 4 scrapers from Rome figuring that would be enough for all the middle slots.

Any Rome guys out there who can tell me about disking wet ground? I figure penetration will be better with some moisture and am keen to get on with it.

Thanks as always for taking time to reply.
Attachment
Attachment
Please log in or create an account to join the conversation.
Wed, Nov 19, 2014 11:56 AM
mrsmackpaul
Offline
Send a private message to mrsmackpaul
Posts: 1,456
Thank you received: 0
I think you will find its just soil conditions is it damp clay type of soil ? might just have to wait a few days or so I think the bearing hangers are problery knocking the dirt out before its second round stopping it getting packed in

Paul
Please log in or create an account to join the conversation.
Wed, Nov 19, 2014 1:06 PM
d9gdon
Offline
Send a private message to d9gdon
Posts: 870
Thank you received: 0
Reply to mrsmackpaul:
I think you will find its just soil conditions is it damp clay type of soil ? might just have to wait a few days or so I think the bearing hangers are problery knocking the dirt out before its second round stopping it getting packed in

Paul
The quick fix is to loop a chain or two from the top beam around the spool(spacer) between the disks.
Please log in or create an account to join the conversation.
Wed, Nov 19, 2014 6:49 PM
cab
Topic Author
Offline
Send a private message to cab
Posts: 388
Thank you received: 0
Reply to d9gdon:
The quick fix is to loop a chain or two from the top beam around the spool(spacer) between the disks.
It is a sandy loam type soil.

Chain is a great idea, may have to look into that if these scrapers don't eliminate problem.
Please log in or create an account to join the conversation.
Wed, Nov 19, 2014 7:40 PM
kracked1
Offline
Send a private message to kracked1
Posts: 741
Thank you received: 0
Reply to cab:
It is a sandy loam type soil.

Chain is a great idea, may have to look into that if these scrapers don't eliminate problem.
The chain will work. Just make sure it isnt too tight.
Please log in or create an account to join the conversation.
Wed, Nov 19, 2014 8:42 PM
Rome K/G
Offline
Send a private message to Rome K/G
Posts: 6,092
Thank you received: 0
Reply to kracked1:
The chain will work. Just make sure it isnt too tight.
You need to have the blade scrapers or like mentioned chain but chain may wear the disk spacers. Pic is my TRCH 12-36 disk.
Attachment
Please log in or create an account to join the conversation.
Wed, Nov 19, 2014 8:57 PM
Rome K/G
Offline
Send a private message to Rome K/G
Posts: 6,092
Thank you received: 0
Reply to Rome K/G:
You need to have the blade scrapers or like mentioned chain but chain may wear the disk spacers. Pic is my TRCH 12-36 disk.
Attachment

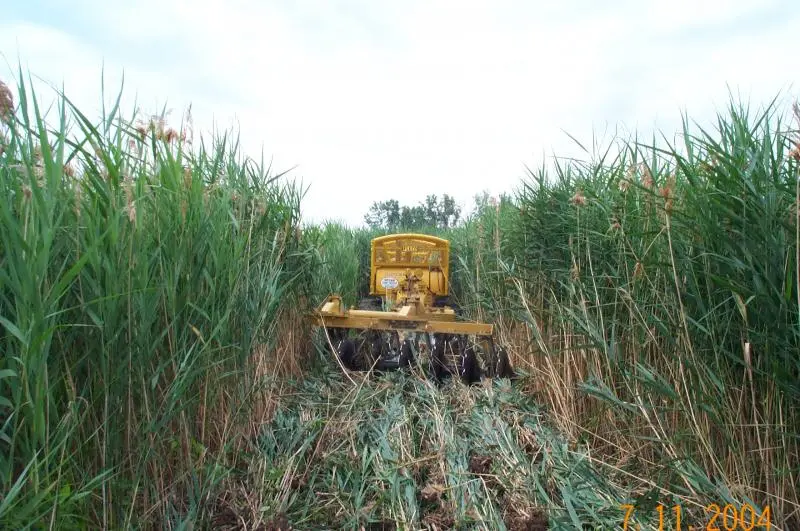

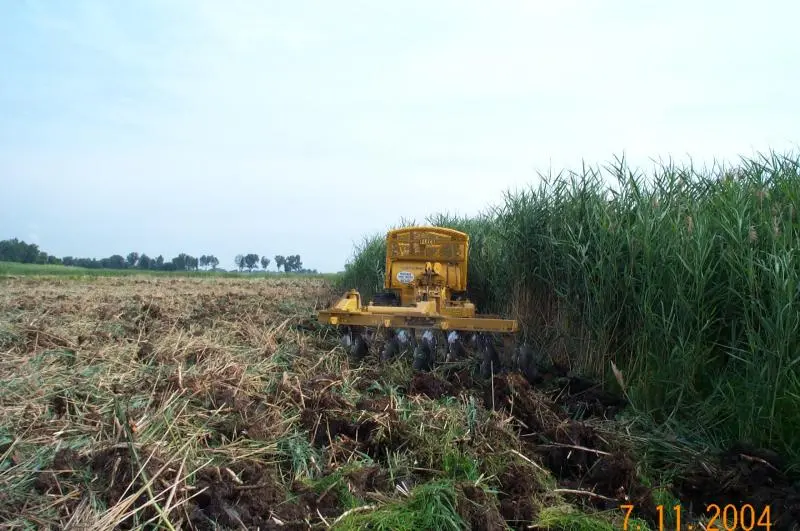

Some more pics disking marsh ground.
Attachment
Attachment
Attachment
Attachment
Please log in or create an account to join the conversation.
Wed, Nov 19, 2014 9:07 PM
Ray54
Offline
Send a private message to Ray54
Posts: 1,873
Thank you received: 12
Reply to Rome K/G:
Some more pics disking marsh ground.
Attachment
Attachment
Attachment
Attachment
With moisture that is the nature of a disc,some places will be much more likely to plug than others.I have never been able to see anything that makes one place on the disc more likely than another but usually the same place keeps giving problems. Chain can be a big help but will cut the spacer quietly so keep a eye on things.Some times changing the angle of the disc just a little can help a lot and will cut as well ,so keep trying different angles and see if it helps.
Please log in or create an account to join the conversation.
Wed, Nov 19, 2014 10:51 PM
old-iron-habit
Offline
Member
Send a private message to old-iron-habit
Posts: 3,520
Thank you received: 0
Reply to Ray54:
With moisture that is the nature of a disc,some places will be much more likely to plug than others.I have never been able to see anything that makes one place on the disc more likely than another but usually the same place keeps giving problems. Chain can be a big help but will cut the spacer quietly so keep a eye on things.Some times changing the angle of the disc just a little can help a lot and will cut as well ,so keep trying different angles and see if it helps.


I have used a loop of chain on my old JD tandem disc for years on a couple of sections that seem to always plug. I take them off when in dry conditions and so far have not noticed any wear on the disc spacers. I think there is enough wet dirt for a wear surface when the disc is in a plugging condition. Like already said, just keep an eye on them.
Please log in or create an account to join the conversation.
Wed, Nov 19, 2014 11:43 PM
gibsonf5
Offline
Send a private message to gibsonf5
Posts: 125
Thank you received: 0
Reply to old-iron-habit:


I have used a loop of chain on my old JD tandem disc for years on a couple of sections that seem to always plug. I take them off when in dry conditions and so far have not noticed any wear on the disc spacers. I think there is enough wet dirt for a wear surface when the disc is in a plugging condition. Like already said, just keep an eye on them.
we always tied barbed wire fairly loosely from disc frame to axle. cheap, tough and works great plus it doesnt cause any wear. regards, eric
Please log in or create an account to join the conversation.
Thu, Nov 20, 2014 12:36 AM
cab
Topic Author
Offline
Send a private message to cab
Posts: 388
Thank you received: 0
Reply to gibsonf5:
we always tied barbed wire fairly loosely from disc frame to axle. cheap, tough and works great plus it doesnt cause any wear. regards, eric
Wow that is a nice looking disk Rome! Mine is a TRH16-32" blades. 14" spacing. It has new front blades and older rears. Got the scrapers in and they are a heavy bit of steel. About 35# apiece.
Please log in or create an account to join the conversation.
Sat, Nov 22, 2014 9:15 AM
