Remanufactured Radiator Support for 8C20 and PV 15 Project.

Remanufactured Radiator Support for 8C20 and PV 15 Project.Started with a full size Blue Print .    And then a Bill of Materials for my local Birch Wood Supplers.

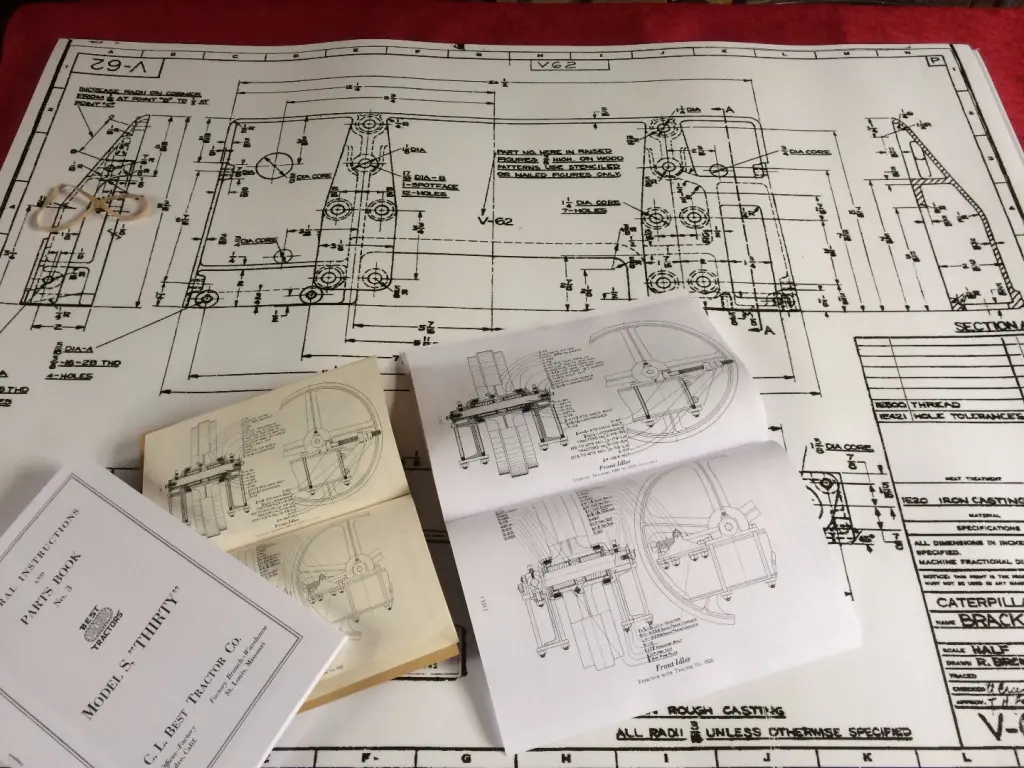

CM [attachment=73125]THE PRINT .jpg[/attachment]


Made Patterns.  And Moulded in sand ,  Poured at 2140 Degrees.F.

CM


.     [attachment=73126]Core Boses1 V62 (1).jpg[/attachment][attachment=73127]Machining Timber the start.jpg[/attachment][attachment=73128]Core Boxes 2 V62.jpg[/attachment]

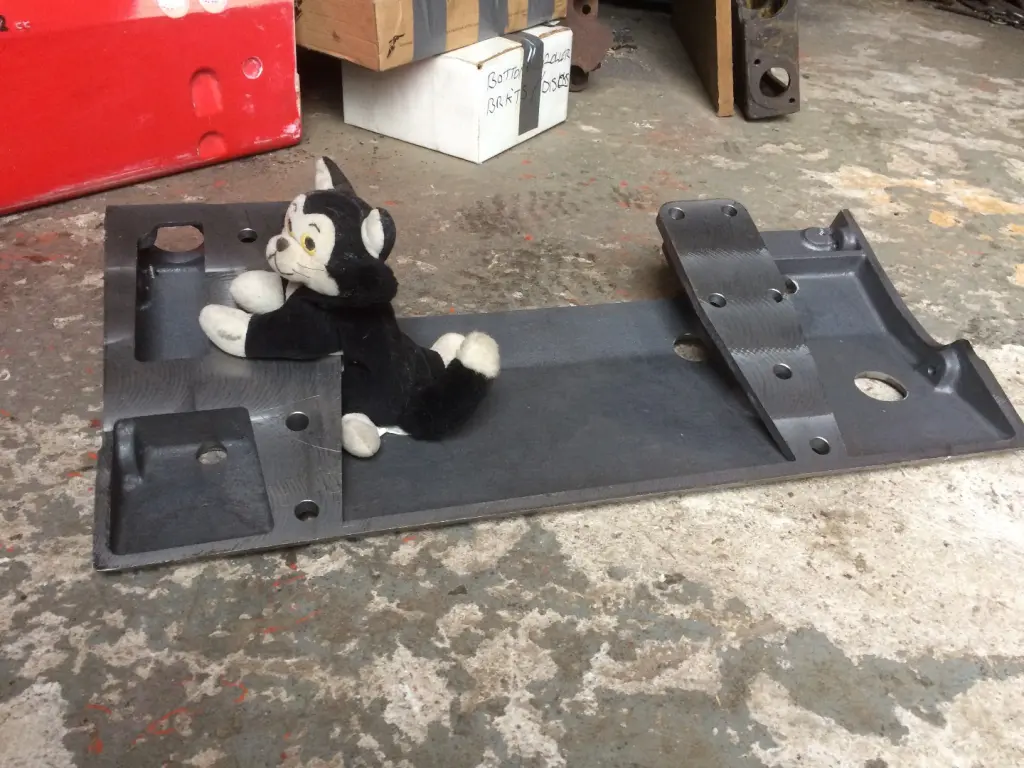

Raw casting then machined up and  Inspection. for Production Run.

.CM

 [attachment=73131]Inspection 1.jpg[/attachment]

V-62 cc     added to the production Castings. To Identify the Sub-Contract Vendor working to Blue Print Data.

CM

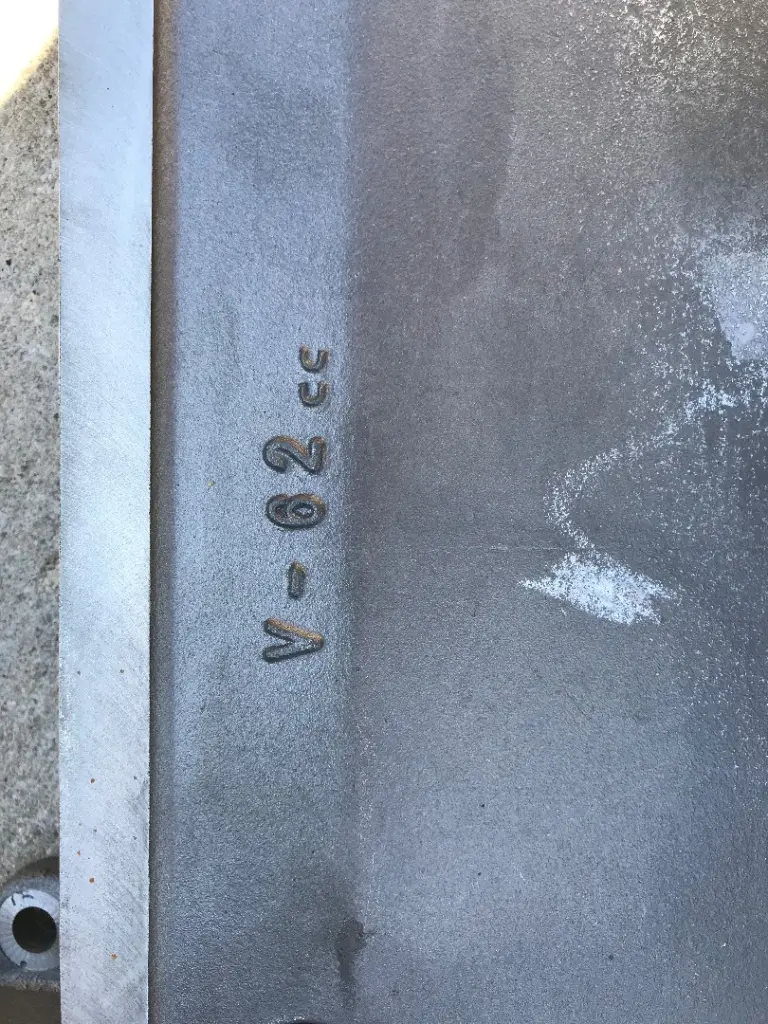

 [attachment=73132]V-62 Vendor ID.jpg[/attachment]

 2 Coats of White Zinc Primer.     Boxed Up inside a Wooden Plywood Base frame. With  Cat-Cave Acid Etched Brass Plates and Cat-Cave Decals and Instruction Decals for CAT Inc. Peoria  Contract to Cat=Cave.   12 Rad Supports Loaded on a Shipping Pallet.  ( 4 Rad Supports on Pallet, Stacked Up 3 High =(12) One Dozzen.  Contract order for Cat USA Decals and Acid Etched Plates also shipped.

CM

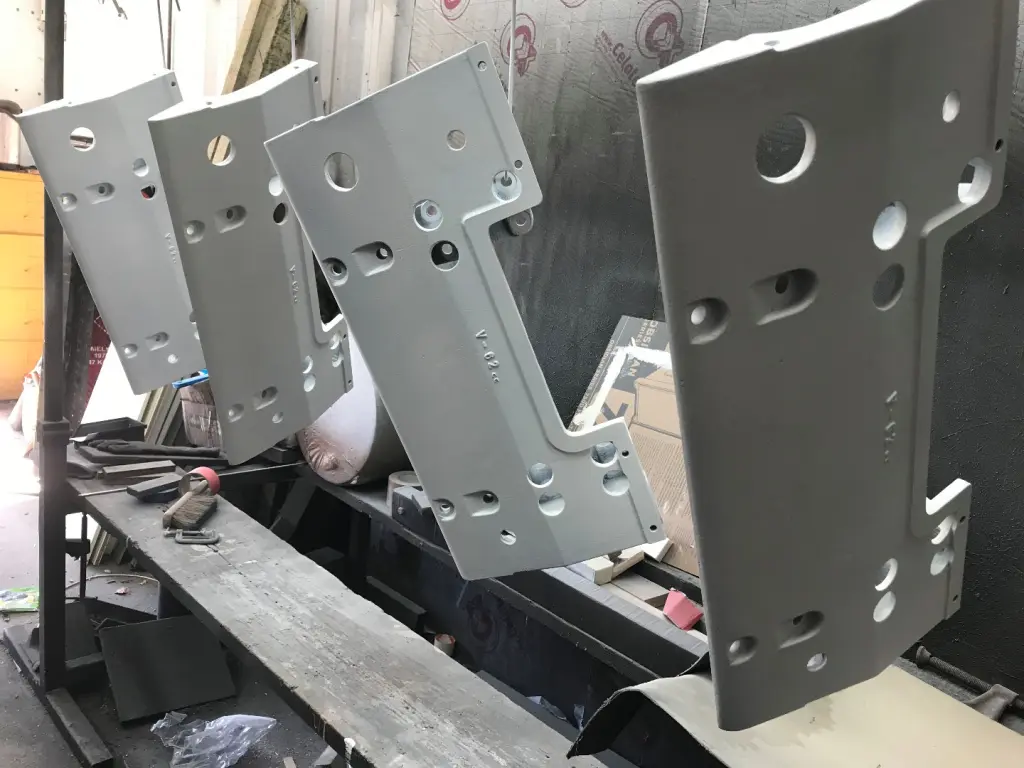

 [attachment=73134]In Primper.jpg[/attachment]

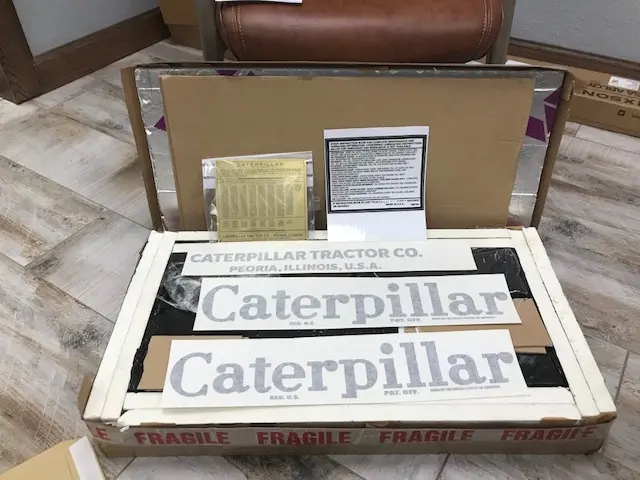

 [attachment=73133]Boxed as a Kit.jpg[/attachment]

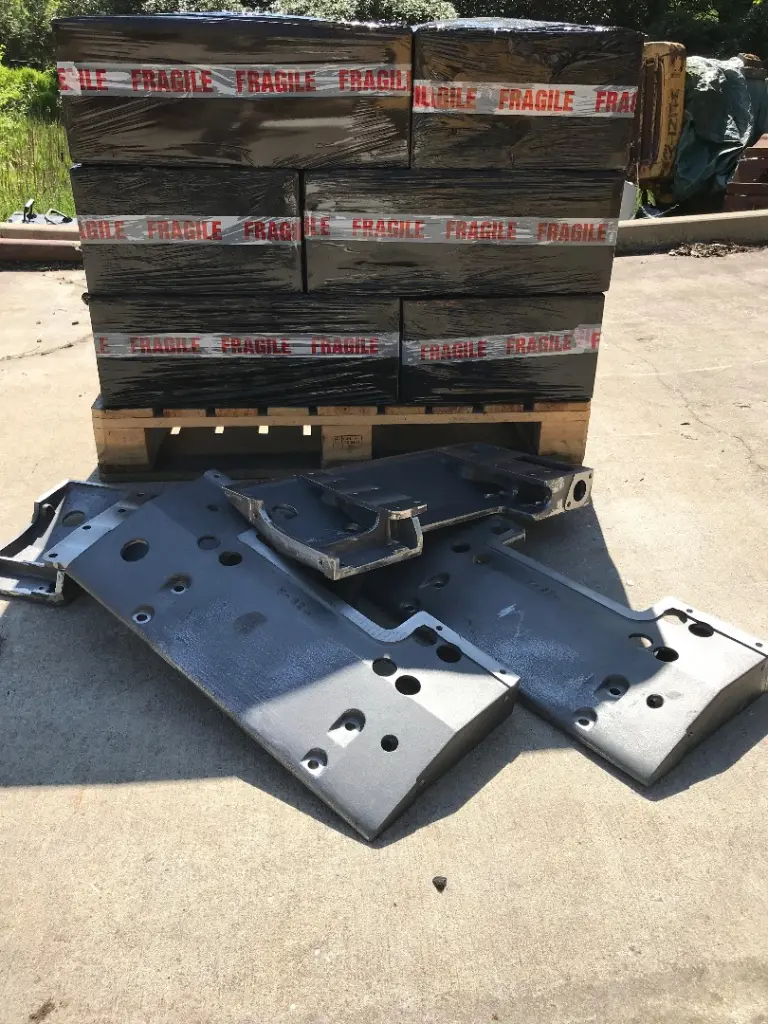

 [attachment=73135]12 on pallet going out, 4 machined up incoming lol.jpg[/attachment]

​​​​​​​

We ONLY Remanufactured 48 of then.    https://antiquecrawlerparts.com/  (has a couple on the shelve) and  Is One of a couple  Approved Cat-Cave PARTS DEALERS
in the USA.   And had a Request to Remanufacture another Batch Run on These Radiator Supports.

So Seen as Catman is "BACK" as an ACMOC club Paid In Member.

If any ACMOC MEMBER.  is interested in Obtaining this new Part  !! with all the Casting Area on the UPPER LIMITS  ( Hence Thicker Cast Area . Compared to Lower Limits.  He He.   We are only casting a couple of Dozzen not a 1000 off.   So no need to Produce to the Lower limits to save on metal per pour )   Smile. .

Contact Myself If Your Interested in Obtaining a Re-Run  Radiator Support  V--62.   For Further DETAILS.
