Part number water pump D2 5u early model

Showing 1 to 10 of 22 results

nielske

Topic Author

Offline

Member

Chapter Two

Send a private message to nielske

Posts: 258

Thank you received: 0

I am looking for the Part number water pump D2 5u early model.
The D2 5u late model has 4F4569 i believe but is the one from a early model the Same?

Thanks Niels

Please log in or create an account to join the conversation.

Thu, Jul 18, 2013 3:24 PM

gemdozer

Offline

Member

Send a private message to gemdozer

Posts: 1,530

Thank you received: 17

The D2 housing water pump#4f4608

Please log in or create an account to join the conversation.

Thu, Jul 18, 2013 5:08 PM

ccjersey

Offline

Send a private message to ccjersey

Posts: 4,422

Thank you received: 0

..............

D2-5J's, D6-9U's, D318 and D333 power units, 12E-99E grader, 922B & 944A wheel loaders, D330C generator set, DW20 water tanker and a bunch of Jersey cows to take care of in my spare time😄

Please log in or create an account to join the conversation.

Thu, Jul 18, 2013 8:32 PM

josh

Offline

Send a private message to josh

Posts: 1,236

Thank you received: 13

Reply to ccjersey:

..............

Pump group 4F4569 is correct for all the D2 U series tractors.

Please log in or create an account to join the conversation.

Thu, Jul 18, 2013 10:59 PM

dpendzic

Offline

Send a private message to dpendzic

Posts: 2,766

Thank you received: 1

Reply to josh:

Pump group 4F4569 is correct for all the D2 U series tractors.

my early 5U book verify's Hectors 4F 4608

Please log in or create an account to join the conversation.

Fri, Jul 19, 2013 4:11 AM

shovel man

Offline

Send a private message to shovel man

Posts: 231

Thank you received: 0

Reply to dpendzic:

my early 5U book verify's Hectors 4F 4608

What's wrong with the pump ? if it is only leaking you can put a new seal in it.

shovel man

Please log in or create an account to join the conversation.

Fri, Jul 19, 2013 4:32 AM

nielske

Topic Author

Offline

Member

Chapter Two

Send a private message to nielske

Posts: 258

Thank you received: 0

Reply to dpendzic:

my early 5U book verify's Hectors 4F 4608

Thank you guy's i found what i need!
The Pump group 4F4569 is for al the U series the same

@ shovel man, if there is a pump i will always try that but without a pump i don't know where to place the seal 😆

Please log in or create an account to join the conversation.

Fri, Jul 19, 2013 4:44 AM

hhydro

Offline

Send a private message to hhydro

Posts: 50

Thank you received: 0

Reply to shovel man:

What's wrong with the pump ? if it is only leaking you can put a new seal in it.

shovel man

[quote="shovel man"]What's wrong with the pump ? if it is only leaking you can put a new seal in it.

shovel man[/quote]

Does anyone have the part numbers for the water pump rebuild items (bearings, seals, gaskets) on a 5U D2 (5U16805)? Any advice on the rebuild procedure is also appreciated.

It sprang a leak this afternoon gushing out the seep hole. We've got to get some work done using this old machine so I need to get it repaired quickly. An image of the parts page for the water pump would be appreciated.

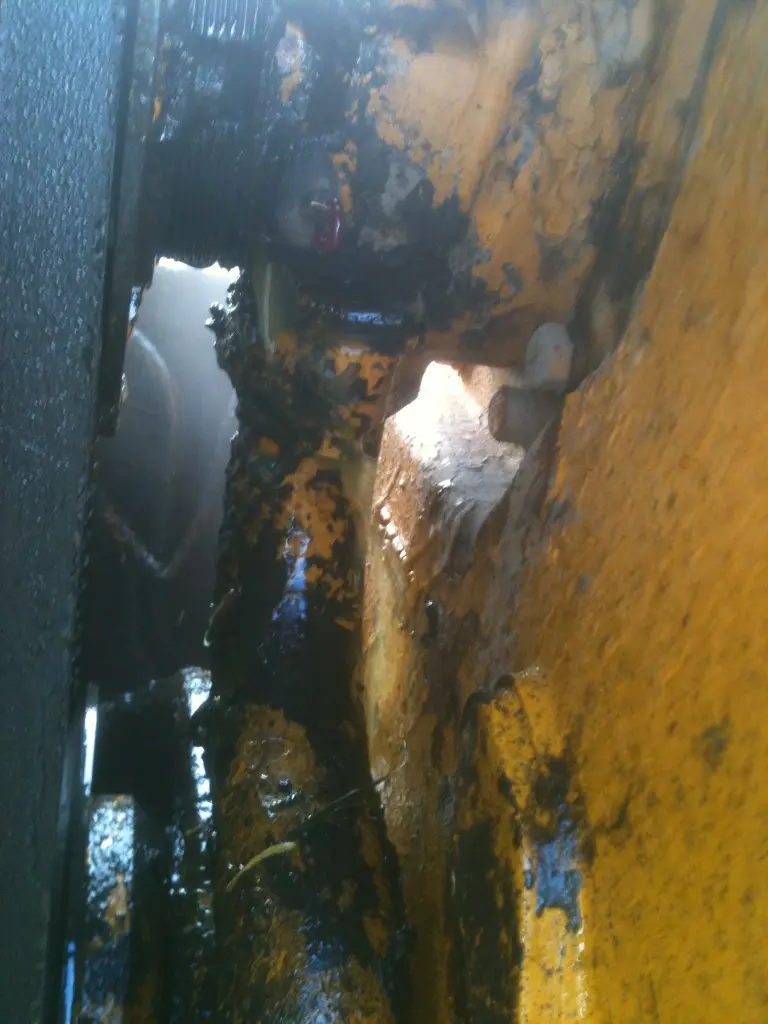

In this photo you can see the full stream of coolant coming out of the hole just below the zerk with a bit of red grease showing.
[attachment=24787]D2_water-pump_leak.jpg[/attachment]

Thanks,

Joe

Please log in or create an account to join the conversation.

Sat, Aug 30, 2014 11:27 AM

Old Magnet

Offline

Send a private message to Old Magnet

Posts: 16,757

Thank you received: 39

Reply to hhydro:

[quote="shovel man"]What's wrong with the pump ? if it is only leaking you can put a new seal in it.

shovel man[/quote]

Does anyone have the part numbers for the water pump rebuild items (bearings, seals, gaskets) on a 5U D2 (5U16805)? Any advice on the rebuild procedure is also appreciated.

It sprang a leak this afternoon gushing out the seep hole. We've got to get some work done using this old machine so I need to get it repaired quickly. An image of the parts page for the water pump would be appreciated.

In this photo you can see the full stream of coolant coming out of the hole just below the zerk with a bit of red grease showing.
[attachment=24787]D2_water-pump_leak.jpg[/attachment]

Thanks,

Joe

This should cover it....

Please log in or create an account to join the conversation.

Sat, Aug 30, 2014 11:54 AM

hhydro

Offline

Send a private message to hhydro

Posts: 50

Thank you received: 0

Reply to Old Magnet:

This should cover it....

Thanks!

I've gone online to enter an order for all the bearings, seals and gaskets listed on the drawing. There were a few parts with updated part numbers.

1B4115-BEARING, gave 311-9354 or 2F5721 (first was $6.66, second was about $25)
4F4769-SEAL ASSEM, gave 4N-7526

Thanks again!

Part List:

Part Number Part Name Serial Number Quantity Unit Price(USD) Extended Price(USD)

311-9354 BRG-BALL-CLA 2 6.66 13.32
7B-2174 SEAL 2 7.47 14.94
7B-3954 GASKET 2 4.53 9.06
4F-4752 SEAL 1 2.00 2.00
4N-7526 SEAL A 1 28.45 28.45

Order Sub-total 67.77

Shipping/Miscellaneous .00

Total Taxes .00

Total 67.77

Please log in or create an account to join the conversation.

Sat, Aug 30, 2014 9:36 PM

hhydro

Offline

Send a private message to hhydro

Posts: 50

Thank you received: 0

Reply to hhydro:

Thanks!

I've gone online to enter an order for all the bearings, seals and gaskets listed on the drawing. There were a few parts with updated part numbers.

1B4115-BEARING, gave 311-9354 or 2F5721 (first was $6.66, second was about $25)
4F4769-SEAL ASSEM, gave 4N-7526

Thanks again!

Part List:

Part Number Part Name Serial Number Quantity Unit Price(USD) Extended Price(USD)

311-9354 BRG-BALL-CLA 2 6.66 13.32
7B-2174 SEAL 2 7.47 14.94
7B-3954 GASKET 2 4.53 9.06
4F-4752 SEAL 1 2.00 2.00
4N-7526 SEAL A 1 28.45 28.45

Order Sub-total 67.77

Shipping/Miscellaneous .00

Total Taxes .00

Total 67.77

Ok, I've got all the parts now. The old water pump has been completely disassembled and cleaned up. The deep groove worn in the pulley sheaves are being built up by a machine shop with metal spraying equipment who will deposit new metal and turn down to a nice V-face. That is expensive, but there are no new pulley parts from Cat and it was so worn it really had to be done. The radiator is being re-built at a local radiator shop recommended by an ex Cat dealer executive.

I plan to go up to the farm Friday afternoon and put it all back together and hope to have it running in the field on Saturday.

I've run into a couple of issues that I'd like the experts to weigh in on.

First, the new ball bearings from Cat were junk. I can't turn them by hand at all. I measured them and found 62mm OD, 25mm bore, 17mm wide with the number 6305 stamped in the bearing. The Cat part is a simple open cage bearing. 6305 is an industry standard bearing size, so I picked up a pair of double sealed SKF bearings that are smooth as silk. I was thinking to remove the zerk and put in a second vent plug 4B4550 in place of the zerk so nobody will try to grease it. It doesn't appear that coolant can reach the bearing given the shaft drain slot, conventional seal and bearing seals. Am I thinking wrong here? Should I stick to the 60 year old design or put in a good modern bearing?

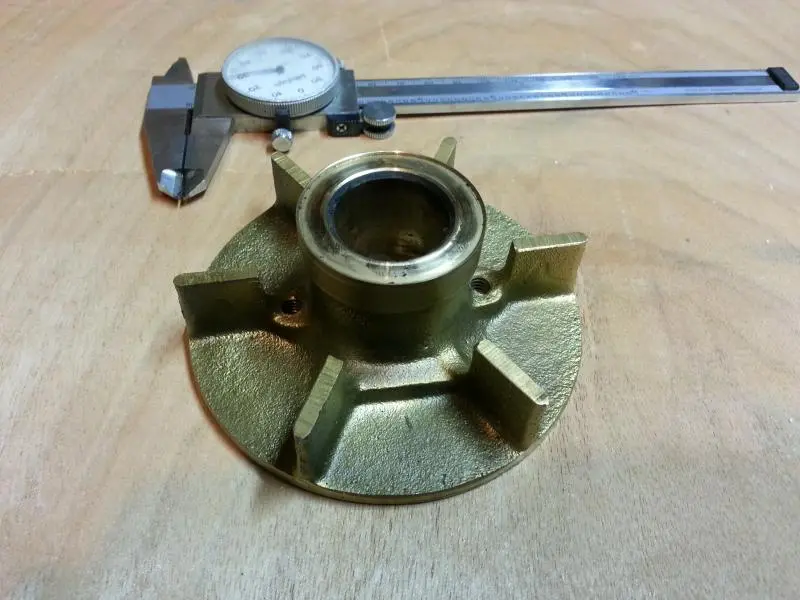

Second, the impeller 4F4770 is worn on the face that rubs the seal on the bellows assembly. I've measured a step around the perimeter of the sealing face on the impeller about 0.030" deep as shown here.
[attachment=24902]5U16805_4F4770T.jpg[/attachment]
The impeller diameter increases to form a sort of collar at the sealing face end of the impeller. The collar section is about 0.43" long. If I turn the sealing face to remove the rim (and no more) the collar would be 0.40" long. What I'm calling the sealing collar is shown in cross section in the parts drawing from this thread under the head of the arrow for part 5F9140, but the collar is part of the impeller 4F4770.

Should I
A) Assemble as is without any machining of the impeller
😎 Face off the end of the impeller on a lathe to be flat and true with no rim, making the sealing collar section a bit shorter than 0.40"
C) Build up the material worn down before facing off the end (e.g. using a TIG torch and bronze filler rod in the hands of a world class welder - not me)

I'm leaning to option B.

Thanks,

Joe
Attachment

Please log in or create an account to join the conversation.

Mon, Sep 8, 2014 9:59 AM
