Old Cat 50Kw Generator Set

Showing 1 to 7 of 7 results

1939dozer

Topic Author

Offline

Send a private message to 1939dozer

Posts: 2

Thank you received: 0

Hi All, First time post.
I was hoping someone could help identify this Cat Gen Set I picked up.

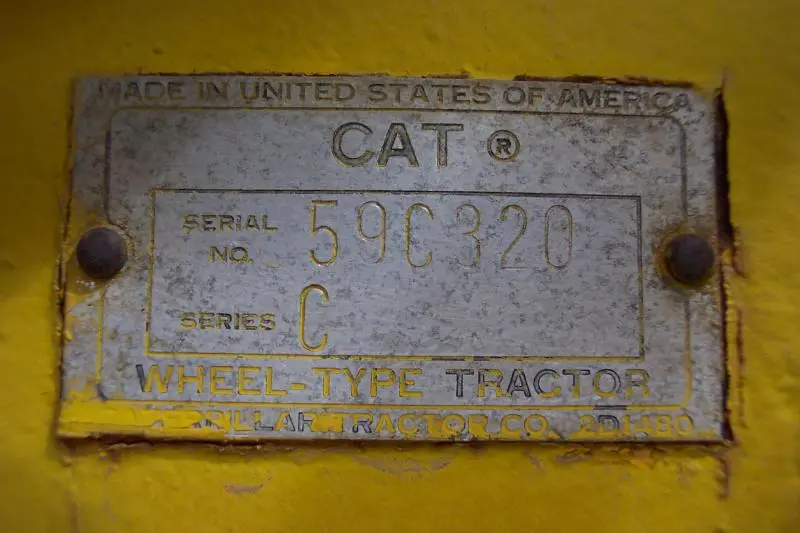

The placard reads Cat Wheel Type Tractor Engine Series C Ser# 59C320.
I thought it might be related to the DW Wheel Tractor series but I really
dont know. Its mounted on what looks to be a military trailer. Heavy Duty!

Thanks for your help.

Please log in or create an account to join the conversation.

Mon, Apr 26, 2010 3:41 PM

bruce oz

Offline

Member

Send a private message to bruce oz

Posts: 1,429

Thank you received: 21

hello 1939dozer , 59C320 shows as a DW15C engine, 1955-57 ,bruce oz

Please log in or create an account to join the conversation.

Mon, Apr 26, 2010 3:56 PM

Offline

Send a private message to SJ

Posts: 1,890

Thank you received: 0

Reply to bruce oz:

hello 1939dozer , 59C320 shows as a DW15C engine, 1955-57 ,bruce oz

I just can,t remember as they weren,t popular here in my area like the DW21s were but if I can remember right I think they had a D326 engine in them, so correct me if I,m wrong.My book I have doesn,t list the particular engine they used in them.

Please log in or create an account to join the conversation.

Mon, Apr 26, 2010 5:25 PM

bruce oz

Offline

Member

Send a private message to bruce oz

Posts: 1,429

Thank you received: 21

Reply to SJ:

I just can,t remember as they weren,t popular here in my area like the DW21s were but if I can remember right I think they had a D326 engine in them, so correct me if I,m wrong.My book I have doesn,t list the particular engine they used in them.

hello sj ,yes D326 f series engine ,186hp ,bruce oz

Please log in or create an account to join the conversation.

Mon, Apr 26, 2010 5:32 PM

ccjersey

Offline

Send a private message to ccjersey

Posts: 4,422

Thank you received: 0

Definitely not your "built for price" type of generator set if it's really a 50 kW generator end on it!😄

Maybe it's governed at 1200 rpm instead of 1800. Any tags on the generator end or skid? Some have a number stamped in the steel between the engine and the generator control box, near a hole for a lifting bolt.

Got any pictures?

D2-5J's, D6-9U's, D318 and D333 power units, 12E-99E grader, 922B & 944A wheel loaders, D330C generator set, DW20 water tanker and a bunch of Jersey cows to take care of in my spare time😄

Please log in or create an account to join the conversation.

Mon, Apr 26, 2010 7:39 PM

1939dozer

Topic Author

Offline

Send a private message to 1939dozer

Posts: 2

Thank you received: 0

Reply to ccjersey:

Definitely not your "built for price" type of generator set if it's really a 50 kW generator end on it!😄

Maybe it's governed at 1200 rpm instead of 1800. Any tags on the generator end or skid? Some have a number stamped in the steel between the engine and the generator control box, near a hole for a lifting bolt.

Got any pictures?

Hi all,

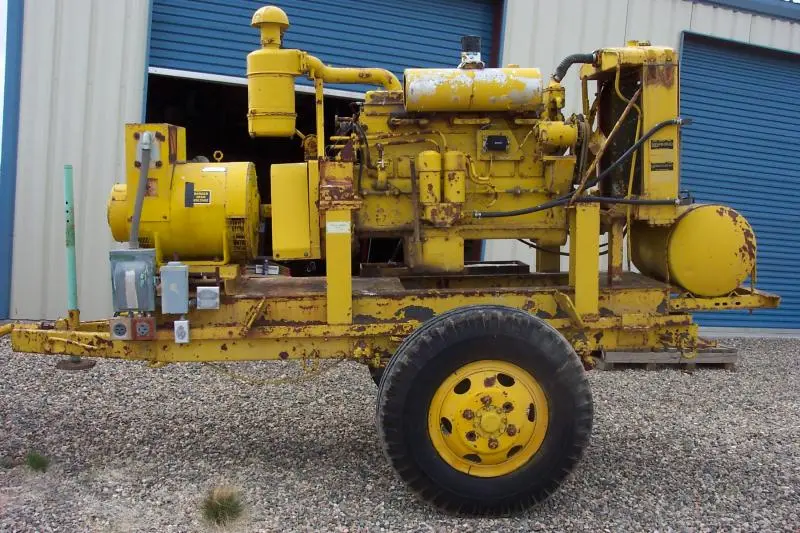

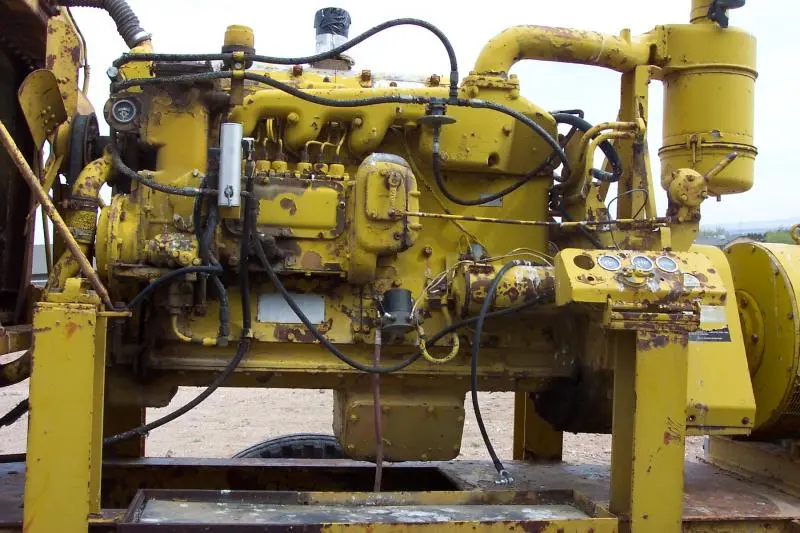

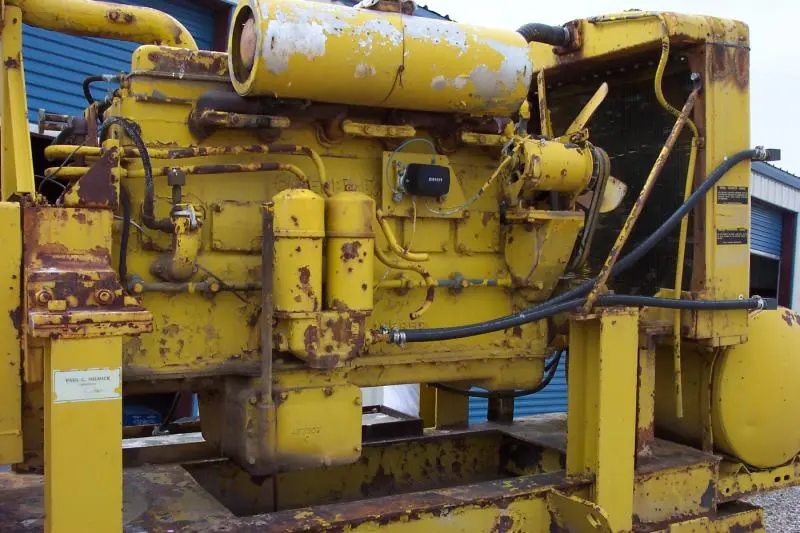

Thanks Burce,SJ,and ccjersey for all your input. Took some pictures today, I hope
they make in on the post. The placard on the generator is a 50kw rating with a 1800 RPM. Is it possible to be a D318 gen set?
Attachment

Please log in or create an account to join the conversation.

Wed, Apr 28, 2010 10:57 AM

ccjersey

Offline

Send a private message to ccjersey

Posts: 4,422

Thank you received: 0

It does look like a D318 which fits with the 50kW a little better than a D326.

I still don't know how that serial number fits in with this all.

D2-5J's, D6-9U's, D318 and D333 power units, 12E-99E grader, 922B & 944A wheel loaders, D330C generator set, DW20 water tanker and a bunch of Jersey cows to take care of in my spare time😄

Please log in or create an account to join the conversation.

Wed, Apr 28, 2010 11:37 AM

donl4

Offline

Send a private message to donl4

Posts: 80

Thank you received: 0

Reply to ccjersey:

It does look like a D318 which fits with the 50kW a little better than a D326.

I still don't know how that serial number fits in with this all.

When I was in the Air Force we had some units that looked just like that. They were used on the remote radar sites to run the compressors that provided start air for the White Superior 450Kw generators. The white was a 8" bore 6 cylinder inline engine I do not know how much horse power. There were five big generators in the power house, and always too of them on line. If we were doing standby transmitter adjustments on the search radar we had to have a third one put on line.

Don
JD40C

Please log in or create an account to join the conversation.

Mon, May 3, 2010 7:38 PM
