Need a lead on a D2 Battery Box

6 volt cat battery box same on all the early pony start cats

The D2 only (late U models) changes to the curve top ventilated model for 6v starting only.

Nice picture Old Magnet. Is that your D2? Very nice! Would love to get some close up pictures so I can have one made. Looks like you are not too far away from me.

Larry

Sorry, no that's not my D2....picture was taken at Tulare a couple of years ago. Don't know whose it is.

IRolla, I do have a rounded batt box like OM has pictured, but I do not have the top or the internal cradle. The bottom is a bit rusty.

For Sale: Reproduction Caterpillar D2, D4, D6 battery box. 14 gauge metal with rounded corners like original. Dimensions are as close as possible. Inner battery brackets are 3/16 gauge metal with rubber mounts & rubber hold down under lid. Norman Quay (937) 585-6475 (OH)[94].

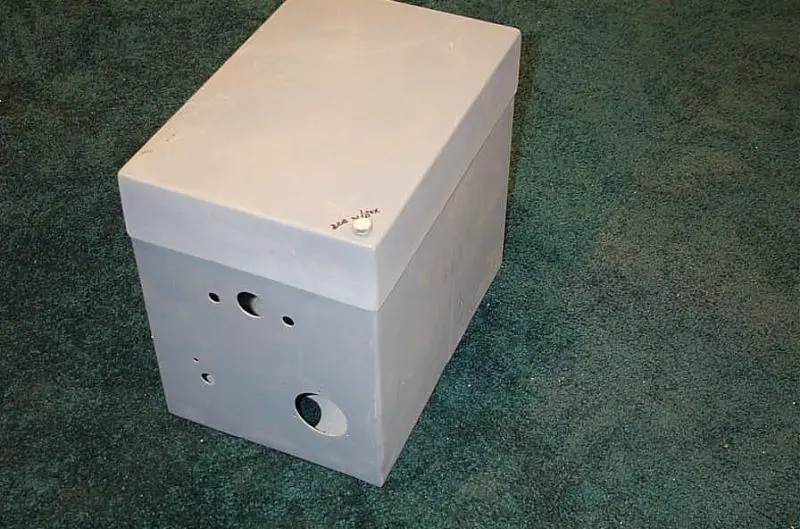

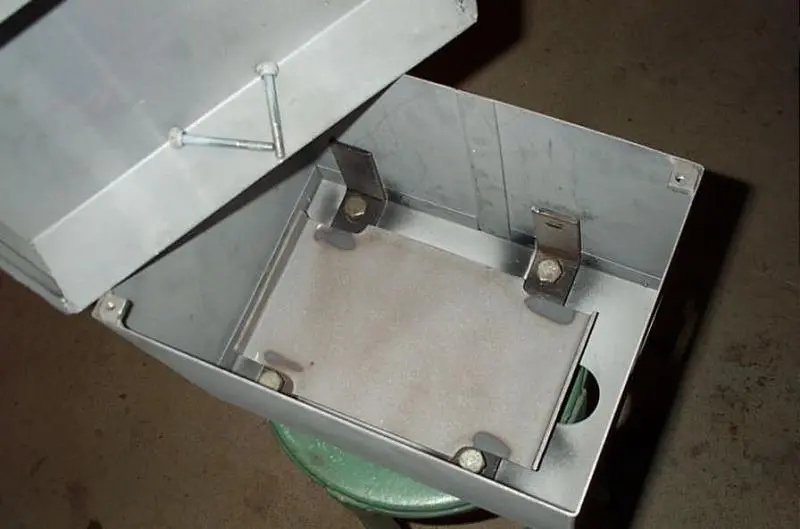

I've made a few of these square cornered boxes w/lids and some of the internal parts as shown. My finished ones have sold but it wouldn't take long to assemble another. $200. Karl 530-533-2266

Nice work!!

Here's how the two compare.
