Model 25 cable control

BSmith

Topic Author

Offline

Member

Send a private message to BSmith

Posts: 6

Thank you received: 0

Happy Thanksgiving day !
Replacing the clutch discs and brake in the Model 25 Cable Control unit 9D35917 on D6 Cat 9U15925.
Trying to find a service manual for it, I have the operator manual only, also trying to locate the breather.
Anyone point me in the right direction ?
Bryan

Please log in or create an account to join the conversation.

Fri, Nov 29, 2024 5:48 AM

seiscat

Offline

Send a private message to seiscat

Posts: 1,319

Thank you received: 1

Thank you! And a happy Thanksgiving to you also. There is a good copy of the No. 25 Serviceman's Reference Book(service manual) in our ACMOC library.

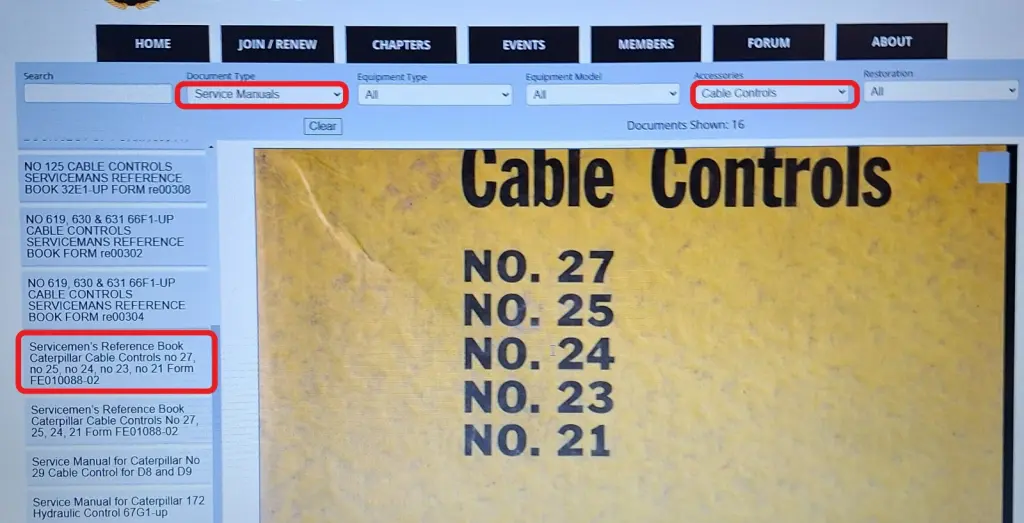

I have attached a picture with the selections you need to find it outlined in red.
There is also one for sale on eBay:
https://www.ebay.com/itm/326348620338
Craig
[attachment=78394]20241128_185600.jpg[/attachment]

Please log in or create an account to join the conversation.

Fri, Nov 29, 2024 8:10 AM

seiscat

Offline

Send a private message to seiscat

Posts: 1,319

Thank you received: 1

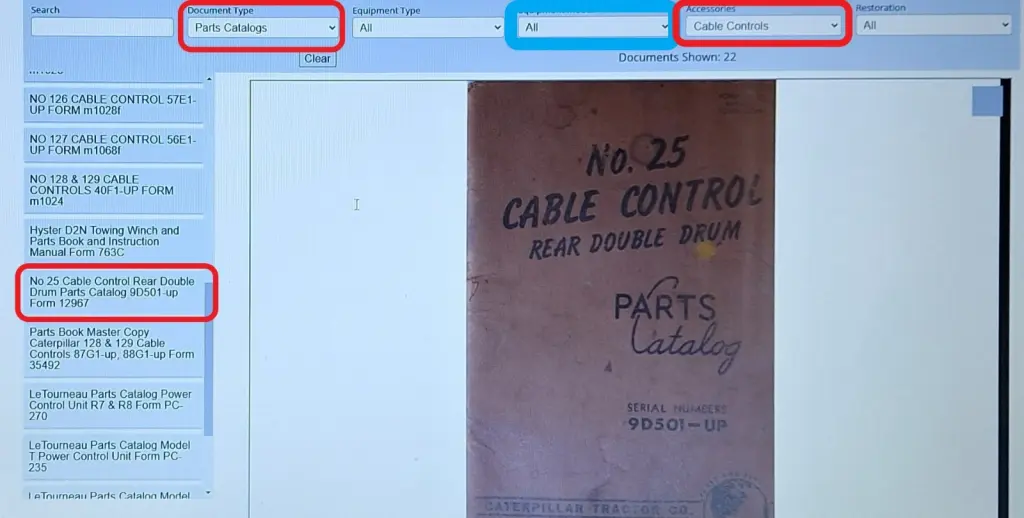

There is a parts book in the library also, I attached the picture again.
There is one for sale on eBay:https:
www.ebay.com/itm/135363289646
We will have the OMI in the library soon.
There is one on eBay now:
https://www.ebay.com/itm/394515172247
Craig
[attachment=78396]20241129_082258.jpg[/attachment]

Please log in or create an account to join the conversation.

Fri, Nov 29, 2024 9:52 PM

neil

Offline

Member

Moderator

Admin

Super Admin

Send a private message to neil

Posts: 7,296

Thank you received: 63

Reply to seiscat:

There is a parts book in the library also, I attached the picture again.
There is one for sale on eBay:https:
www.ebay.com/itm/135363289646
We will have the OMI in the library soon.
There is one on eBay now:
https://www.ebay.com/itm/394515172247
Craig
[attachment=78396]20241129_082258.jpg[/attachment]

Are all Cat rear-mounted CCUs about the same size dimensionally?

Please log in or create an account to join the conversation.

Fri, Nov 29, 2024 10:27 PM

seiscat

Offline

Send a private message to seiscat

Posts: 1,319

Thank you received: 1

Reply to neil:

Are all Cat rear-mounted CCUs about the same size dimensionally?

Hi Neil,
The fast answer in no not really. However there are some different models such as the No.25 & No. 125 that share dimensions.
That's a tricky question,
Craig

Please log in or create an account to join the conversation.

Fri, Nov 29, 2024 11:18 PM

neil

Offline

Member

Moderator

Admin

Super Admin

Send a private message to neil

Posts: 7,296

Thank you received: 63

Reply to seiscat:

Hi Neil,
The fast answer in no not really. However there are some different models such as the No.25 & No. 125 that share dimensions.
That's a tricky question,
Craig

Thanks Craig, which one occupies the least space. Just daydreaming about a CCU on a small tractor

Please log in or create an account to join the conversation.

Sat, Nov 30, 2024 2:56 AM

BSmith

Topic Author

Offline

Member

Send a private message to BSmith

Posts: 6

Thank you received: 0

Reply to neil:

Thanks Craig, which one occupies the least space. Just daydreaming about a CCU on a small tractor

Thank You, Graig !
I am using the Service and parts manuals you recommended.
As soon as the Holiday is over and everyone is back to work
I will get the spring 2H2703 "CLUTCH RETURN SPRING"
Thanks again for your help !
Bryan

Please log in or create an account to join the conversation.

Sat, Nov 30, 2024 3:38 AM

juiceman

Offline

Member

Chapter Leader

Super Admin

Chapter Fifteen

Send a private message to juiceman

Posts: 3,925

Thank you received: 267

Reply to BSmith:

Thank You, Graig !
I am using the Service and parts manuals you recommended.
As soon as the Holiday is over and everyone is back to work
I will get the spring 2H2703 "CLUTCH RETURN SPRING"
Thanks again for your help !
Bryan

In the spirit of the holidays, I can send you a "Master Catalog" from a stash of books that were donated to our chapter from a really nice member (Gary M. you know who you are).
Send me your mailing address via private message and someone here can put it in regular mail. JuiceMan.
Attachment

Please log in or create an account to join the conversation.

Sat, Nov 30, 2024 4:13 AM
