Following the successful introduction of the first Machine landing page covering the D2 tractor, your Webtech committee is now embarking on the rollout of this new feature to other models of Caterpillar equipment. To this end, Kurt (FroghairFarm) has volunteered to create a page for the D4 tractor and I have just created one for the R2 (J series) tractors.

As well as inviting other members to join this exciting project and create a machine landing page for their favourite machine (assuming it has not already been created), I would also like to invite "Peer Review" of the documents we create to ensure that they are as accurate as possible.

If there are any R2 (J series) experts out there please take a look at my R2 document below and let me know of any errors and/or suggested changes.

[attachment=67276]R2 Info Page mockup (1).pdf[/attachment]

Please log in or create an account to join the conversation.

Tue, Apr 5, 2022 7:41 PM

trainzkid88

Offline

Member

Send a private message to trainzkid88

Location: b.berg qld

Posts: 2,381

Thank you received: 46

by tractor fuel i assume you mean power kerosene. many piece of farm machinery ran on power kero. it actually had more power the the petrol of the day due to the oil content.
a rough aproximation is to get jet-A and add some 2 stroke oil to bring the oil level up. i cant remember the mix ratio.

"i reject your reality and substitute my own" - adam savage. i suspect my final words maybe "well shit, that didnt work"

instead of perfection some times we just have to accept practicality

Please log in or create an account to join the conversation.

Wed, Apr 6, 2022 2:54 PM

gauntjoh

Topic Author

Offline

Member

Moderator

Librarian

Admin

Chapter Two

Send a private message to gauntjoh

Posts: 1,163

Thank you received: 4

Reply to trainzkid88:

by tractor fuel i assume you mean power kerosene. many piece of farm machinery ran on power kero. it actually had more power the the petrol of the day due to the oil content.
a rough aproximation is to get jet-A and add some 2 stroke oil to bring the oil level up. i cant remember the mix ratio.

[quote="trainzkid88 post=237049 userid=11838"]by tractor fuel i assume you mean power kerosene. many piece of farm machinery ran on power kero. it actually had more power the the petrol of the day due to the oil content.
a rough aproximation is to get jet-A and add some 2 stroke oil to bring the oil level up. i cant remember the mix ratio.[/quote]
Hi, This type of fuel is known by different names in different parts of the world. Caterpillar refer to it as "Tractor Fuel" in their documents, here in the UK it is called TVO (Tractor Vaporising Oil) and in Australia power kerosene. A reasonable substitute for TVO can be made by mixing 4 gallons of 28 second heating oil, one gallon of petrol (gasoline) and a quart of diesel.
You had to start on petrol and warm the engine up before switching over to TVO. Before stopping the engine for the day you had to switch back to petrol so the carb was full of petrol ready for the next days start.

Please log in or create an account to join the conversation.

Wed, Apr 6, 2022 5:52 PM

gauntjoh

Topic Author

Offline

Member

Moderator

Librarian

Admin

Chapter Two

Send a private message to gauntjoh

Posts: 1,163

Thank you received: 4

Reply to gauntjoh:

[quote="trainzkid88 post=237049 userid=11838"]by tractor fuel i assume you mean power kerosene. many piece of farm machinery ran on power kero. it actually had more power the the petrol of the day due to the oil content.
a rough aproximation is to get jet-A and add some 2 stroke oil to bring the oil level up. i cant remember the mix ratio.[/quote]
Hi, This type of fuel is known by different names in different parts of the world. Caterpillar refer to it as "Tractor Fuel" in their documents, here in the UK it is called TVO (Tractor Vaporising Oil) and in Australia power kerosene. A reasonable substitute for TVO can be made by mixing 4 gallons of 28 second heating oil, one gallon of petrol (gasoline) and a quart of diesel.
You had to start on petrol and warm the engine up before switching over to TVO. Before stopping the engine for the day you had to switch back to petrol so the carb was full of petrol ready for the next days start.

Machine landing pages are now getting traction (well Cat were always good in the traction department ! ).
Pages are in preparation for the D4, FIFTY and SEVENTY tractors and the 212 grader.
Does anyone else want to help?

Please log in or create an account to join the conversation.

Thu, Apr 7, 2022 8:45 AM

gauntjoh

Topic Author

Offline

Member

Moderator

Librarian

Admin

Chapter Two

Send a private message to gauntjoh

Posts: 1,163

Thank you received: 4

Reply to gauntjoh:

Machine landing pages are now getting traction (well Cat were always good in the traction department ! ).
Pages are in preparation for the D4, FIFTY and SEVENTY tractors and the 212 grader.
Does anyone else want to help?

These are now live !

Go take a look !

Machines - Antique Caterpillar Machinery Owners Club (acmoc.org)

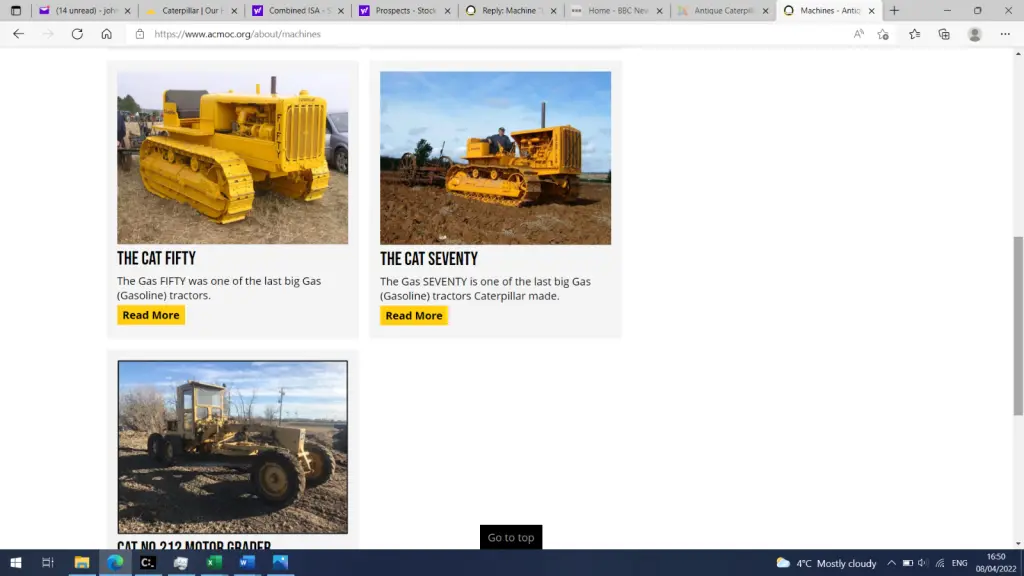

[attachment=67297]Screenshot (35).png[/attachment]

Please log in or create an account to join the conversation.

Fri, Apr 8, 2022 10:51 PM

gauntjoh

Topic Author

Offline

Member

Moderator

Librarian

Admin

Chapter Two

Send a private message to gauntjoh

Posts: 1,163

Thank you received: 4

Reply to gauntjoh:

These are now live !

Go take a look !

Machines - Antique Caterpillar Machinery Owners Club (acmoc.org)

[attachment=67297]Screenshot (35).png[/attachment]

I am looking for some high resolution pictures of the gas THIRTY FIVE, gas FORTY and gas SIXTY FIVE tractors for the relevant machine pages can anyone help me please ?

Please log in or create an account to join the conversation.

Sun, Apr 10, 2022 7:50 PM

mog5858

Offline

Member

Send a private message to mog5858

Posts: 1,331

Thank you received: 2

Reply to gauntjoh:

I am looking for some high resolution pictures of the gas THIRTY FIVE, gas FORTY and gas SIXTY FIVE tractors for the relevant machine pages can anyone help me please ?

I have an un-restored gas 40 just waiting its turn. I could take some pic of it next weekend what kinda pics are you looking for? how big or what resolution does it need to be?

Please log in or create an account to join the conversation.

Sun, Apr 10, 2022 10:40 PM

gauntjoh

Topic Author

Offline

Member

Moderator

Librarian

Admin

Chapter Two

Send a private message to gauntjoh

Posts: 1,163

Thank you received: 4

Reply to mog5858:

I have an un-restored gas 40 just waiting its turn. I could take some pic of it next weekend what kinda pics are you looking for? how big or what resolution does it need to be?

Hi, Thanks for volunteering. A normal picture taken by a phone or digital camera will be just fine.
Perhaps if you could take a few pictures showing the tractor from different angles similar to the ones on the existing machine pages.
Machines - Antique Caterpillar Machinery Owners Club (acmoc.org)
I'm happy to give you credit for the pictures in the published document if you would like me to.

Please log in or create an account to join the conversation.

Mon, Apr 11, 2022 12:20 AM

Fat Dan

Offline

Send a private message to Fat Dan

Posts: 740

Thank you received: 2

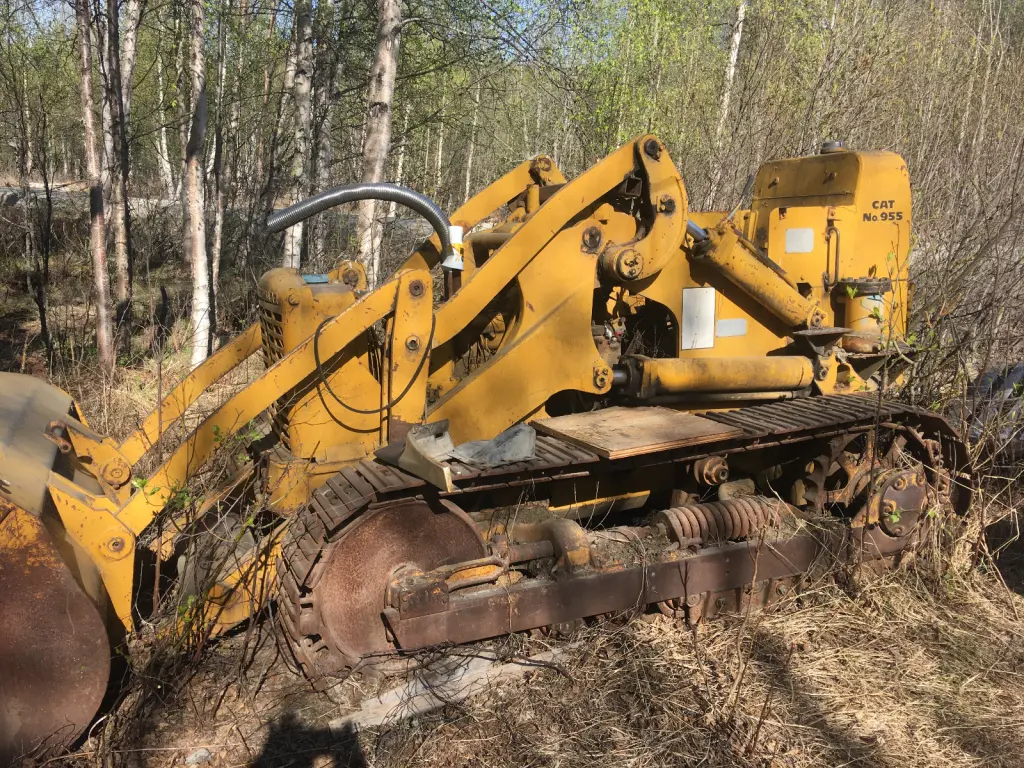

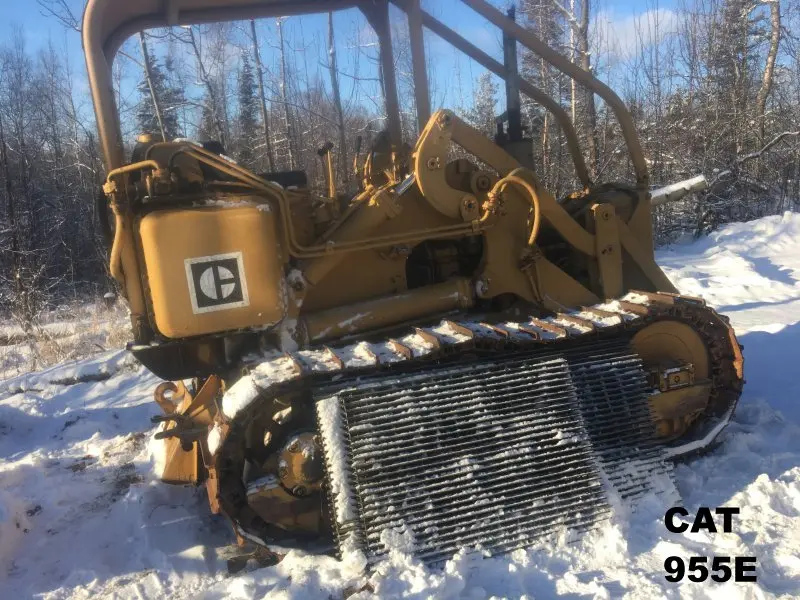

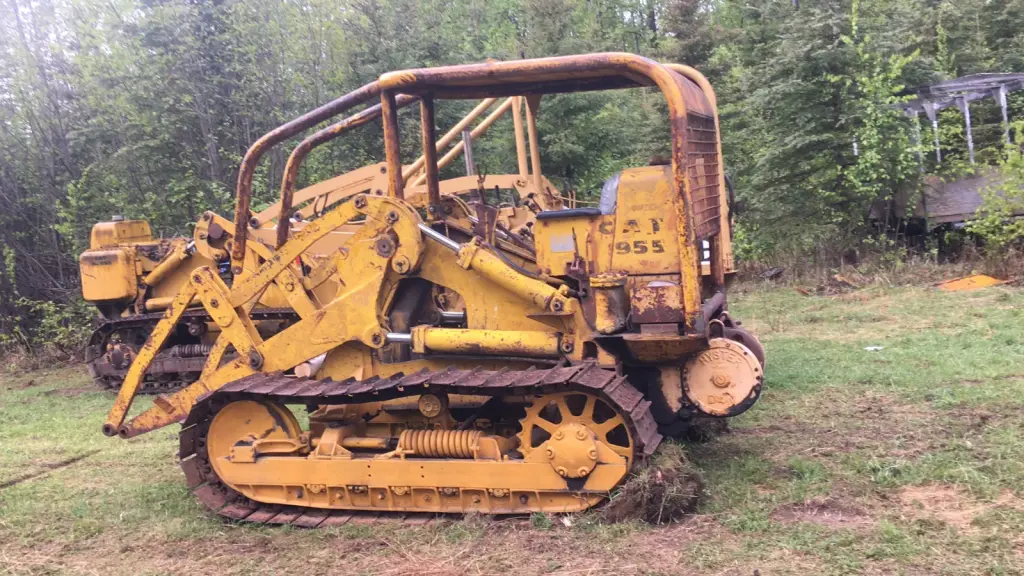

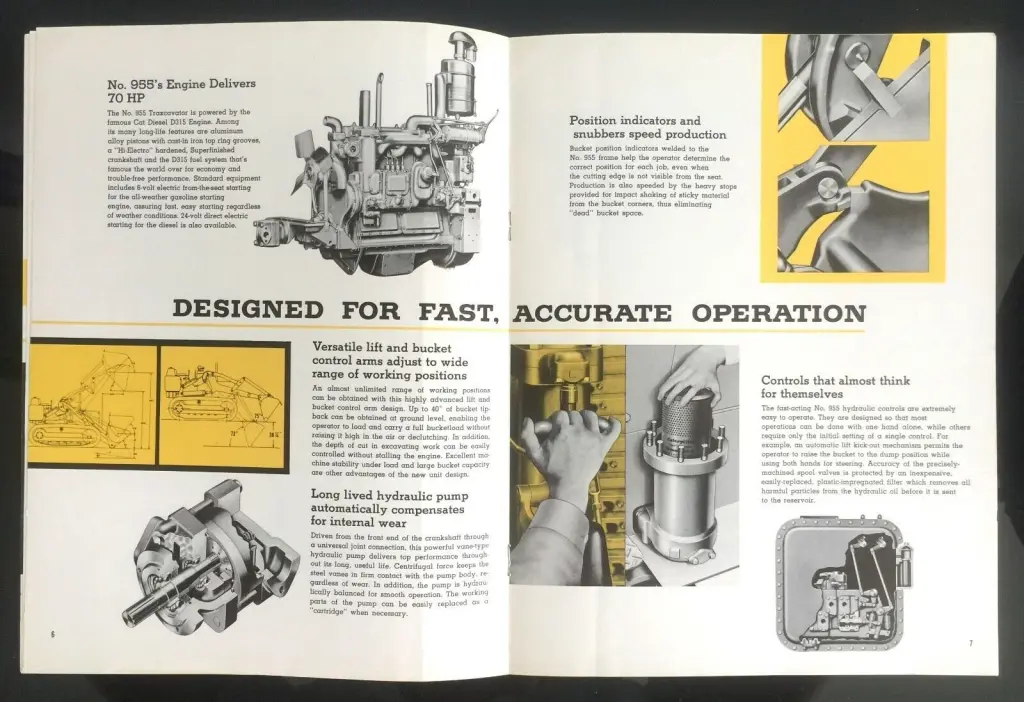

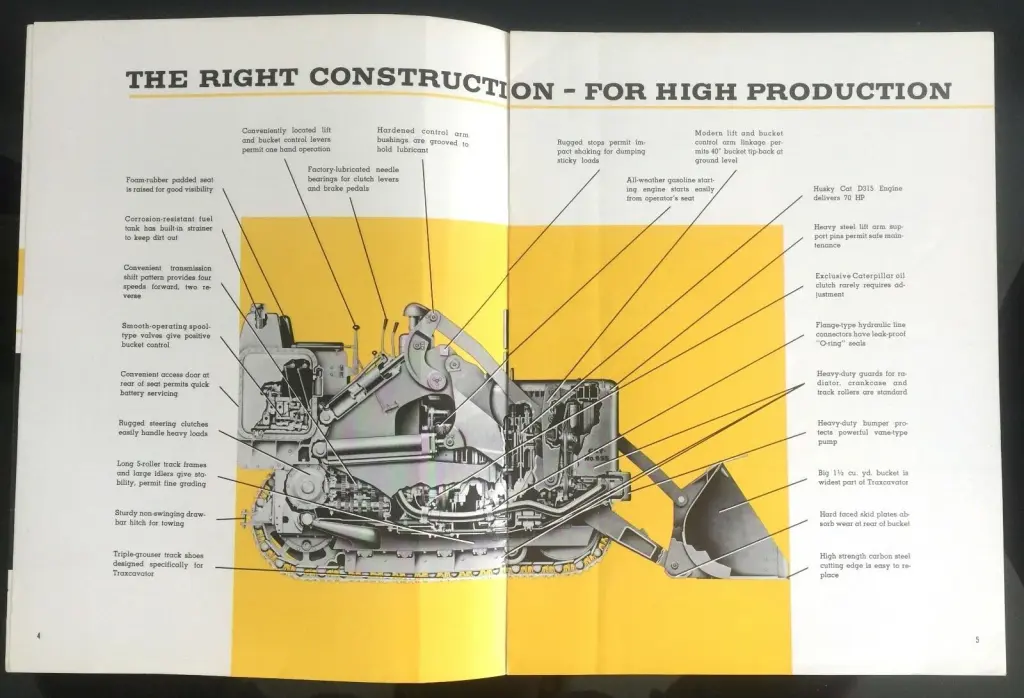

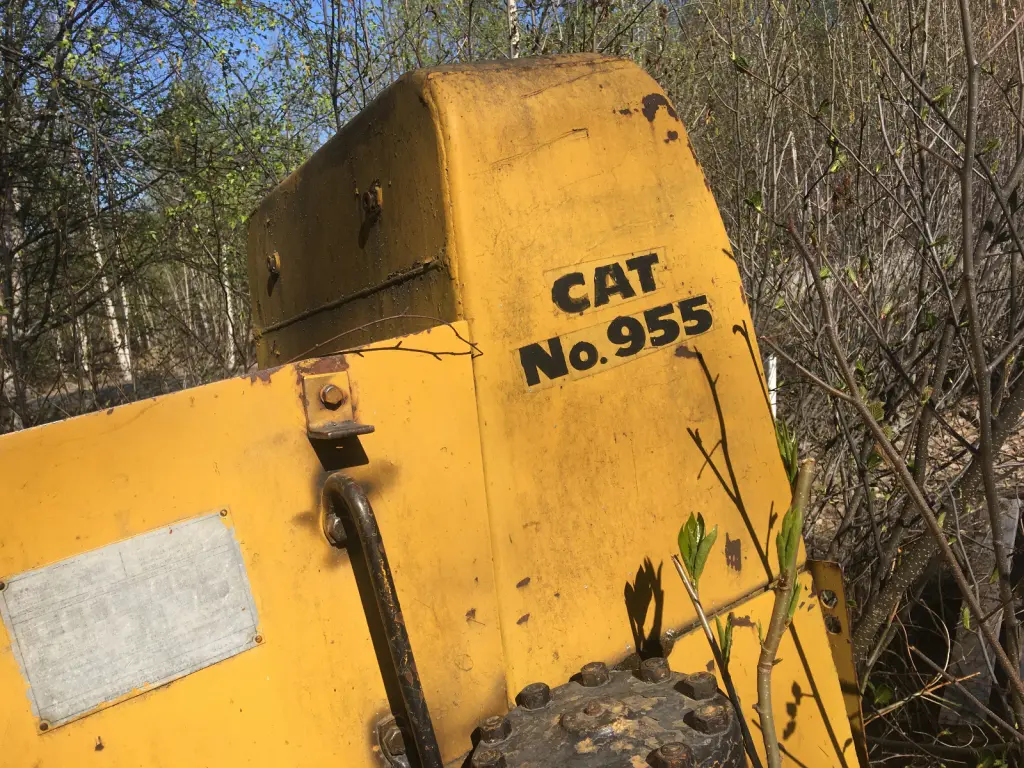

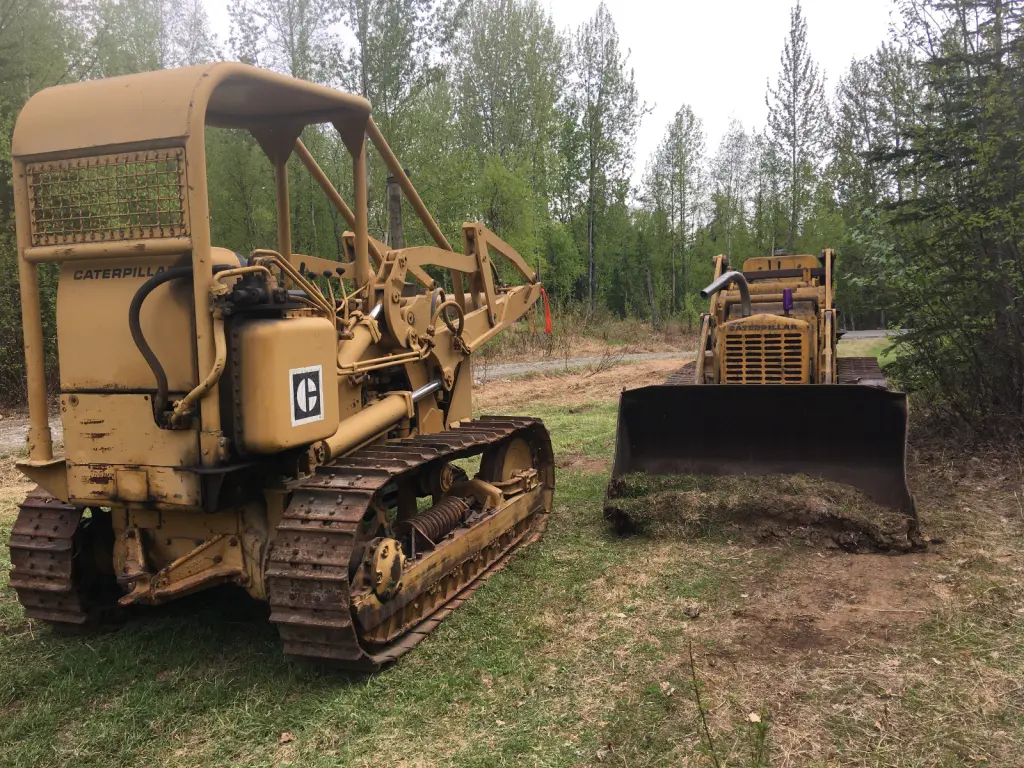

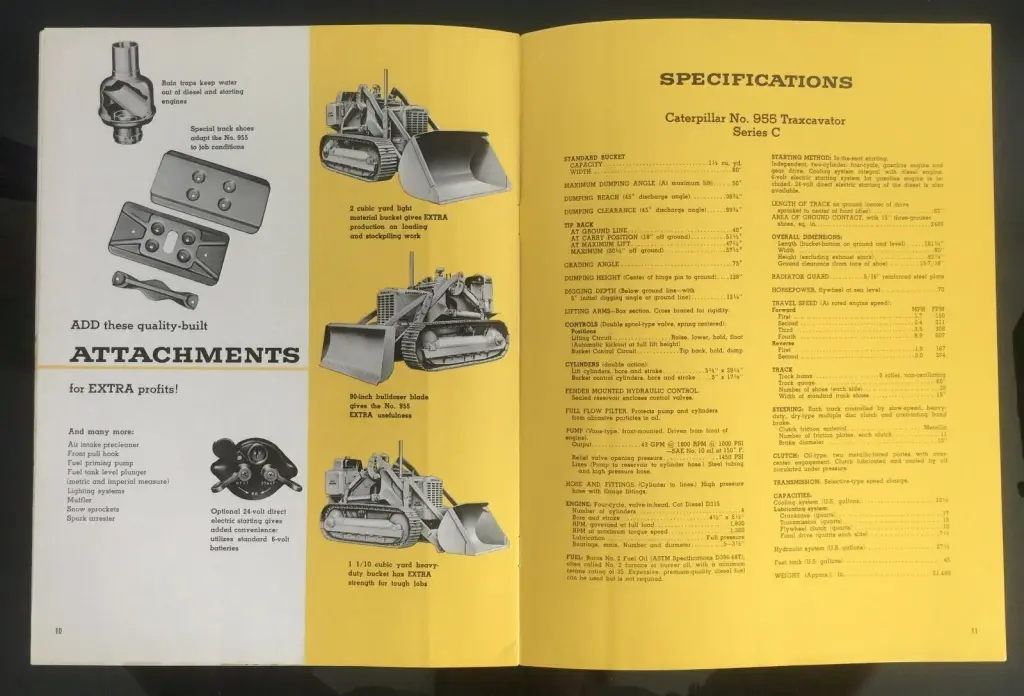

I'll look through my two 1957 955C's and a 1960 955E for some pictures if interested.

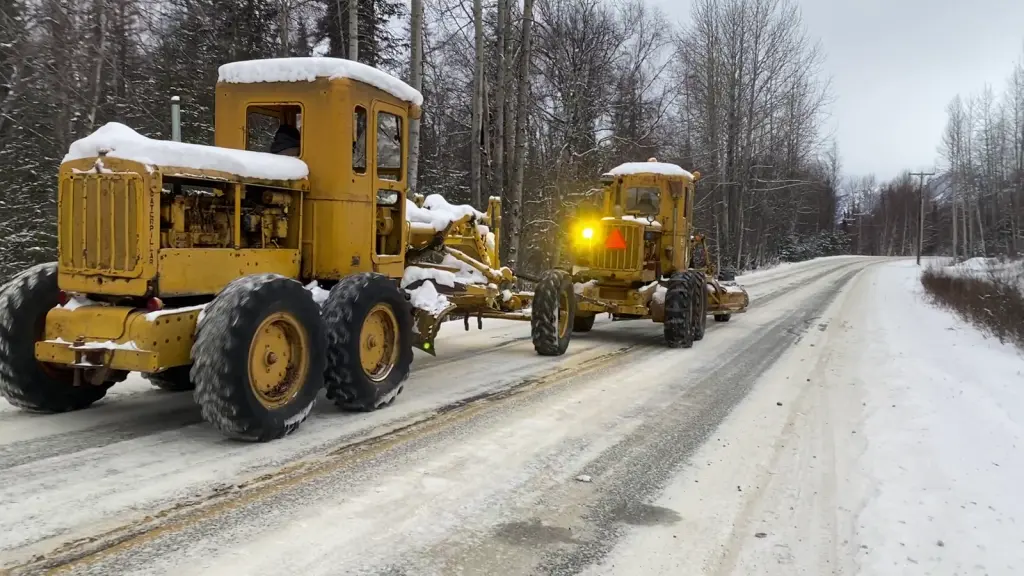

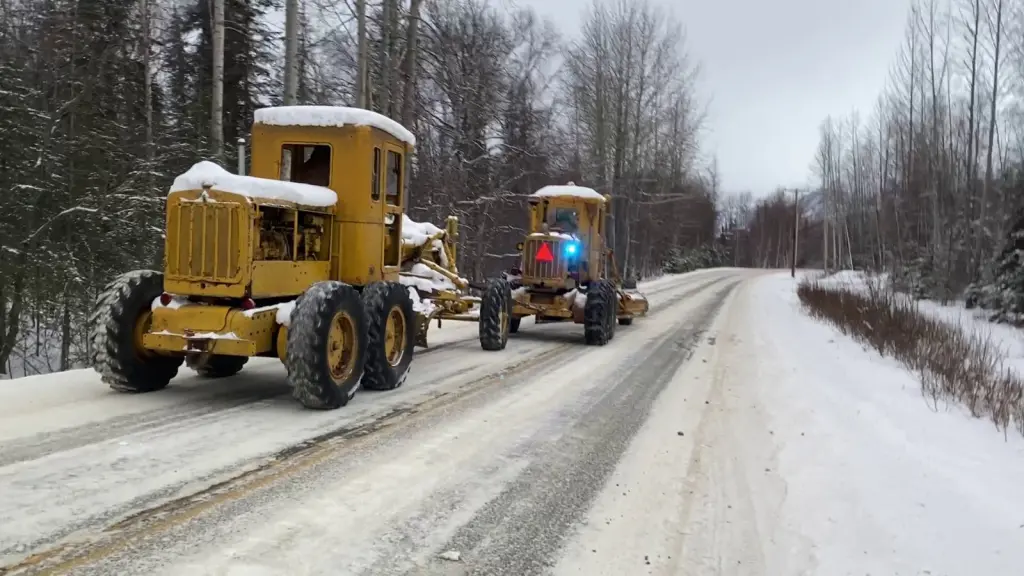

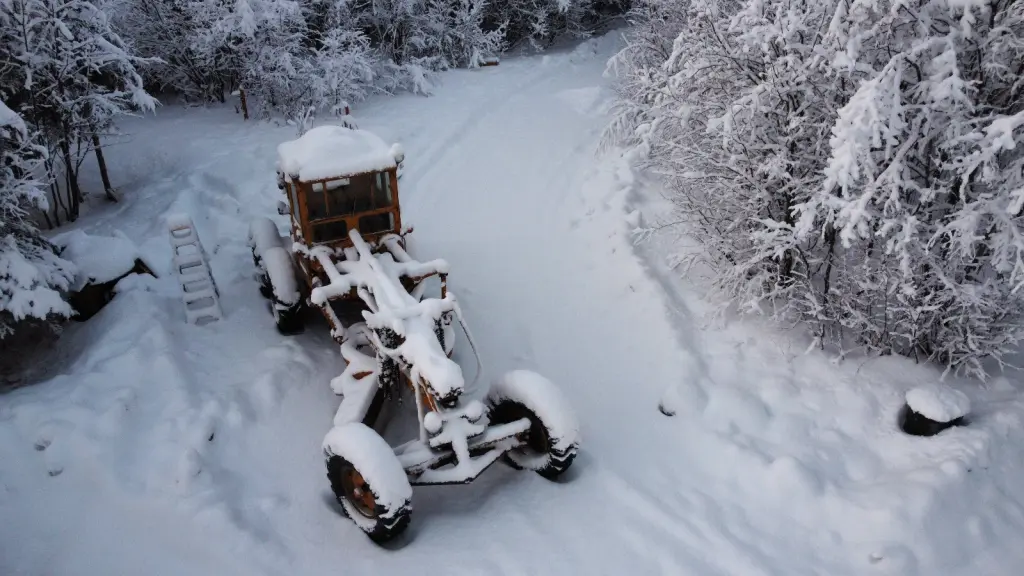

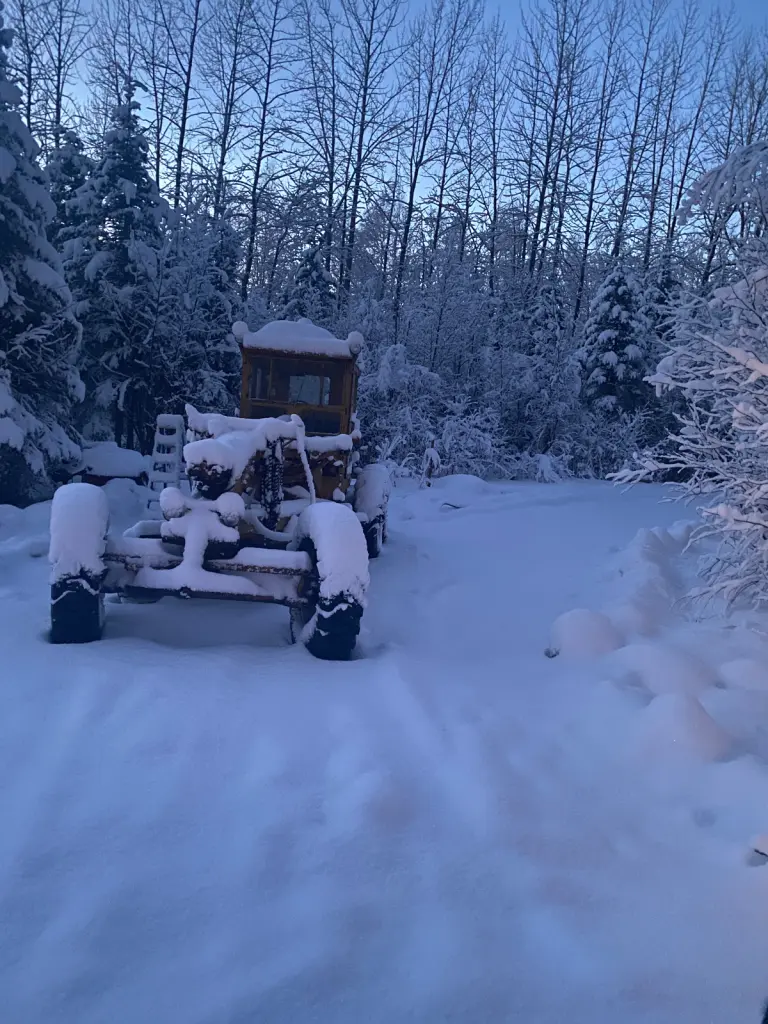

I'll also go through the Late 1954 No.12 8T and a Late 1945 No.12 9K if interested.
I personally love these pictures but it does not show them in their best angles. For now ugly muddy snow banks will not work but when things green up a bit.

Attachment
