Lube chart for Cat 22

Welcome to the forum Mike .
I do have a lub chart ,But i have just got a new computer , and hooking up the scanner , is a bit over the top of my head . But hopefully a refreshed post on here may shake up some one that can help.

There is that fellow with the CAT 22 webpage and I seem to remember that he posted the Chart Ianoz is referring too?
I am drawing a blank still today on his name?

There is that fellow with the CAT 22 webpage and I seem to remember that he posted the Chart Ianoz is referring too?
I am drawing a blank still today on his name?

Hi, Highdesertman.
Welkum too ther 4um.

Here are a couple of links that may - or may not - help.

http://www.angelfire.com/home/cat22/

http://www.angelfire.com/home/cat22/book/manual.html

Just my 0.02.

There is that fellow with the CAT 22 webpage and I seem to remember that he posted the Chart Ianoz is referring too?
I am drawing a blank still today on his name?

[quote="drujinin"]There is that fellow with the CAT 22 webpage and I seem to remember that he posted the Chart Ianoz is referring too?
I am drawing a blank still today on his name?[/quote]

Bruce OZ had a Cat 22 site , Not sure it it is still operational . Bruce used to have a link to it as his By line . The Link Deas put up has the instructions . But not the fold out Lub Guide . Which has the service hour checks and other handy infomation .

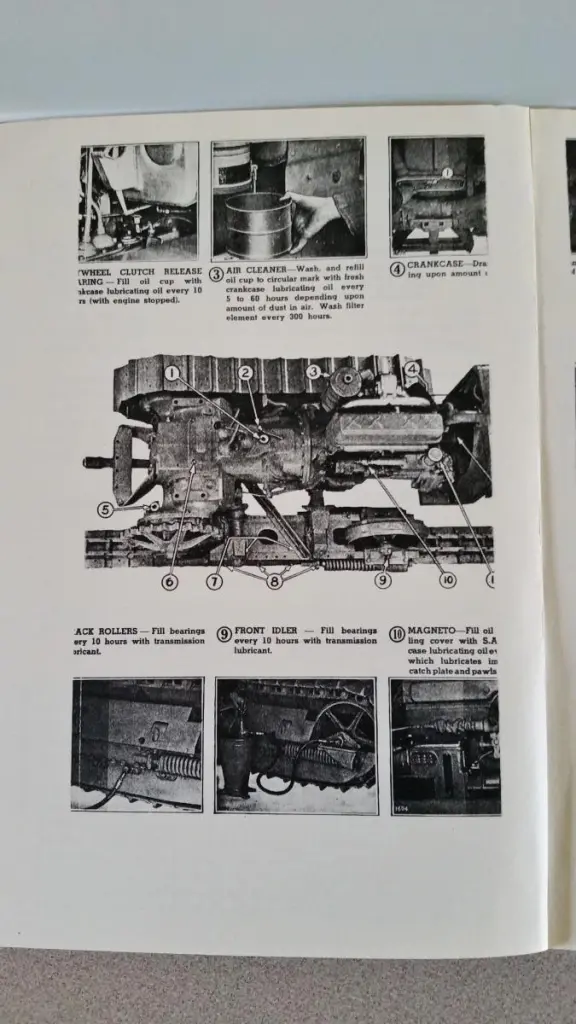

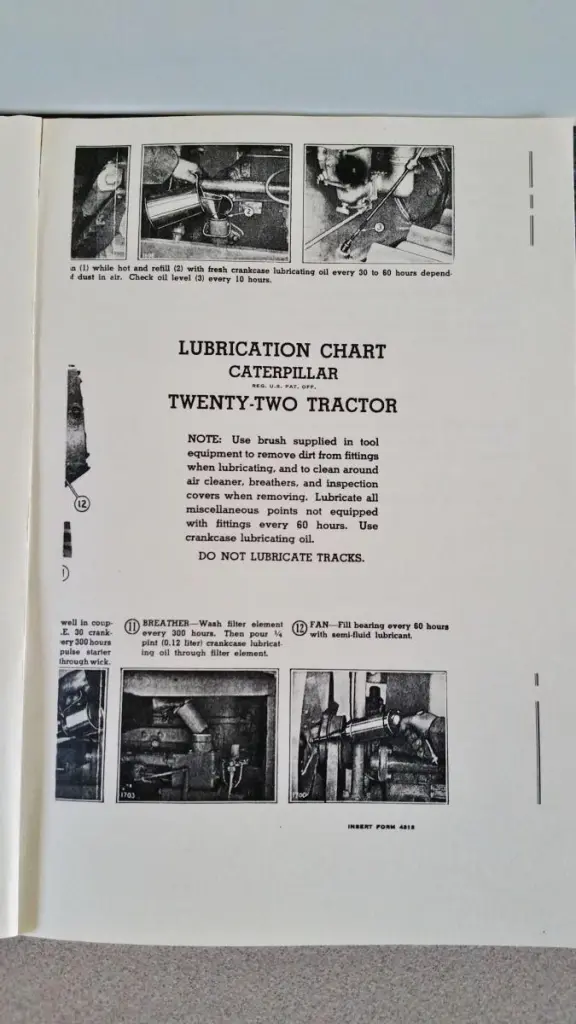

This might help:

[attachment=45843]20160625_110436.jpg[/attachment] [attachment=45842]20160625_110445.jpg[/attachment] [attachment=45841]20160627_192645.jpg[/attachment]

Pete

Welcome to the forum Mike .
I do have a lub chart ,But i have just got a new computer , and hooking up the scanner , is a bit over the top of my head . But hopefully a refreshed post on here may shake up some one that can help.

[quote="Peter C"]This might help:



Pete[/quote]

Yes Pete, This is what I'm looking for, it helps a lot, but a little tough to see the details of the fill and drain points in the scanned image...

Mike
