Help with hydraulic system

Xtremist

Topic Author

Offline

Send a private message to Xtremist

Posts: 84

Thank you received: 0

Hey Guys

Im trying to figure out what is on my D6 9U for a hydraulic system, I cant seem to find any numbers any where. The little bit that ive found on the net says that they had a #46 system on them but my question is, is that what every 9U had on it ? Ive overhauled most of the cat and modernized it quite a bit and im on the down hill slide of the reapairs. I need to figure out why the blade wont stay up. From all the way up its on the ground in a matter of seconds... So if anyone has any info on the hydraulics of these old girls id be very appreciative if you shared lol.

Please log in or create an account to join the conversation.

Fri, May 21, 2021 9:42 AM

Deas Plant.

Offline

Member

Admin

Send a private message to Deas Plant.

Location: Currently - DowNunda.

Posts: 7,039

Thank you received: 105

Hi, Xtremist.
If you can post some photos of what you have, I am pretty sure that somebody smarter than me will be able to identify your system. Not all Cat crawlers had Cat systems. There were a goodly number of after-market systems too.

Azfer your rapidly descending blade rams, that could be worn ram piston seals, wrongly set or failed relief valve or bypassing in the control valve, or any combination thereof, though it would HAFTA be a helluva bypass in the control valve to cause that quick a drop.

I'll let those with more knowledge than me step in here now.

Just my 0.02.

You have a wonderful day. Best wishes. Deas Plant.

Please log in or create an account to join the conversation.

Fri, May 21, 2021 9:54 AM

trainzkid88

Offline

Member

Send a private message to trainzkid88

Location: b.berg qld

Posts: 2,421

Thank you received: 52

Reply to Deas Plant.:

Hi, Xtremist.
If you can post some photos of what you have, I am pretty sure that somebody smarter than me will be able to identify your system. Not all Cat crawlers had Cat systems. There were a goodly number of after-market systems too.

Azfer your rapidly descending blade rams, that could be worn ram piston seals, wrongly set or failed relief valve or bypassing in the control valve, or any combination thereof, though it would HAFTA be a helluva bypass in the control valve to cause that quick a drop.

I'll let those with more knowledge than me step in here now.

Just my 0.02.

if the rams are like those fitted to d46/7u series they have valves in the piston if these are faulty that could be the cause.

i would be looking at the rams first. it is cheaper to replace the ram shaft than to recrome it if scored or pitted. seal kits for the rams are available as we had ours redone. our machinist cut the eye off the old shaft, machined a new bit of bright shaft to size, threaded it and after centreing the whole thing in the lathe welded the eye to the new shaft, then skimmed the weld smooth worked out to be the same cost to do both as the quote just to recrome ONE old shaft let alone labor and parts to dismantle and then rekit the ram

"i reject your reality and substitute my own" - adam savage. i suspect my final words maybe "well shit, that didnt work"

instead of perfection some times we just have to accept practicality

Please log in or create an account to join the conversation.

Sat, May 22, 2021 2:42 PM

Xtremist

Topic Author

Offline

Send a private message to Xtremist

Posts: 84

Thank you received: 0

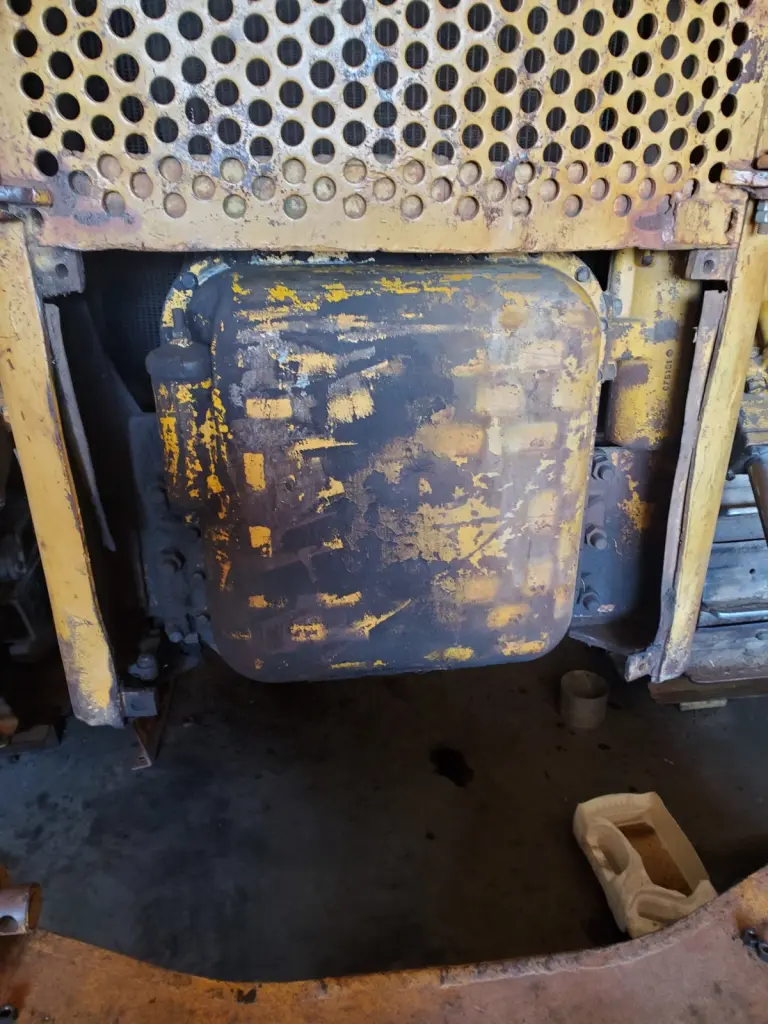

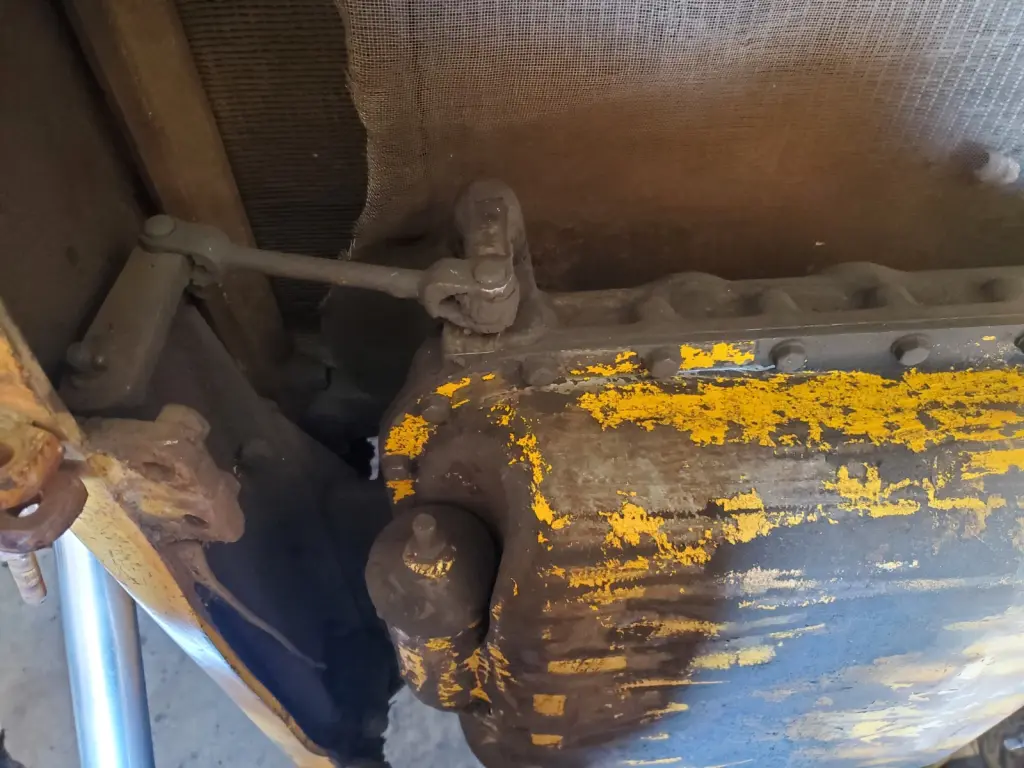

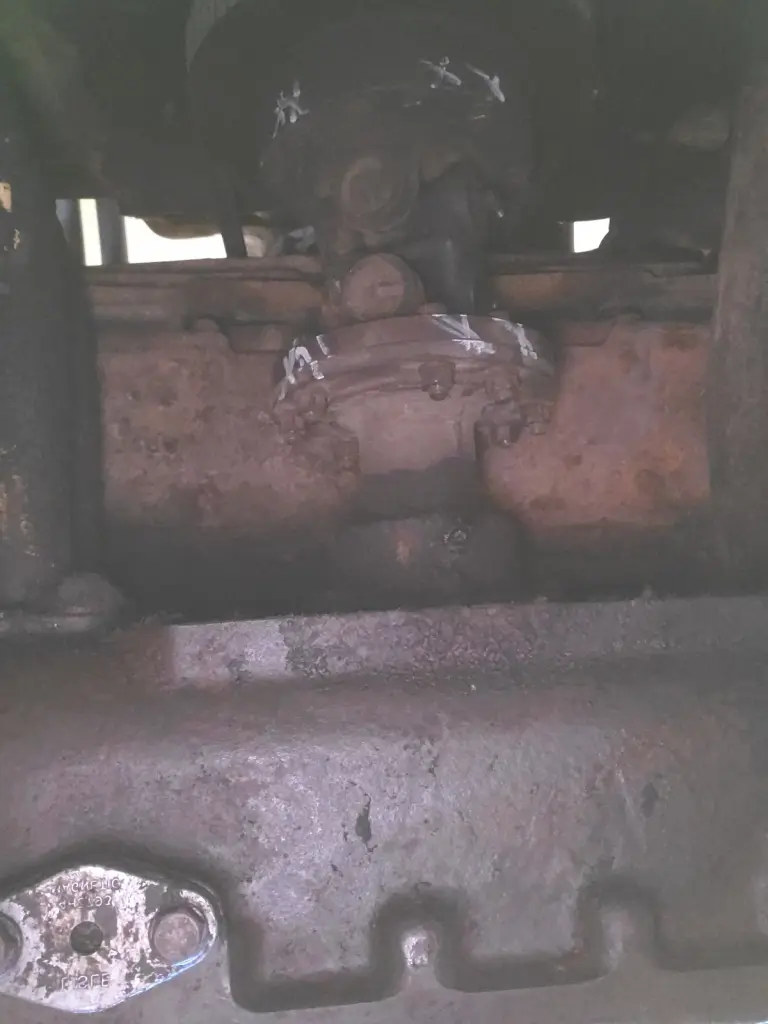

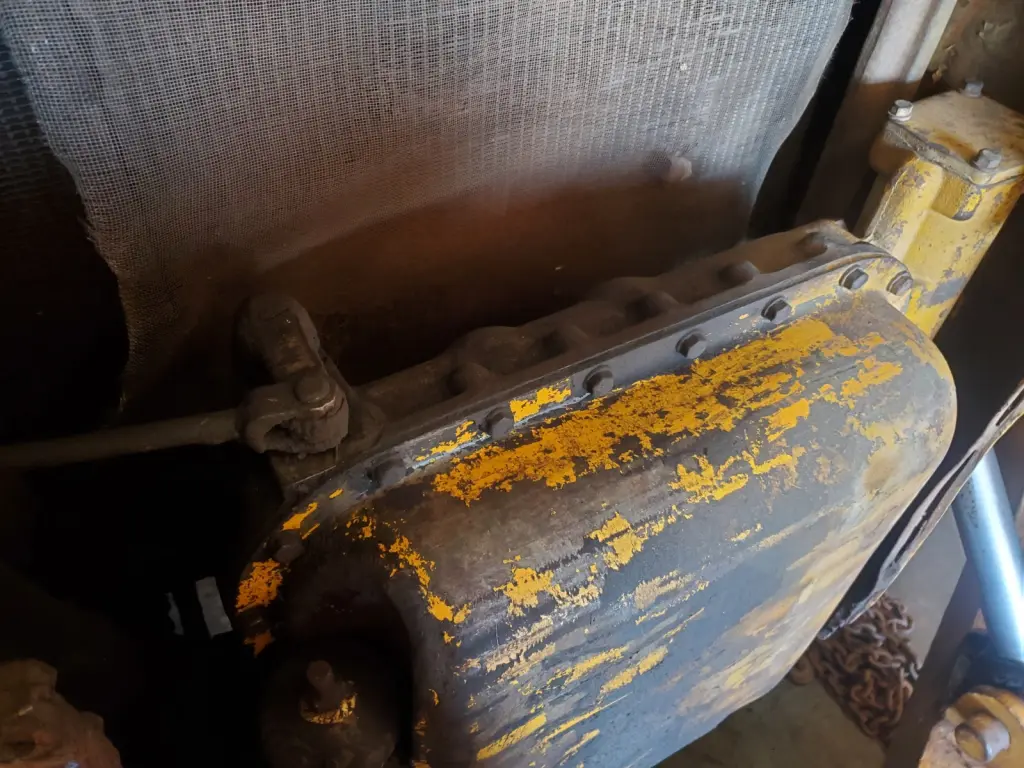

heres a few pictures, if that helps. One ram is leaking bad, the chrome is all buggered up, and i have a parts cat here so ill throw on a different cylinder but i would have thought that even just one should hold up the c frame and dozer......? on a totallly unrelated note does anyone know what a track group (rails/30'' pads) weigh for a d6c ?heres a few pictures, if that helps. One ram is leaking bad, the chrome is all buggered up, and i have a parts cat here so ill throw on a different cylinder but i would have thought that even just one should hold up the c frame and dozer......? on a totallly unrelated note does anyone know what a track group (rails/30'' pads) weigh for a d6c ?

? [attachment=63323]20210522_104428.jpg[/attachment] [attachment=63322]20210522_104449.jpg[/attachment] [attachment=63325]20210522_104518.jpg[/attachment] [attachment=63324]20210522_104522.jpg[/attachment] [attachment=63322]20210522_104449.jpg[/attachment][attachment=63323]20210522_104428.jpg[/attachment][attachment=63324]20210522_104522.jpg[/attachment][attachment=63325]20210522_104518.jpg[/attachment]

? [attachment=63323]20210522_104428.jpg[/attachment] [attachment=63322]20210522_104449.jpg[/attachment] [attachment=63325]20210522_104518.jpg[/attachment] [attachment=63324]20210522_104522.jpg[/attachment]

Please log in or create an account to join the conversation.

Sun, May 23, 2021 2:30 PM

Xtremist

Topic Author

Offline

Send a private message to Xtremist

Posts: 84

Thank you received: 0

whoops not sure why there are a bunch of sets of the same pictures.

Please log in or create an account to join the conversation.

Sun, May 23, 2021 2:31 PM

Fat Dan

Offline

Send a private message to Fat Dan

Posts: 740

Thank you received: 2

Reply to Xtremist:

whoops not sure why there are a bunch of sets of the same pictures.

[quote="Xtremist" post=228640"]whoops not sure why there are a bunch of sets of the same pictures.
[/quote]
I'm not sure eather but every time I add a pic then cut and past it doubles the pics ... It helps to add pics last

Please log in or create an account to join the conversation.

Sun, May 23, 2021 5:22 PM

neil

Offline

Member

Moderator

Admin

Super Admin

Send a private message to neil

Posts: 7,263

Thank you received: 61

Reply to Fat Dan:

[quote="Xtremist" post=228640"]whoops not sure why there are a bunch of sets of the same pictures.
[/quote]
I'm not sure eather but every time I add a pic then cut and past it doubles the pics ... It helps to add pics last

The tech team have been notified about this doubling issue. I don't think they've identified a solution yet. Meantime, what you can do is delete the doubled references in the editor

Please log in or create an account to join the conversation.

Sun, May 23, 2021 10:01 PM

seiscat

Offline

Send a private message to seiscat

Posts: 1,319

Thank you received: 1

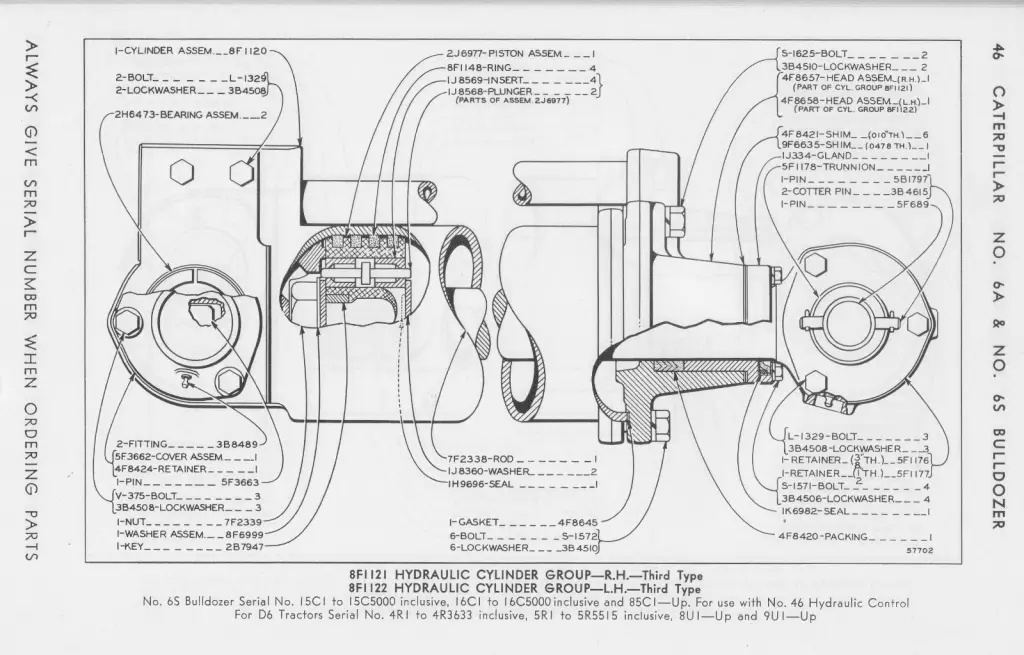

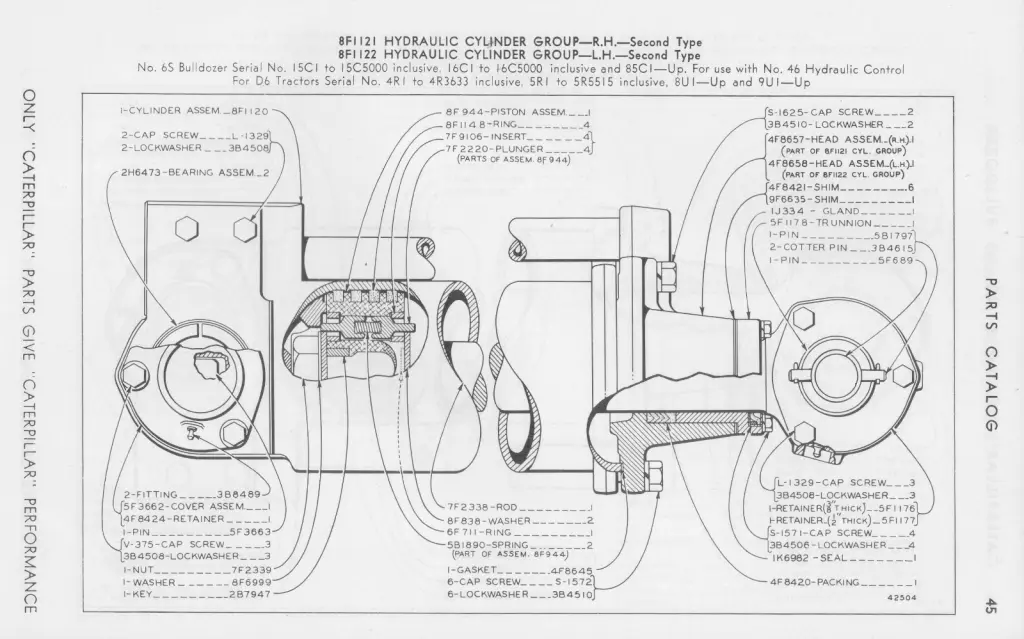

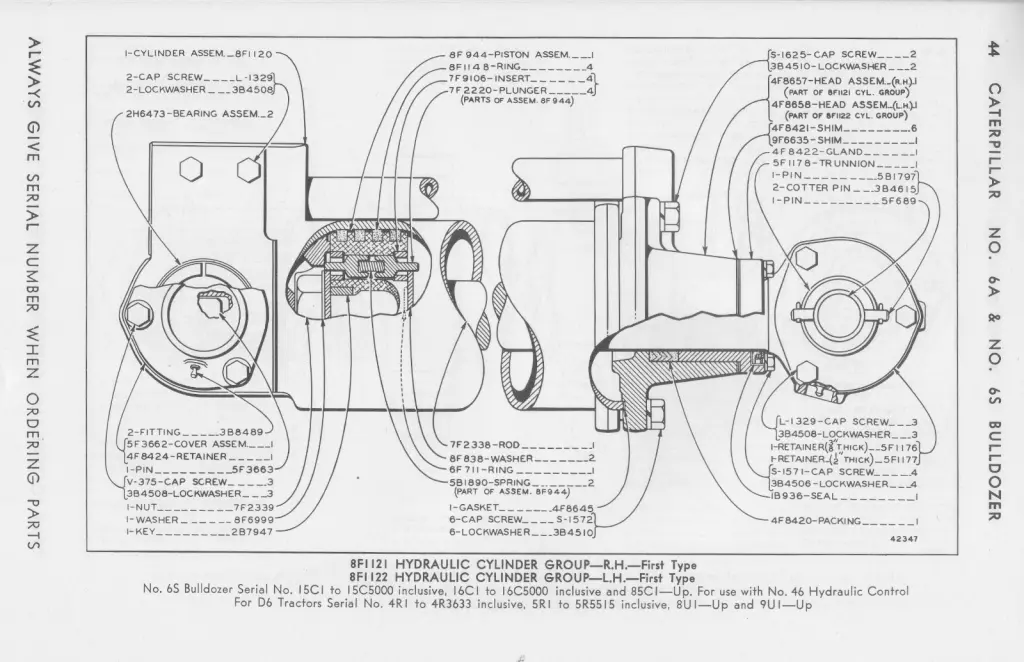

Hi Xtremist, Back in the day Caterpillar had a wierd system of having a seperate Parts Book for each attachment/system. I don't have the Parts Book for the basic No.46 hydraulic system but I do have the Parts Book for the 6A & 6S blades, oddly the hyd. cyl. parts are listed in that book. I have attached all three pages as I don' know your S/N.
