I am working on fabricating the bade on my fathers D2 and he is coming down to paint it in three weeks so I guess that I better get on it.

Here is what's got me stumped. Cat tells me that they can get the bushings for the blade lift pistons but they don't have the pins. I can have my Machinist make them and then have them sent out to be hardened but someone must make pins that I can adapt.

Any resources would be helpful.

Thanks

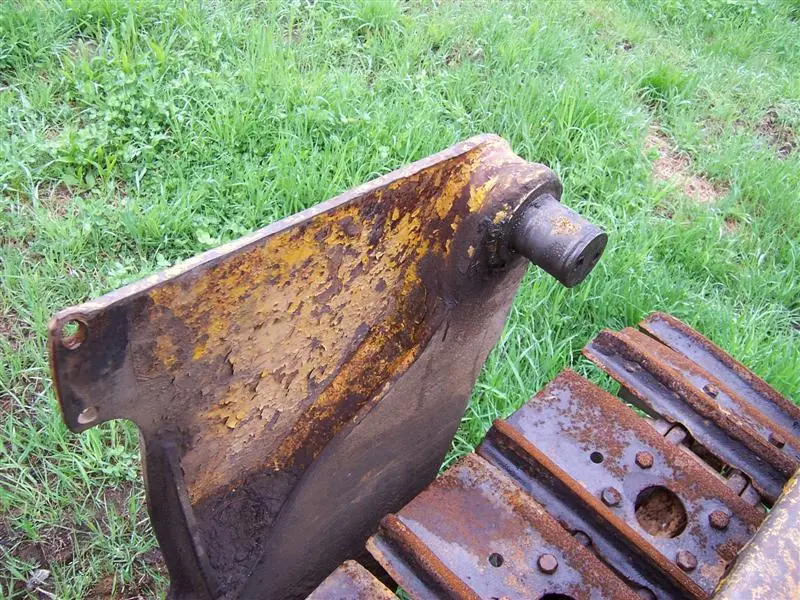

Attachment

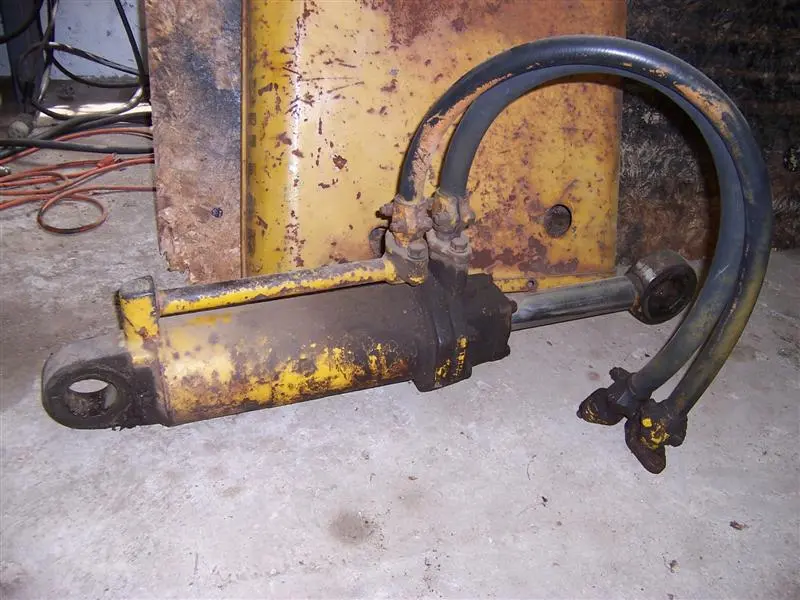

Attachment

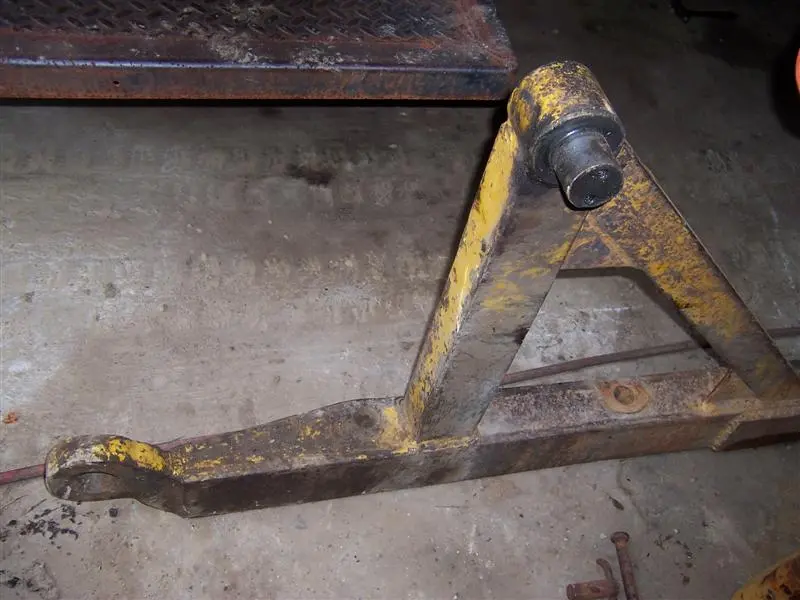

Attachment
Please log in or create an account to join the conversation.
Tue, Jun 19, 2007 12:07 AM
Old Magnet
Offline
Send a private message to Old Magnet
Posts: 16,695
Thank you received: 17
I'm afraid your stuck getting the pins fabricated then hardened. I don't know of anyone that uses pins like that with the two end bolt retainers. Also those Cat pins aren't all that hard. I'm about to take on my D4 set up myself and was considering using nonhardened shaft (I'd have to look up the designation). Considering the cylinder bushings are brass I don't think the shaft would have to be all that hard. Open to opinions and thoughts😉
Please log in or create an account to join the conversation.
Tue, Jun 19, 2007 1:49 AM
side-seat
Offline
Member
Send a private message to side-seat
Location: Pittsburgh PA
Posts: 660
Thank you received: 8
Reply to Old Magnet:
I'm afraid your stuck getting the pins fabricated then hardened. I don't know of anyone that uses pins like that with the two end bolt retainers. Also those Cat pins aren't all that hard. I'm about to take on my D4 set up myself and was considering using nonhardened shaft (I'd have to look up the designation). Considering the cylinder bushings are brass I don't think the shaft would have to be all that hard. Open to opinions and thoughts😉
I think if you got the new bushings, then machine fit the pins made out of 1045 steel. I think this would be fine since you won't be using it every day. Also I can't remember, but are those pins welded into the blade?
You won't be able to easily weld a hadened pin and 1045 is much cheaper than having a hardened pin made. Just my 2 cents.
Please log in or create an account to join the conversation.
Tue, Jun 19, 2007 2:16 AM
OneWelder
Offline
Send a private message to OneWelder
Posts: 56
Thank you received: 0
Reply to side-seat:
I think if you got the new bushings, then machine fit the pins made out of 1045 steel. I think this would be fine since you won't be using it every day. Also I can't remember, but are those pins welded into the blade?
You won't be able to easily weld a hadened pin and 1045 is much cheaper than having a hardened pin made. Just my 2 cents.
Over the years, I have had good luck using old hydraulic cylinder rods.
Find the proper diameter, Then cut to length
Cylinder rods have a fairly soft center,and a hardened outside as well chrome
plating
where ever you are going to work on the rod -
cut off or drill-
you should grind off outer layer with small grinder, ortherwise you will dull your tool. DO NOT use cutoff wheel or torch !
heat will harden rod to an unworkable state
Please log in or create an account to join the conversation.
Tue, Jun 19, 2007 5:33 AM
Old Magnet
Offline
Send a private message to Old Magnet
Posts: 16,695
Thank you received: 17
Reply to OneWelder:
Over the years, I have had good luck using old hydraulic cylinder rods.
Find the proper diameter, Then cut to length
Cylinder rods have a fairly soft center,and a hardened outside as well chrome
plating
where ever you are going to work on the rod -
cut off or drill-
you should grind off outer layer with small grinder, ortherwise you will dull your tool. DO NOT use cutoff wheel or torch !
heat will harden rod to an unworkable state
Yes, the pins are welded into the various arms and braces. I would think 1045 would work fine (cylinder rods included😊 )
Please log in or create an account to join the conversation.
Tue, Jun 19, 2007 8:54 AM
jkh4449
Offline
Send a private message to jkh4449
Posts: 12
Thank you received: 0
Reply to Old Magnet:
Yes, the pins are welded into the various arms and braces. I would think 1045 would work fine (cylinder rods included😊 )
I'm doing the same to my D25U angle blade. I found bushings at my local bearing supply house for about one third the cost from Cat. When I measured my pins with a digital micrometer, I found very little wear. The wear was all in the bushings, which is as it should be. Check the pins before you go to all the trouble of replacing them.
Please log in or create an account to join the conversation.
Tue, Jun 19, 2007 9:08 AM
D2VERMONT
Topic Author
Offline
Send a private message to D2VERMONT
Posts: 33
Thank you received: 0
Reply to jkh4449:
I'm doing the same to my D25U angle blade. I found bushings at my local bearing supply house for about one third the cost from Cat. When I measured my pins with a digital micrometer, I found very little wear. The wear was all in the bushings, which is as it should be. Check the pins before you go to all the trouble of replacing them.
Thanks for the responses it gives me a better idea what I am working with. My pins are worn about an 1/8 of an inch so I have to do something for them. I just went out and tested the pins and you are right they are not that hard. One way or the other we'll make something work.

if it was easy everyone would be doing it 😊
