During our June tractor show, the director of the Antique Gas and Steam Engine Museum, where Chapter 16 is hosted, approached me with a need for help getting earthwork done (which was not budgeted) for several new buildings to be built this year. Being the proud new owner of D8 14A "ol' Dick", I was all ears and since I had borrowed a blade off of Paul Smith's 14A, I could do the work. Of course the Cat dozers owned by the museum were also made available. The largest project involved over excavating and re-compacting under a new Spinner's Cottage 90' x 50' and going down 6'. One of the museum's other members works as a soils technician and he and his boss agreed to provide the necessary soil compaction testing and monitoring services. Another chapter member, contributed a 4 x 4 sheepsfoot roller to add to the mix.

After re-locating a waterline, I was able to start prying up the very hard clay soil native to the area. I knew a major problem would be to hold the blade level as the borrowed blade had a hydraulic tilt and Ol' Dick is not equipped for that. I welded up a bracket to attempt to hold it in place but within 30 minutes, I tore that up. Earlier, during the show, I had filled both hoses with oil and placed caps on them. That did not work too well either so I decided to rip up everything with the tipped blade corner and finish up with the museum's D8 13A.

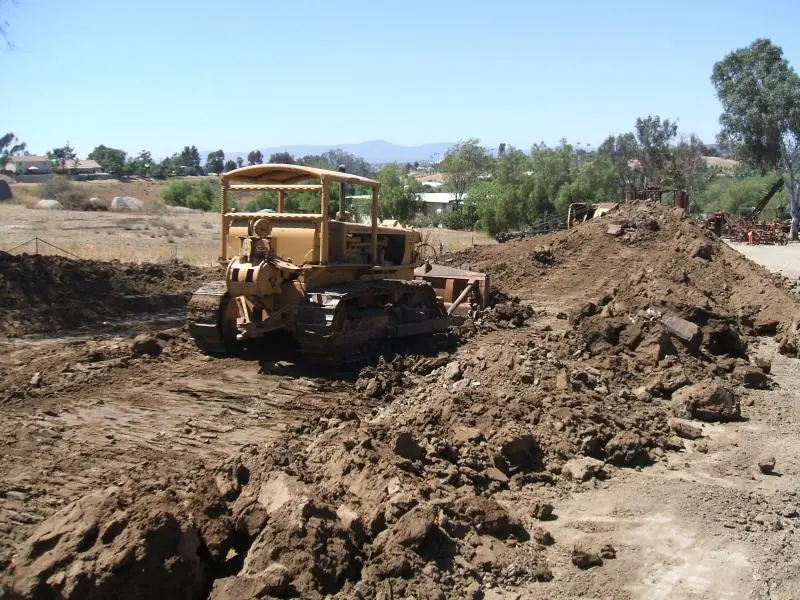

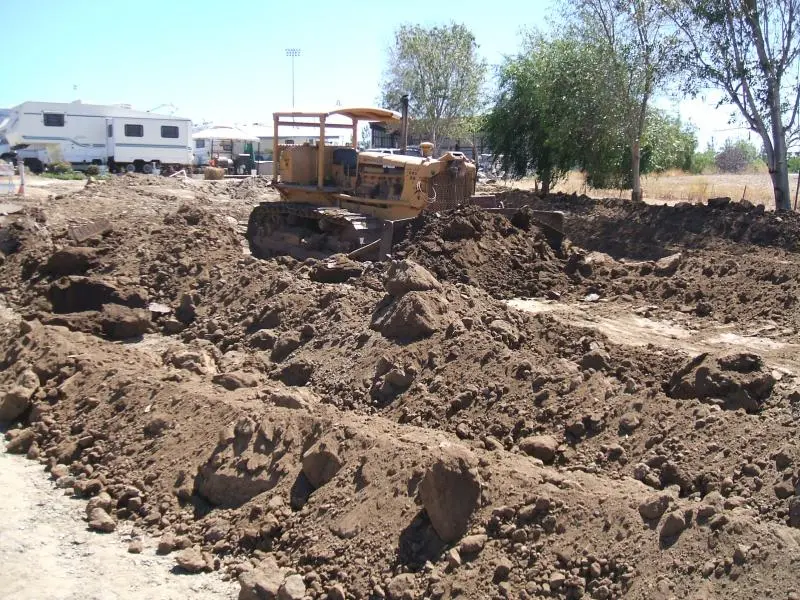

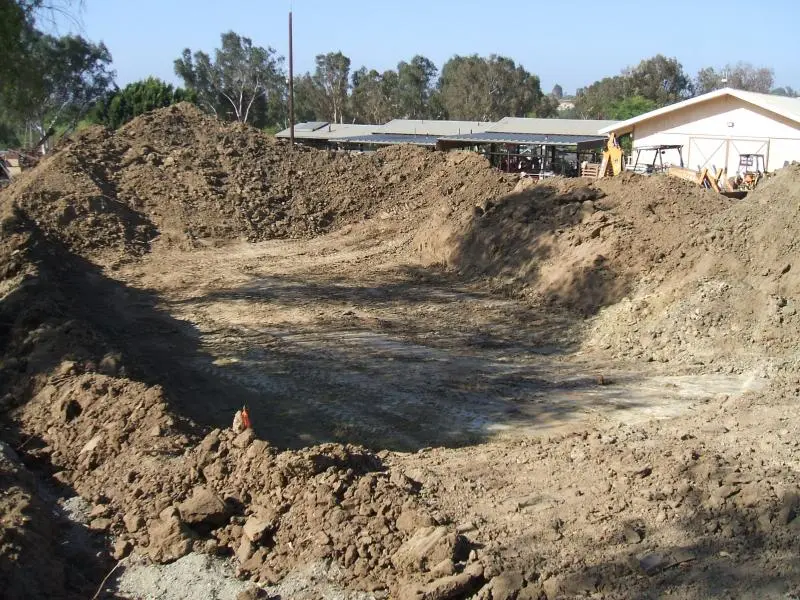

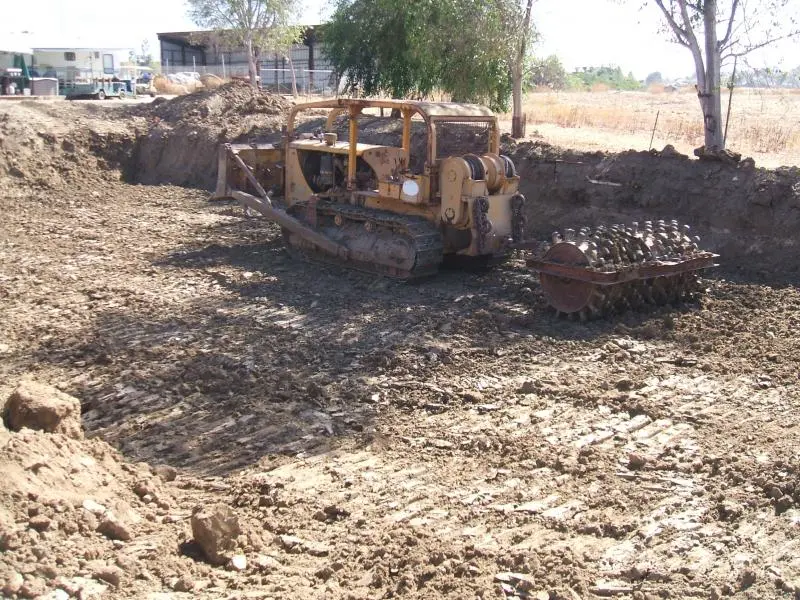

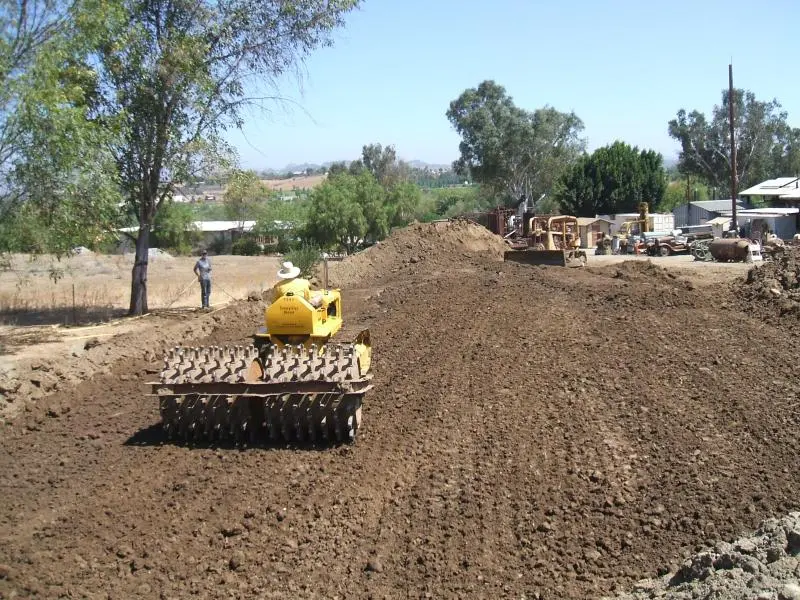

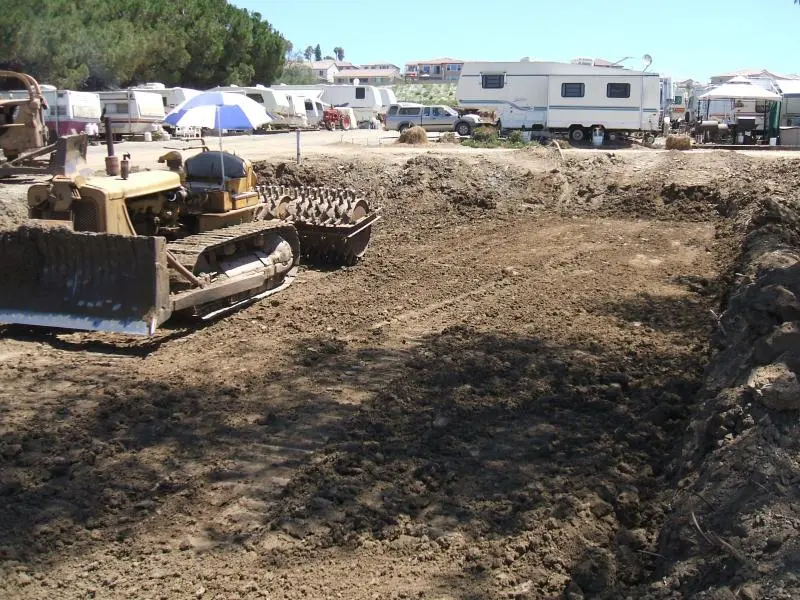

The attached photos show "Ol Dick" starting the cut and ripping things up. The third photo shows the completed over-ex after I had used the 13A to get down to the necessary 6'. Chapter 16 member "D4Angelo" used his connection as a retired firefighter brought in a nozzle and 1.5" firehose to provide water for compaction. The following photos show the 13A, D6 9U and Angelo's D4 7U pulling the sheepsfoot to get back to the finished grade for the building pad.

In the end, we completed the work but not without problems. We suffered through the 9U power loss (you may recall the discussion here about that) and the 13A developing a rusted out outlet pipe on the pony engine in addition to the blade tilt issues with "Ol' Dick". Using these old machines to do a job after they have been worn out years ago and retired does require some patience. As the operator, I was right there getting worn out too, as my best years are also behind me 😊. The museum was very happy to get a certified pad done for their new building at very little cost. Meantime, some of our chapter members had a blast doing it!

JanM
Attachment

Please log in or create an account to join the conversation.

Thu, Aug 25, 2016 11:05 PM

dpendzic

Offline

Send a private message to dpendzic

Posts: 2,766

Thank you received: 1

Jan---looks like some hard lumpy clay you were ripping out---what did you use for the compacted back fill?
I am surprised that the 2 capped filled lines on the tilt didn't work--think there may have been air trapped?

Please log in or create an account to join the conversation.

Thu, Aug 25, 2016 11:38 PM

janmeermans

Topic Author

Offline

Member

Send a private message to janmeermans

Posts: 1,913

Thank you received: 0

Reply to dpendzic:

Jan---looks like some hard lumpy clay you were ripping out---what did you use for the compacted back fill?
I am surprised that the 2 capped filled lines on the tilt didn't work--think there may have been air trapped?

[quote="dpendzic"]Jan---looks like some hard lumpy clay you were ripping out---what did you use for the compacted back fill?
I am surprised that the 2 capped filled lines on the tilt didn't work--think there may have been air trapped?[/quote]

Dan,

Yes, I had air trapped in the system so the capping did not work well. I tried to add oil with a funnel by gravity but the bubbles burping out made progress very slow. I looked around for some new fittings that I could weld together but at each hydraulic shop I went to, I got the "Wow, how old are these? I've never seen fittings like this before." Maybe I should have gone to CAT but did not try them. The caps were better than the bracket I tried to use.

We were able to re-use all the old material but had another museum member, who had worked in soil mechanics, run the water hose so we got a little over optimum moisture which was our goal. Using the sheepsfoot and the heavy 13A, the lumps all broke up and we easily got over 90% compaction.

Pete,

I never found anyone to take pictures so Yours truly was the photographer so no "action" photos. This project grew nearly everyday as more and more info came forth from the architect and the interpretation of the soils report. No one could believe the size of the spoil pile once everything was out of the hole! They also did not think it would all fit back in. We actually had to move some import in from other work on site to get the grade we wanted. Of course, the museum's dump truck would not dump it's first load (no oil in the ram) and after we got that problem solved, it broke down after about 8 loads so a lot of dirt had to be piss-anted down to the site from the stockpile with the Ford skiploader.

The end game was for the museum to go to the city for a building permit with valid documentation of having followed the soils report so they did not have to go through the Excavation Permit process. They were going to say, "Hey, this was just a bunch of our Caterpillar Club guys having fun and this is what they did. Surely you can give us a Building Permit." (All said with tongue in cheek! I hope it works for them.)

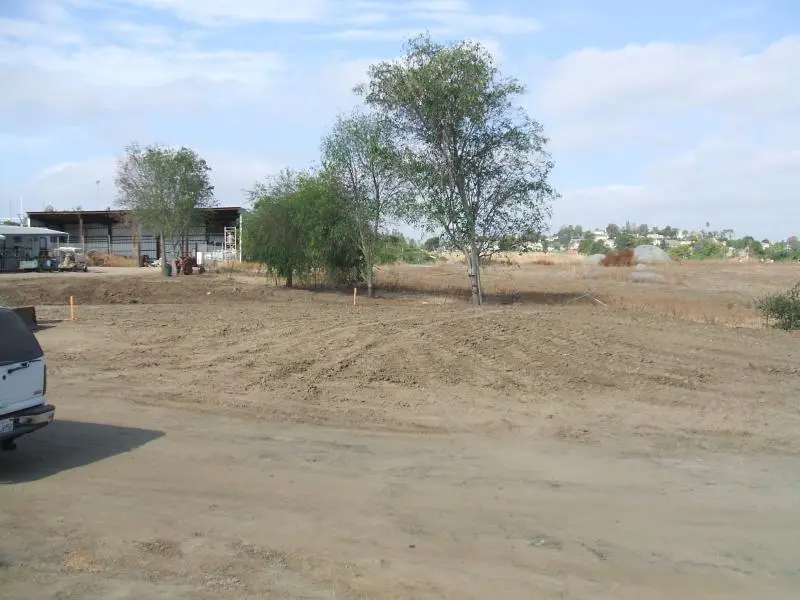

Here is the finished pad which I forgot to add in the original post.
