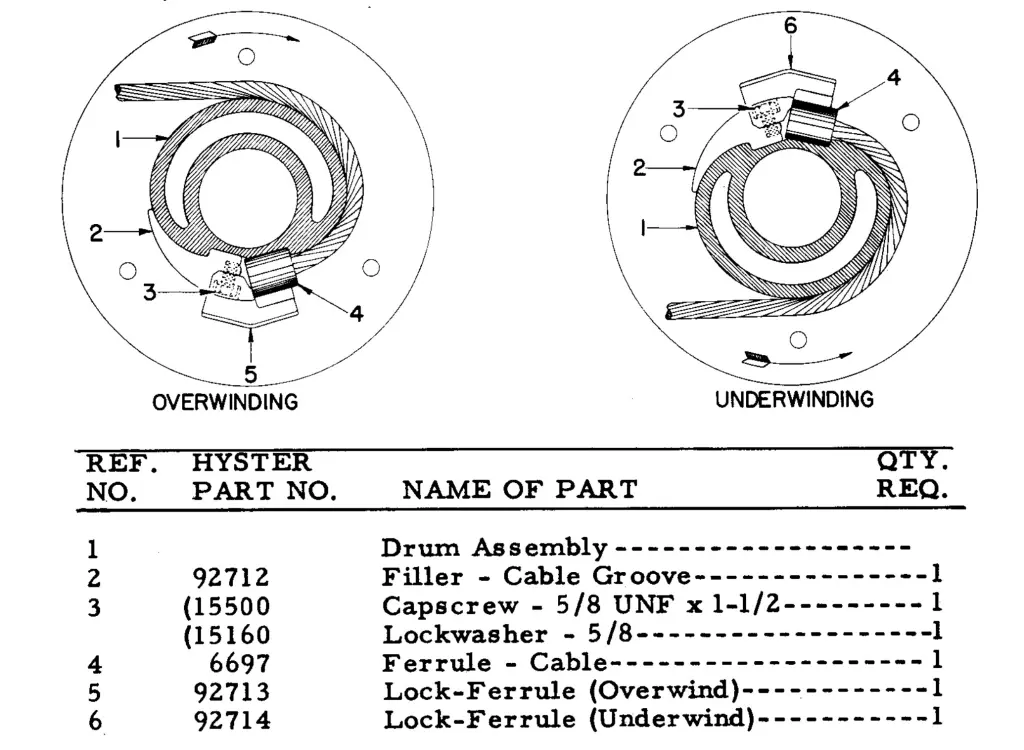

I am looking for photographs of 2,4,5 and 6 from this diagram so I can get these parts built. I have a 17A with the D7D winch, but these parts are missing and I would like to have them made.
Would Cable Ferrule not be dependent upon the diameter of the cable as well as the dimensions of the drum assembly that the ferrule must fit in? What were the specifications for the cable that Hyster recommended? The ferrule is most likely swaged onto the end of the cable providing a solid connection. -- cts
came across many of these working OK without the ferrule retention lock and bolt--just need to convince the cable to accept a suitable bend to stay in place until the first 2 or 3 wrap around's are in place to hold the ferrule in situ.
The loggers were good at loosing bits.
Eddie B.
Actually, I am going to be using HMPE (Dyneema) synthetic rope. No ferrules or clamping here. I need to know how Hyster made steel cable attachments so I can adapt it to rope.
from memory the ferrule clamp simply held the ferrule down into the drum's cast ferrule shaped seat and really took no load as it was a steel casting, I would assume, shaped such to hold a standard ferrule in situ with a 5/8" bolt by the looks of it so the load taken by the clamp and bolt was minimal and really only served to hold the ferrule in place during winding of the cable--successive layers of rope further held the cable and ferrule clamp firm in its seating --I sadly have no experience with these fancy ropes that were unheard of in my time at the Dealer where I worked from 1962 to 2004, initially fitting Hyster winches and their cables as a 1st year Apprentice thru to working on them carrying out anything from adjustments to full blooded rebuilds over the years.
Maybe speak with some 4X4 winch people or any loggers or recovery truck people who use them and see how they retain these fancy cables/ropes--interesting topic you have raised here.
Regards,
Eddie B.
edb,
I have looked at the youtubes both for recovery and winch videos. In particular watching a guy pull a D11 out of a mudhole told me these ropes can really pull. They never show them breaking, but I am sure they do. Then so do wire ropes. But ACMOC is where I have a better chance of finding people who have specific experience. haha
With the rope I bought I pulled down a 2ft plus diameter doug fir by attaching about 6 or 7 ft up the trunk and I used a sheave to double the rope. The tractor didn't even notice. The rope didn't do to bad except where it was laying on top of itself. So I know getting a good lay will be important.
I have an issue with the shifting mechanism in the winch. I will get into it in a few weeks and hopefully yank some trees and logs in anger with it.
Some follow up on using synthetic rope on a Hyster winch.
I bought 5/8" UHMWPE rope from Right Rope which is sometimes called Dyneema though not from that manufacturer. Tensile strength is about 41,000lbs.
I had a chance to actually look at the pocket where the ferrule usually sits for wire rope. It turned out that I could just lay the eye in that pocket and wrap the rope over it to hold it in place. As long as I leave the first layer on the drum I should be OK. But I do want a more permanent solution.
So how did the rope work.
1. With about 3ft of leverage it had no problem snapping off a 12" diameter douglas fir tree top.
2. When the rope was attached to an immovable object it could withstand dragging the D7 along level ground with the tracks locked.
3. In 2 above with the blade on the ground the rope broke. There was zero whiplash, it just dropped to the ground.
4. Splicing the rope back together was not difficult. I had never done it before but Samson Rope had excellent instructions for 12 braid rope. I learned how to make and use a FID.
5. The spliced rope has continued to do good service yanking trees out by the roots and recovering trees from awkward places. I bought a professional choker cable for this part.
Pulling the rope off the winch by hand is a real chore. Pulling it off by reversing the winch requires two people and I am only one. Sometimes backing up to the object to be winched and then using it as an anchor while driving away is the easiest way.
Hi TOP,thank you for your insightful report on your experiences with the synthetic rope.
I googled :- How many Hyster winch drum rope wraps for wire and synthetic ropes.
and got a interesting lot of data that I feel all winch users should read.
I wrote a lot of stuff in reply and the site did not seem to like it and locked up.
2nd much abbreviated try here.
Regards,
Eddie B.
