Here is a step by step/ish guide to replacing the seal inside the track adjuster of my 1955 D7-17A

1, Spit track, move track back to 2nd top roller

2,Move idler forward

3 Move the idler forward enough so the ram is clear of the cylinder. NOTE when prying the ram out of the cylinder remove the grease nipples to save you working against the suction of the cylinder.

4, Remove cylinder.

5, Replace seal.

Do in reverse to reassemble.

TOP TIPs, the cylinder has a chamfer at the opening to assist the ram seal going in, when reassembling leave the cylinder mounting bolts loose that way when you are pushing the ram in you have some extra ''wiggle'' room to help.

When first filling the cyl with grease leave one grease nipple off, then when you fill with grease the air has somewhere to escape rather than being forced passed the seal.

Observations; On this model, for this repair it is not necessary to mess with the spring at all. lt is also not necessary to remove the cylinder to replace the seal. For me it was nessecery to remove the cylinder to inspect it properly, and as suspected a hone.

Got the seal over the counter from Neil at Cariboo Chrome&Hydraulics in Prince George BC phn # 1250 562 0166 for $10

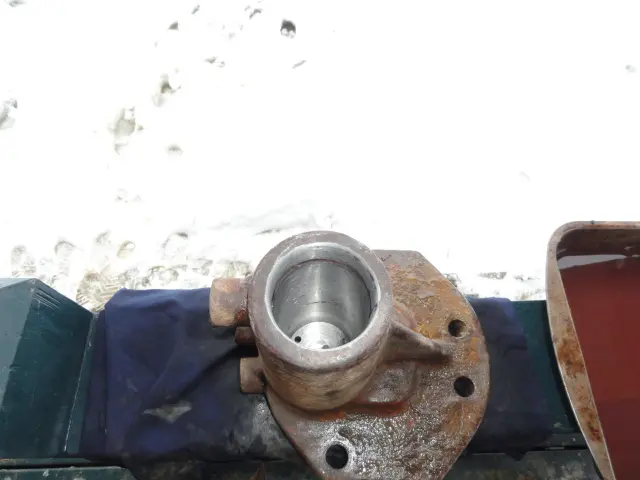

[attachment=11222]Split the Track.jpg[/attachment][attachment=11223]Picture 117.jpg[/attachment][attachment=11224]Picture 115.jpg[/attachment][attachment=11225]Picture 114.jpg[/attachment][attachment=11226]Picture 116.jpg[/attachment][attachment=11227]Picture 112.jpg[/attachment][attachment=11228]Picture 111.jpg[/attachment]

**No humans where harmed in the making of this documentary**
Attachment
Attachment
Attachment
Attachment
Attachment
Attachment
Attachment
Please log in or create an account to join the conversation.
Mon, Nov 14, 2011 1:26 AM
Old Magnet
Offline
Send a private message to Old Magnet
Posts: 16,695
Thank you received: 17
Good job....
Those are aftermarket track adjusters....well built.....happen to have a NOS set in the basement.

What's all that white stuff!!! LOL
Please log in or create an account to join the conversation.
Mon, Nov 14, 2011 4:03 AM
bob
Offline
Send a private message to bob
Posts: 701
Thank you received: 0
Reply to Old Magnet:
Good job....
Those are aftermarket track adjusters....well built.....happen to have a NOS set in the basement.

What's all that white stuff!!! LOL
What is that strange looking white soil all over your tractor?
Later Bob
Please log in or create an account to join the conversation.
Mon, Nov 14, 2011 5:40 AM
Kelly
Offline
Send a private message to Kelly
Posts: 556
Thank you received: 0
Reply to bob:
What is that strange looking white soil all over your tractor?
Later Bob
Hi, boys, that white stuff is called “Suitecase Sand.”
Good looking job.
Kelly
Please log in or create an account to join the conversation.
Mon, Nov 14, 2011 6:00 AM
anyoldiron
Topic Author
Offline
Send a private message to anyoldiron
Posts: 113
Thank you received: 0
Reply to Kelly:
Hi, boys, that white stuff is called “Suitecase Sand.”
Good looking job.
Kelly

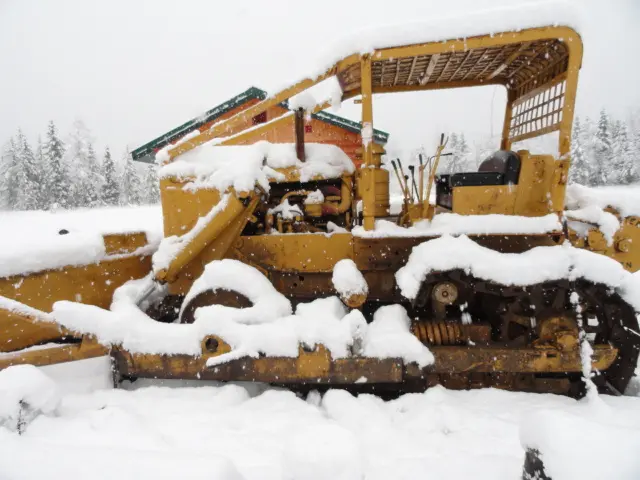

[attachment=11229]Picture 113.jpg[/attachment]

Lol, yep i started the day with that 80s anthem rattling around in my head "Things can only get better''. Safe to say if it was ''Columbian marching powder'', the dozer would probably be a bit of a newer model 😉
Attachment
Please log in or create an account to join the conversation.
Mon, Nov 14, 2011 6:48 AM
rustyfender
Offline
Send a private message to rustyfender
Posts: 140
Thank you received: 0
Reply to anyoldiron:
[attachment=11229]Picture 113.jpg[/attachment]

Lol, yep i started the day with that 80s anthem rattling around in my head "Things can only get better''. Safe to say if it was ''Columbian marching powder'', the dozer would probably be a bit of a newer model 😉
Attachment
thanks so much for the great info. I am new to the site, however I am reading every night to try to get familiar with the old Cat 17a1901 Thanks again the tracks tightened up just fine!
Please log in or create an account to join the conversation.
Thu, Jul 18, 2013 8:07 AM
Old 3T lover
Offline
Send a private message to Old 3T lover
Posts: 410
Thank you received: 0
Reply to Old Magnet:
Good job....
Those are aftermarket track adjusters....well built.....happen to have a NOS set in the basement.

What's all that white stuff!!! LOL
[quote="Old Magnet"]Good job....
Those are aftermarket track adjusters....well built.....happen to have a NOS set in the basement.

What's all that white stuff!!! LOL[/quote]

Yep, the 2 1/2" model....the 3" ones were a little better.
Please log in or create an account to join the conversation.
Thu, Jul 18, 2013 8:27 AM
Showing 1 to 6 of 6 results
