D7 17A clutch brake

Showing 1 to 7 of 7 results

rustyfender

Topic Author

Offline

Send a private message to rustyfender

Posts: 140

Thank you received: 0

any ideas on relining my clutch brake shoes?

Please log in or create an account to join the conversation.

Thu, Aug 22, 2013 5:20 AM

Tim Matthews

Offline

Send a private message to Tim Matthews

Posts: 147

Thank you received: 0

Just buy the lining and rivit it back on .

Please log in or create an account to join the conversation.

Thu, Aug 22, 2013 5:49 AM

Rome K/G

Offline

Send a private message to Rome K/G

Posts: 6,092

Thank you received: 0

Reply to Tim Matthews:

Just buy the lining and rivit it back on .

You can get the lining from Cat and have a clutch and brake shop assem it for you.

Please log in or create an account to join the conversation.

Thu, Aug 22, 2013 6:56 AM

ccjersey

Offline

Send a private message to ccjersey

Posts: 4,422

Thank you received: 0

McMaster Carr has sheets and strips of various thickness and friction grades. Pretty cheap too if you don't need a lot of surface area. Most likely have rivets too.

D2-5J's, D6-9U's, D318 and D333 power units, 12E-99E grader, 922B & 944A wheel loaders, D330C generator set, DW20 water tanker and a bunch of Jersey cows to take care of in my spare time😄

Please log in or create an account to join the conversation.

Thu, Aug 22, 2013 7:59 AM

rustyfender

Topic Author

Offline

Send a private message to rustyfender

Posts: 140

Thank you received: 0

Reply to ccjersey:

McMaster Carr has sheets and strips of various thickness and friction grades. Pretty cheap too if you don't need a lot of surface area. Most likely have rivets too.

local cat dealer has the parts, not a lot about this in my book about re and re. from machine, any help greatly appreciated

Please log in or create an account to join the conversation.

Thu, Aug 29, 2013 6:14 AM

ccjersey

Offline

Send a private message to ccjersey

Posts: 4,422

Thank you received: 0

If you're asking, it must not be the simple external shoe rubbing on a drum that bolts to the short/duplex universal joint connecting the clutch and transmission that was used on the later D6.

Sorry, never looked at a 17A clutch brake.

D2-5J's, D6-9U's, D318 and D333 power units, 12E-99E grader, 922B & 944A wheel loaders, D330C generator set, DW20 water tanker and a bunch of Jersey cows to take care of in my spare time😄

Please log in or create an account to join the conversation.

Thu, Aug 29, 2013 9:42 AM

edb

Offline

Member

Send a private message to edb

Posts: 4,027

Thank you received: 0

Reply to ccjersey:

If you're asking, it must not be the simple external shoe rubbing on a drum that bolts to the short/duplex universal joint connecting the clutch and transmission that was used on the later D6.

Sorry, never looked at a 17A clutch brake.

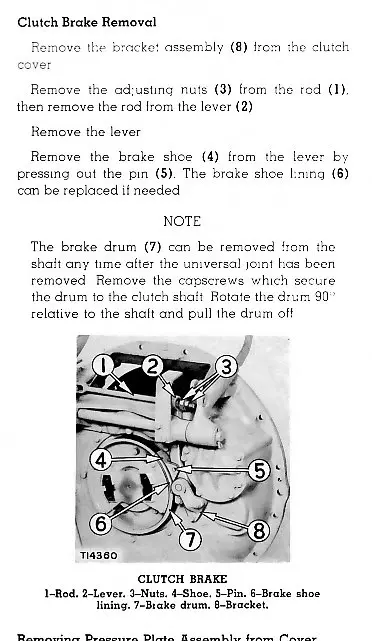

Hi Team,
proceedure below is scaned from the the Service Manual.
The Adjustment proceedure is in the gray OMI.
Hope this helps.
Cheers,
Eddie B.
Attachment

Please log in or create an account to join the conversation.

Thu, Aug 29, 2013 1:07 PM

rustyfender

Topic Author

Offline

Send a private message to rustyfender

Posts: 140

Thank you received: 0

Reply to edb:

Hi Team,
proceedure below is scaned from the the Service Manual.
The Adjustment proceedure is in the gray OMI.
Hope this helps.
Cheers,
Eddie B.

now that I have seen this and I have the new one in my hand it makes sense. thanks guys
