D6 9U Clutch adjustment issues

D6 9U Clutch adjustment issues

Showing 1 to 5 of 5 results
Jsully50
Topic Author
Offline
Send a private message to Jsully50
Posts: 15
Thank you received: 0
I have a 1950 D6 9U #9U6706 that im having a hard time getting the clutch adjusted to get the SNAP on the lever. When i pull back the clutch lever i cant get it to snap so when im driving the dozer i have to hold the clutch lever in place or it will go forward and disengage  the clutch. I have adjusted it according to the book for dry clutches, plus adjusted the rod as well but no luck. Anyone have any ideas?? Thank you in advance.
Please log in or create an account to join the conversation.
Mon, May 6, 2024 3:13 AM
Ray54
Offline
Send a private message to Ray54
Posts: 1,867
Thank you received: 12
Maybe just a tinny amount of lubrication on all the pivot points in the linkage. The earlier model D6 (4r,5r) used the same clutch. But no shielding so much more dust, so everyday oil the linkage and once or twice a week wash with gas (yes 40 years ago nobody worried about gas, and was cheap)to get the oil and dust/muck off and start over. Have not had to do that with the 9u's being enclosed. So a easy cheap thing to start with. With the D6 4r it took very little movement of the adjuster to go from to tight, to loose before I was shown to wash the junk off and start over.
Please log in or create an account to join the conversation.
Mon, May 6, 2024 6:09 AM
D8Dude
Offline
Member
Chapter Nineteen
Send a private message to D8Dude
Posts: 140
Thank you received: 3

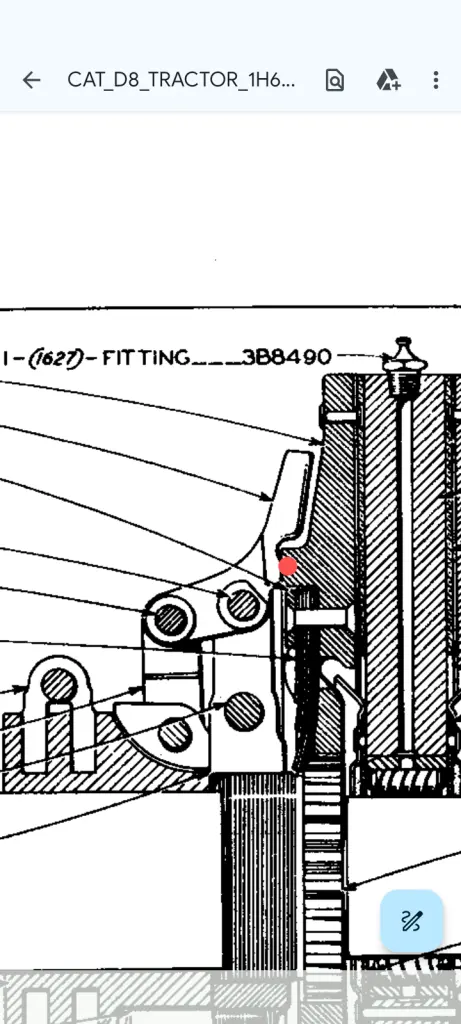

I'm not familiar with the design of the D6 clutch, but I have experienced the same thing with the dry clutch on the D8. The solution is usually to lubricate the face and pins of the cams that actually do the SNAP over centre. Oil around the area I've marked with a red dot is usually effective in my experience.

 [attachment=76306]Screenshot_20240506-202846 (1).png[/attachment]
Attachment
Please log in or create an account to join the conversation.
Mon, May 6, 2024 5:35 PM
neil
Offline
Moderator
Admin
Send a private message to neil
Posts: 6,959
Thank you received: 18
Reply to D8Dude:
I'm not familiar with the design of the D6 clutch, but I have experienced the same thing with the dry clutch on the D8. The solution is usually to lubricate the face and pins of the cams that actually do the SNAP over centre. Oil around the area I've marked with a red dot is usually effective in my experience.

 [attachment=76306]Screenshot_20240506-202846 (1).png[/attachment]
Attachment
If the pins, linkages are worn, it will be hard to get a good adjustment on it. If you find that these are worn, you'd be well advised to replace them so you can adjust to good operation for both engagement, disengagement, and clutch braking. My D2 wasn't able to be properly adjusted until I replaced all the pins and bushings. After that, it was a cinch and it stayed adjusted too
Please log in or create an account to join the conversation.
Tue, May 7, 2024 4:34 AM
D8Dude
Offline
Member
Chapter Nineteen
Send a private message to D8Dude
Posts: 140
Thank you received: 3
Reply to neil:
If the pins, linkages are worn, it will be hard to get a good adjustment on it. If you find that these are worn, you'd be well advised to replace them so you can adjust to good operation for both engagement, disengagement, and clutch braking. My D2 wasn't able to be properly adjusted until I replaced all the pins and bushings. After that, it was a cinch and it stayed adjusted too
I should have said that my issues weren't due to excessive wear, but because the machines had sat unused outside for lengthy amounts of time. Some lubrication and use rectified the problem for me, without actually making any adjustment.
Please log in or create an account to join the conversation.
Tue, May 7, 2024 5:37 AM
neil
Offline
Moderator
Admin
Send a private message to neil
Posts: 6,959
Thank you received: 18
Reply to D8Dude:
I should have said that my issues weren't due to excessive wear, but because the machines had sat unused outside for lengthy amounts of time. Some lubrication and use rectified the problem for me, without actually making any adjustment.
Excellent, good deal! Nice easy fix : )
