ok today we removed the other track assembly , pivot shaft. both sprockets and seals, but cant get the final drive housing off. are we missing something or is it froze on there? tried using wedges and a hammer but didnt want to break it if we dont have to. tring to get to the steering clutches any ideas?

Please log in or create an account to join the conversation.

Mon, Oct 26, 2009 5:34 AM

bruce oz

Offline

Member

Send a private message to bruce oz

Posts: 1,427

Thank you received: 19

http://www.filejumbo.com/Download/D2684D060DB29B78/

hello mcarp,the link above has the info from the manual ,when the window open click on download ,bruce oz

.

Please log in or create an account to join the conversation.

Mon, Oct 26, 2009 6:10 AM

Steve A

Offline

Member

Send a private message to Steve A

Posts: 1,254

Thank you received: 0

Reply to bruce oz:

http://www.filejumbo.com/Download/D2684D060DB29B78/

hello mcarp,the link above has the info from the manual ,when the window open click on download ,bruce oz

.

did it move enough to get the wedges in, the final will move 1/8 to 1/4 and stop if the clutches are stuck. if this is the case try heat on the drum and rock the final from side to side, your odds are about 50/50

If it hasent moved at all you might have missed the bolt in the bottom that taps into the final case

Please log in or create an account to join the conversation.

Mon, Oct 26, 2009 7:07 AM

mcarp

Topic Author

Offline

Send a private message to mcarp

Posts: 17

Thank you received: 0

Reply to Steve A:

did it move enough to get the wedges in, the final will move 1/8 to 1/4 and stop if the clutches are stuck. if this is the case try heat on the drum and rock the final from side to side, your odds are about 50/50

If it hasent moved at all you might have missed the bolt in the bottom that taps into the final case

thanks guys, we tried pulling it off all together but didnt go so then we took the sprocket and seal out . there seems to be two different housings on this one for the final and one for the steering clutch. but neither one will come lose we will work on it for awhile and report back thanks for the help.

Please log in or create an account to join the conversation.

Tue, Oct 27, 2009 8:46 AM

Jack

Offline

Member

Send a private message to Jack

Posts: 817

Thank you received: 0

Reply to mcarp:

thanks guys, we tried pulling it off all together but didnt go so then we took the sprocket and seal out . there seems to be two different housings on this one for the final and one for the steering clutch. but neither one will come lose we will work on it for awhile and report back thanks for the help.

Every one that I've seen in my limited experience come apart that hard involved the outer driving teeth of the clutch cut into the grooves in the drum so they are sorta hooked together. You might try driving the drum backward/foreward in a rotational manner, see if you can get them unhooked. Try blocking the clutch open to let the plates move individually, but bear in mind you will have to take the clutch pack to a press to be realigned if it comes apart in this manner.

Please log in or create an account to join the conversation.

Tue, Oct 27, 2009 10:31 AM

landreo

Offline

Send a private message to landreo

Posts: 12

Thank you received: 0

I have limited experience, just did one a month ago. Mine would not move at all, I pounded an old putty knife in the crack and worked it around until I covered all of the mating surfaces. It then moved much easier and was able to work from a putty knife to a screwdriver to a crowbar to a digging bar. I think the gasket was initially holding things together. The clutch discs were rusted away and the splines on the brake drum were notched so the discs would not slide easily.

Please log in or create an account to join the conversation.

Tue, Oct 27, 2009 8:06 PM

drujinin

Offline

Send a private message to drujinin

Posts: 3,852

Thank you received: 1

Reply to landreo:

I have limited experience, just did one a month ago. Mine would not move at all, I pounded an old putty knife in the crack and worked it around until I covered all of the mating surfaces. It then moved much easier and was able to work from a putty knife to a screwdriver to a crowbar to a digging bar. I think the gasket was initially holding things together. The clutch discs were rusted away and the splines on the brake drum were notched so the discs would not slide easily.

You need to remove the bolts in the bottom of the drive assembly to transmission case. These are in from the opposite direction. Then you'll keep supporting tension on it while prying via wedges to remove the assembly. I used a small hydraulic jack against the hitch frame to break the gasket seal tension, then used wedges after that to keep from binding in the brake drum.

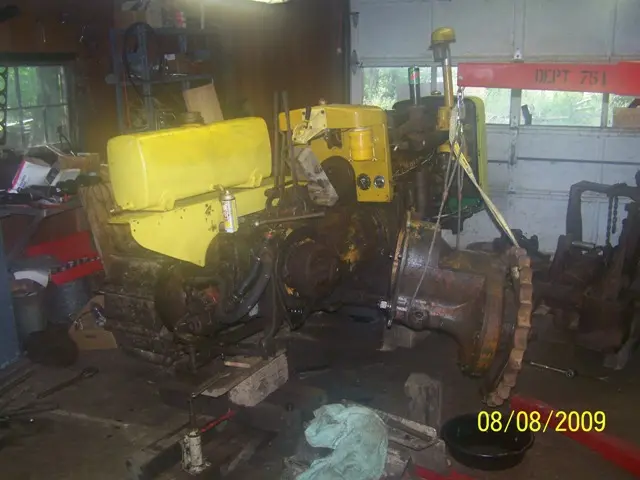

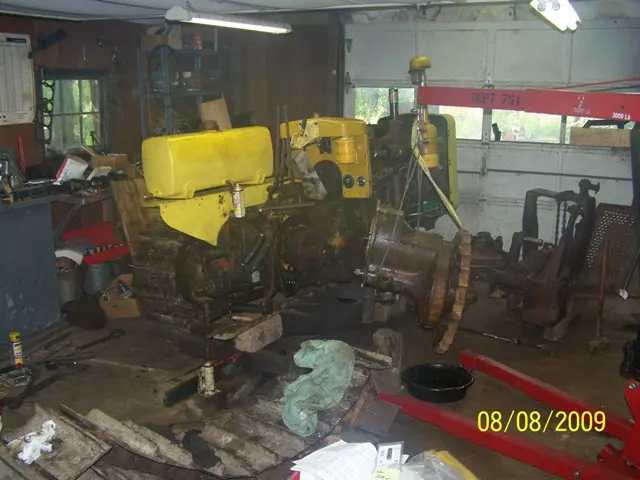

Attached are 2 photo's!
