D2 5U Wiring Diagram

Showing 1 to 2 of 2 results

ironman3406

Topic Author

Offline

Chapter Leader

Chapter Twenty Seven

Send a private message to ironman3406

Posts: 252

Thank you received: 0

Hey guys,

Wondering if anyone has a copy of the wiring diagram for my D2 - 5U. I have looked in past posts but where ever there was a diagram listed the attachment is no longer showing up.
Old Magnet looks like you may have had a copy of it at one point according to the past posts I've looked through.
I have a 4 position switch, amp meter, electric start pony, lights on the front, the rear, dash light, regulator, and a 6 volt generator.
I just want to make sure I get everything hooked up correctly.

Thanks
Nathan

Please log in or create an account to join the conversation.

Tue, Aug 22, 2017 12:22 AM

d2gary

Offline

Member

Send a private message to d2gary

Posts: 1,484

Thank you received: 50

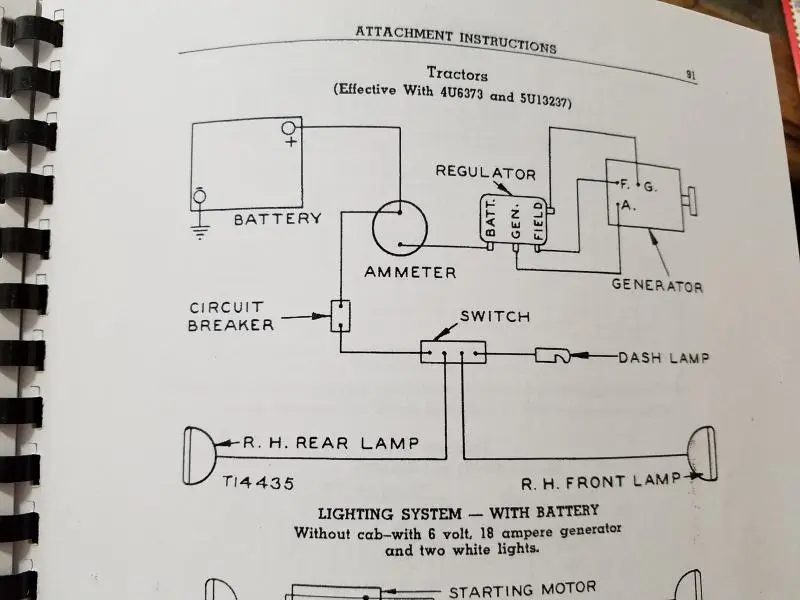

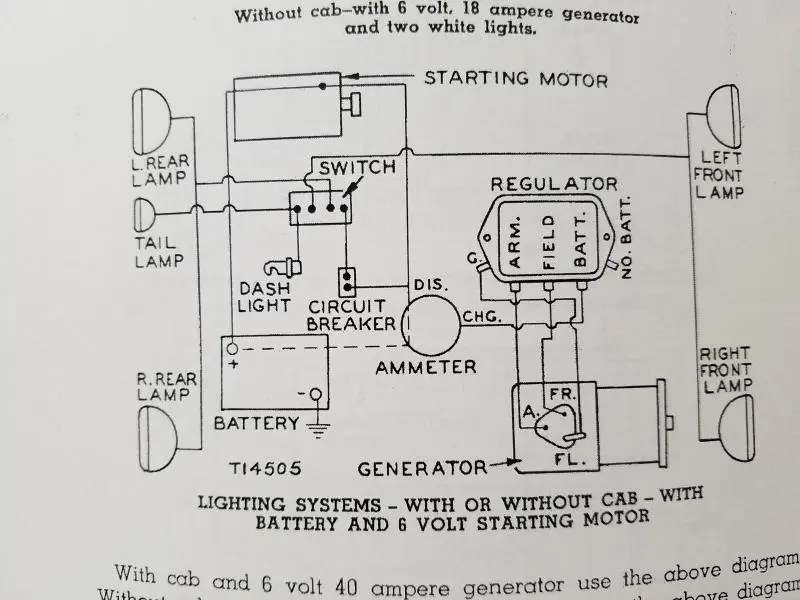

Here ya go, just happened to be with the 5u I just got [attachment=44222]20170821_115121.jpg[/attachment][attachment=44221]20170821_115110.jpg[/attachment]

Please log in or create an account to join the conversation.

Tue, Aug 22, 2017 1:55 AM

ironman3406

Topic Author

Offline

Chapter Leader

Chapter Twenty Seven

Send a private message to ironman3406

Posts: 252

Thank you received: 0

Reply to d2gary:

Here ya go, just happened to be with the 5u I just got [attachment=44222]20170821_115121.jpg[/attachment][attachment=44221]20170821_115110.jpg[/attachment]

Thanks d2gary!! exactly what I needed.

Please log in or create an account to join the conversation.

Tue, Aug 22, 2017 8:48 PM
