D2-5U Trackson Loader

Showing 1 to 4 of 4 results

drujinin

Topic Author

Offline

Send a private message to drujinin

Posts: 3,851

Thank you received: 1

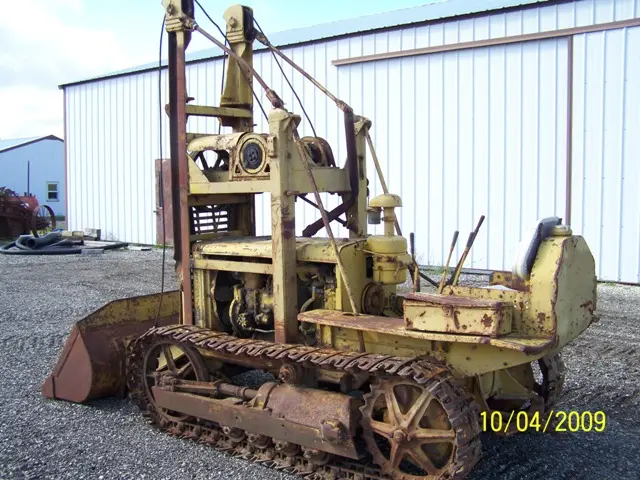

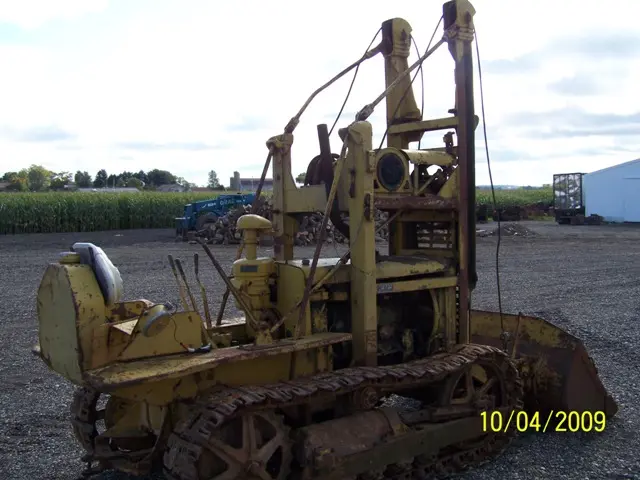

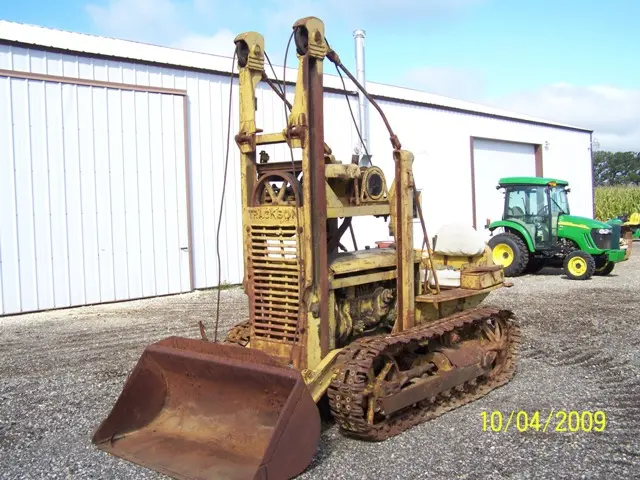

When I went over to Bob Stewarts today to photo the D2 cab I found this Trackson sitting there. Notice the upper portion of the Mast has hinges so it can be folded down.
Attachment

Please log in or create an account to join the conversation.

Mon, Oct 5, 2009 6:59 AM

donl4

Offline

Send a private message to donl4

Posts: 80

Thank you received: 0

I am very curious about the unique shape of the tracks. Why would you need "rounded" tracks? I have seen pictures of those style of track before, but have never seen them in person.
Don

Don
JD40C

Please log in or create an account to join the conversation.

Mon, Oct 5, 2009 3:05 PM

chriscokid

Offline

Send a private message to chriscokid

Posts: 3,341

Thank you received: 0

Reply to donl4:

I am very curious about the unique shape of the tracks. Why would you need "rounded" tracks? I have seen pictures of those style of track before, but have never seen them in person.
Don

those are street shoes, they tend to bow or round as you call it, it basicly like a flat steel plate with no rib or gouser bar to give it strength.

Please log in or create an account to join the conversation.

Mon, Oct 5, 2009 5:39 PM

drujinin

Topic Author

Offline

Send a private message to drujinin

Posts: 3,851

Thank you received: 1

Reply to chriscokid:

those are street shoes, they tend to bow or round as you call it, it basicly like a flat steel plate with no rib or gouser bar to give it strength.

If they were always ran on soft dirt and pavement they would stay flat but when they are ran in stone/gravel, then the weight of the machine bends the edges giving them that bowed look.

Please log in or create an account to join the conversation.

Mon, Oct 5, 2009 9:56 PM

shovel man

Offline

Send a private message to shovel man

Posts: 231

Thank you received: 0

The fold down mast came in at machine serial no. T2-901 around 1948-49,
the earlier loader's based on "J" model machines used standard D2 grouser track later "U" model machines used the cast steel track plates, the track plates on that loader look to have worn right through.

shovel man.

Please log in or create an account to join the conversation.

Tue, Oct 6, 2009 3:37 AM
