Is there anyway to adjust clutch brake
Brake and collar aren't making contact
I gotta be missing something
Please log in or create an account to join the conversation.
Wed, Apr 8, 2020 8:01 PM
bruce oz
Offline
Member
Send a private message to bruce oz
Posts: 1,413
Thank you received: 17

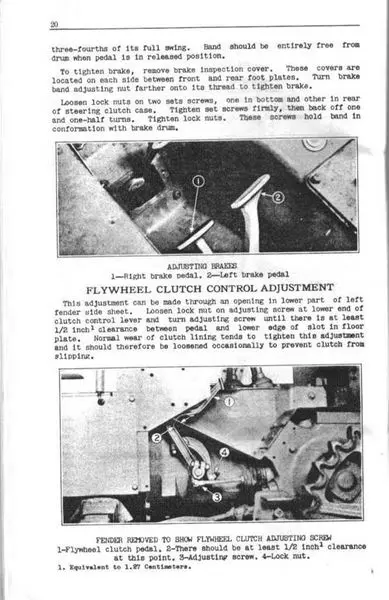

from operator book 8c1 up , you didnt say serial number/ model L- PL- 0R 8C ,
Attachment
Please log in or create an account to join the conversation.
Thu, Apr 9, 2020 3:19 AM
growlyone
Topic Author
Offline
Send a private message to growlyone
Posts: 14
Thank you received: 0
Reply to bruce oz:
from operator book 8c1 up , you didnt say serial number/ model L- PL- 0R 8C ,
Attachment
s.n. pl 5190

How do i adjust clutch brake or is there not any adjustment to it.
it looks like when you adjust clutch every thing that makes brake work also goes with it.
farther away from brake lining as lining is bolted to transmission shaft.
I have replaced lining on clutch which was not wore much.
Lining on brake looks good but anybody have a thickness measurement.
It is a hand clutch operated machine



Growlyone
Please log in or create an account to join the conversation.
Thu, Apr 9, 2020 5:50 PM
Skinner
Offline
Member
Send a private message to Skinner
Posts: 495
Thank you received: 3
Reply to growlyone:
s.n. pl 5190

How do i adjust clutch brake or is there not any adjustment to it.
it looks like when you adjust clutch every thing that makes brake work also goes with it.
farther away from brake lining as lining is bolted to transmission shaft.
I have replaced lining on clutch which was not wore much.
Lining on brake looks good but anybody have a thickness measurement.
It is a hand clutch operated machine



Growlyone
[quote="growlyone"]s.n. pl 5190

How do i adjust clutch brake or is there not any adjustment to it.
it looks like when you adjust clutch every thing that makes brake work also goes with it.
farther away from brake lining as lining is bolted to transmission shaft.
I have replaced lining on clutch which was not wore much.
Lining on brake looks good but anybody have a thickness measurement.
It is a hand clutch operated machine



Growlyone[/quote]

Look for another hole where it’s bolted on the shaft that puts the brake pad slightly closer should have a few holes
Please log in or create an account to join the conversation.
Thu, Apr 9, 2020 9:08 PM
[email protected]
Offline
Member
Send a private message to [email protected]
Posts: 435
Thank you received: 0
Reply to growlyone:
s.n. pl 5190

How do i adjust clutch brake or is there not any adjustment to it.
it looks like when you adjust clutch every thing that makes brake work also goes with it.
farther away from brake lining as lining is bolted to transmission shaft.
I have replaced lining on clutch which was not wore much.
Lining on brake looks good but anybody have a thickness measurement.
It is a hand clutch operated machine



Growlyone
[quote="growlyone"]s.n. pl 5190

How do i adjust clutch brake or is there not any adjustment to it.
it looks like when you adjust clutch every thing that makes brake work also goes with it.
farther away from brake lining as lining is bolted to transmission shaft.
I have replaced lining on clutch which was not wore much.
Lining on brake looks good but anybody have a thickness measurement.
It is a hand clutch operated machine



Growlyone[/quote]If the twenty is like the twenty-two, there are three sets of holes on the clutch brake housing to allow for adjustment of the brake. Just remove the capscrew, index to the next hole, which brings the brake lining forward, then replace the capscrew. See example from my twenty-two. Ray
[attachment=58123]DSC_0100.jpg[/attachment]
Attachment
***********************
2F5209 CAT 22, 1967 E-Type Jaguar OTS, Trek 2300 road bike
Please log in or create an account to join the conversation.
Sat, Apr 11, 2020 6:38 AM
Old Magnet
Offline
Send a private message to Old Magnet
Posts: 16,695
Thank you received: 17
[quote="growlyone"]s.n. pl 5190

How do i adjust clutch brake or is there not any adjustment to it.
it looks like when you adjust clutch every thing that makes brake work also goes with it.
farther away from brake lining as lining is bolted to transmission shaft.
I have replaced lining on clutch which was not wore much.
Lining on brake looks good but anybody have a thickness measurement.
It is a hand clutch operated machine



Growlyone[/quote]If the twenty is like the twenty-two, there are three sets of holes on the clutch brake housing to allow for adjustment of the brake. Just remove the capscrew, index to the next hole, which brings the brake lining forward, then replace the capscrew. See example from my twenty-two. Ray
[attachment=58123]DSC_0100.jpg[/attachment]
Attachment
Doesn't look like PL1590 has that feature?
Please log in or create an account to join the conversation.
Sat, Apr 11, 2020 7:09 AM
bruce oz
Offline
Member
Send a private message to bruce oz
Posts: 1,413
Thank you received: 17
Reply to Old Magnet:
Doesn't look like PL1590 has that feature?
http://www.acmoc.org/bb/showthread.php?33420-Twenty-won%92t-go-in-gear
