Caterpillar ten info wanted

There was an operator instruction book for a "TEN" on e-bay recently it did not sell maybe you could contact the
seller, e-bay item no. 140816434916 , it might still be for sale contains good info.

shovel man.

There was an operator instruction book for a "TEN" on e-bay recently it did not sell maybe you could contact the
seller, e-bay item no. 140816434916 , it might still be for sale contains good info.

shovel man.

congratulations with your TEN, any specific questions about the tractor her on the board we will try to answer, any pictures of it we all like!! as i have a fifteen with a diesel engine i am interested in the way your diesel is mounted in the ten, you are lucky you have still the old original engine,
like shovel man said its good to have a parts- and a service and maintenance book, they sell after marked copys of them in the USA.
if you need parts see at the sticky posts on he top of this discussion board, like if you need a head gasket call Olsons Gaskets, if you need special parts call Jim Zimmerman, if you need a seat cussioning call John Hahn, etc.
we are looking forward for your pictures.

Thank you for your answers, I started communicating with the guy about the manual and I will send pictures tomorrow. So far, only photos of the engine and the radiator, I can not find pictures of tractor and he is still at my friends barn, so I will post pictures as soon as possible.

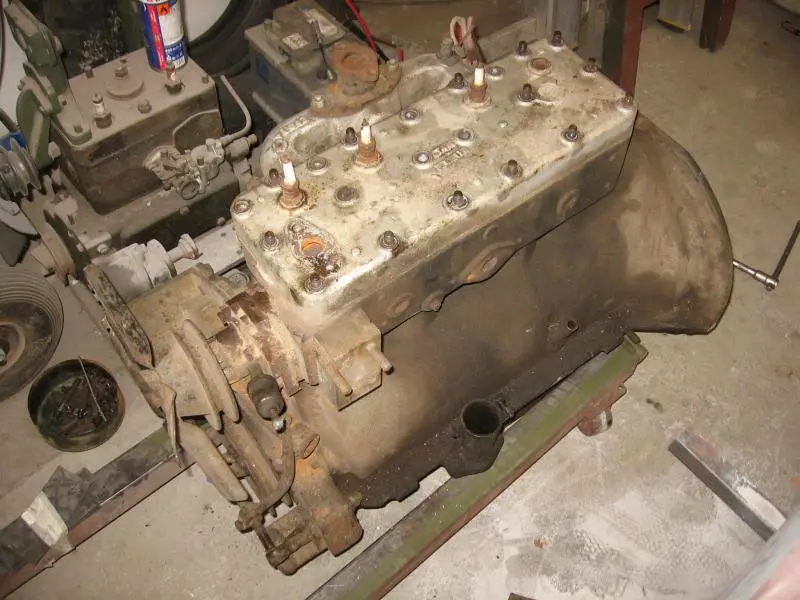

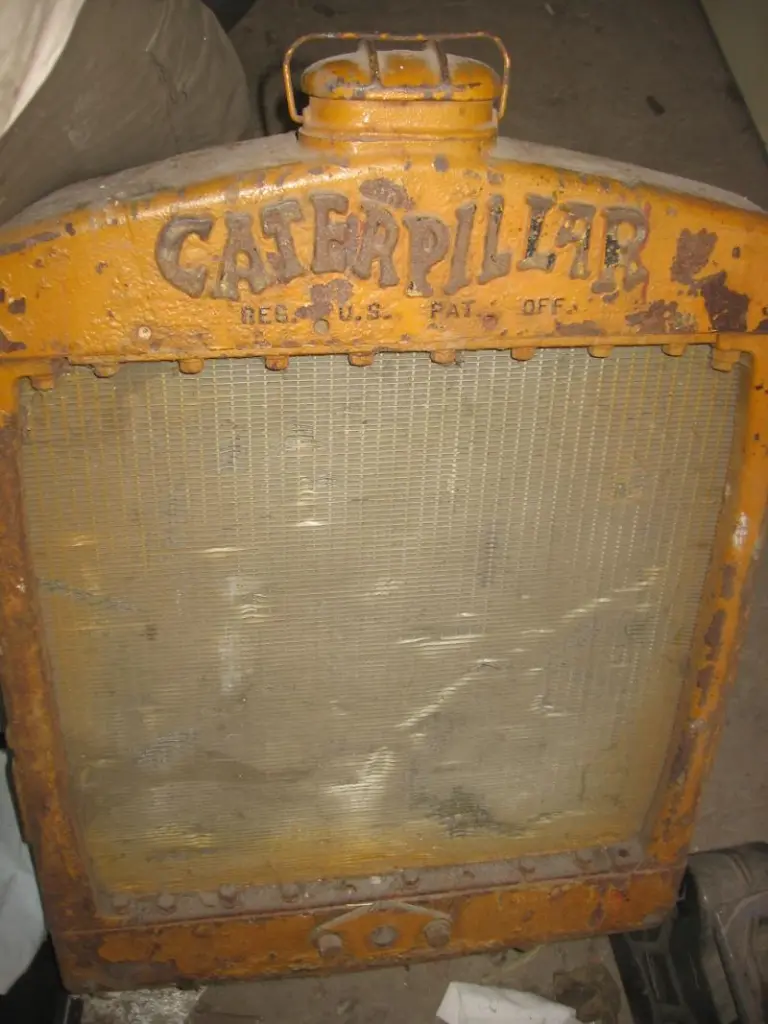

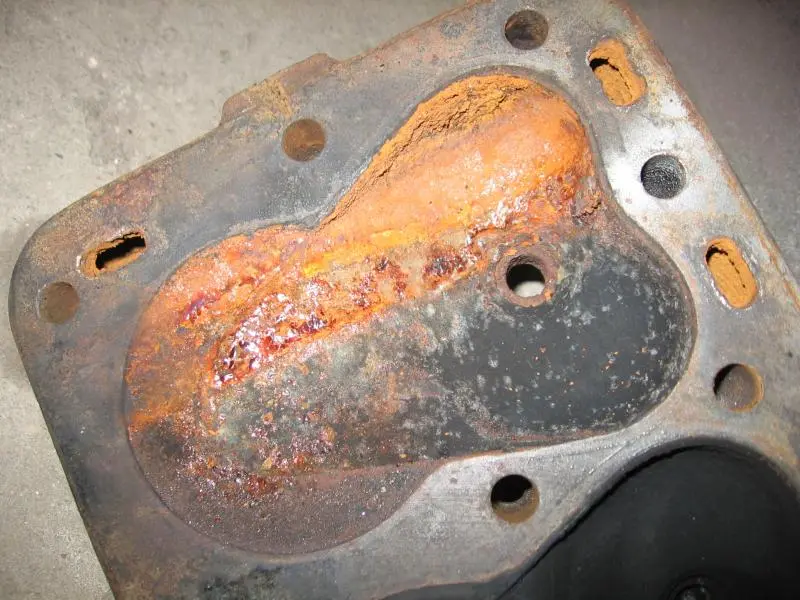

There are some pictures of engine, waterpump and radiator. Today I bought operator instruction book from guy from Ebay for 40 GBP, once more thanks for help 😊

nice pics!

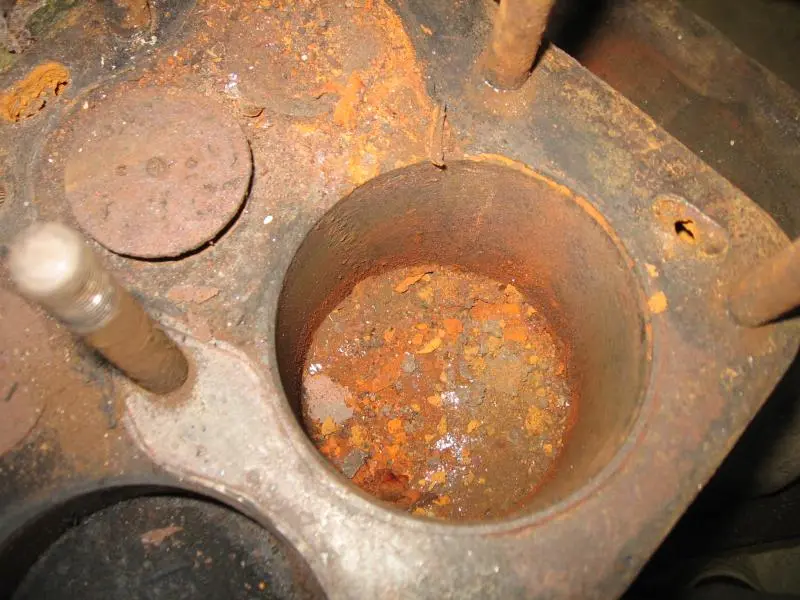

the engine is like my ten and fifteen but with some attention it will run, if its stuck put some wd40 on top, of cilinders or brake oil and after some time it will loosen the pistons from cilinders.

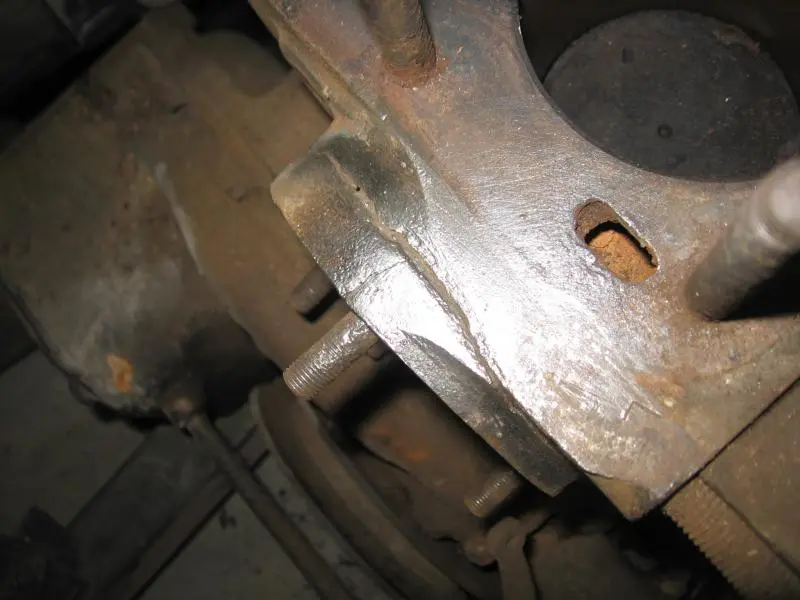

the crack on the top part were waterpump is you can weld with cast iron rods.
the waterpump is not original ,

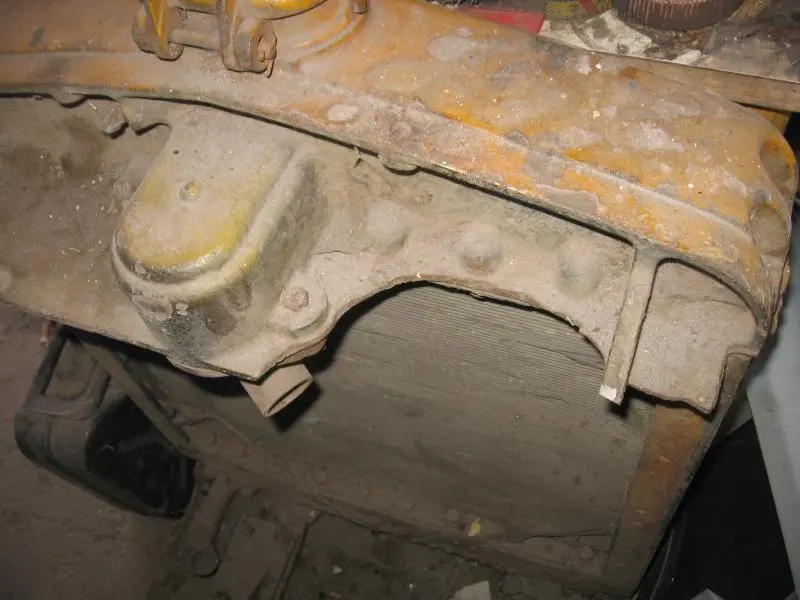

from the radiator the bracket were gas tank is placed on it broke of, but if you can weld you can make new bracket.
wat about carburator and ignition?? is it with the engine??
greets Marco

Thanks for reply Marco
Are you sure the waterpump is not original? It is possible, because there is some spacer between pump and cilinder block, but with inch threads.I puted some oil at the top of rosted cilinder, and now I can turned wilh crankshaft easily, but I will dismatle whole engine, just for sure. It may have rosted piston rings, or some demage at bearings atc. Like I said this one is only one known TEN in state (there is also Fifteen, are some patrs same?), so I must be very careful 😞 Also will be more better for welding and folowing grinding of contact surface of waterpump. My friend have a litle foundry, so I can do form of lost piece of radiator, make new one and weld it back at place. By the way Ihave no gas tank 😞 Probably I will have to make new one. Also I have no carburetor and ignition is stamped with some French plate under Bosh licention 😞 I hope It will be working. I am at very early phase of renovation, so I will be wery glad for anny kind of info what You can give to me. I need some detailed photos of engine, carb, ignition, gauges atc. at least.
Regards Black

the waterpump is for sure not original, aswell is the pulley, for v belt, original it is a adjustable pully for tensioning the belt, nice that engine is loose, i put new piston rings in my engines, and i did honing of the cilinder walls, if you can get the magneto running it will be ok , (original it was a eisseman mag) for the carburator: i had a original one but the top lid was broken , so now i bought a new one from ebay usa and made a elbow because this is a updraft (not side draft is original) and the engine is running very good on this one.
about the fifteen there is a big fifteen, wich is a bit bigger than the ten, and there is a small fifteen that was the upgrade of the ten in 1931 that had some little changes as a other fuel tank so you need to know what 15 it is, if i were you i would buy it aswell

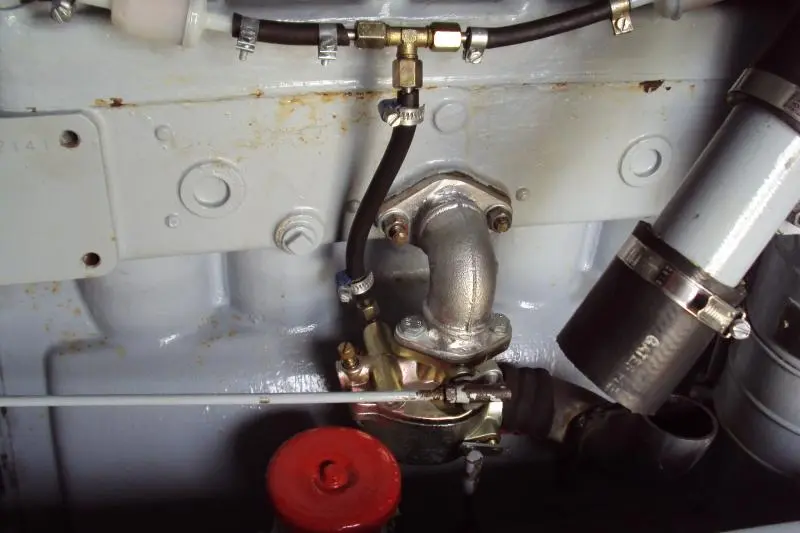

some pictures of original waterpump and non original carb of my TEN:


[attachment=14071]DSC01819.jpg[/attachment][attachment=14070]DSC01816.jpg[/attachment]

Nice pictures Marco 😊 Is the number stamped at lhe left front side of cilinder block behind the waterpump engine number? And if it is can I determine the date of production from it? Today I looked at the waterpump and I think it is from some prewar Škoda engine. I have some flange at intake manifold (for carb?)I will do some photos tomorrow and post them. Do you want to sell me your broken carb? It is no problem for me to do new top lid. ( Its only about the money which I have a little 😄) But this litle Ten is a main project for me at this time. Like I said, I bought a manual, so I think it will come next week I hope. Till that time You are my only helper 😊 Tomorrow I will call to guy from caterpillar showroom where is shown the Fifteen, maybe he give to me some info about it ( numbers, date of make atc.) I will send You. Have You some website, or Facebook profile ( there is my profile with some work what I done http://www.facebook.com/milos.cerny.9) with pictures of your TEN? Once more very thanks for yours interest and help, I really appreciate it 😊
