Hello ACMOC Members:

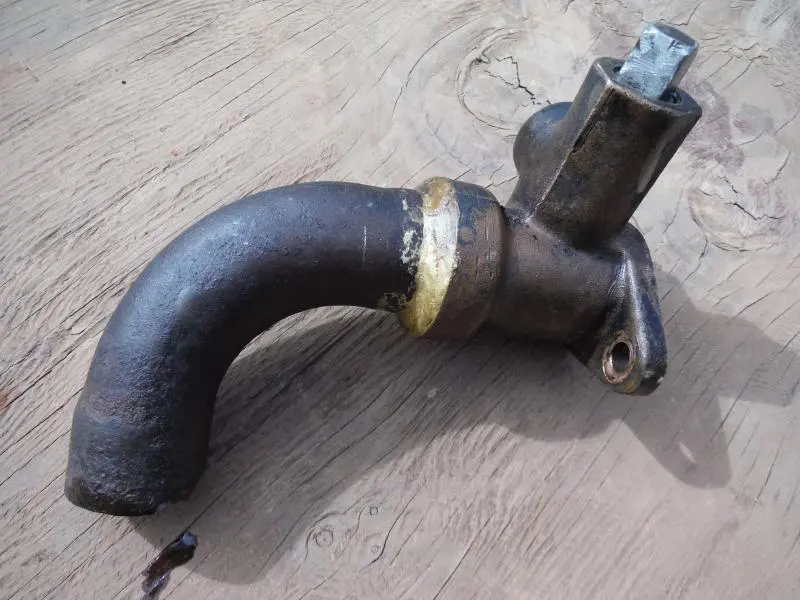

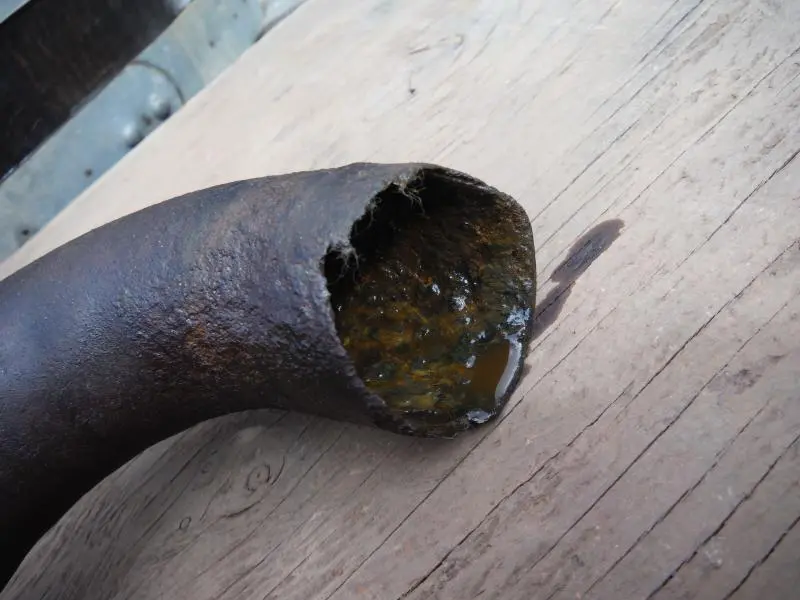

I'm trying to repair a radiator component on a Caterpillar D2 (3J series) tractor. The component is a P/N 5B9375 PIPE, an alternate source has suggested that this part has been superseded by P/N 8B9316. The assembly consists of a drain valve (possibly made of copper) and a elbow shaped steel tube that has been soldered into place. My tube is corroded and damaged perhaps beyond repair. I'd like to replace the tube and was wondering if any members have made this kind of repair to salvage the part. The valve portion of this assembly has this part number: 4B7742. I'll try to attach some pictures to describe the part and thanks for your help. David.[attachment=34321]DSCF1333.jpg[/attachment][attachment=34322]DSCF1334.jpg[/attachment]
Attachment
Attachment
Please log in or create an account to join the conversation.
Tue, Mar 15, 2016 4:02 AM
Rome K/G
Offline
Send a private message to Rome K/G
Posts: 6,092
Thank you received: 0
Do you have a hydraulics component supplier [Parker, etc] in the area? They can bend a piece of hyd tubing and braze it in for you. Gary
Please log in or create an account to join the conversation.
Tue, Mar 15, 2016 5:29 AM
ccjersey
Offline
Send a private message to ccjersey
Posts: 4,422
Thank you received: 0
Looks like the tubing may be a standard long sweep ell. I wonder if a good plumbing supply might have a copper one that could be silver brazed into that fitting. On the other hand some regular old flux coated brazing rods will work wonders if there's a skeleton of steel left to work with.
D2-5J's, D6-9U's, D318 and D333 power units, 12E-99E grader, 922B & 944A wheel loaders, D330C generator set, DW20 water tanker and a bunch of Jersey cows to take care of in my spare time😄
Please log in or create an account to join the conversation.
Tue, Mar 15, 2016 7:02 AM
TOGNOT
Offline
Send a private message to TOGNOT
Posts: 725
Thank you received: 0
Reply to ccjersey:
Looks like the tubing may be a standard long sweep ell. I wonder if a good plumbing supply might have a copper one that could be silver brazed into that fitting. On the other hand some regular old flux coated brazing rods will work wonders if there's a skeleton of steel left to work with.
Interesting. I have two D2 3J's out back and the same part on both appears to be one piece, while yours looks to be assembled or fabricated from different materials.
Please log in or create an account to join the conversation.
Wed, Mar 16, 2016 10:01 AM
Dozerman51
Offline
Member
Send a private message to Dozerman51
Posts: 714
Thank you received: 0
Reply to TOGNOT:
Interesting. I have two D2 3J's out back and the same part on both appears to be one piece, while yours looks to be assembled or fabricated from different materials.
Florin Tractor PH#(916)383-0317 in Sacramento CA, shows that they have 7 8B9316 pipe assemblies. Ray's used Equipment PH#(940)825-3191 shows he has 1 5B9375 pipe assembly. All should work for your application.
