Cat motor grader help

Cat motor grader help

Showing 1 to 9 of 9 results
JSP1234
Topic Author
Offline
Send a private message to JSP1234
Posts: 7
Thank you received: 0

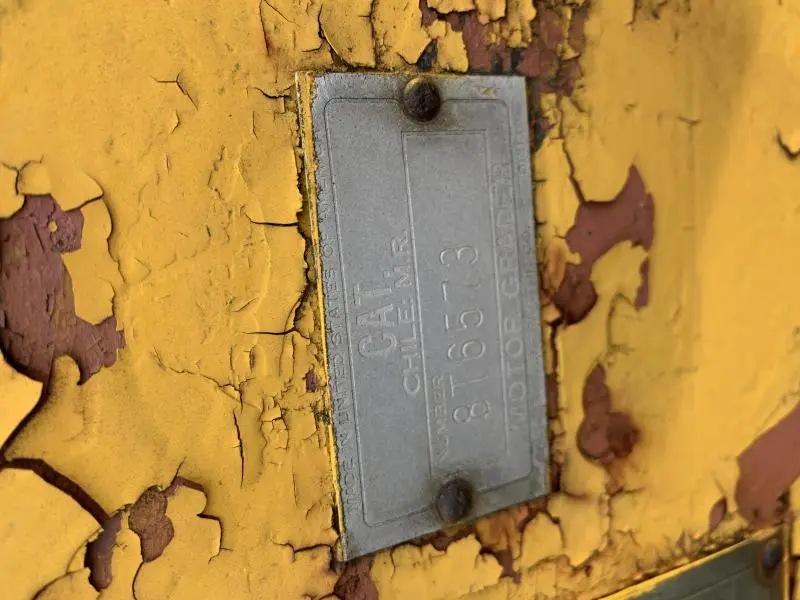

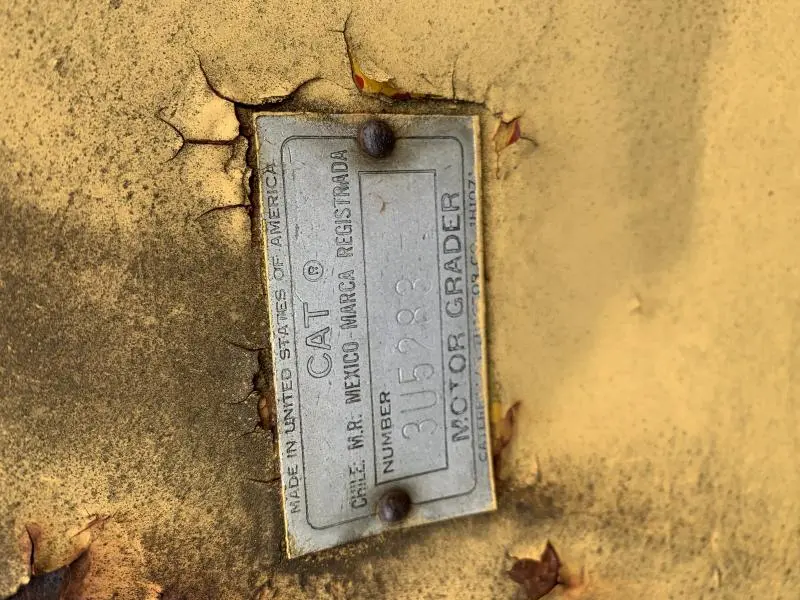

Hello, could someone help me out on dating and identifying these graders? I can’t find a model number on them and the serial numbers don’t mean anything to me. Thanks for any help.
Attachment
Attachment
Attachment
Attachment
Please log in or create an account to join the conversation.
Sun, Dec 29, 2019 12:18 AM
kracked1
Offline
Send a private message to kracked1
Posts: 741
Thank you received: 0
8T was a very popular grader. It was the #12. 12 foot moldboard, 318 engine, the same as D6 8U/9U. 100hp if I remember correctly. Good machine still capable of doing a days work. Yours is very early 1951 model year.

3U was the #112, it used the D315 engine, the same as the D4 7U, 75hp. The 3U series was made from 1947 to 1959. I cant find a by year breakdown.
Please log in or create an account to join the conversation.
Sun, Dec 29, 2019 12:25 AM
JSP1234
Topic Author
Offline
Send a private message to JSP1234
Posts: 7
Thank you received: 0
Reply to kracked1:
8T was a very popular grader. It was the #12. 12 foot moldboard, 318 engine, the same as D6 8U/9U. 100hp if I remember correctly. Good machine still capable of doing a days work. Yours is very early 1951 model year.

3U was the #112, it used the D315 engine, the same as the D4 7U, 75hp. The 3U series was made from 1947 to 1959. I cant find a by year breakdown.
[quote="kracked1"]8T was a very popular grader. It was the #12. 12 foot moldboard, 318 engine, the same as D6 8U/9U. 100hp if I remember correctly. Good machine still capable of doing a days work. Yours is very early 1951 model year.

3U was the #112, it used the D315 engine, the same as the D4 7U, 75hp. The 3U series was made from 1947 to 1959. I cant find a by year breakdown.[/quote]

Thank you for the information
Please log in or create an account to join the conversation.
Sun, Dec 29, 2019 1:33 AM
JSP1234
Topic Author
Offline
Send a private message to JSP1234
Posts: 7
Thank you received: 0
Reply to kracked1:
8T was a very popular grader. It was the #12. 12 foot moldboard, 318 engine, the same as D6 8U/9U. 100hp if I remember correctly. Good machine still capable of doing a days work. Yours is very early 1951 model year.

3U was the #112, it used the D315 engine, the same as the D4 7U, 75hp. The 3U series was made from 1947 to 1959. I cant find a by year breakdown.
[quote="kracked1"]8T was a very popular grader. It was the #12. 12 foot moldboard, 318 engine, the same as D6 8U/9U. 100hp if I remember correctly. Good machine still capable of doing a days work. Yours is very early 1951 model year.

3U was the #112, it used the D315 engine, the same as the D4 7U, 75hp. The 3U series was made from 1947 to 1959. I cant find a by year breakdown.[/quote]

Any idea on what they might be worth?
Please log in or create an account to join the conversation.
Sun, Dec 29, 2019 7:32 AM
kracked1
Offline
Send a private message to kracked1
Posts: 741
Thank you received: 0
Reply to JSP1234:
[quote="kracked1"]8T was a very popular grader. It was the #12. 12 foot moldboard, 318 engine, the same as D6 8U/9U. 100hp if I remember correctly. Good machine still capable of doing a days work. Yours is very early 1951 model year.

3U was the #112, it used the D315 engine, the same as the D4 7U, 75hp. The 3U series was made from 1947 to 1959. I cant find a by year breakdown.[/quote]

Any idea on what they might be worth?
Too many variables to tell.
Please log in or create an account to join the conversation.
Sun, Dec 29, 2019 8:05 AM
oldbeek
Offline
Member
Send a private message to oldbeek
Posts: 781
Thank you received: 0
Reply to kracked1:
Too many variables to tell.
do the motors run? How many hours on them? Are they all there? Missing pieces? How good are the tires? Check the balls that lift the blade. Are there any shims left on the balll sockets? Answer these questions and we will go from there.
Please log in or create an account to join the conversation.
Sun, Dec 29, 2019 11:03 AM
JSP1234
Topic Author
Offline
Send a private message to JSP1234
Posts: 7
Thank you received: 0
Reply to oldbeek:
do the motors run? How many hours on them? Are they all there? Missing pieces? How good are the tires? Check the balls that lift the blade. Are there any shims left on the balll sockets? Answer these questions and we will go from there.
I’ll get as much info as I can
Please log in or create an account to join the conversation.
Sun, Dec 29, 2019 10:51 PM
Deas Plant.
Offline
Member
Send a private message to Deas Plant.
Location: Currently - DowNunda.
Posts: 6,744
Thank you received: 40
Reply to JSP1234:
I’ll get as much info as I can
Hi, JSP1234.
This might help.

http://www.acmoc.org/bb/showthread.php?20409-Cat-12-Graders-Pre-G-series

Just my 0.02.

You have a wonderful day. Best wishes. Deas Plant.

Please log in or create an account to join the conversation.
Sun, Dec 29, 2019 11:26 PM
JSP1234
Topic Author
Offline
Send a private message to JSP1234
Posts: 7
Thank you received: 0
Reply to kracked1:
Too many variables to tell.


Is $1500 each in the ballpark?
Please log in or create an account to join the conversation.
Tue, Dec 31, 2019 10:26 PM
kracked1
Offline
Send a private message to kracked1
Posts: 741
Thank you received: 0
Reply to JSP1234:


Is $1500 each in the ballpark?
Depends on a lot of things. Do they run? Do they drive? Tires junk? If they have stuck engines and junk tires that is too high. If they run and drive with tires that are good that is cheap.
Please log in or create an account to join the conversation.
Thu, Jan 2, 2020 1:15 AM
