Cat D8 w arm

Cat D8 w arm

Showing 1 to 10 of 10 results
catskinner
Topic Author
Offline
Send a private message to catskinner
Posts: 435
Thank you received: 1

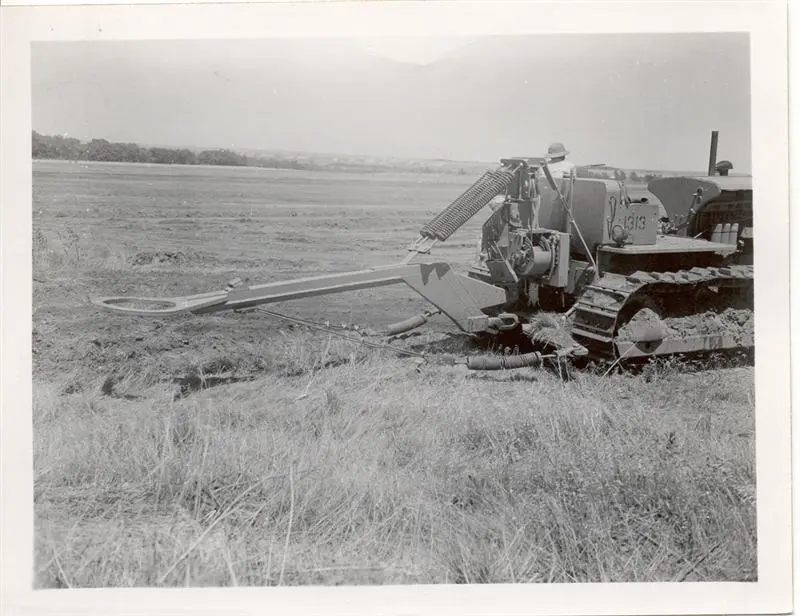

Has anybody ever seen anything like this? I know what it is for, how many of you know? I had never seen or heard of anything like this. This is another pic. from the building of Kanopolis Dam in KS. from Corps of Engr. pics. catskinner
Attachment
Please log in or create an account to join the conversation.
Mon, Jan 22, 2007 9:15 AM
SJ
Offline
Send a private message to SJ
Posts: 1,890
Thank you received: 0
It looks like a giant metal detector, just kidding, as I have no idea what it is as I have never seen anything like it.
Please log in or create an account to join the conversation.
Mon, Jan 22, 2007 6:38 PM
Lou McMaster
Offline
Send a private message to Lou McMaster
Posts: 45
Thank you received: 0
Reply to SJ:
It looks like a giant metal detector, just kidding, as I have no idea what it is as I have never seen anything like it.
I have seen a similiar hook up for pulling 631B scrapers and 46A D8
under difficult conditions such as mud and water. I have also seen pictures of Super C Tournapulls being pulled with a 2U D8.
Please log in or create an account to join the conversation.
Mon, Jan 22, 2007 11:13 PM
Kelly
Offline
Send a private message to Kelly
Posts: 556
Thank you received: 0
Reply to Lou McMaster:
I have seen a similiar hook up for pulling 631B scrapers and 46A D8
under difficult conditions such as mud and water. I have also seen pictures of Super C Tournapulls being pulled with a 2U D8.
Catskinner,
Lou has it right. That is what was known as “Snatch Cat”, in my neck of woods anyway. That one is a little more elaborated than what I have seen.

I think what history will show is they started using them with the Old Super C’s because of there weak goose neck. I have seen old pictures where there just used a cable and a labor to hook and unhook it, which I think later lead to what you have in the picture.

It appears they are stripping topsoil.

Kelly
Please log in or create an account to join the conversation.
Mon, Jan 22, 2007 11:45 PM
catskinner
Topic Author
Offline
Send a private message to catskinner
Posts: 435
Thank you received: 1
Reply to Kelly:
Catskinner,
Lou has it right. That is what was known as “Snatch Cat”, in my neck of woods anyway. That one is a little more elaborated than what I have seen.

I think what history will show is they started using them with the Old Super C’s because of there weak goose neck. I have seen old pictures where there just used a cable and a labor to hook and unhook it, which I think later lead to what you have in the picture.

It appears they are stripping topsoil.

Kelly
Since I won't be able to get on here later tonight, I will give the answer now. Lou is right. It was used to pull turnapulls at the Kanopolis Dam in KS. It was also used with 3 other D8's to pull a Electric shovel from Langley, KS., the railhead, to the dam site. A distance of about 5-6 miles. I will post some more pics later on in the week.
Please log in or create an account to join the conversation.
Tue, Jan 23, 2007 5:44 AM
Delta Dirt
Offline
Send a private message to Delta Dirt
Posts: 187
Thank you received: 0
Reply to catskinner:
Since I won't be able to get on here later tonight, I will give the answer now. Lou is right. It was used to pull turnapulls at the Kanopolis Dam in KS. It was also used with 3 other D8's to pull a Electric shovel from Langley, KS., the railhead, to the dam site. A distance of about 5-6 miles. I will post some more pics later on in the week.
Have never seen anything even similar.

Don't quite understand the set up-----was this utilized as a cushion or "reflex" mechanism to allow the tractor to move forward pulling against the cushion of the springs and then the springs "reflex" and tend to multiply the pulling effect (maybe something similar to a spring shank chisel plow)??

Can somebody fill in some more details for the old dumb ass down here in the Delta.😕 😞

Delta Dirt
Delta Dirt
Avon, Ms 38723

D2 5U and other scrap iron
Please log in or create an account to join the conversation.
Tue, Jan 23, 2007 7:38 AM
QuAD
Offline
Send a private message to QuAD
Posts: 845
Thank you received: 3
Reply to Delta Dirt:
Have never seen anything even similar.

Don't quite understand the set up-----was this utilized as a cushion or "reflex" mechanism to allow the tractor to move forward pulling against the cushion of the springs and then the springs "reflex" and tend to multiply the pulling effect (maybe something similar to a spring shank chisel plow)??

Can somebody fill in some more details for the old dumb ass down here in the Delta.😕 😞

Delta Dirt
Here Some pics of something similar.
Please log in or create an account to join the conversation.
Sun, Jan 28, 2007 5:48 PM
QuAD
Offline
Send a private message to QuAD
Posts: 845
Thank you received: 3
Reply to QuAD:
Here Some pics of something similar.
657 "Push-Pull"
Please log in or create an account to join the conversation.
Sun, Jan 28, 2007 5:52 PM
QuAD
Offline
Send a private message to QuAD
Posts: 845
Thank you received: 3
Reply to QuAD:
657 "Push-Pull"
Photo Test
Please log in or create an account to join the conversation.
Sun, Jan 28, 2007 5:59 PM
QuAD
Offline
Send a private message to QuAD
Posts: 845
Thank you received: 3
Reply to QuAD:
Photo Test
657 Push-Pul
Please log in or create an account to join the conversation.
Sun, Jan 28, 2007 6:01 PM
QuAD
Offline
Send a private message to QuAD
Posts: 845
Thank you received: 3
Reply to QuAD:
657 Push-Pul
This where the first "Push-Pull" scrapers build by Kluck construction.
Please log in or create an account to join the conversation.
Sun, Jan 28, 2007 6:02 PM
