Cat 922b transmission issues

Cat 922b transmission issues

Showing 1 to 10 of 22 results
1
danregienus
Topic Author
Offline
Send a private message to danregienus
Posts: 22
Thank you received: 0
I have a cat 922b wheel loader and have recently experienced problems with the transmission in cold weather. Even after allowing the trans to warm up for 15-20 mins the trans is very sluggish to get going, I often have to work the high-low speed lever to the left of the drivers seat back and forth and shift the trans forward and reverse to get any movement. After a while it will begin to move but seems like I have to gun the throttle just to get it creeping forward, after about 15 minutes it starts to become more responsive. I am wondering if anyone has any suggestions on where to start diagnosing the problem. I actually just found a problem with the shift linkage where the yoke on the linkage rod was stripped out and creating a lot of free play and not allowing the linkage to fully engage the shift shaft. I repaired that but still have the sluggish operation, I can't remember the last time the fluid and filter were changed, I have found out that the guy who changed the fluid last used universal tractor hydraulic fluid which I have been told is probably not the best option. Any suggestions on where to go from here would really be appreciated. Thanks guys, Dan
Please log in or create an account to join the conversation.
Sun, Feb 28, 2016 3:45 PM
mog5858
Offline
Member
Send a private message to mog5858
Posts: 1,324
Thank you received: 0
sounds a little like my 922B i too would like to do a complete fluid change with filter so take some pics when you do it lol. sorry i can't be any help but let me know what oil you decide to go with.
you are building air right the trans need air to work right check for air leaks you air pump might be slow and just need to build up?
Please log in or create an account to join the conversation.
Sun, Feb 28, 2016 9:50 PM
rusted
Offline
Send a private message to rusted
Posts: 162
Thank you received: 0
Reply to mog5858:
sounds a little like my 922B i too would like to do a complete fluid change with filter so take some pics when you do it lol. sorry i can't be any help but let me know what oil you decide to go with.
you are building air right the trans need air to work right check for air leaks you air pump might be slow and just need to build up?
First thing to do is drain the oli and change the filter; while you have the oil drained pull the screen at the bottom of the transmission case and see what (if anything) it's caught. Be a good idea to also clean the breather in the filler cap.

Use TDTO-4 spec oil (brand doesn't matter.

The transmission doesn't need any air pressure to work normally, the only thing the air affects is the transmission neutraliser on the left brake pedal.
Please log in or create an account to join the conversation.
Mon, Feb 29, 2016 7:19 AM
ccjersey
Offline
Send a private message to ccjersey
Posts: 4,422
Thank you received: 0
On the contrary, the air operated "neutralizer" valve is spring return to the drive position, so air pressure is not required for the transmission to operate.

If, after starting the engine, the loader will not move until the speed lever is pulled into 1 and 2 and does not push back forward to the neutral position, the safety valve is working properly.

There is a strainer in the bottom right corner of the trans/range selector sump. I don't have an operator's manual that details how it is to be checked, but it appears to be under a cover accessible from the rear held on by some small bolts. This appears to be the suction for all trans, loader and steering booster pump flow on the whole machine. It could be clogged with sludge.

The transmission oil filter should be changed at this time as well. I believe the CAT recommendation for oil would have been 10 wt motor oil, but a drive train oil should be substituted if possible. If you need to pick something up at the autoparts, there is a low viscosity universal tractor hydraulic fluid available. I have been running the regular viscosity "303" fluid in our 944 and 910 for years, but it doesn't get very cold here in winter.

Edit...I see Rusted replied while I was babysitting and typing in between looking in the books. Better info than my off the top of the head recommendations.
D2-5J's, D6-9U's, D318 and D333 power units, 12E-99E grader, 922B & 944A wheel loaders, D330C generator set, DW20 water tanker and a bunch of Jersey cows to take care of in my spare time😄
Please log in or create an account to join the conversation.
Mon, Feb 29, 2016 7:56 AM
edb
Offline
Member
Send a private message to edb
Posts: 4,027
Thank you received: 0
Reply to ccjersey:
On the contrary, the air operated "neutralizer" valve is spring return to the drive position, so air pressure is not required for the transmission to operate.

If, after starting the engine, the loader will not move until the speed lever is pulled into 1 and 2 and does not push back forward to the neutral position, the safety valve is working properly.

There is a strainer in the bottom right corner of the trans/range selector sump. I don't have an operator's manual that details how it is to be checked, but it appears to be under a cover accessible from the rear held on by some small bolts. This appears to be the suction for all trans, loader and steering booster pump flow on the whole machine. It could be clogged with sludge.

The transmission oil filter should be changed at this time as well. I believe the CAT recommendation for oil would have been 10 wt motor oil, but a drive train oil should be substituted if possible. If you need to pick something up at the autoparts, there is a low viscosity universal tractor hydraulic fluid available. I have been running the regular viscosity "303" fluid in our 944 and 910 for years, but it doesn't get very cold here in winter.

Edit...I see Rusted replied while I was babysitting and typing in between looking in the books. Better info than my off the top of the head recommendations.
Hi Dan,
the Trans. suction screen has an angled oil pickup tube out from its outer case.

It is aligned by a pin that can get bent or break off. When this occurs the angled tube end can droop down and contact the floor of the Transfer Case, or if you like oil sump, and restrict the flow of Trans. oil to the high mounted Trans pump.

Be sure to orientate the tube so as to be held up from the case floor or you can experience your exact problem--many Cat machines of the day had this type oil pickup and suffered the same similar restricted oil problem.
Hope this helps.
Cheers,
Eddie B.
Please log in or create an account to join the conversation.
Mon, Feb 29, 2016 8:13 AM
L364
Offline
Deceased
Send a private message to L364
Posts: 45
Thank you received: 0
Reply to edb:
Hi Dan,
the Trans. suction screen has an angled oil pickup tube out from its outer case.

It is aligned by a pin that can get bent or break off. When this occurs the angled tube end can droop down and contact the floor of the Transfer Case, or if you like oil sump, and restrict the flow of Trans. oil to the high mounted Trans pump.

Be sure to orientate the tube so as to be held up from the case floor or you can experience your exact problem--many Cat machines of the day had this type oil pickup and suffered the same similar restricted oil problem.
Hope this helps.
Cheers,
Eddie B.
Hello
Simple check to carry out is to make sure there is no
air leakage via the left brake pedal ( transmission neutralize)
that could be partially effecting the gear box operation, ie
disconnect line.
Please log in or create an account to join the conversation.
Mon, Feb 29, 2016 5:27 PM
danregienus
Topic Author
Offline
Send a private message to danregienus
Posts: 22
Thank you received: 0
Reply to L364:
Hello
Simple check to carry out is to make sure there is no
air leakage via the left brake pedal ( transmission neutralize)
that could be partially effecting the gear box operation, ie
disconnect line.
Thanks for all the advice I have received from the various members so far, I have been told to check for any air leaks that might possibly affect the neutralizer function on the transmission. Last year I replaced both the left and right air brake foot valves and all of the copper air lines that correspond to the valves, I also dropped the rear counter weight so I could get at the rear mounted air tank and replaced all lines, fittings, and drain valves, so I'm pretty sure I have no air leaks. The only thing I have noticed since replacing all of the air lines, valves, and fittings is when my air pressure gauge reaches maximum pressure the needle on the gauge itself will kinda dance back and forth a little bit, whether that is an issue I'm not sure. As far as checking the trans suction screen and the oil pickup tube associated with it I have no idea where to even check for it, I have no manual and finding info on a mid 60's cat 922b wheel loader is proving to be almost impossible. If anyone could give me a reference or general idea where those parts are located I would certainly appreciate it. I also have a dash mounted trans converter temp gauge that is not working and am wondering if that should be a priority to have it replaced so I can monitor the converter temp, thanks again. Dan
Please log in or create an account to join the conversation.
Tue, Mar 1, 2016 7:50 AM
edb
Offline
Member
Send a private message to edb
Posts: 4,027
Thank you received: 0
Reply to danregienus:
Thanks for all the advice I have received from the various members so far, I have been told to check for any air leaks that might possibly affect the neutralizer function on the transmission. Last year I replaced both the left and right air brake foot valves and all of the copper air lines that correspond to the valves, I also dropped the rear counter weight so I could get at the rear mounted air tank and replaced all lines, fittings, and drain valves, so I'm pretty sure I have no air leaks. The only thing I have noticed since replacing all of the air lines, valves, and fittings is when my air pressure gauge reaches maximum pressure the needle on the gauge itself will kinda dance back and forth a little bit, whether that is an issue I'm not sure. As far as checking the trans suction screen and the oil pickup tube associated with it I have no idea where to even check for it, I have no manual and finding info on a mid 60's cat 922b wheel loader is proving to be almost impossible. If anyone could give me a reference or general idea where those parts are located I would certainly appreciate it. I also have a dash mounted trans converter temp gauge that is not working and am wondering if that should be a priority to have it replaced so I can monitor the converter temp, thanks again. Dan

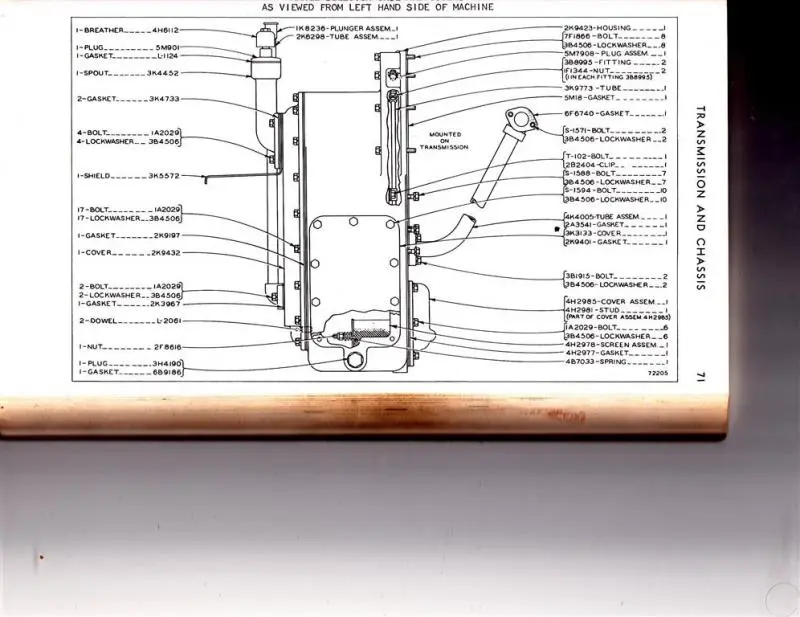

Scan below should help, from memory it is on either the front or rear face of the Transfer Case.
Cheers,
Eddie B.
Attachment
Please log in or create an account to join the conversation.
Tue, Mar 1, 2016 8:01 AM
ccjersey
Offline
Send a private message to ccjersey
Posts: 4,422
Thank you received: 0
Right side lower rear face of transfer case/range selector just below the suction line leading up to the pump stack
Attachment
D2-5J's, D6-9U's, D318 and D333 power units, 12E-99E grader, 922B & 944A wheel loaders, D330C generator set, DW20 water tanker and a bunch of Jersey cows to take care of in my spare time😄
Please log in or create an account to join the conversation.
Tue, Mar 1, 2016 8:37 AM
mog5858
Offline
Member
Send a private message to mog5858
Posts: 1,324
Thank you received: 0
Reply to ccjersey:
Right side lower rear face of transfer case/range selector just below the suction line leading up to the pump stack
Attachment
i was able to get bran new books for my 922b right from Cat i think it took about 6-8 weeks but i got new reprints. i sure JenSales out on MN will have something if you don't like the lead time from Cat. other option is too post a add in the buy and sell on what you are looking for with you # of your machine i sure you can get some used one floating around out there. take some pic's and keep us in the loop
Please log in or create an account to join the conversation.
Tue, Mar 1, 2016 8:47 AM
rusted
Offline
Send a private message to rusted
Posts: 162
Thank you received: 0
Reply to mog5858:
i was able to get bran new books for my 922b right from Cat i think it took about 6-8 weeks but i got new reprints. i sure JenSales out on MN will have something if you don't like the lead time from Cat. other option is too post a add in the buy and sell on what you are looking for with you # of your machine i sure you can get some used one floating around out there. take some pic's and keep us in the loop
Ebay is a good source for used manuals.

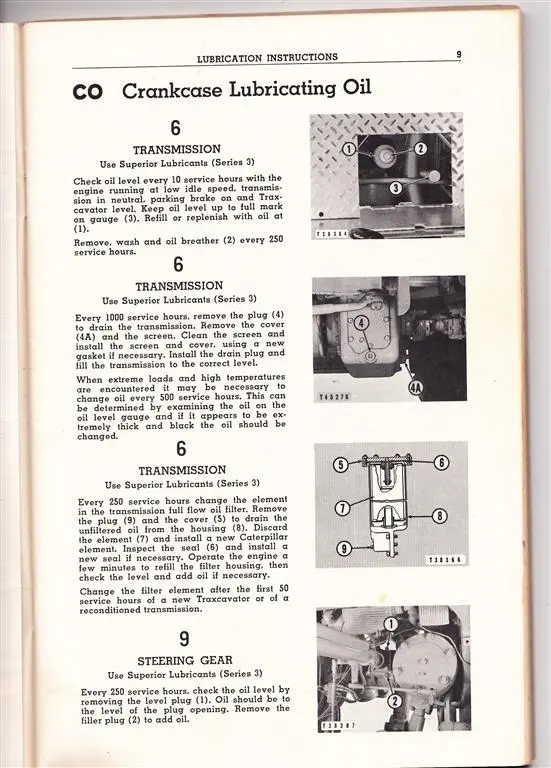

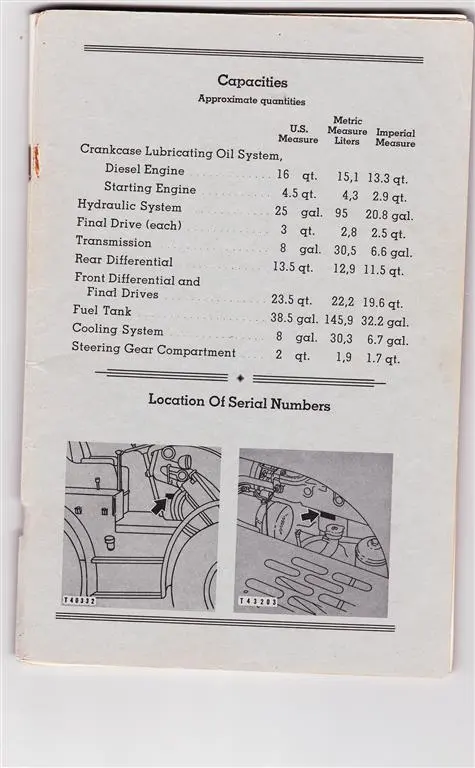

Here's a few more scans that may help.
