Hi Robert,
your blade was built by Caterpillar and is both an Angle and Tilt unit.
Here Down-under in Australia they were built both by Steelweld and later by Caterpillar--by editing in your approximate location can sometimes get you more accurate data.
Cheers,
Eddie B.
That is the late style 6Fxxxx 4A blade for the 7U.
C-frame group 9F2349 for s/n 6F1342-up
Blade group 9F2348 for s/n 6F1001 to 6F7652 or 6F7654-up (there are two versions)
Brace group (push arms) 9F2346 for s/n 6F2777 to 6F8548 or 6F8549-up (there are two versions)
Tilt arrangement is by one clamping bolt that uses mating teeth for the manual adjustment (pain in the ass to adjust).
That is the late style 6Fxxxx 4A blade for the 7U.
C-frame group 9F2349 for s/n 6F1342-up
Blade group 9F2348 for s/n 6F1001 to 6F7652 or 6F7654-up (there are two versions)
Brace group (push arms) 9F2346 for s/n 6F2777 to 6F8548 or 6F8549-up (there are two versions)
Tilt arrangement is by one clamping bolt that uses mating teeth for the manual adjustment (pain in the ass to adjust).
[quote="Old Magnet"]That is the late style 6Fxxxx 4A blade for the 7U.
C-frame group 9F2349 for s/n 6F1342-up
Blade group 9F2348 for s/n 6F1001 to 6F7652 or 6F7654-up (there are two versions)
Brace group (push arms) 9F2346 for s/n 6F2777 to 6F8548 or 6F8549-up (there are two versions)
Tilt arrangement is by one clamping bolt that uses mating teeth for the manual adjustment (pain in the ass to adjust).[/quote]

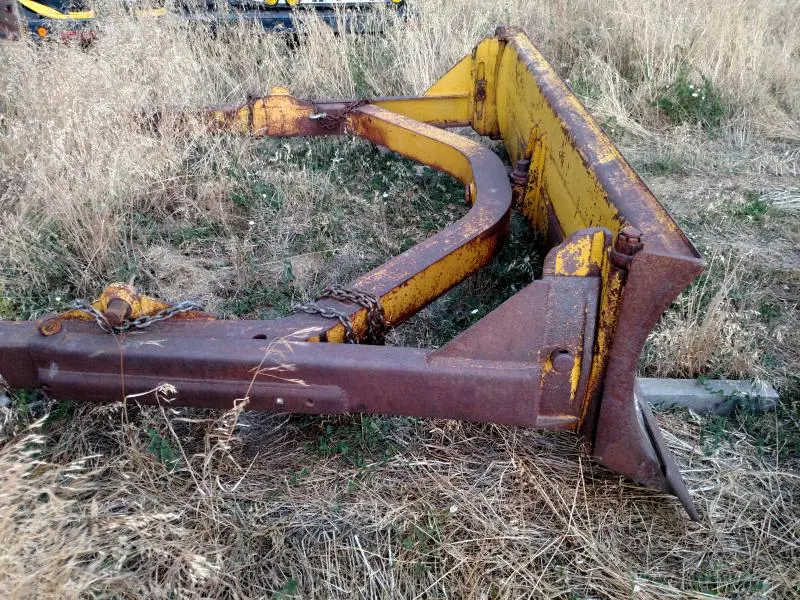

Pete, correct me if I'm wrong, but the blade pictured doesn't appear to use the mating teeth style adjustment (which my blade uses also) this one appears to clamp differently...appears to use a single clamp bolt that slides within a slot.
Crawler $
[quote="Old Magnet"]That is the late style 6Fxxxx 4A blade for the 7U.
C-frame group 9F2349 for s/n 6F1342-up
Blade group 9F2348 for s/n 6F1001 to 6F7652 or 6F7654-up (there are two versions)
Brace group (push arms) 9F2346 for s/n 6F2777 to 6F8548 or 6F8549-up (there are two versions)
Tilt arrangement is by one clamping bolt that uses mating teeth for the manual adjustment (pain in the ass to adjust).[/quote]
Pete, correct me if I'm wrong, but the blade pictured doesn't appear to use the mating teeth style adjustment (which my blade uses also) this one appears to clamp differently...appears to use a single clamp bolt that slides within a slot.
Crawler $
[quote="Crawler Dollars"]Pete, correct me if I'm wrong, but the blade pictured doesn't appear to use the mating teeth style adjustment (which my blade uses also) this one appears to clamp differently...appears to use a single clamp bolt that slides within a slot.
Crawler $[/quote]
Yes, the inner and outer panel clamp together with the single bolt and square nut that moves in a slot. The teeth are there to help it hold position. You can just barely make out the top teeth in the picture.
