BEST & CAT THIRTY’s engine block number ?

BEST & CAT THIRTY’s engine block number ?

Showing 1 to 6 of 6 results
Kamnikars
Topic Author
Offline
Member
Send a private message to Kamnikars
Posts: 26
Thank you received: 0
[attachment=72571]C4B88185-0291-4D0D-8BBA-33A184CC7B80.jpeg[/attachment][attachment=72572]7A12B266-403E-4E8E-ADDA-14247FF21C6B.jpeg[/attachment][attachment=72573]2EBED722-CF95-4F16-877C-56F04CA811E6.jpeg[/attachment]

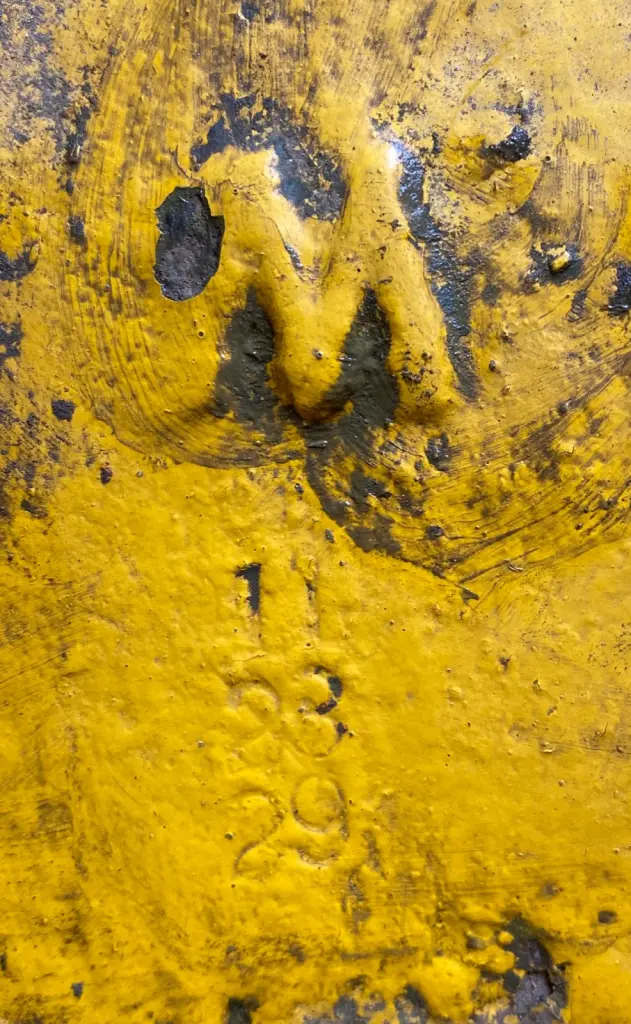

These engine block numbers on my 30’s don’t seem to add up to the S/N book any thoughts.... maybe manufacturing dates..... there are no S/N tags on these machines.

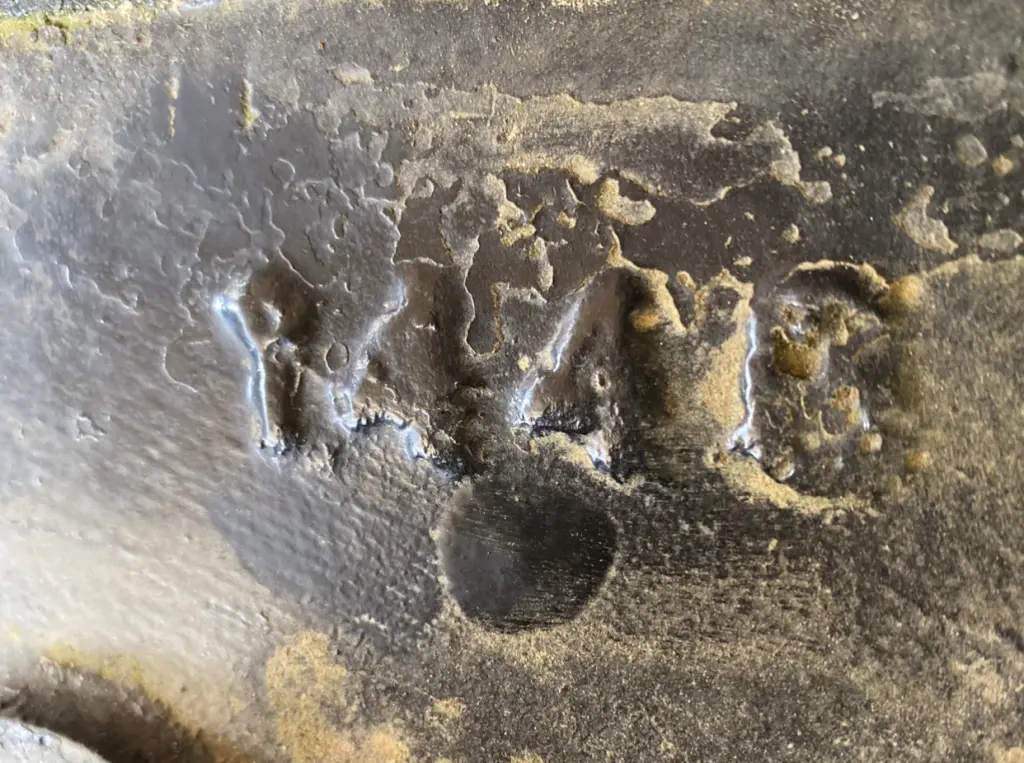

the BEST 30 looks to me like a 1440 welded on the top engine block but wanted other’s input
Thanks!
Attachment
Attachment
Attachment
Please log in or create an account to join the conversation.
Fri, Jun 9, 2023 2:03 AM
naylorbros
Offline
Member
Send a private message to naylorbros
Posts: 585
Thank you received: 2
The best guess that I have been able to come up with is that the series of numbers 6-11-28 and 11-23-29 and the dates that casting was machined. I have found number series like that on the back of some L/PL trani housings. Are both of the Cat machines San Leandro machines?
Thanks
Ken
Please log in or create an account to join the conversation.
Fri, Jun 9, 2023 8:13 PM
ctsnowfighter
Offline
Send a private message to ctsnowfighter
Posts: 1,079
Thank you received: 40
Reply to naylorbros:
The best guess that I have been able to come up with is that the series of numbers 6-11-28 and 11-23-29 and the dates that casting was machined. I have found number series like that on the back of some L/PL trani housings. Are both of the Cat machines San Leandro machines?
Thanks
Ken
I would agree, Date of either the casting or machining
cts
Please log in or create an account to join the conversation.
Fri, Jun 9, 2023 9:05 PM
brian18a
Offline
Member
Send a private message to brian18a
Posts: 249
Thank you received: 2
Reply to ctsnowfighter:
I would agree, Date of either the casting or machining
cts
Casting date is cast in the casting, not stamped. The three digit number is the machining number, which is applied to all the parts machined as an assembly. In the case of a Thirty, the main case, the bevel gear shaft bearing caps, and the sprocket shaft caps, all would have same number.
Please log in or create an account to join the conversation.
Fri, Jun 9, 2023 9:26 PM
Kamnikars
Topic Author
Offline
Member
Send a private message to Kamnikars
Posts: 26
Thank you received: 0
Reply to naylorbros:
The best guess that I have been able to come up with is that the series of numbers 6-11-28 and 11-23-29 and the dates that casting was machined. I have found number series like that on the back of some L/PL trani housings. Are both of the Cat machines San Leandro machines?
Thanks
Ken
the wide yellow is a PS it’s a late model for sure
the grey one I believe is a San Leandro  based off the older parts that match up to BEST models. It does have the Large track roller springs tho.....
the best obviously is a San Leandro (I think that 1440 is it’s S/N).....that was welded on the block in the picture.

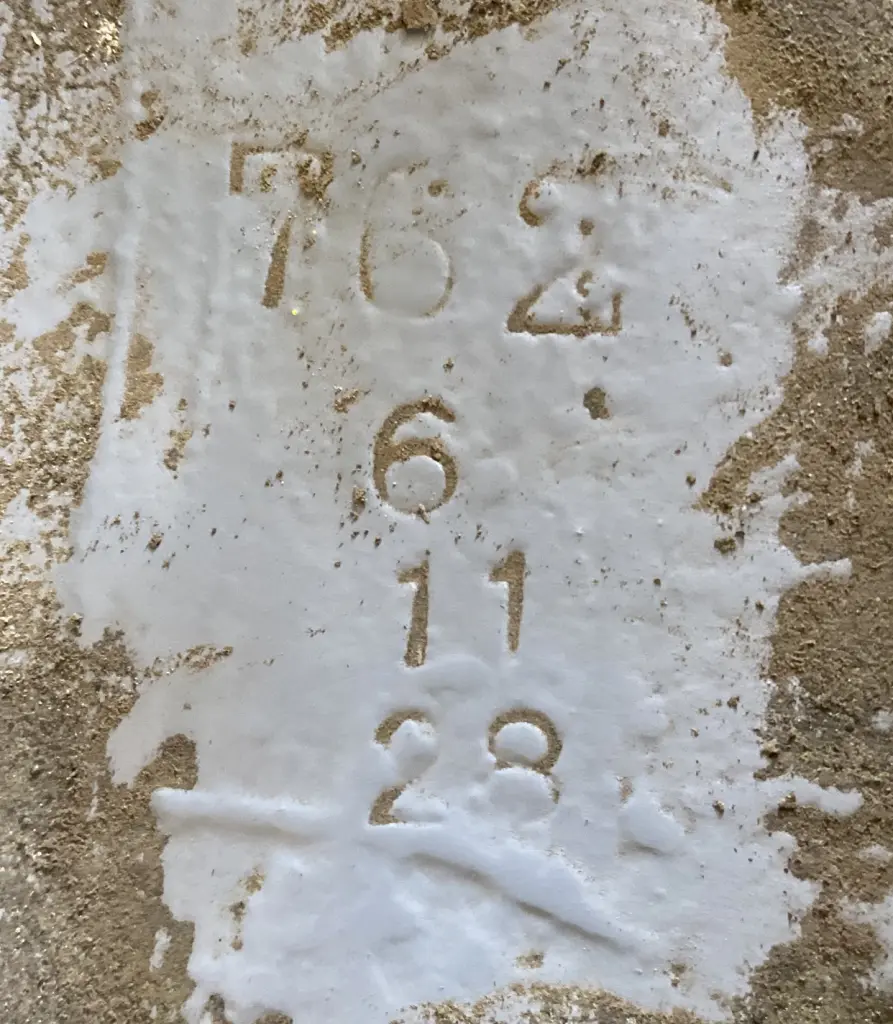

I was thinking that they were date of casting also, that was a guess, the 762 on the top of the grey one tho always confused me tho ......

if they are casting dates then the 762 would be? Any guess??
thanks,
shaun


Please log in or create an account to join the conversation.
Fri, Jun 9, 2023 9:27 PM
brian18a
Offline
Member
Send a private message to brian18a
Posts: 249
Thank you received: 2
Reply to Kamnikars:
the wide yellow is a PS it’s a late model for sure
the grey one I believe is a San Leandro  based off the older parts that match up to BEST models. It does have the Large track roller springs tho.....
the best obviously is a San Leandro (I think that 1440 is it’s S/N).....that was welded on the block in the picture.

I was thinking that they were date of casting also, that was a guess, the 762 on the top of the grey one tho always confused me tho ......

if they are casting dates then the 762 would be? Any guess??
thanks,
shaun


The 1446 is cast in block, not welded, It is casting number S-1446. applys to tractors serial numbers S-3101 to10536 (1925 to 1930) and PS1 to 13285 (1925 to 1931)
The date of tractor creation and serial number assigned, could be between 1 and 3 months after the machining date stamped in case. This is based on comparing machining date and tractors with serial numbers.
Please log in or create an account to join the conversation.
Sat, Jun 10, 2023 3:13 AM
Kamnikars
Topic Author
Offline
Member
Send a private message to Kamnikars
Posts: 26
Thank you received: 0
Reply to brian18a:
The 1446 is cast in block, not welded, It is casting number S-1446. applys to tractors serial numbers S-3101 to10536 (1925 to 1930) and PS1 to 13285 (1925 to 1931)
The date of tractor creation and serial number assigned, could be between 1 and 3 months after the machining date stamped in case. This is based on comparing machining date and tractors with serial numbers.
Thank you for the information 😊
