Bearing puller and clutch drum??

Bearing puller and clutch drum??

Showing 1 to 8 of 8 results
Zzzopp
Topic Author
Offline
Send a private message to Zzzopp
Posts: 29
Thank you received: 0
More questions as I continue on my D4 7U repairs...

-Any pictures of puller used to pull bevel shaft bearings from a D4 7U/955 12A? Looks to be a pretty long reach puller. Before I build a set of pulling jaws I’m curious to what the proper tool looks like.

-One of the drums on my replacement bevel shaft (955 12a) is cracked. Anyone have one? 8H1174.

thanks.
Please log in or create an account to join the conversation.
Thu, Oct 21, 2021 8:21 PM
edb
Offline
Member
Send a private message to edb
Posts: 4,027
Thank you received: 0
Hi,
we used to oxy cut the roller cage to remove the rollers, carefully set the shaft on end and heat the bearing inner race with an oxy torch using a largish cutting tip to get heat into the race quick before it soaks into the shaft--if you have done it right the race will drop down by gravity.
Cheers,
Eddie B.

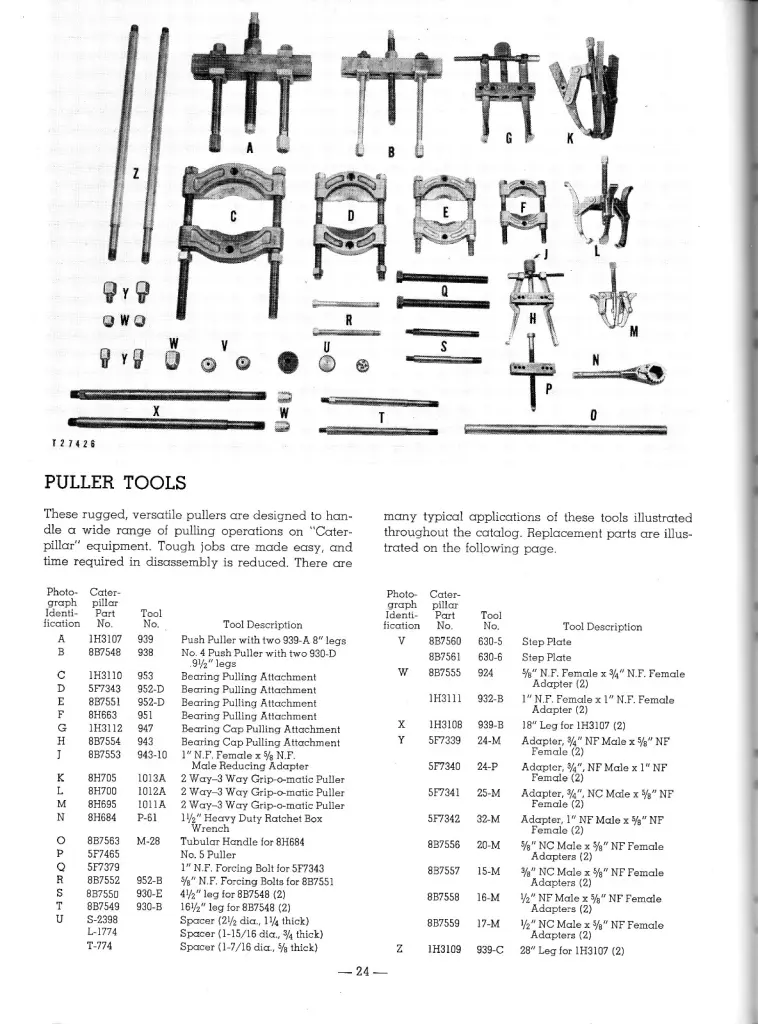

Edit--added some tooling I have used in the past at the Dealer for pulling such items but it is time consuming to set up and use.
Attachment
Please log in or create an account to join the conversation.
Fri, Oct 22, 2021 6:49 AM
Rome K/G
Offline
Send a private message to Rome K/G
Posts: 6,092
Thank you received: 0
Reply to edb:
Hi,
we used to oxy cut the roller cage to remove the rollers, carefully set the shaft on end and heat the bearing inner race with an oxy torch using a largish cutting tip to get heat into the race quick before it soaks into the shaft--if you have done it right the race will drop down by gravity.
Cheers,
Eddie B.

Edit--added some tooling I have used in the past at the Dealer for pulling such items but it is time consuming to set up and use.
Attachment
To install bearings heat in oil to 275 degrees F. This is also recommended by Cat.
Please log in or create an account to join the conversation.
Fri, Oct 22, 2021 8:45 PM
edb
Offline
Member
Send a private message to edb
Posts: 4,027
Thank you received: 0
Hi Team,

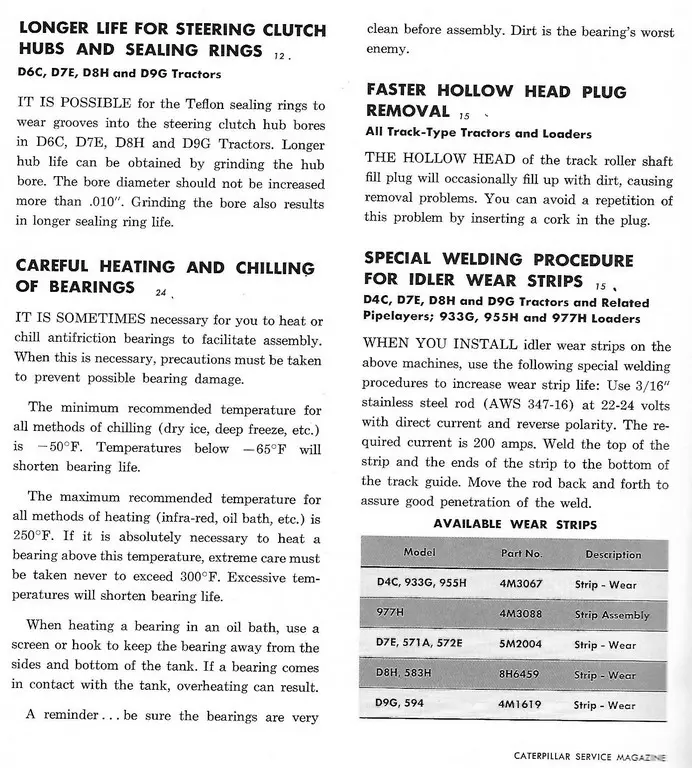

scan below is from Caterpillar for the recommended fitting temperatures for bearings etc.
Cheers,
Eddie B.
Attachment
Please log in or create an account to join the conversation.
Sat, Oct 23, 2021 6:06 AM
josh
Offline
Send a private message to josh
Posts: 1,204
Thank you received: 3

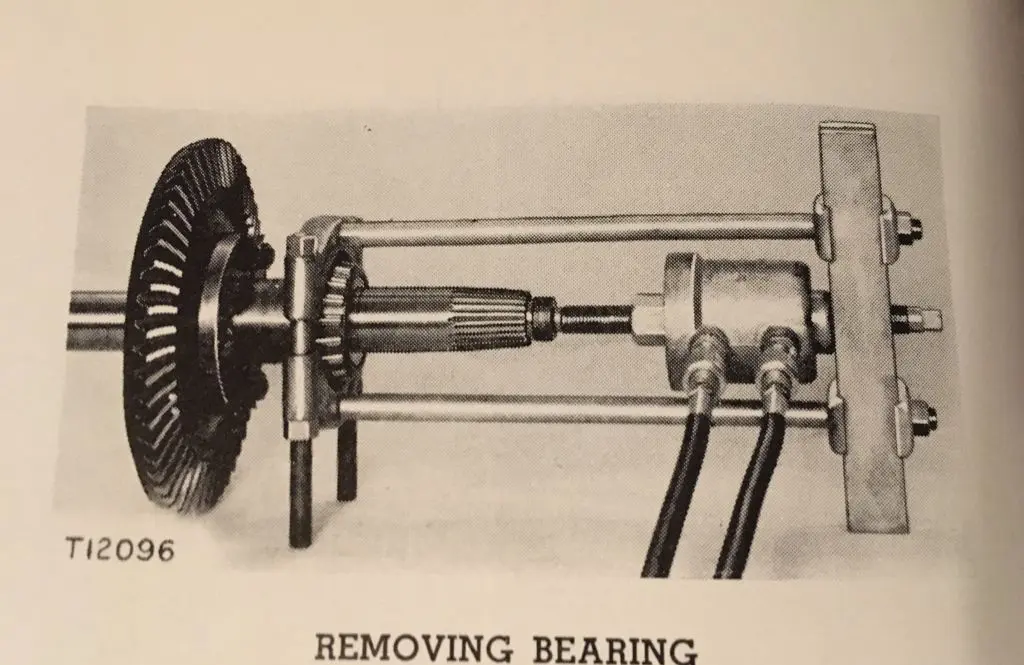

Is this the picture you want?
Attachment
Please log in or create an account to join the conversation.
Sat, Oct 23, 2021 9:38 AM
Zzzopp
Topic Author
Offline
Send a private message to Zzzopp
Posts: 29
Thank you received: 0
Reply to josh:
Is this the picture you want?
Attachment
edb, Thanks for the scan!

Josh, I was able to get bearing puller on the bearing away from gear, the bearing that is pressed to the back side of gear doesn’t have room for a traditional bearing splitter. I ended up having to make some jaws.
Please log in or create an account to join the conversation.
Sat, Oct 23, 2021 6:45 PM
gemdozer
Offline
Member
Send a private message to gemdozer
Posts: 1,453
Thank you received: 5
Reply to Zzzopp:
edb, Thanks for the scan!

Josh, I was able to get bearing puller on the bearing away from gear, the bearing that is pressed to the back side of gear doesn’t have room for a traditional bearing splitter. I ended up having to make some jaws.
Press or drive the bearing out of the cage using a punch in the two holes in back of the bearing cage and applying pressure first through one hole and then the other
Please log in or create an account to join the conversation.
Sat, Oct 23, 2021 7:05 PM
Nospark015
Offline
Member
Send a private message to Nospark015
Posts: 25
Thank you received: 0
Fine business on the D4 pushing and pulling wisdom. We have two Twenty Twos and a Fifteen with  bevel gear shaft endplay. Is there a way to remove the bevel gear shaft bearing  inner races without pulling the shaft out of the bevel gear? Are there any tricks to reduce likleyhood of breaking the clutch drum?  Also, how does one know when the bevel gear pressed far enough onto the shaft? If one is faced with some likely steering clutch, final drive and transmission rehab and considering investing in a shop press shall we aim for a 20 ton, 40, 50 or more? We located an older Fanco (Nugier) 40 ton and are looking at a Harbor Freight press.   We have a well used 12 1/2 ton H frame and a 30 and 50 ton OTC puller set. Any thoughts would be greatly appreciated!
Please log in or create an account to join the conversation.
Mon, Oct 25, 2021 2:07 PM
neil
Offline
Moderator
Admin
Send a private message to neil
Posts: 6,953
Thank you received: 15
Reply to Nospark015:
Fine business on the D4 pushing and pulling wisdom. We have two Twenty Twos and a Fifteen with  bevel gear shaft endplay. Is there a way to remove the bevel gear shaft bearing  inner races without pulling the shaft out of the bevel gear? Are there any tricks to reduce likleyhood of breaking the clutch drum?  Also, how does one know when the bevel gear pressed far enough onto the shaft? If one is faced with some likely steering clutch, final drive and transmission rehab and considering investing in a shop press shall we aim for a 20 ton, 40, 50 or more? We located an older Fanco (Nugier) 40 ton and are looking at a Harbor Freight press.   We have a well used 12 1/2 ton H frame and a 30 and 50 ton OTC puller set. Any thoughts would be greatly appreciated!
I removed my D2's inner races by carefully slicing them with the gas axe. You can practice on some old scrap. It's not necessary to slice all the way through. You can also try just heating them rapidly
Please log in or create an account to join the conversation.
Mon, Oct 25, 2021 6:51 PM
