Athey Products Corporation (APCOR)

hello scotia , i have this info for the Athey trailers ,i am not sure about the history.

these spec sheets come from the itie web site ,you could email then they may send you a better scam than from there web page,sorry i cannot find the link ,ozdozer may still have it ,hope this help some .bruce oz

ok i found te site -http://www.album-mmt.it/foto/v/la-storia-delle-mmt/mmt-storiche---gli-anni-50/dumper-e-autocarri_001/0_Cat_Athey_a50_camion_2.JPG.html

Athey PR-619 =25 tons
Athey PR-21 =34tons
Athey PRB-21 =35 tons ,same as above with higher sides?
Athey PR-631 series d =40 tons

these are the dw series tractor
Athey pw 20 40 ton bottom dump trailer
Athey ph 20 45 ton bottom dump coal trailer

Thanks for the reply Bruce. One of my attached pdf files is of that exact same brochure that you provided a link on. I did however find a lot of interesting equipment on that site. To low of resolution to read much of the text. I did not find an Athey PR621 (Caterpillar 621 based) on that site. I do not understand the language. Are they selling this literature or just providing it for people to view? Anyway, I did a search on 'Athey' on their site and came up with 23 hits. And in just looking around I seen that they had some very interesting scrapers as well.

Still searching for my Athey PR621 Specs.

Thanks Bruce

Scotia

The PR621 is a rare machine the PR619 an PR631 where more common.
But here the information I have from it.

Unheaped : 15,3 m3
Heaped : 19 m3

[img]http://img442.imageshack.us/img442/2706/pr6212.jpg[/img]

[img]http://img527.imageshack.us/img527/9020/pr6213.jpg[/img]

[img]http://img294.imageshack.us/img294/6376/pr6215.jpg[/img]

Back in the later 1950s the dealer I worked for sold this coal strippings outfit here some DW21s with Athey Dump wagons behind them to haul over burden from the coal and dump it where coal had been taken out.One time a driver got too close to the hole and the tractor and wagon went tumbling down the hole really deep behind it.I can,t just remember but I think the operator jumped before it tumbled down in the deep hole.

Thanks alot QuAD. I have been looking for this information for a long time.😊

I have done the conversion for imperial measurements.

Athey PR621
Struck Capacity: 15.3 cubic meters/20 cubic yards
Heaped Capacity: 19 cubic meters/24.9 cubic yards
Payload: 30 metric tons/33.1 U.S. tons

This puts this machine in the range of a Caterpillar 735 and a Komatsu HM350-2.

Caterpillar 735
Struck Capacity: 14.7 cubic meters/19.2 cubic yards
Heaped Capacity: 19.7 cubic meters/27.3 cubic yards
Payload: 32.7 metric tons/36 U.S. Tons

Komatsu HM350-2
Struck Capacity: 14.6 cubic meters/19.1 cubic yards
Heaped Capacity: 19.8 cubic meters/25.9 cubic yards
Payload: 32.3 metric tons/35.6 U.S. Tons

QuAD Does that literature show additional specs on the other side such as turning radius. If someone does not show up on here with an english version of this literature I would like to pay you to make for me a high resolution scan of this to a pdf file. If someone has the english version this offer goes out to you.

Thanks a lot again.
Scotia

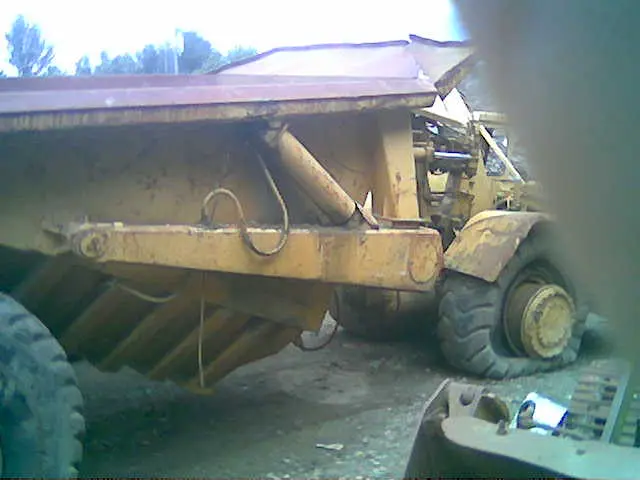

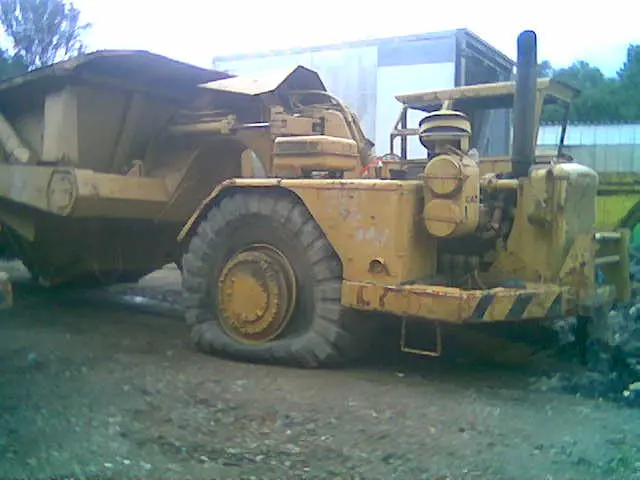

And by the way, I am an owner of one of these PR621s.

hello ,found a model of one ,bruce oz

[img]http://www.fritzes-modellboerse.de/schaufenster/baumaschinen/catdumper/bilder/600px/P0006343%20Cat%20621.jpg[/img]

german model seller--http://www.fritzes-modellboerse.de/schaufenster/baumaschinen/catdumper/index.htm

Bruce, I have 3 of the Athey PR631D models by Joal. They are fairly inexpensive compared to the price the PR621 commands.

Link to a PR619 for sale on Machinerytrader.com
http://www.machinerytrader.com/listingsdetail/detail.aspx?OHID=5633669

Link to PR621B
http://www.machinerytrader.com/listingsdetail/detail.aspx?OHID=6605289
And another one
http://www.machinerytrader.com/listingsdetail/detail.aspx?OHID=6605287

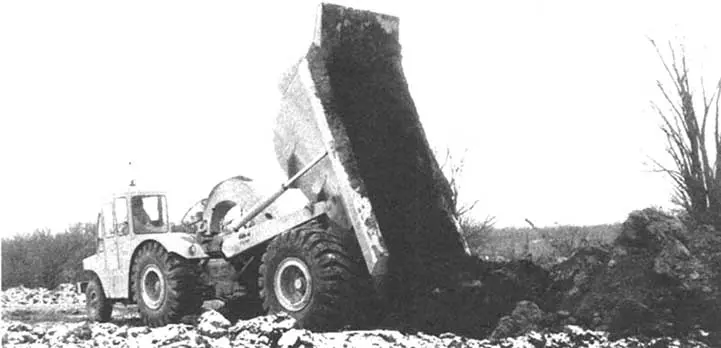

Found a pic of a JD 760 or 5010 with one too.
http://www.fao.org/docrep/59708E/59708e07.htm

a link to a forum in the UK, well worth it to register and participate. Very picture intense.
http://www.classicmachinery.net/forum/articulated-dumpers-f33/rare-ones-t103.html
Link to main forum
http://www.classicmachinery.net/forum/index.php

Ive seen one of these hooked to a 621E before too. Just can't find the pic.
Hope this helps,
Alan

Link to a German forum with pix.
http://www.baumaschinenbilder.de/forum/thread.php?threadid=2970&threadview=1&hilight=&hilightuser=0&sid=d4af2cb1e5695e9b7b2b88d82f960d32
Google search, Athey PR621
http://www.google.com/search?hl=en&safe=off&q=athey+pr621&start=10&sa=N
