Another Parts identification photo

Showing 1 to 10 of 10 results

unstyled

Topic Author

Offline

Member

Send a private message to unstyled

Posts: 48

Thank you received: 0

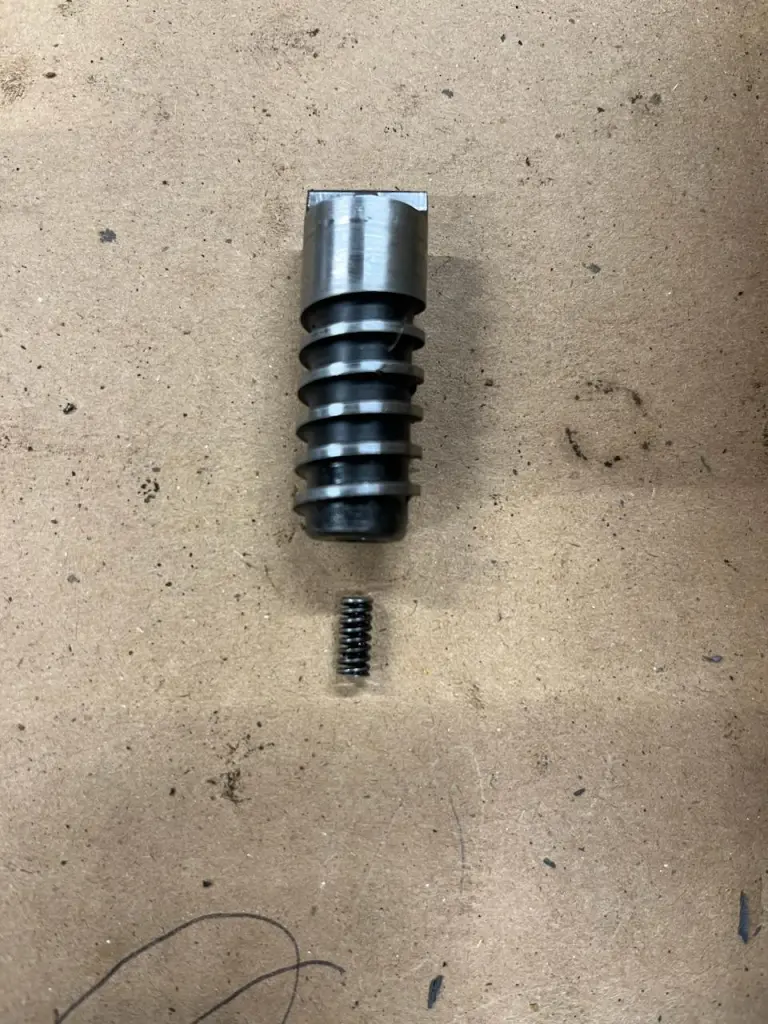

These two parts were loose that go to my D6 5R- I think they go to the governor - spring is 5B9317 with the screw being 7B4997, correct? I think the pin, part number 7B4999 links the two together, but it's missing. I believe I can easily make one - does anyone know the correct length if this is what I need. Thank you!

Attachment

Please log in or create an account to join the conversation.

Sat, Aug 5, 2023 9:23 AM

PhilC

Offline

Member

Send a private message to PhilC

Posts: 665

Thank you received: 0

That looks like the oil pump that lubricates the top bearings in the governor. I think you are correct in the pin and spring keep it engaged but I have no idea how long it would be. If it is no longer available from Cat you can submit a request for dimensions for the part.

Please log in or create an account to join the conversation.

Sun, Aug 6, 2023 5:58 PM

unstyled

Topic Author

Offline

Member

Send a private message to unstyled

Posts: 48

Thank you received: 0

Reply to PhilC:

That looks like the oil pump that lubricates the top bearings in the governor. I think you are correct in the pin and spring keep it engaged but I have no idea how long it would be. If it is no longer available from Cat you can submit a request for dimensions for the part.

Thanks for the reply PhilC, I appreciate it. I'll request the dimensions from them.

Please log in or create an account to join the conversation.

Sun, Aug 6, 2023 8:07 PM

PhilC

Offline

Member

Send a private message to PhilC

Posts: 665

Thank you received: 0

Reply to unstyled:

Thanks for the reply PhilC, I appreciate it. I'll request the dimensions from them.

I am not sure if the composition of the parts is detailed on the drawing but you will need to know how hard the steel is to make it out of.

Please log in or create an account to join the conversation.

Mon, Aug 7, 2023 4:03 PM

unstyled

Topic Author

Offline

Member

Send a private message to unstyled

Posts: 48

Thank you received: 0

Reply to PhilC:

I am not sure if the composition of the parts is detailed on the drawing but you will need to know how hard the steel is to make it out of.

I intend to make it out of a good quality drill bit of the proper diameter. I'm guessing it'll probably still be around when I'm not. Ha!

Thanks.

Please log in or create an account to join the conversation.

Mon, Aug 7, 2023 7:45 PM

trainzkid88

Offline

Send a private message to trainzkid88

Location: b.berg qld

Posts: 2,260

Thank you received: 29

Reply to unstyled:

I intend to make it out of a good quality drill bit of the proper diameter. I'm guessing it'll probably still be around when I'm not. Ha!

Thanks.

you can buy blanks of hss tool steel from most engineering suppliers in various sizes and shapes.

"i reject your reality and substitute my own" - adam savage. i suspect my final words maybe "well shit, that didnt work"

instead of perfection some times we just have to accept practicality

Please log in or create an account to join the conversation.

Mon, Aug 7, 2023 8:45 PM

PhilC

Offline

Member

Send a private message to PhilC

Posts: 665

Thank you received: 0

Reply to trainzkid88:

you can buy blanks of hss tool steel from most engineering suppliers in various sizes and shapes.

Keep in mind that most twist drills are bimetal meaning the shank is softer than the rest of the drill.

Please log in or create an account to join the conversation.

Tue, Aug 8, 2023 3:07 PM

sheddcanyon

Offline

Member

Send a private message to sheddcanyon

Posts: 180

Thank you received: 0

Reply to PhilC:

Keep in mind that most twist drills are bimetal meaning the shank is softer than the rest of the drill.

Unstyled, if you wouldn't mind, please share the dimensions of the pin when you get them. In taking apart my governor, I either lost it somehow or it was put back together without it.

Thanks!

Please log in or create an account to join the conversation.

Thu, Aug 10, 2023 10:46 PM

unstyled

Topic Author

Offline

Member

Send a private message to unstyled

Posts: 48

Thank you received: 0

Reply to sheddcanyon:

Unstyled, if you wouldn't mind, please share the dimensions of the pin when you get them. In taking apart my governor, I either lost it somehow or it was put back together without it.

Thanks!

No problem. Honestly, I plan on figuring out the length myself (hopefully). It shouldn't be real difficult to make and get very close to specs. May be a week or two though!

Please log in or create an account to join the conversation.

Fri, Aug 11, 2023 9:10 AM

unstyled

Topic Author

Offline

Member

Send a private message to unstyled

Posts: 48

Thank you received: 0

Reply to unstyled:

No problem. Honestly, I plan on figuring out the length myself (hopefully). It shouldn't be real difficult to make and get very close to specs. May be a week or two though!

sheddcanyon: I ended up cutting a drill bit shank off to .578 thousandths. I'd have to measure the diameter (forgot) but it was undersized enough so that it could move freely. The oil screw (or whatever it's called) protrudes out about .020 from the governor housing give or take. The small spring free travel is about .060. This leaves roughly .040 to compress inside the bushing before bottoming out. This leaves a little compression, but not too much. This is a SHORT part, no wonder it came missing!

Please log in or create an account to join the conversation.

Mon, Sep 11, 2023 6:43 AM

unstyled

Topic Author

Offline

Member

Send a private message to unstyled

Posts: 48

Thank you received: 0

Reply to sheddcanyon:

Unstyled, if you wouldn't mind, please share the dimensions of the pin when you get them. In taking apart my governor, I either lost it somehow or it was put back together without it.

Thanks!

No problem. Honestly, I plan on figuring out the length myself (hopefully). It shouldn't be real difficult to make and get very close to specs. May be a week or two though!

I finally got the correct dimensions from Caterpillar - the pin is 21/32" long and 3/16 in diameter. Now we both know. Thanks.
