A couple of D7E questions

Showing 1 to 9 of 9 results

farmerfred

Topic Author

Offline

Send a private message to farmerfred

Posts: 27

Thank you received: 0

[attachment=50240]IMG_1911.jpg[/attachment][attachment=50241]IMG_1910.jpg[/attachment]

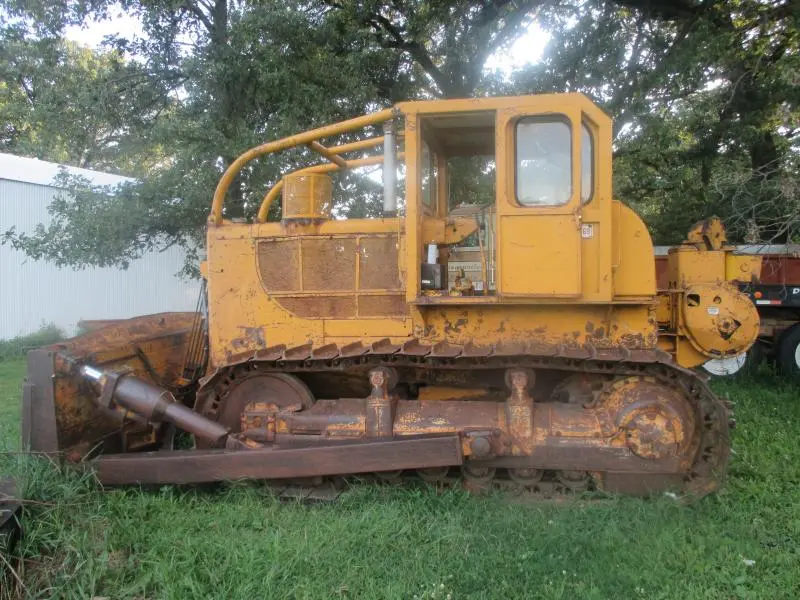

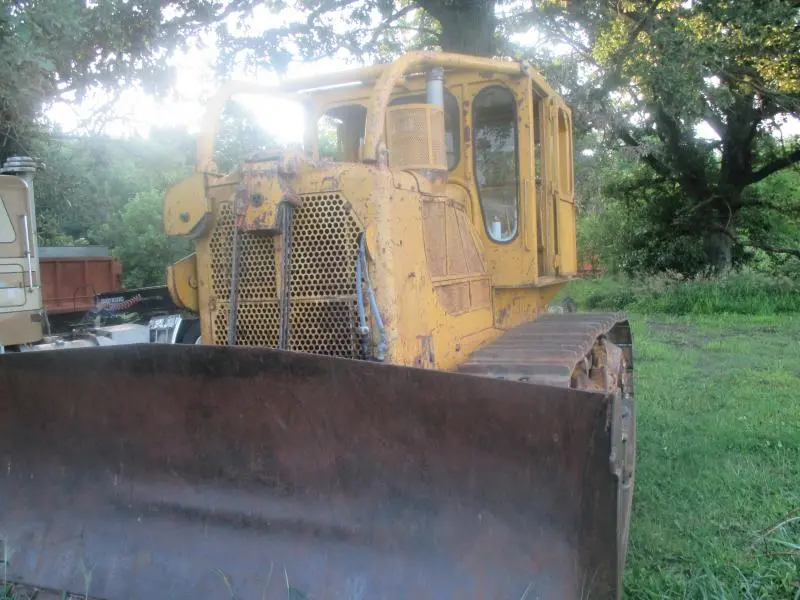

Did Caterpillar start their serial numbers at Number 1 or Number 501, like all the farm implement companies did? Mine is 874, so I'm just wondering how near the first it was. My second question: Is this a factory cab from Cat or an after market cab? I've been told both by "so-called" experts. Can't find a serial number or a tag of any kind on it. And I've never seen one like it.
Attachment

Please log in or create an account to join the conversation.

Wed, Aug 8, 2018 9:22 AM

greengiant

Offline

Member

Send a private message to greengiant

Posts: 227

Thank you received: 0

nice tractor!
where is your serial # located? I can't find it on my E. I assumed it is now covered by the added rear Hyster.

Please log in or create an account to join the conversation.

Wed, Aug 8, 2018 9:56 AM

neil

Offline

Moderator

Admin

Send a private message to neil

Posts: 6,955

Thank you received: 15

Reply to greengiant:

nice tractor!
where is your serial # located? I can't find it on my E. I assumed it is now covered by the added rear Hyster.

Interesting cab style - almost like one of those old-school D9 cabs. I think most serial # ranges started with 1 but there were some exceptions. Someone here will have some examples I'm sure

Please log in or create an account to join the conversation.

Wed, Aug 8, 2018 7:09 PM

dpendzic

Offline

Send a private message to dpendzic

Posts: 2,763

Thank you received: 1

Reply to neil:

Interesting cab style - almost like one of those old-school D9 cabs. I think most serial # ranges started with 1 but there were some exceptions. Someone here will have some examples I'm sure

my research shows that the D7E models-47A,48A,79A,and 95A all started with serial #'s 85 or 159, depending on model

Please log in or create an account to join the conversation.

Wed, Aug 8, 2018 7:55 PM

Rome K/G

Offline

Send a private message to Rome K/G

Posts: 6,092

Thank you received: 0

Reply to dpendzic:

my research shows that the D7E models-47A,48A,79A,and 95A all started with serial #'s 85 or 159, depending on model

1961 47A00874. That would be another manufacturer cab. The serial number should be on the engine block just above the starting engine transmission hi-low gear shifter, if electric start then above the starter. You can get service and operating manuals from Cat or on ebay.

Please log in or create an account to join the conversation.

Wed, Aug 8, 2018 8:24 PM

Old Magnet

Offline

Send a private message to Old Magnet

Posts: 16,695

Thank you received: 17

Reply to Rome K/G:

1961 47A00874. That would be another manufacturer cab. The serial number should be on the engine block just above the starting engine transmission hi-low gear shifter, if electric start then above the starter. You can get service and operating manuals from Cat or on ebay.

All D7E models start out at #1.

Please log in or create an account to join the conversation.

Wed, Aug 8, 2018 10:44 PM

dpendzic

Offline

Send a private message to dpendzic

Posts: 2,763

Thank you received: 1

Reply to Old Magnet:

All D7E models start out at #1.

I got that info off IronRecord---guess its not too accurate!

Please log in or create an account to join the conversation.

Wed, Aug 8, 2018 10:56 PM

Old Magnet

Offline

Send a private message to Old Magnet

Posts: 16,695

Thank you received: 17

Reply to dpendzic:

I got that info off IronRecord---guess its not too accurate!

Several sites seem to make use of the "Toughquip" Caterpillar Equipment Buyer Information Guide which is chuck full of errors.

Please log in or create an account to join the conversation.

Wed, Aug 8, 2018 11:16 PM

catsilver

Offline

Send a private message to catsilver

Posts: 1,644

Thank you received: 0

Reply to Old Magnet:

Several sites seem to make use of the "Toughquip" Caterpillar Equipment Buyer Information Guide which is chuck full of errors.

Most Cat serial numbers started with #1.its just that the first few were sometimes 'seed' machines put out with customers for testing.

Please log in or create an account to join the conversation.

Thu, Aug 9, 2018 12:43 AM

seiscat

Offline

Send a private message to seiscat

Posts: 1,319

Thank you received: 0

Reply to catsilver:

Most Cat serial numbers started with #1.its just that the first few were sometimes 'seed' machines put out with customers for testing.

Hello farmerfred, as others have stated Caterpillar serial numbers always start at 1. I could see the master clutch lever in photo 2 so your machine is a direct drive, your serial number is 47A874. D7E 47A1 through 47A3395 are the low horse(160hp). Please note that the inner sprocket hubs for the 160hp D7E are no longer available from any source new and are VERY rare used. Proper maintenance of the final drives and sprocket bearings is critical.
I suggest it is a good idea to obtain the correct manuals for your tractor from ebay or other sources.
I also noted that your tractor is equipped with a No. 171 Hydraulic Control which is for a tilt cylinder on a Cable Control blade.
[attachment=50245]2018-08-08 11.38.33.jpg[/attachment] [attachment=50246]171 hyd control.jpg[/attachment]
I purchased the manuals in the pic from ebay also check the For Sale/Wanted section of this site.
Craig
