933f caterpillar pressing final drive components

Showing 1 to 9 of 9 results

Arkie

Topic Author

Offline

Send a private message to Arkie

Posts: 50

Thank you received: 0

I'm down to pressing the steering clutches and I've seen a very detailed video that shows a hollow ram and threaded rod to press the clutches. My issue is the end of the steering shaft isn't threaded. I'll have the same issue pressing the sprockets as the sprocket shafts aren't threaded either. Am I missing something? The video shows a D2 but the 933 manual appears to show the same process. As always thanks for your input.

Please log in or create an account to join the conversation.

Tue, Jun 6, 2023 3:36 AM

PNW.Hillbilly

Offline

Member

Send a private message to PNW.Hillbilly

Posts: 71

Thank you received: 0

Do you have a picture of the shaft and hub?

Please log in or create an account to join the conversation.

Tue, Jun 6, 2023 9:36 PM

Arkie

Topic Author

Offline

Send a private message to Arkie

Posts: 50

Thank you received: 0

Reply to PNW.Hillbilly:

Do you have a picture of the shaft and hub?

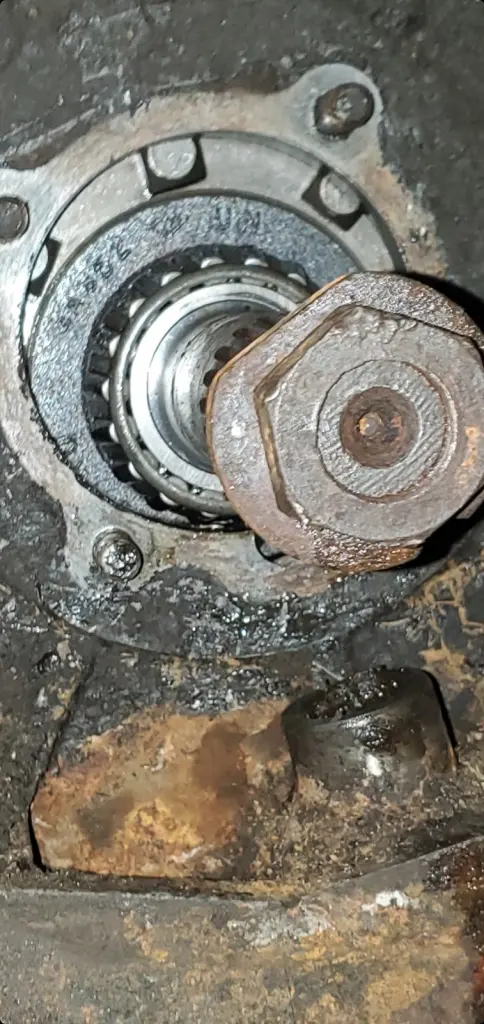

[attachment=72538]20221218_172917.jpg[/attachment] [attachment=72541]Screenshot_20230606-112754_Gallery.jpg[/attachment] [attachment=72538]20221218_172917.jpg[/attachment] [attachment=72538]20221218_172917.jpg[/attachment]Here's pics of the steering shaft but it'll be this evening before I can get sprocket shaft pictures.

Please log in or create an account to join the conversation.

Tue, Jun 6, 2023 11:31 PM

side-seat

Offline

Member

Send a private message to side-seat

Location: Pittsburgh PA

Posts: 678

Thank you received: 9

You are going to need a 17 ton push pull setup using a connector nut. Yes you do have threads, on the end of the shaft you show with the nut on it. I have posted my setups in the past on this forum as well as some other guys. Here's the link to my tear down of a model 15 tractor. Very similar to a D2.
https://www.acmoc.org/bb/discussion-d72/8049-total-restoration-of-a-15-motor-patrol

Please log in or create an account to join the conversation.

Wed, Jun 7, 2023 12:15 AM

PNW.Hillbilly

Offline

Member

Send a private message to PNW.Hillbilly

Posts: 71

Thank you received: 0

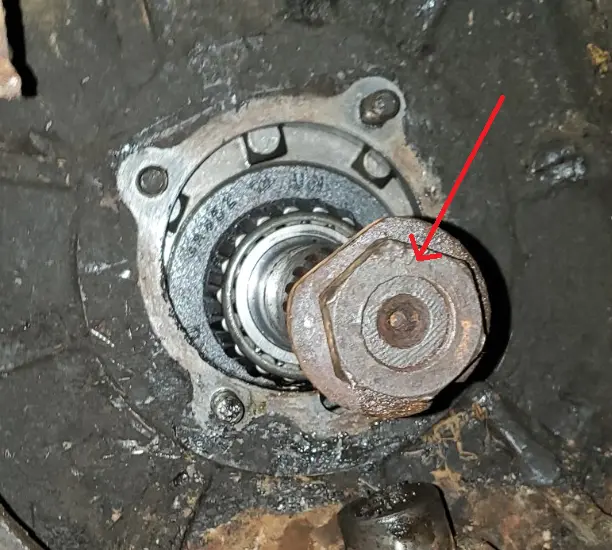

How is the nut still on there when you have the hub removed??? Did the hub come off in pieces? Is that a chunk of the hub behind the nut? It almost looks like the hub got pulled off without removing the nut, removing a section of the hub in the process... [img]/media/kunena/emoticons/wacko.gif[/img]

[attachment=72542]Untitled.png[/attachment]

Please log in or create an account to join the conversation.

Wed, Jun 7, 2023 12:48 AM

side-seat

Offline

Member

Send a private message to side-seat

Location: Pittsburgh PA

Posts: 678

Thank you received: 9

Reply to PNW.Hillbilly:

How is the nut still on there when you have the hub removed??? Did the hub come off in pieces? Is that a chunk of the hub behind the nut? It almost looks like the hub got pulled off without removing the nut, removing a section of the hub in the process... [img]/media/kunena/emoticons/wacko.gif[/img]

[attachment=72542]Untitled.png[/attachment]

PNW Hillbilly
Looks like he's attempting to remove the ring gear if those bearing hubs are off. I think that is a heavy washer under the nut.

Please log in or create an account to join the conversation.

Wed, Jun 7, 2023 1:53 AM

Arkie

Topic Author

Offline

Send a private message to Arkie

Posts: 50

Thank you received: 0

Reply to side-seat:

PNW Hillbilly
Looks like he's attempting to remove the ring gear if those bearing hubs are off. I think that is a heavy washer under the nut.

The clutch pack is still together. The picture just happens to have the nut on it by chance with the washer that gets bent over when torqued down. I've rebuilt the clutch packs and ready to press them on but even using a scratch awl, I can't feel or see threads in the steering shaft or sprocket shaft. I'll dig deeper when I'm home. Thank you for responding

Please log in or create an account to join the conversation.

Wed, Jun 7, 2023 2:31 AM

PNW.Hillbilly

Offline

Member

Send a private message to PNW.Hillbilly

Posts: 71

Thank you received: 0

Reply to Arkie:

The clutch pack is still together. The picture just happens to have the nut on it by chance with the washer that gets bent over when torqued down. I've rebuilt the clutch packs and ready to press them on but even using a scratch awl, I can't feel or see threads in the steering shaft or sprocket shaft. I'll dig deeper when I'm home. Thank you for responding

You use the threads that the nut is currently on to press it on.

Please log in or create an account to join the conversation.

Wed, Jun 7, 2023 2:44 AM

neil

Offline

Moderator

Admin

Super Admin

Send a private message to neil

Posts: 7,049

Thank you received: 28

Reply to PNW.Hillbilly:

You use the threads that the nut is currently on to press it on.

Same process for pushing and pulling the sprocket. I bought a nut that was deep enough to engage all the threads on the shaft rather than the thin cap nut and used it to both push and pull depending on how I set my hollow ram and associated adaptors.

Please log in or create an account to join the conversation.

Wed, Jun 7, 2023 5:51 AM

Arkie

Topic Author

Offline

Send a private message to Arkie

Posts: 50

Thank you received: 0

Thanks to everyone. Looks like I'm buying a 20 ton hollow ram!

Please log in or create an account to join the conversation.

Wed, Jun 7, 2023 6:38 AM
