Main engine has oil clutch (SAE 30) oil. Steering clutches are dry. Hydraulic control uses SAE 10W. Finals are SAE 90
Engine is the D311H, not the same as early D311.

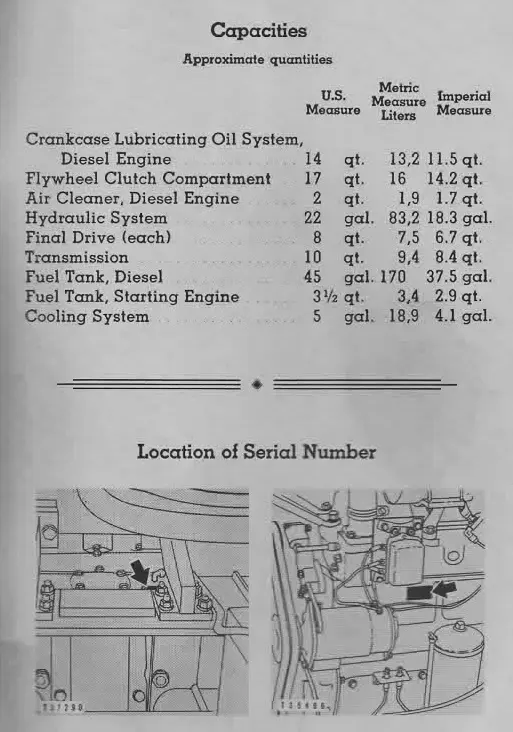

[attachment=69132]42A Sn. No. and Lube Capacity.jpg[/attachment]
This is exactly what I needed. Thank you!

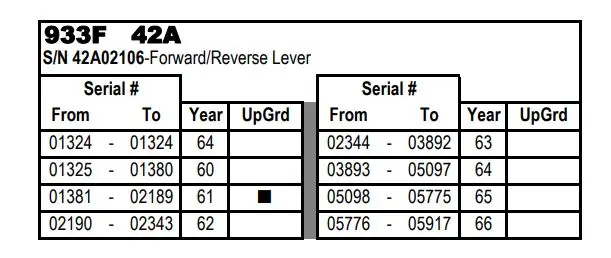

93F 42A4399 BUILT 1964
[attachment=69180]Capture.JPG[/attachment]
I dismantle a 933 serie 42a and he was direct start, motor and radiator ben sold and more small parts
Thanks to all that have responded. I'm sure there will be plenty of more questions. Thank you for sharing your knowledge!
I have heard that final drive parts for the 933 are specific to the 933 are very hard to find. Before you buy this loader check on the parts. You might have to buy a parts machine to find the final drive parts.
