933 traxcavator

Rd6 plower

Topic Author

Offline

Send a private message to Rd6 plower

Posts: 388

Thank you received: 0

Hi everyone I'm about to embark on changing the brake bands and I was wondering if its the same process as a D2 and u have to pull the finals and if anyone had some service book clips that be awesome thax!

Please log in or create an account to join the conversation.

Sat, Dec 15, 2012 12:06 PM

josh

Offline

Send a private message to josh

Posts: 1,240

Thank you received: 13

Which series 933 do you have ? The 11A series is like the D2, the 42A 933 brake bands can be removed without pulling the finals. if it is the 42A I can post the instructions.

Please log in or create an account to join the conversation.

Sat, Dec 15, 2012 1:51 PM

gemdozer

Offline

Member

Send a private message to gemdozer

Posts: 1,548

Thank you received: 18

Reply to josh:

Which series 933 do you have ? The 11A series is like the D2, the 42A 933 brake bands can be removed without pulling the finals. if it is the 42A I can post the instructions.

Yes you need to removed the final drive to change the brake band

Please log in or create an account to join the conversation.

Sat, Dec 15, 2012 7:25 PM

Mervyn Pepper

Offline

Send a private message to Mervyn Pepper

Posts: 120

Thank you received: 0

Reply to gemdozer:

Yes you need to removed the final drive to change the brake band

If its a 42A. can be done in place, through the top and bottom. Not easy, and better with a second set of hands.

Please log in or create an account to join the conversation.

Sun, Dec 16, 2012 1:20 AM

Rd6 plower

Topic Author

Offline

Send a private message to Rd6 plower

Posts: 388

Thank you received: 0

Reply to Mervyn Pepper:

If its a 42A. can be done in place, through the top and bottom. Not easy, and better with a second set of hands.

42a direct start

Please log in or create an account to join the conversation.

Sun, Dec 16, 2012 11:03 AM

josh

Offline

Send a private message to josh

Posts: 1,240

Thank you received: 13

Reply to Rd6 plower:

42a direct start

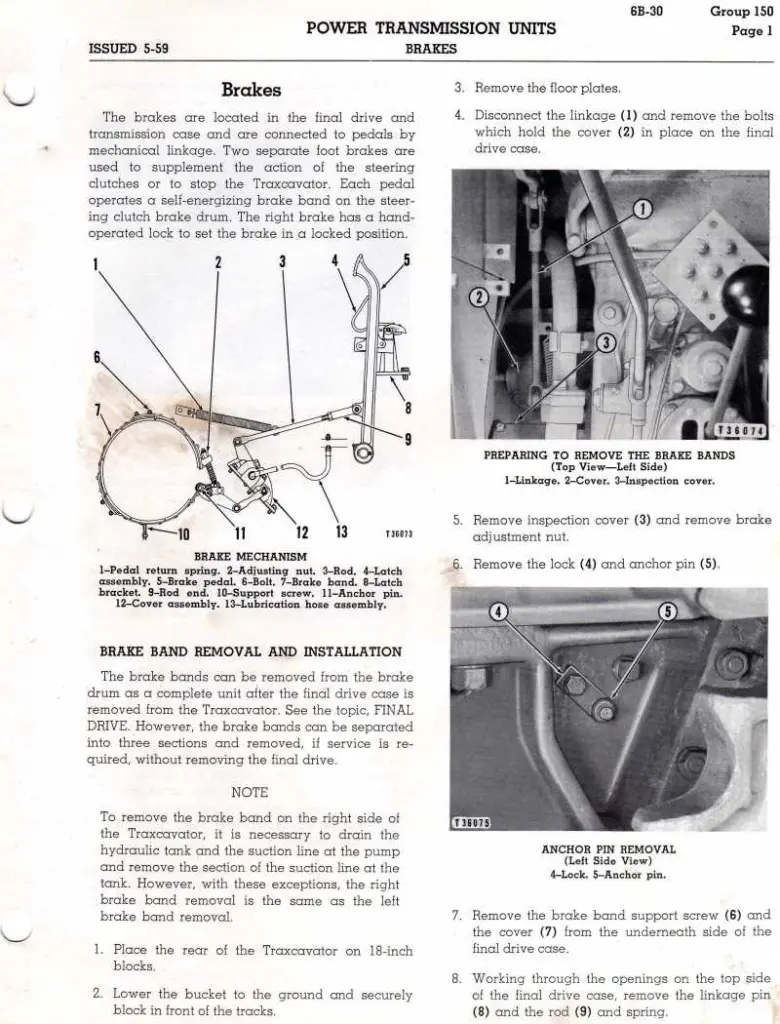

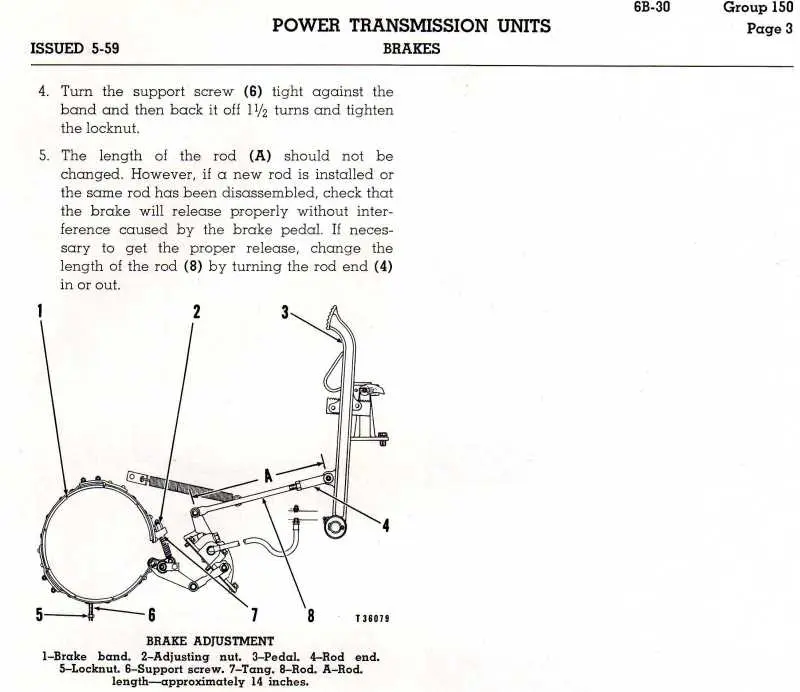

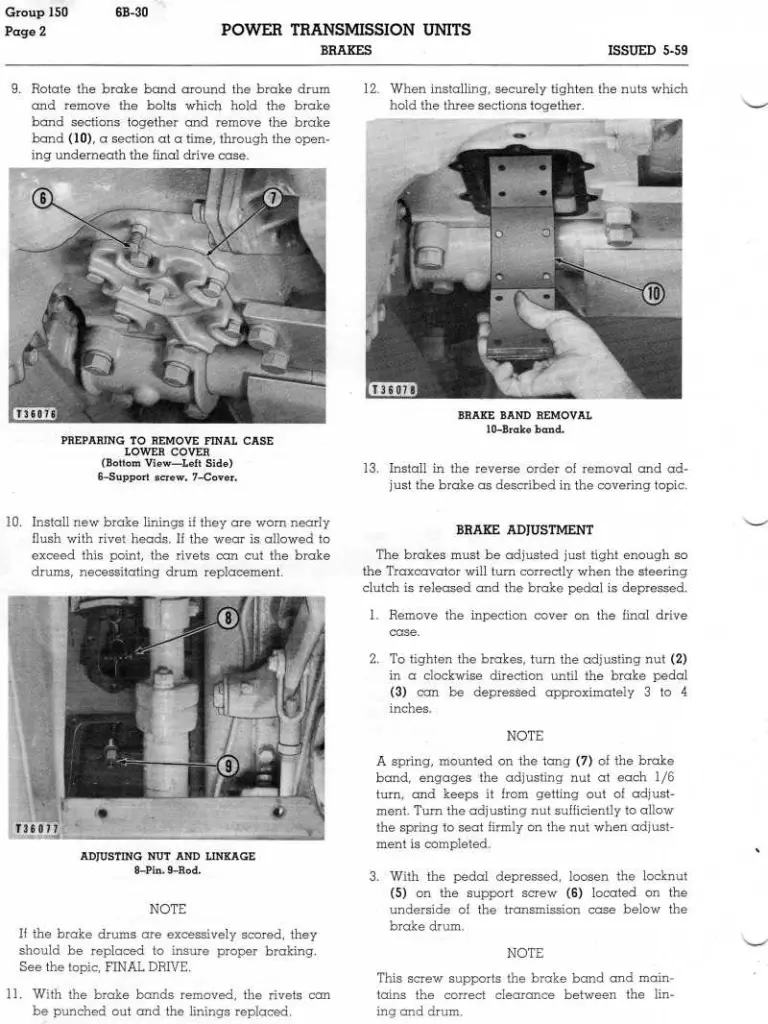

Hope you can read these.
Attachment

Please log in or create an account to join the conversation.

Sun, Dec 16, 2012 11:53 AM

Jason 10/D4

Offline

Send a private message to Jason 10/D4

Posts: 476

Thank you received: 0

Reply to josh:

Hope you can read these.

Can be done on a 42 a pull your floor pans on the operator station and youll see the plates to the top of the steering clutch housing and thats where the top brake band hooks in to the adjusting screw and there are plates on the bottom to unhook the bands on the bottom and i think i slid them down and un pinned each one and wiggled it out the botttom should be 3 sections per side if i remember correctly. Not the easiest job but it can be done with a little cussing and a few busted knuckles. If you get cat parts there gonna be pricey as mine were 5 years ago. Hope this helps, Jason

Please log in or create an account to join the conversation.

Sun, Dec 16, 2012 8:14 PM

kdavid

Offline

Send a private message to kdavid

Posts: 5

Thank you received: 0

Reply to josh:

Hope you can read these.

What manual did these come from?
