7u precleaner help

Showing 1 to 9 of 9 results

d2gary

Topic Author

Offline

Member

Send a private message to d2gary

Posts: 1,281

Thank you received: 0

I'm trying to find a part number for the plastic precleaner cup. I have the 27570-up parts book but it doesn't list the precleaner cup.
I was going to put the old style precleaner with the jar but the tube is different size.

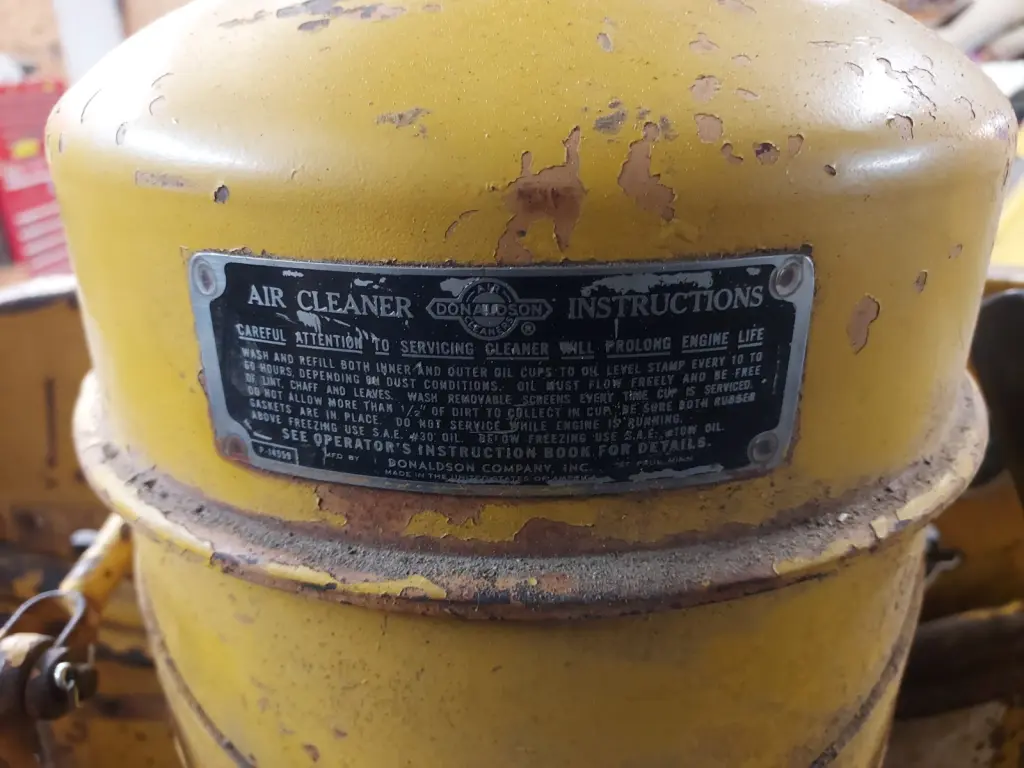

The air cleaner has a Donaldson tag on it.
Can someone provide a part number.

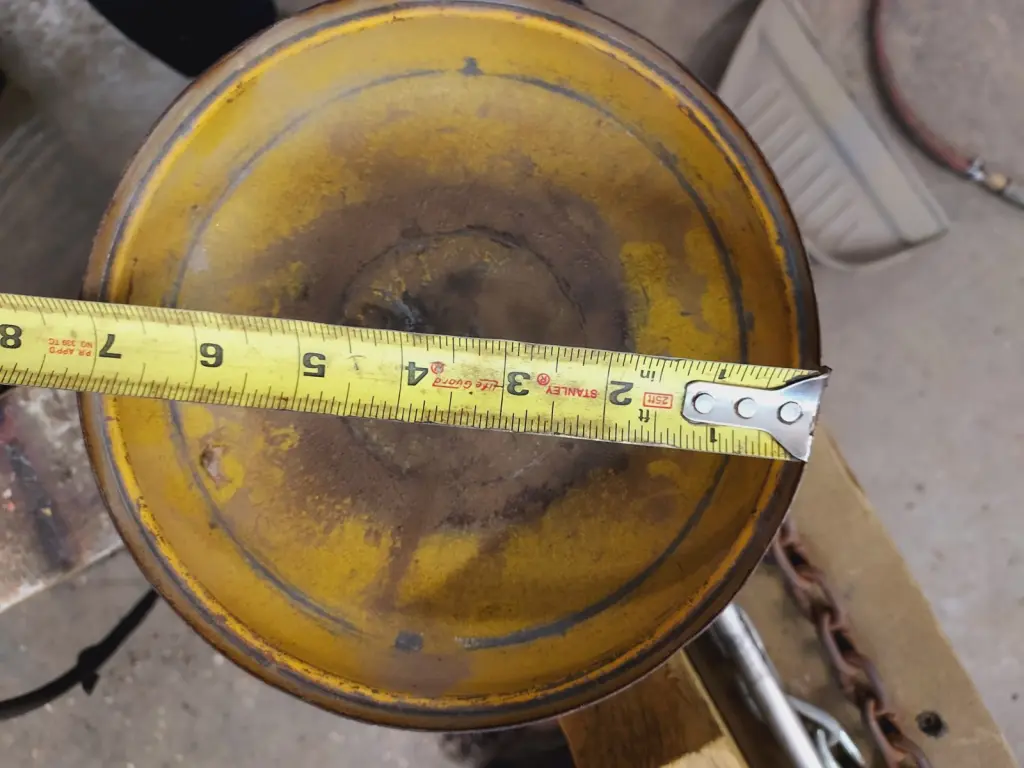

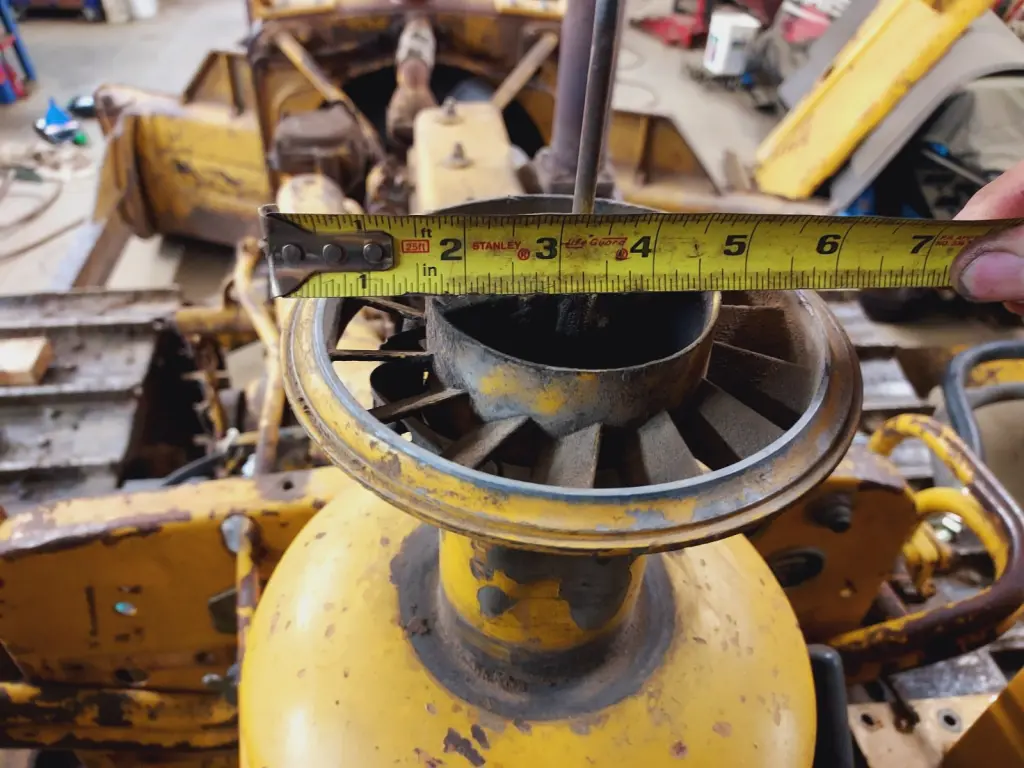

[attachment=65428]20211121_143539.jpg[/attachment][attachment=65429]20211121_143805.jpg[/attachment][attachment=65430]20211121_143836.jpg[/attachment]

Please log in or create an account to join the conversation.

Tue, Nov 23, 2021 10:30 PM

Rome K/G

Offline

Send a private message to Rome K/G

Posts: 6,092

Thank you received: 0

8H2023 Body $15.81 from Cat or plenty on ebay [caterpillar 8h2023]

Please log in or create an account to join the conversation.

Tue, Nov 23, 2021 11:02 PM

d2gary

Topic Author

Offline

Member

Send a private message to d2gary

Posts: 1,281

Thank you received: 0

Reply to Rome K/G:

8H2023 Body $15.81 from Cat or plenty on ebay [caterpillar 8h2023]

Thank you sir. One coming from ebay free shipping. Costs me $20 to ship from Cat or drive an hour and a half each way

Please log in or create an account to join the conversation.

Wed, Nov 24, 2021 3:24 AM

Rome K/G

Offline

Send a private message to Rome K/G

Posts: 6,092

Thank you received: 0

Reply to d2gary:

Thank you sir. One coming from ebay free shipping. Costs me $20 to ship from Cat or drive an hour and a half each way

Your welcome!

Please log in or create an account to join the conversation.

Wed, Nov 24, 2021 4:21 AM

d2gary

Topic Author

Offline

Member

Send a private message to d2gary

Posts: 1,281

Thank you received: 0

Reply to Rome K/G:

Your welcome!

Discovered fuel in the injection pump oil sump when I went to change it. Must have just started because its just starting to weep but definitely leaking past the seals. So it looks like the pump is coming off before I can get it out of the shop. Its always something with these elderly Cats!

Please log in or create an account to join the conversation.

Wed, Nov 24, 2021 8:56 PM

Deebo

Offline

Member

Moderator

Librarian

Admin

Super Admin

Send a private message to Deebo

Posts: 536

Thank you received: 38

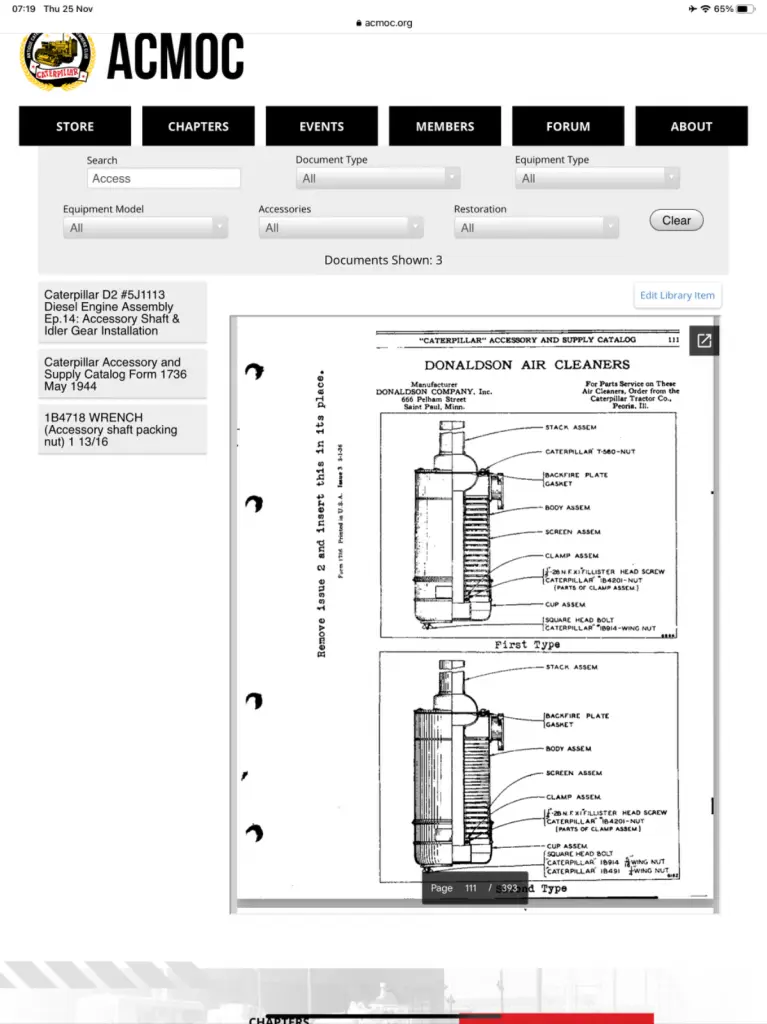

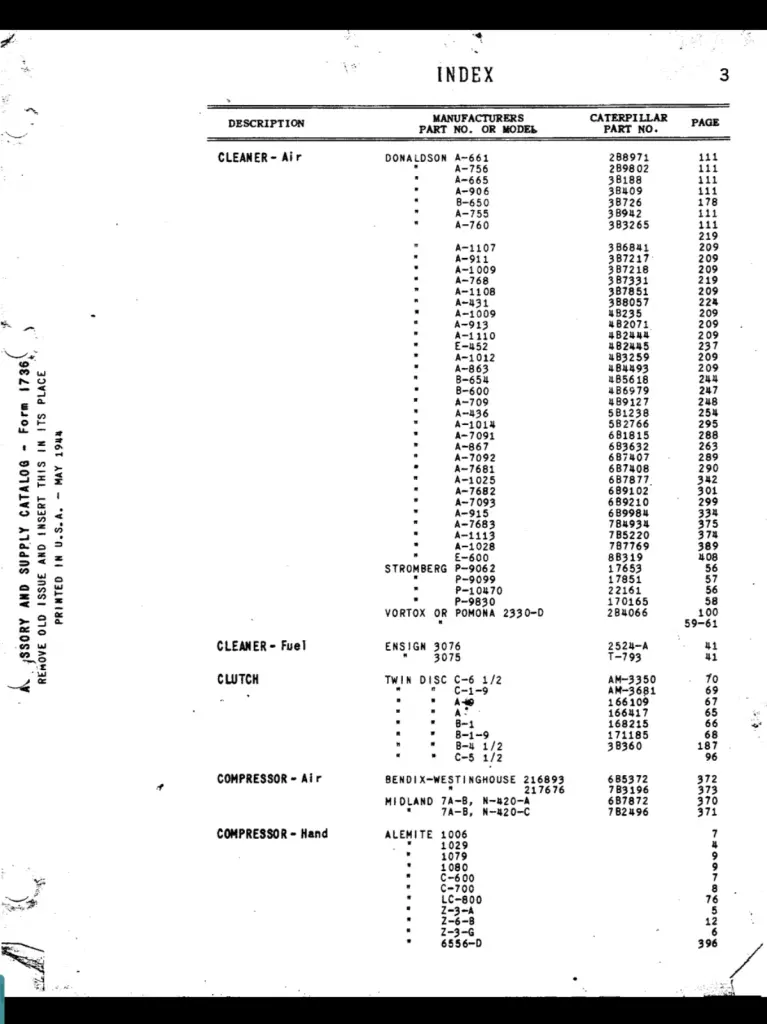

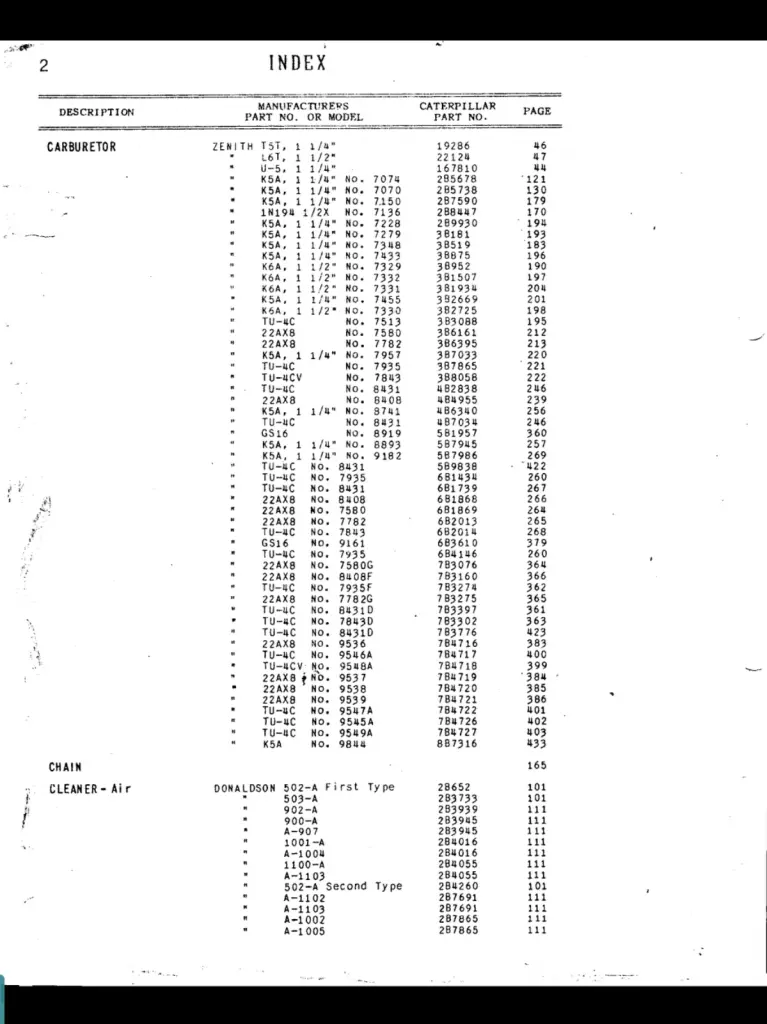

Looks like you’re sorted for the air cleaner cup but if there’s anything else you need to cross reference, in the Tech Library there’s a copy of the 1944 Accessory and Supply catalog and there are loads of Donaldson (and other OE manufacturers) parts diagrams in there. It’s a great resource for bearings and carbs too.

[attachment=65444]AF18B5A7-56E4-4082-9288-B229C808B347.png[/attachment]

[attachment=65443]45254A8A-C1AC-4371-BF15-C0566572C2D2.png[/attachment]

[attachment=65442]2C3833F4-1DAB-43BF-A20C-A7234B467574.png[/attachment]

Please log in or create an account to join the conversation.

Thu, Nov 25, 2021 2:24 PM

edb

Offline

Member

Send a private message to edb

Posts: 4,027

Thank you received: 0

Hi Team,

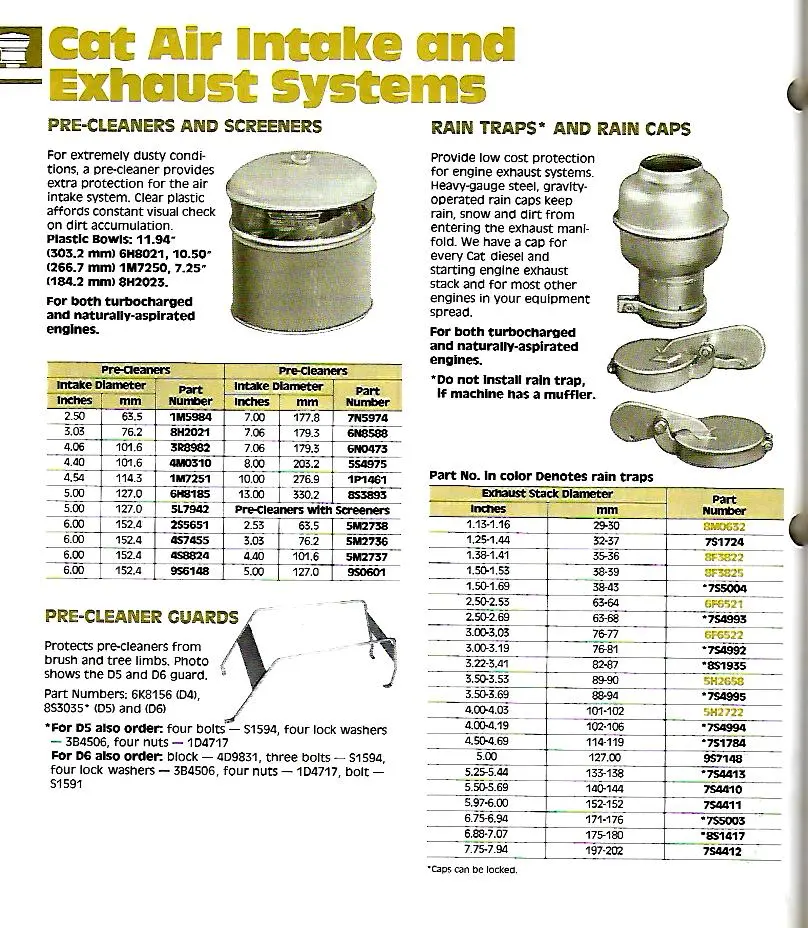

from a Cat One Safe Source book.
Cheers,
Eddie B.
Attachment

Please log in or create an account to join the conversation.

Fri, Nov 26, 2021 7:59 AM

Old Magnet

Offline

Send a private message to Old Magnet

Posts: 16,696

Thank you received: 18

Reply to edb:

Hi Team,
from a Cat One Safe Source book.
Cheers,
Eddie B.

I've got one of those pre-cleaner units in service on a D4. I had to stuff a stainless steel (pot scrubber type brillo pad) in the inlet to keep mice out during long periods of non op.

Please log in or create an account to join the conversation.

Fri, Nov 26, 2021 8:30 AM

Rome K/G

Offline

Send a private message to Rome K/G

Posts: 6,092

Thank you received: 0

Reply to Old Magnet:

I've got one of those pre-cleaner units in service on a D4. I had to stuff a stainless steel (pot scrubber type brillo pad) in the inlet to keep mice out during long periods of non op.

[quote="Old Magnet post=233225 userid=632"]I've got one of those pre-cleaner units in service on a D4. I had to stuff a stainless steel (pot scrubber type brillo pad) in the inlet to keep mice out during long periods of non op.
I've seen that happen also, varmits! lol
[/quote]

Please log in or create an account to join the conversation.

Fri, Nov 26, 2021 9:37 AM

trainzkid88

Offline

Send a private message to trainzkid88

Location: b.berg qld

Posts: 2,299

Thank you received: 32

Reply to Rome K/G:

[quote="Old Magnet post=233225 userid=632"]I've got one of those pre-cleaner units in service on a D4. I had to stuff a stainless steel (pot scrubber type brillo pad) in the inlet to keep mice out during long periods of non op.
I've seen that happen also, varmits! lol
[/quote]

gary go into any tractor dealer they have the replacement bowls. bare & co (bareco) make aftermarket ones in several sizes go into any stockist any they are a stocked item. just need the pipe outside dia to match up. a whole precleaner is not much more expensive than the bowl.

"i reject your reality and substitute my own" - adam savage. i suspect my final words maybe "well shit, that didnt work"

instead of perfection some times we just have to accept practicality

Please log in or create an account to join the conversation.

Sat, Nov 27, 2021 4:22 PM
