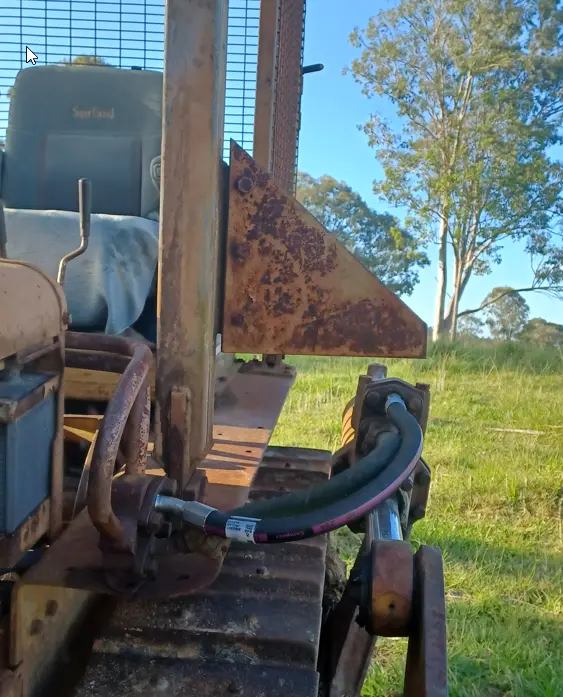

If the original 2-bolt flanges are still in good condition, you can make a crimped hose using CAT fitting part# 124-2052 or equivalent (just make sure you put the flanges on before crimping the hose ends). Picture below shows that. If your flanges are rusted out, you will probably have to find a new ones, not aware of any way to convert over to a 4-bolt flange code 61. Maybe someone else is though.
[attachment=72836]unnamed.png[/attachment]
"i reject your reality and substitute my own" - adam savage. i suspect my final words maybe "well shit, that didnt work"
instead of perfection some times we just have to accept practicality
If the original 2-bolt flanges are still in good condition, you can make a crimped hose using CAT fitting part# 124-2052 or equivalent (just make sure you put the flanges on before crimping the hose ends). Picture below shows that. If your flanges are rusted out, you will probably have to find a new ones, not aware of any way to convert over to a 4-bolt flange code 61. Maybe someone else is though.
[attachment=72836]unnamed.png[/attachment]
those fitting are still available but they are crimp on rather than bolt on. yes there sae code 61 dash 12 size.
any hose service can make you new hoses they will need to reuse the flange plates from the original hoses. if the flanges are damaged you can make your own if you have a milling machine there only medium tensile steel. these old girls have a max working pressure of 1500 psi.
you local cat dealer can also make them for you
just take the old hoses as a template.
dont forget to get new seals too
you can get adapter to jic fittings. but why bother crimp fittings arent that expensive. the only advantage is if you use field attachable jic fittings you can change you own hoses on site without a portable crimp machine.
