7U D4

Hi folks,

I'm new around here. I'm working on a 7U D4, with a seized engine. I need to get the oil pan off so I can knock out pistons and liners from below. The spring pack is in the way, so I'm thinking I have to jack the front up, take that spring pack out, all so I can drop the pan. The trouble is, with a jack under the radiator support, there's not enough room to wiggle my 6 in there. So I'm thinking use an I beam, about 5 feet long, place it under the rad support, and raise up either end on some dunnage, and support the machine that way. I'd weld a bracket on to the beam, and find something under there to bolt it to, so it doesn't twist on me. That would be bad. That sounds like a good way to support the machine while I'm under there. I'd like to hear your thoughts on how big that I beam should be. I want one plenty strong enough. I certainly wouldn't want that sucker to bend.

Sorry, 6U not 7U

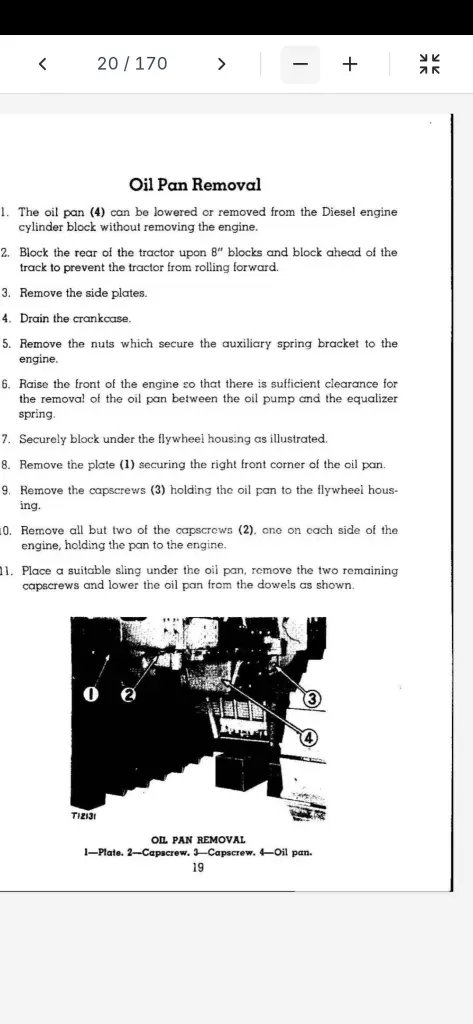

This should help you out. If you are a paying member you can click on the members tab in the menu and access the technical documents library that has all the manuals for your machine and just about anything else.

CrawlerAddict

If you check out Aaron’s YouTube channel LOAL he has done that job on earlier D4 tractors. Might help you out.
