3304 Rebuild from 951c, have some questions

2P6216 is the correct crankshaft assembly that has 2P6214 crankshaft with main bearings and "plates". 4N7692 is the service replacement assemble for 2P6216, that has a 321-6442 crankshaft with the crank Gear and key on it.

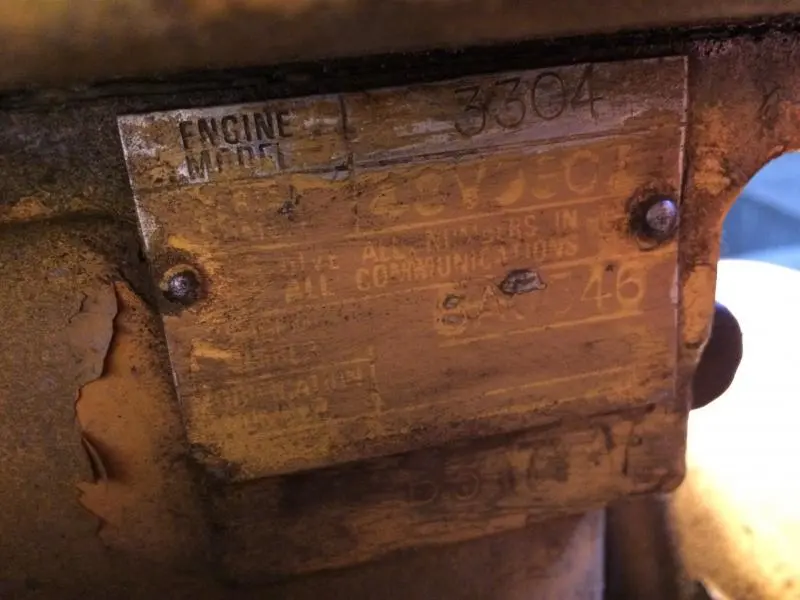

Engine s/n range is 48V1 to 48V10309, not 1039.
Are you looking for a complete crankshaft replacement or bearings and plates for the original crankshaft?

Hi guys ! I am so pleased to read your respond. Thank you !

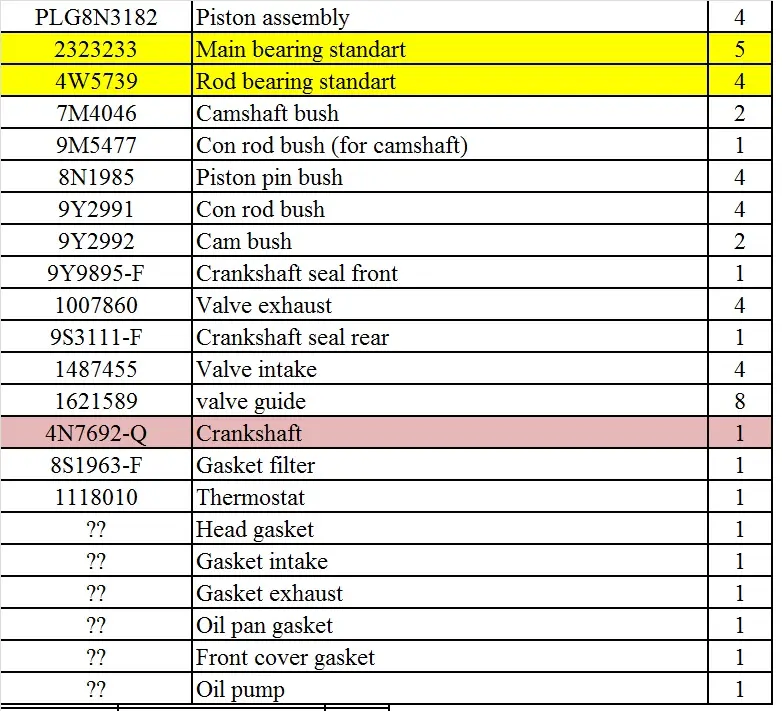

Here is the list I need if I am right with the numbers. Not sure about oil pump and gaskets numbers yet.. Does this crankshaft with this part number fits my engine? Unfortunately I need to replace crankshaft completely cuz its been rebuilt it badly before. If I got you right guys 4N7692 include the main rod bearing ?


PLG8N3182________ Piston assembly_______________4
2323233___________Main bearing standart__________ 5
4W5739___________Rod bearing standart___________4
7M4046___________Camshaft bush________________2
9M5477___________Con rod bush (for camshaft) ____1
8N1985___________Piston pin bush_______________ 4
9Y2991___________Con rod bush _________________ 4
9Y2992___________Cam bush ____________________2
9Y9895-F_________Crankshaft seal front __________ 1
1007860__________Valve exhaust ________________4
9S3111-F ________ Crankshaft seal rear___________1
1487455__________Valve intake__________________4
1621589__________valve guide___________________8
4N7692-Q_________Crankshaft ___________________1
8S1963-F _________Gasket filter__________________1
1118010__________ Thermostat __________________1
_??_____________Head gasket ___________________1
______________ _Gasket intake__________________1
________________Gasket exhausе________________1
________________Oil pan gasket_________________1
________________Front cover gasket_____________1
________________Oil pump_____________________1

Hi,

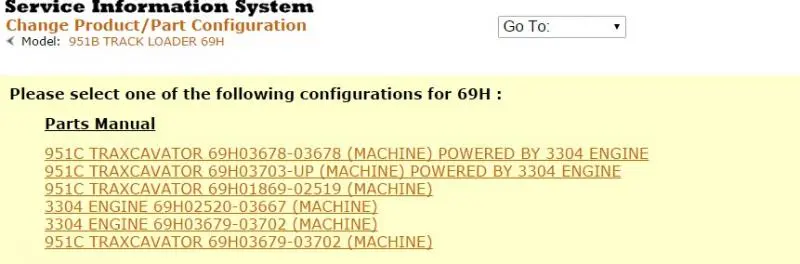

4N7692 is just a crankshaft with the gear. TMi and Npr are showing Reman and "classic part" options. Best check with your local cat dealer for availability.

Regal lists the 4N7692 @ $764.66

Thanks guys for your answers! Somehow I managed the part numbers I need for this engine rebuild. Thank you

However, its not clear for me with the fuel system rebuild. In Russia (Saint-Petersburg) even CAT dealer dont have a test stand to check this particular pump and configurate it after assembly. Do you have any info about testing and calibration of this pump group?:help:

It has 7s8829, 7s8825 and 5s6333 (2p-77??) on it. Manual pump has 9h2256 on it.
