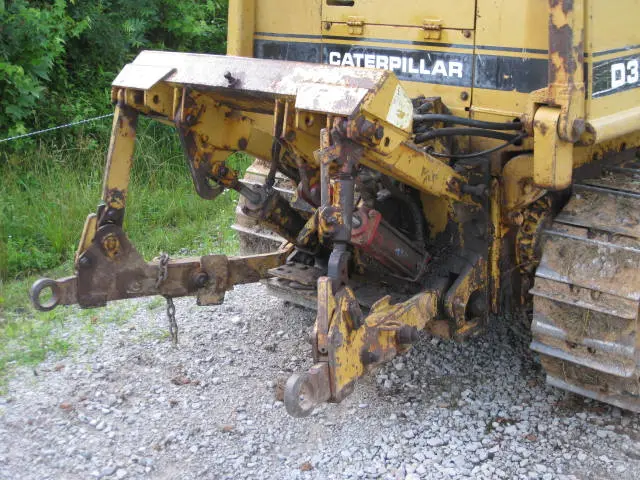

3 Point Hitch & PTO on D3B 23Y0

I had 2 Lindex 3pt hitch and pto setups. The pto s I had were 540. I have original brochures for the Lindex line. I will check to see if I have a parts list for them. I think Bobcat- Ingersol Rand bought them out a few years back.

I had 2 Lindex 3pt hitch and pto setups. The pto s I had were 540. I have original brochures for the Lindex line. I will check to see if I have a parts list for them. I think Bobcat- Ingersol Rand bought them out a few years back.

can you still get anything like this off-the-shelf now in USA?

That seems to be a pretty rare attachment on the D3's. Would have to be set up from factory to drive either a winch or PTO as they don't seem to normally have drive provision. (Do stand to be corrected)

While on the topic, can anybody identify this D3 PTO gear box?

OM That looks like a Lindex PTO. I will look at my brochurses on Tuesday.But cant be sure. As far as the other 3pt hitches. I have noticed a lot of AG Cats oversees have 3pts those look the are Rome 3 pt hitches.

I had 2 Lindex 3pt hitch and pto setups. The pto s I had were 540. I have original brochures for the Lindex line. I will check to see if I have a parts list for them. I think Bobcat- Ingersol Rand bought them out a few years back.

That seems to be a pretty rare attachment on the D3's. Would have to be set up from factory to drive either a winch or PTO as they don't seem to normally have drive provision. (Do stand to be corrected)

While on the topic, can anybody identify this D3 PTO gear box?

[quote="Old Magnet"]That seems to be a pretty rare attachment on the D3's. Would have to be set up from factory to drive either a winch or PTO as they don't seem to normally have drive provision. (Do stand to be corrected)

While on the topic, can anybody identify this D3 PTO gear box?[/quote]

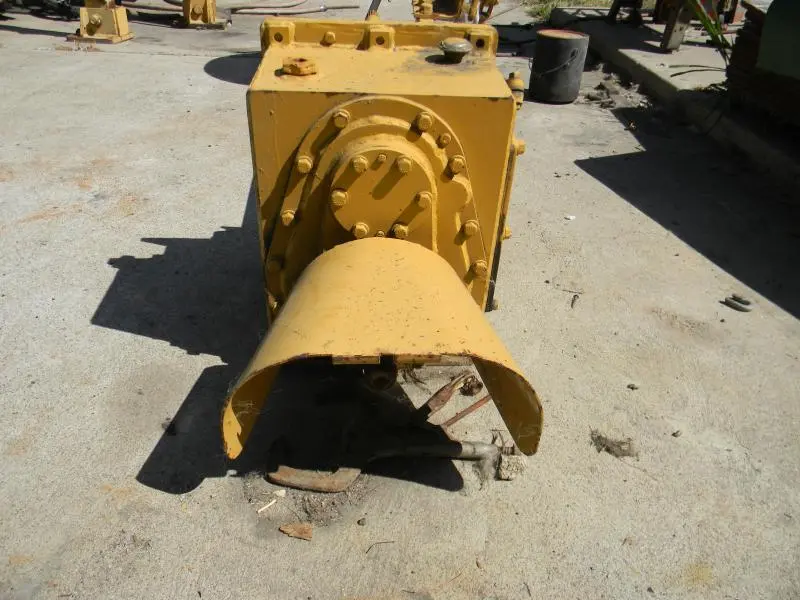

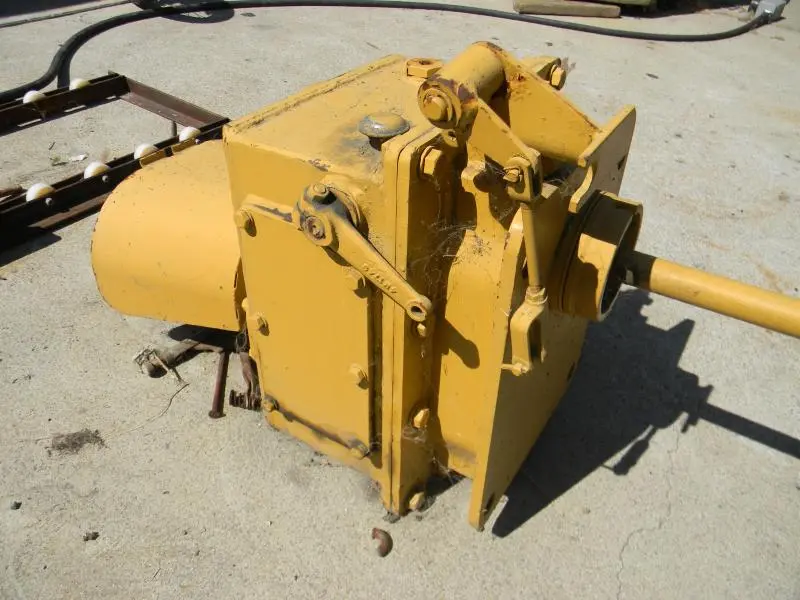

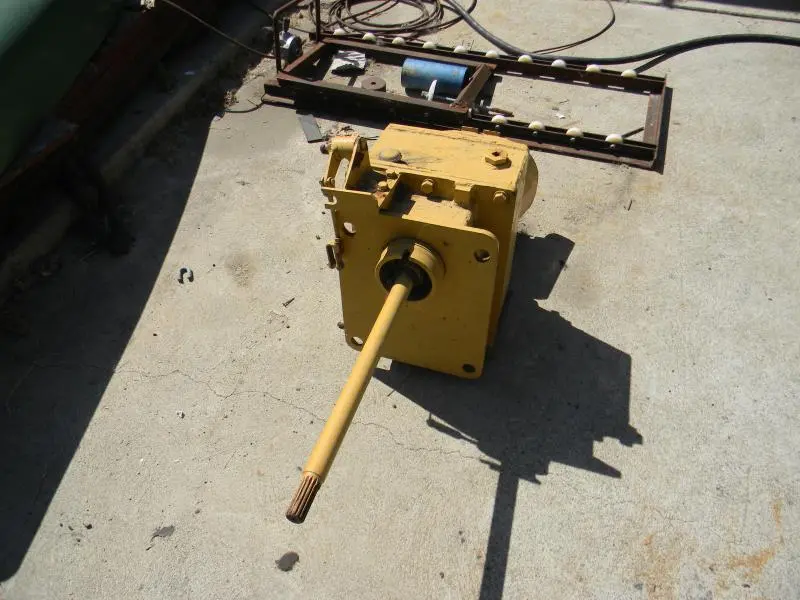

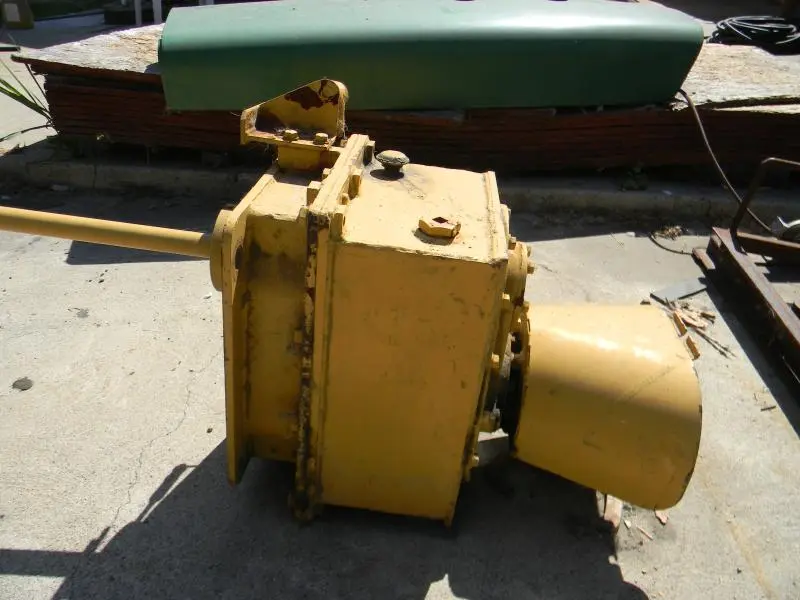

I belive I have one of these unit cant be that rare
See Pictures

I was looking at my Lindex brochures, The part # for the PTO 1000 rpm pto is D 300 this is for the D3,D3B D3SA D3BLGP and D4C. The part # D305 is for the 540 RPM pto that fits the above machines. My price list dated Jan 21 1991 was $ 3550.00 for the 1000 rpm and $ 3750.00 for the 540 rpm pto. In my notes on the brochure I wrote a Dart 390 speed changer I cant remember what that meant that far back. The Lindex 3pt hitch for a D3 all models sold for 4650.00 the D4s 4520.00 the D5s 5520.00 D6 6380,00.The 1000 rpm pto and 3pt sold for $ 8835.00 the 540 rpm pto sold for 9035.00. Here is a phone number I wrote down. 605-225-0360.
