2B0399 tamping tool need picture or WTB

2B0399 tamping tool need picture or WTB

Showing 1 to 4 of 4 results
LAOL
Topic Author
Offline
Member
Send a private message to LAOL
Posts: 67
Thank you received: 0

Hello I am making this post for my husband.

He had a very kind viewer mention a fix for the issues on the RD4. It involves a 2B0399 pre combustion chamber tamping tool. He would like to make one or buy one. Pictures of one would be great. Any help is appreciated.

Thanks,

Jolene

Please log in or create an account to join the conversation.
Mon, May 12, 2025 2:34 AM
josh
Offline
Send a private message to josh
Posts: 1,208
Thank you received: 5
Please log in or create an account to join the conversation.
Mon, May 12, 2025 6:00 AM
trainzkid88
Offline
Send a private message to trainzkid88
Location: b.berg qld
Posts: 2,297
Thank you received: 32

if some one had the dimensions it would be easy to have one turned on a lathe out of some tool steel

"i reject your reality and substitute my own" - adam savage. i suspect my final words maybe "well shit, that didnt work"

instead of perfection some times we just have to accept practicality

Please log in or create an account to join the conversation.
Mon, May 12, 2025 11:17 AM
neil
Offline
Moderator
Admin
Send a private message to neil
Posts: 6,985
Thank you received: 22

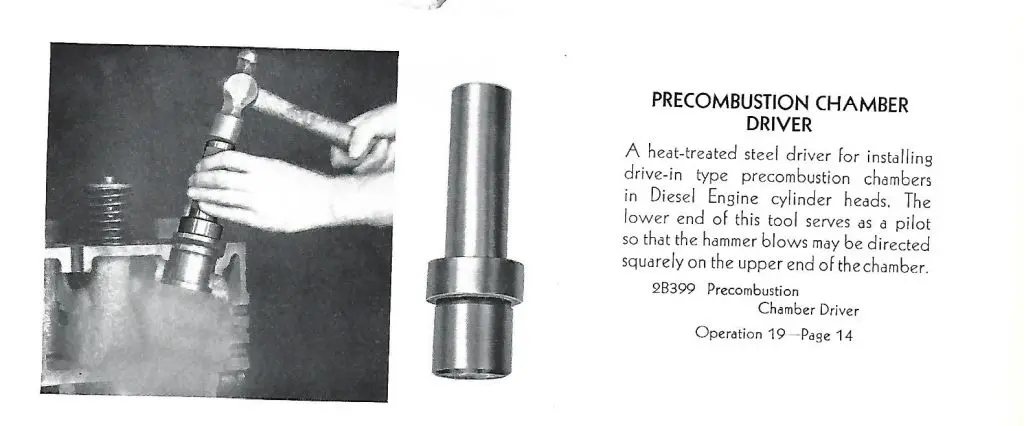

If he has the precombustion chamber, he can measure the dimensions he needs. The key dimensions are the pilot diameter (the part that fits inside the chamber as in the picture - it should be a snug, hand-fit), the pilot depth, and the driving diameter which would be the same as the outer diameter of the chamber less a couple of thousandths . Judging by the picture, I'd estimate the dimensions as approx. 1 inch by 1 inch by 1 1/4 inch

Please log in or create an account to join the conversation.
Tue, May 13, 2025 1:45 AM
LAOL
Topic Author
Offline
Member
Send a private message to LAOL
Posts: 67
Thank you received: 0
Reply to josh:

Thank you, this is exactly what he needed.

Please log in or create an account to join the conversation.
Tue, May 13, 2025 11:51 AM
