22 fuel pump ?

22 fuel pump ?

Showing 1 to 7 of 7 results
CatinAZ
Topic Author
Offline
Send a private message to CatinAZ
Posts: 5
Thank you received: 0

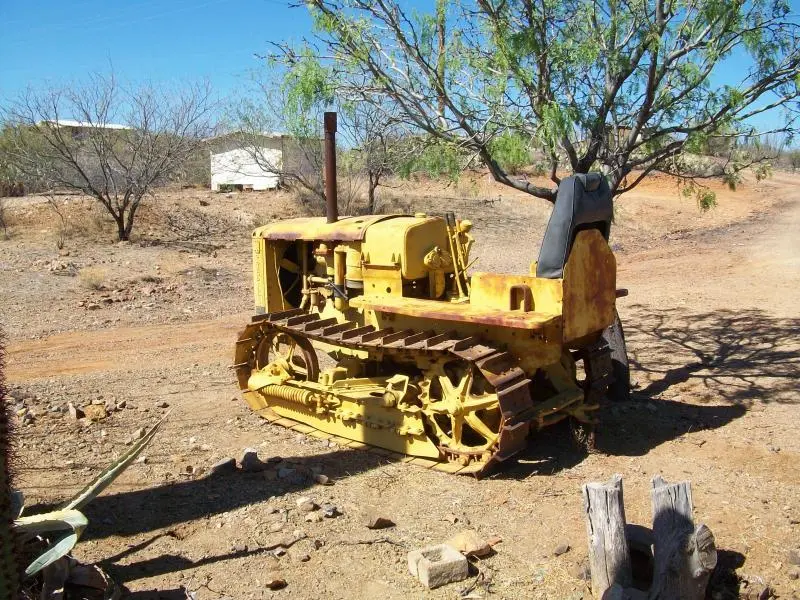

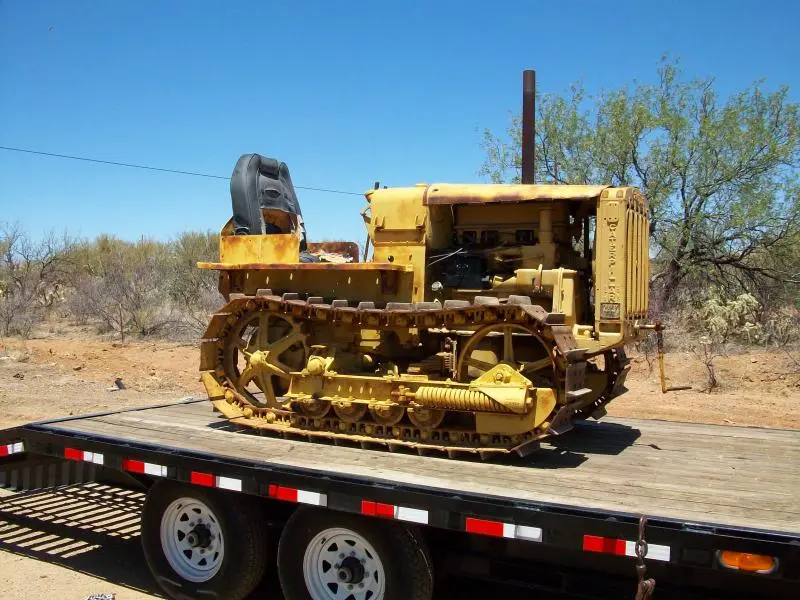

Wondered if all 22s had a fuel pump. I know parts book shows one. Mine has a homemade plate covering where it should mount. Just has gravity feed to carb now and seems to run just fine.[attachment=9297]cat22 002.jpg[/attachment][attachment=9298]cat22 001.jpg[/attachment]
Attachment
Attachment
'51 Massey 22, '51 Massey 44 w/ Massey trip loader, '62 Cub Cadet, '35 Cat 22
Please log in or create an account to join the conversation.
Sat, Jun 4, 2011 10:43 AM
Steve A
Offline
Member
Send a private message to Steve A
Posts: 1,254
Thank you received: 0
I believe the newer ones did, not sure of the change date. The only time you will have a problem is going up a steap hill with low fuel in the tank
Please log in or create an account to join the conversation.
Sat, Jun 4, 2011 7:48 PM
chugwater crawlers
Offline
Send a private message to chugwater crawlers
Posts: 394
Thank you received: 0
Reply to Steve A:
I believe the newer ones did, not sure of the change date. The only time you will have a problem is going up a steap hill with low fuel in the tank
I have a early series and it has a fuel pump. Rebuild kits are available.

A lot of twenty twos had the pump bypassed by the owner/operator when they failed, so you see a lot of them set up that way.
Please log in or create an account to join the conversation.
Sat, Jun 4, 2011 8:26 PM
CatinAZ
Topic Author
Offline
Send a private message to CatinAZ
Posts: 5
Thank you received: 0
Reply to chugwater crawlers:
I have a early series and it has a fuel pump. Rebuild kits are available.

A lot of twenty twos had the pump bypassed by the owner/operator when they failed, so you see a lot of them set up that way.
[quote="chugwater crawlers"]I have a early series and it has a fuel pump. Rebuild kits are available.

A lot of twenty twos had the pump bypassed by the owner/operator when they failed, so you see a lot of them set up that way.[/quote]

That makes sense. thx
'51 Massey 22, '51 Massey 44 w/ Massey trip loader, '62 Cub Cadet, '35 Cat 22
Please log in or create an account to join the conversation.
Sat, Jun 4, 2011 8:33 PM
22Randy
Offline
Send a private message to 22Randy
Posts: 79
Thank you received: 0
Reply to CatinAZ:
[quote="chugwater crawlers"]I have a early series and it has a fuel pump. Rebuild kits are available.

A lot of twenty twos had the pump bypassed by the owner/operator when they failed, so you see a lot of them set up that way.[/quote]

That makes sense. thx
I have to go uphill in some areas when I disc the weeds down so gravity feed didn't work for me. I installed a small electric pump and battery and that has worked out well. The battery will last about 5 hours before needing a charge and that is plenty for the small area that I do.
Cat 22
Serial# 2F237
Please log in or create an account to join the conversation.
Sun, Jun 5, 2011 5:36 AM
35CatTwentyTwo
Offline
Send a private message to 35CatTwentyTwo
Posts: 12
Thank you received: 0
Reply to 22Randy:
I have to go uphill in some areas when I disc the weeds down so gravity feed didn't work for me. I installed a small electric pump and battery and that has worked out well. The battery will last about 5 hours before needing a charge and that is plenty for the small area that I do.
My Twenty Two is a '35 and it has a AC fuel pump. http://www.flickr.com/photos/17087539@N07/5753462298/in/photostream
Please log in or create an account to join the conversation.
Sun, Jun 5, 2011 7:33 AM
35CatTwentyTwo
Offline
Send a private message to 35CatTwentyTwo
Posts: 12
Thank you received: 0
Reply to 35CatTwentyTwo:
My Twenty Two is a '35 and it has a AC fuel pump. http://www.flickr.com/photos/17087539@N07/5753462298/in/photostream
My Cat runs fine but for future reference, who has the rebuild kits for these pumps?
Patrick
Please log in or create an account to join the conversation.
Sun, Jun 5, 2011 7:36 AM
Willie
Offline
Deceased
Send a private message to Willie
Posts: 846
Thank you received: 0
Reply to 35CatTwentyTwo:
My Cat runs fine but for future reference, who has the rebuild kits for these pumps?
Patrick
Gravity works ok on flat ground and if you go up hills you have to keep the gastank full.All 22s had feulpumps the early were brass pumps and the dia. bolts on so all you need to do is cut one out of the proper material, the later used potmetal pump and it has same interal parts as a 50s-60s ford pump or carter pump on chevy. I think John Matta has the parts also. I was getting them from from the woodpecker guy in So Cal Clay Smith Racing Cams they use same dia in they high volume racing pumps. $12.
Please log in or create an account to join the conversation.
Sun, Jun 5, 2011 12:59 PM
