2 ton fan drive

2 ton fan drive

Showing 1 to 6 of 6 results
growlyone
Topic Author
Offline
Send a private message to growlyone
Posts: 14
Thank you received: 0
2 ton leaks oil from fan drive , will housing come out of block, have removed bolts , but not sure if something on back side under head? also not sure about seal ,somebody may have been here before, any help would be
appreciated.also in need of carb for fifteen thanks
Please log in or create an account to join the conversation.
Tue, Jan 9, 2018 10:28 PM
edb
Offline
Member
Send a private message to edb
Posts: 4,027
Thank you received: 0
Hi growlyone,
welcome to the Forum.

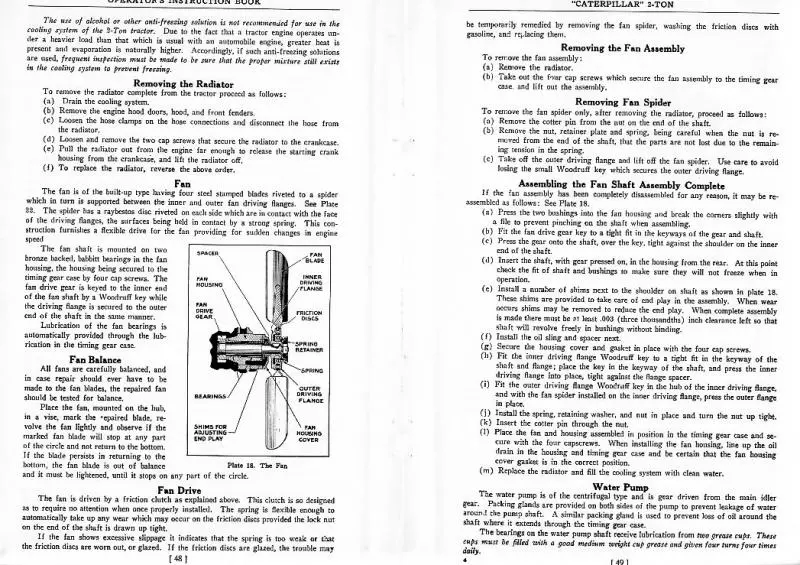

Scan below should help.
Early drives had double row ball races for bearings and later ones had bushings.
Should be a slinger for oil control but if the bushings are worn I guess more oil would be passed thru the bushes and so leak oil out the front. Worn bushes and a resulting a worn front cover shaft bore, engine blow by and clogged engine breather would add to the leak problem too. Early engines had a pitifully small breather that was later enlarged to no doubt overcome some of these issues.

The section on the second page "Assembling the Fan Shaft Assembly Complete" should get you there.
Unit is likely stuck by solidified dirty oil residue. Maybe try tapping the drive housing around, to attempt to turn it with a soft face hammer first.

Click on the attachment and click again for enlargement, click again for further enlargement.

Download this or any data you want to refer back to while it is up, soon I will run out of post space again and will need to delete some of the older data.

Hope this helps.
Cheers,
Eddie B.
Attachment
Please log in or create an account to join the conversation.
Wed, Jan 10, 2018 4:50 AM
growlyone
Topic Author
Offline
Send a private message to growlyone
Posts: 14
Thank you received: 0
Reply to edb:
Hi growlyone,
welcome to the Forum.
Scan below should help.
Early drives had double row ball races for bearings and later ones had bushings.
Should be a slinger for oil control but if the bushings are worn I guess more oil would be passed thru the bushes and so leak oil out the front. Worn bushes and a resulting a worn front cover shaft bore, engine blow by and clogged engine breather would add to the leak problem too. Early engines had a pitifully small breather that was later enlarged to no doubt overcome some of these issues.

The section on the second page "Assembling the Fan Shaft Assembly Complete" should get you there.
Unit is likely stuck by solidified dirty oil residue. Maybe try tapping the drive housing around, to attempt to turn it with a soft face hammer first.

Click on the attachment and click again for enlargement, click again for further enlargement.

Download this or any data you want to refer back to while it is up, soon I will run out of post space again and will need to delete some of the older data.

Hope this helps.
Cheers,
Eddie B.
Attachment
thanks edb got it saved, breather not pluged shaft doesn't seem to bad very little play,didnt work on it today dragging more yellow stuff home
this time air cooled cat engine I believe 800-g anybody got the sheet metal thanks again edb
Please log in or create an account to join the conversation.
Thu, Jan 11, 2018 7:05 AM
blakeystew
Offline
Send a private message to blakeystew
Posts: 569
Thank you received: 0
Reply to edb:
Hi growlyone,
welcome to the Forum.
Scan below should help.
Early drives had double row ball races for bearings and later ones had bushings.
Should be a slinger for oil control but if the bushings are worn I guess more oil would be passed thru the bushes and so leak oil out the front. Worn bushes and a resulting a worn front cover shaft bore, engine blow by and clogged engine breather would add to the leak problem too. Early engines had a pitifully small breather that was later enlarged to no doubt overcome some of these issues.

The section on the second page "Assembling the Fan Shaft Assembly Complete" should get you there.
Unit is likely stuck by solidified dirty oil residue. Maybe try tapping the drive housing around, to attempt to turn it with a soft face hammer first.

Click on the attachment and click again for enlargement, click again for further enlargement.

Download this or any data you want to refer back to while it is up, soon I will run out of post space again and will need to delete some of the older data.

Hope this helps.
Cheers,
Eddie B.
Attachment
[quote="edb"]Hi growlyone,
welcome to the Forum.
Scan below should help.
Early drives had double row ball races for bearings and later ones had bushings.
Should be a slinger for oil control but if the bushings are worn I guess more oil would be passed thru the bushes and so leak oil out the front. Worn bushes and a resulting a worn front cover shaft bore, engine blow by and clogged engine breather would add to the leak problem too. Early engines had a pitifully small breather that was later enlarged to no doubt overcome some of these issues.

The section on the second page "Assembling the Fan Shaft Assembly Complete" should get you there.
Unit is likely stuck by solidified dirty oil residue. Maybe try tapping the drive housing around, to attempt to turn it with a soft face hammer first.

Click on the attachment and click again for enlargement, click again for further enlargement.



Download this or any data you want to refer back to while it is up, soon I will run out of post space again and will need to delete some of the older data.

Hope this helps.
Cheers,
Eddie B.[/quote]

Hi edb

Could you please tell me what book that info came out of?? Is there a service book for the 2 ton?
I have parts book.
Please log in or create an account to join the conversation.
Fri, Jan 12, 2018 3:42 AM
blakeystew
Offline
Send a private message to blakeystew
Posts: 569
Thank you received: 0
Reply to blakeystew:
[quote="edb"]Hi growlyone,
welcome to the Forum.
Scan below should help.
Early drives had double row ball races for bearings and later ones had bushings.
Should be a slinger for oil control but if the bushings are worn I guess more oil would be passed thru the bushes and so leak oil out the front. Worn bushes and a resulting a worn front cover shaft bore, engine blow by and clogged engine breather would add to the leak problem too. Early engines had a pitifully small breather that was later enlarged to no doubt overcome some of these issues.

The section on the second page "Assembling the Fan Shaft Assembly Complete" should get you there.
Unit is likely stuck by solidified dirty oil residue. Maybe try tapping the drive housing around, to attempt to turn it with a soft face hammer first.

Click on the attachment and click again for enlargement, click again for further enlargement.



Download this or any data you want to refer back to while it is up, soon I will run out of post space again and will need to delete some of the older data.

Hope this helps.
Cheers,
Eddie B.[/quote]

Hi edb

Could you please tell me what book that info came out of?? Is there a service book for the 2 ton?
I have parts book.
I have this but it’s useless.[attachment=46523]907FB80B-1B4F-4D91-871C-67CFF85D435E.jpg[/attachment]
Attachment
Please log in or create an account to join the conversation.
Fri, Jan 12, 2018 3:47 AM
BillWalter
Offline
Member
Send a private message to BillWalter
Posts: 307
Thank you received: 0
Reply to blakeystew:
I have this but it’s useless.[attachment=46523]907FB80B-1B4F-4D91-871C-67CFF85D435E.jpg[/attachment]
Attachment
For what's its worth; back in 1972 I had the fan drive off and disassembled. Bearing was bad and no oil seal, only a slinger. Found a bearing in the parts dept along with an oil seal that would "about" fit the housing.
Went to visit my nephew who was teaching industrial arts in a good size high school. He turned out a new shaft, fit bearing to shaft and to housing. Cut housing for oil seal and shaft for good fit. Broached shaft for fan hub to mount to. Put it together and it's been running ever since with out a drop of oil leak. I'm sure there are others who have repaired fan drives in some similar manner, but that was the fix on mine. It was so loose that fan had rubbed on back side of rad. core, good luck!! Bill Walter
Please log in or create an account to join the conversation.
Fri, Jan 12, 2018 4:38 AM
edb
Offline
Member
Send a private message to edb
Posts: 4,027
Thank you received: 0
Reply to BillWalter:
For what's its worth; back in 1972 I had the fan drive off and disassembled. Bearing was bad and no oil seal, only a slinger. Found a bearing in the parts dept along with an oil seal that would "about" fit the housing.
Went to visit my nephew who was teaching industrial arts in a good size high school. He turned out a new shaft, fit bearing to shaft and to housing. Cut housing for oil seal and shaft for good fit. Broached shaft for fan hub to mount to. Put it together and it's been running ever since with out a drop of oil leak. I'm sure there are others who have repaired fan drives in some similar manner, but that was the fix on mine. It was so loose that fan had rubbed on back side of rad. core, good luck!! Bill Walter
Hi Team,
data from the grey Operator's Instruction Book for Caterpillar 2-Ton Tractor, Form No 4024.
I think Ozdozer had them for sale on CD a few years back.
Has plenty of description on how to what ever part of the machine you wish to work on, as well as Operating and Serviceing data.
I guess they come up on Ebay at times too.
Cheers,
Eddie B.
Attachment
Please log in or create an account to join the conversation.
Fri, Jan 12, 2018 5:36 AM
